Bently Nevada 330903-16-23-10-01-00 3300 NSv Retrofit

Bently Nevada 330903-16-23-10-01-00 3300 NSv Retrofit-Ready Proximity Probe: Seamless Compatibility and Legacy System Upgrade

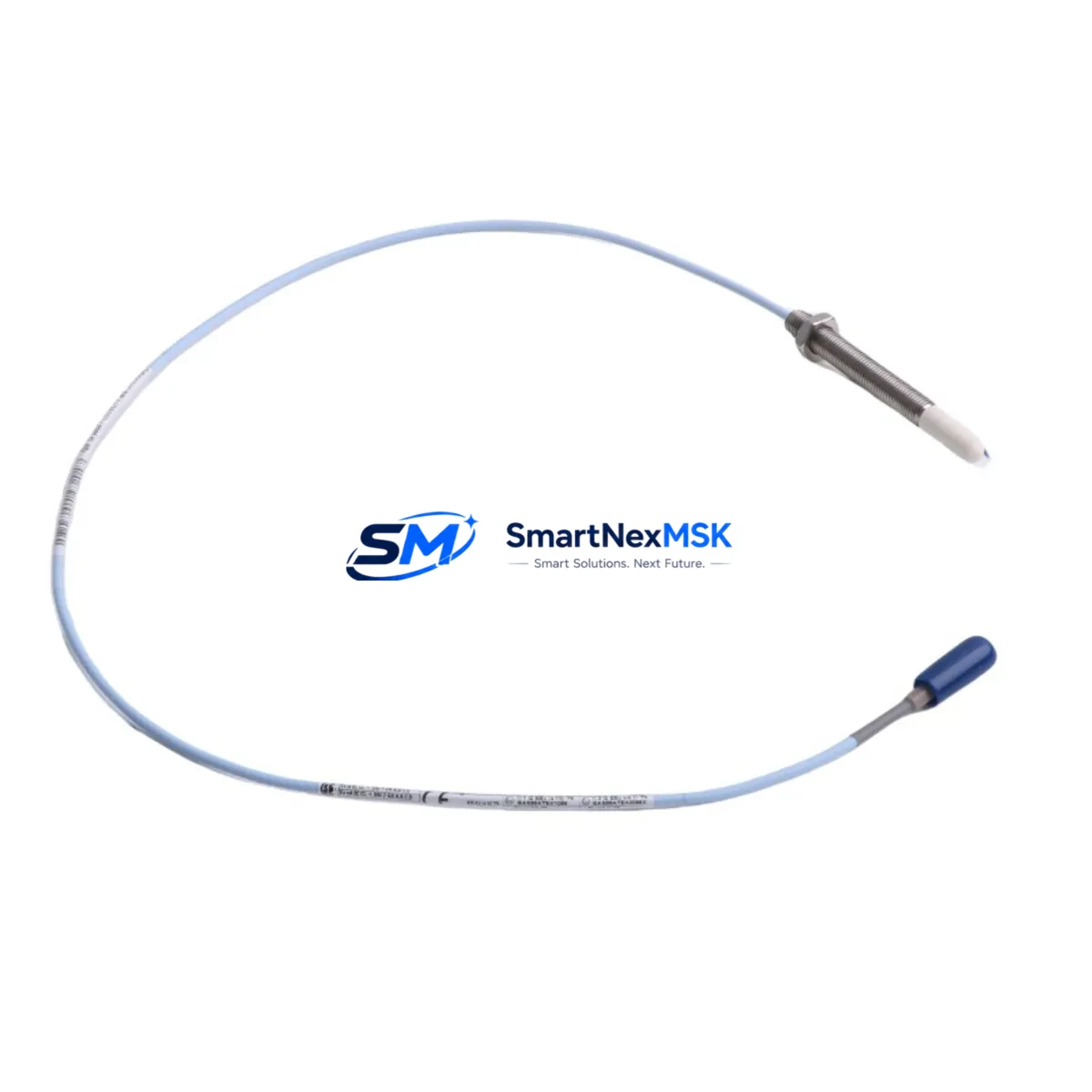

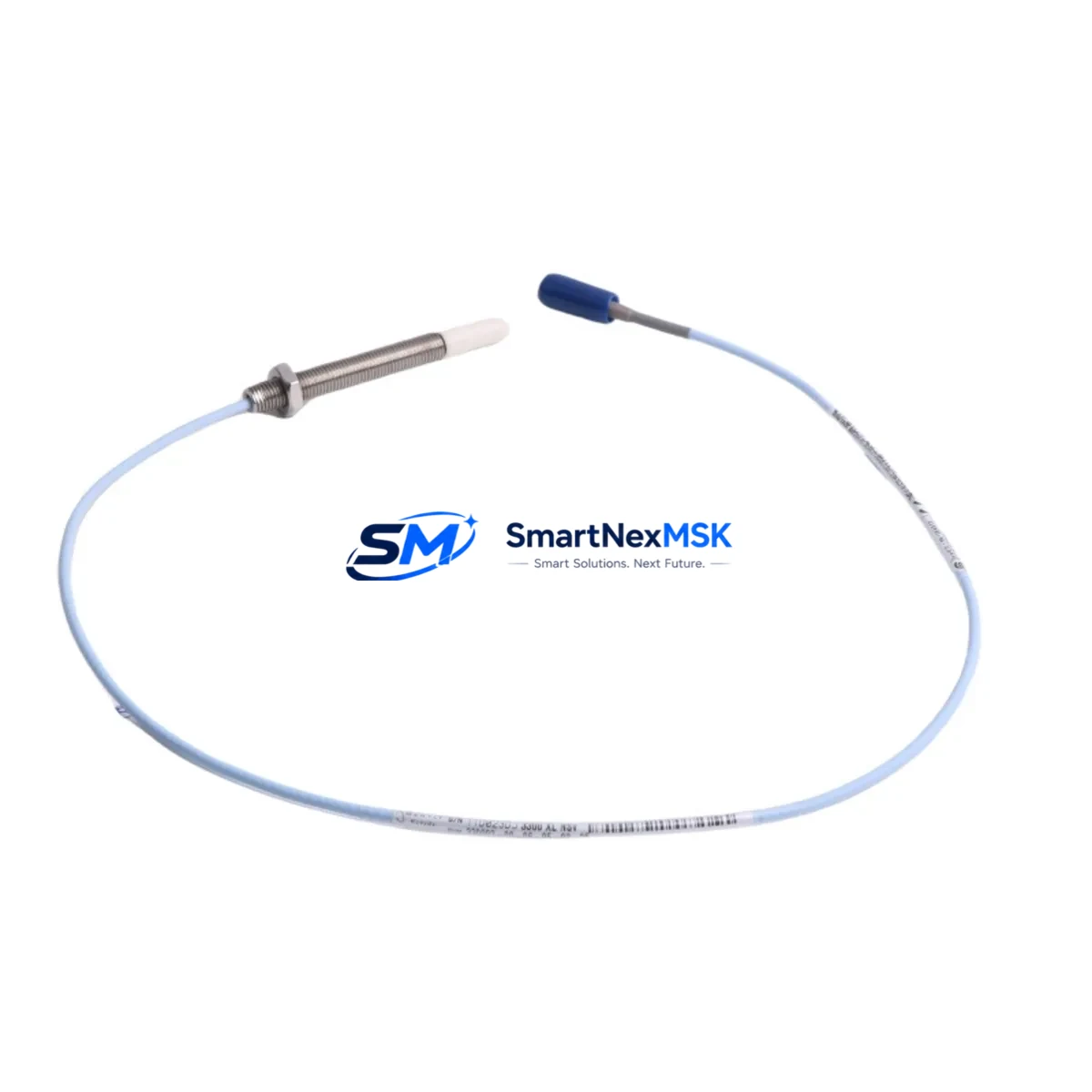

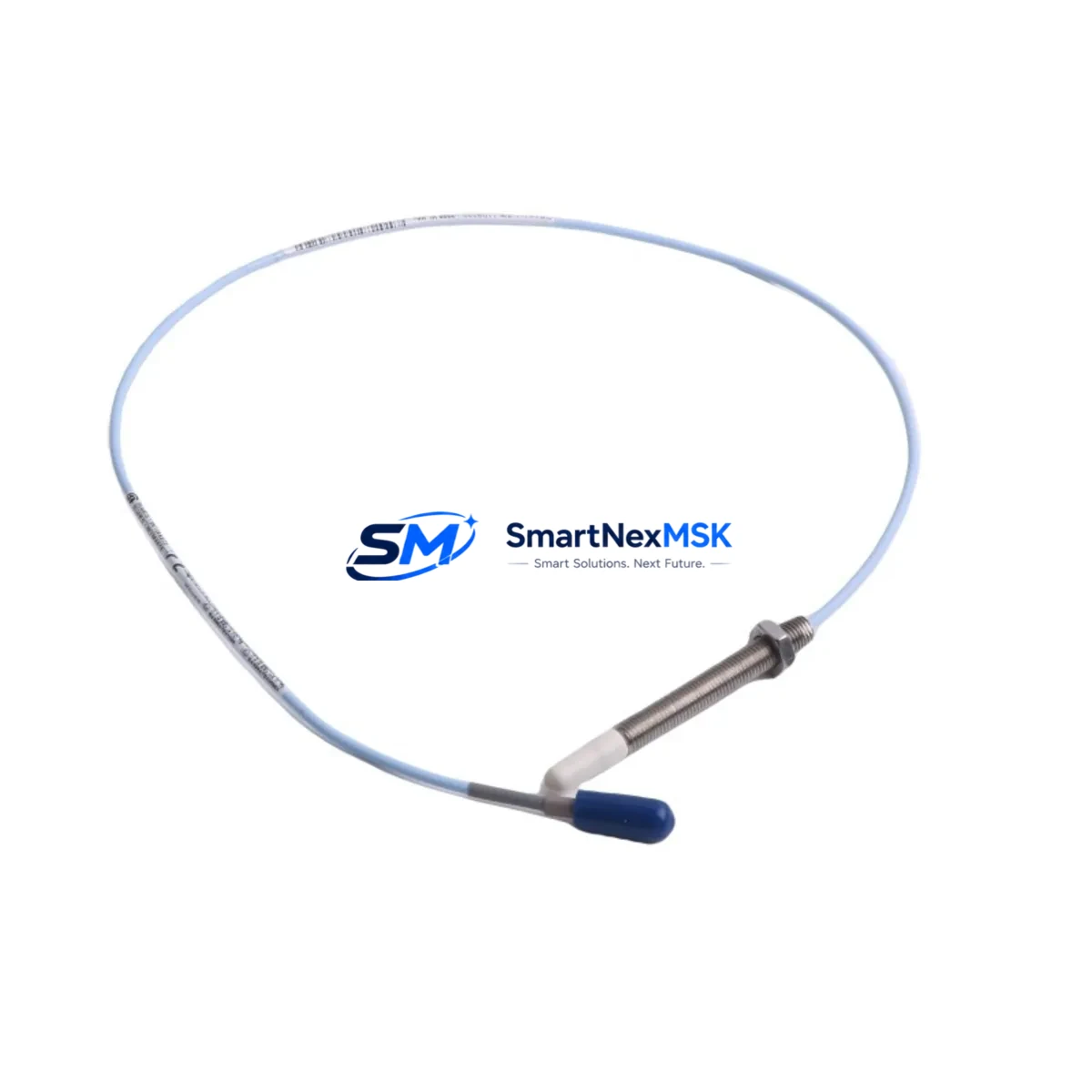

The Bently Nevada 330903-16-23-10-01-00 is a high-precision eddy-current proximity probe engineered for the 3300 NSv monitoring system platform. As aging machinery protection systems reach end-of-life or face discontinued spare parts availability, this probe serves as a direct retrofit solution for facilities operating legacy Bently Nevada 3300 Series installations. Whether you are replacing a failed sensor on a critical rotating machine, upgrading a control cabinet to extend operational life, or migrating from an older 7200 Series or 3300/20 Series architecture, the 330903-16-23-10-01-00 delivers the dimensional accuracy, signal linearity, and environmental robustness required for continuous vibration and position monitoring in demanding industrial environments.

This probe is part of the 3300 NSv (Non-contact Sensor for Vibration) product family, which uses a standardized 5-metre cable assembly and is designed to interface directly with the 3300 XL 8mm driver/extension cable system. The probe tip diameter, thread specification, and sensitivity factor (7.87 V/mm) are factory-calibrated to match the original OEM specification, ensuring that no recalibration of the 3500/42M Proximitor I/O Module or the 3500/22M Transient Data Interface is required upon installation. This is a critical advantage during planned maintenance windows where minimizing downtime is the primary operational constraint.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330903-16-23-10-01-00 into an existing 3300 NSv installation requires a structured pre-installation review. Begin by auditing the existing probe mounting boss: confirm thread size (M10 x 1.0 or 3/8-24 UNF depending on machine OEM specification) and available gap range. The probe must be set to the manufacturer-specified gap voltage, typically between –10.0 VDC and –18.0 VDC, measured at the Proximitor driver output terminal. This gap check is performed using the 3300 XL 8mm Extension Cable paired with the appropriate Proximitor driver module already installed in the 3500 Rack.

Before disconnecting the legacy probe, document the existing terminal wiring at the junction box and at the 3500/42M I/O module field terminal block. The 3300 NSv probe uses a coaxial cable with a standard MIL-C-17 connector; confirm that the existing field wiring and conduit routing are compatible with the replacement probe’s cable jacket rating (typically rated to 121°C continuous). In high-temperature environments such as steam turbine bearing housings or compressor pedestals, verify that the extension cable — often a 3300 XL 5m or 9m extension — is routed away from heat sources and secured with appropriate cable clamps.

For facilities migrating from the older Bently Nevada 7200 Series proximity system, note that the 7200 Series uses a different sensitivity factor (200 mV/mil vs. the NSv system’s 7.87 V/mm metric equivalent). The 3500 rack’s channel configuration in System 1 software must be updated to reflect the new transducer type. This involves modifying the channel configuration in the 3500 Rack Configuration Software, updating the full-scale range, and verifying that the 3500/22M Transient Data Interface correctly captures the new signal baseline. HMI screens connected via Modbus TCP or OPC-DA to the DCS — such as a Honeywell Experion PKS or Emerson DeltaV node — should be reviewed to confirm that the vibration trend displays and alarm setpoints remain valid after the probe swap.

When planning a broader control cabinet upgrade alongside the probe replacement, consider the associated components that are commonly replaced in the same maintenance window: the 3500/15 Power Supply Module, the 3500/01 Rack Interface Module, and the 3500/92 Communication Gateway Module for Ethernet/IP or Modbus connectivity. If the existing rack is a legacy 3300/20 chassis, a full rack migration to the 3500 platform may be warranted, which would also involve replacing the 3300/20 Monitor Module and the associated 3300/20 I/O Module with their 3500-series equivalents. In such cases, the 330903-16-23-10-01-00 probe remains compatible across both platforms, reducing the number of field sensor changes required during the rack migration.

For I/O expansion projects where additional measurement points are being added to an existing 3500 rack, the 330903-16-23-10-01-00 can be deployed on new measurement positions without disrupting existing channels. Coordinate with the site instrumentation team to assign module addresses in the rack configuration software before installation, and confirm that the 3500/42M I/O module has available channel slots. If the rack is at capacity, a second 3500 Rack with a 3500/01 Rack Interface Module and a 3500/15 Power Supply Module will be required to support the additional probes.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is achievable with disciplined pre-staging and a clear work sequence. Before the maintenance window opens, pre-configure the replacement 330903-16-23-10-01-00 probe and its associated 3300 XL Extension Cable as a pre-tested assembly. Bench-test the probe-driver combination using a calibrated target simulator to confirm the gap voltage output and sensitivity factor before the assembly reaches the field. This eliminates the risk of discovering a defective component after the machine has been taken offline.

During the maintenance window, follow a parallel swap sequence: disconnect the legacy probe at the junction box first, install the replacement probe and set the gap, then reconnect at the junction box and verify the Proximitor driver output voltage before re-energizing the 3500 rack channel. This sequence preserves the original wiring documentation and avoids inadvertent cross-connection of channels in multi-probe installations such as radial vibration X-Y pairs or axial position measurement setups.

After the probe is installed and the gap is set, perform a channel bypass in the 3500 rack to suppress alarms during the commissioning check. Verify the vibration baseline reading in System 1 software against the pre-outage trend data. If the machine is a critical asset with a DCS interlock tied to the vibration channel — for example, a high-high vibration trip on a centrifugal compressor — confirm with the control room that the interlock is in bypass mode before releasing the channel from maintenance mode. Once the baseline is confirmed stable, release the bypass and restore normal monitoring. Total field time for a single probe swap using this method is typically 2–4 hours, including gap setting and system verification.

All units supplied by SMARTNEXMSK are subject to pre-shipment functional testing and are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-day dispatch to minimize lead time for urgent maintenance requirements.

Retrofit Support FAQ

Q1: Is the 330903-16-23-10-01-00 a direct drop-in replacement for the original Bently Nevada OEM part?
Yes. The 330903-16-23-10-01-00 is manufactured to the original Bently Nevada specification and is a direct dimensional and electrical replacement. No modifications to the probe mounting, extension cable, or Proximitor driver are required. The sensitivity factor and gap voltage range are identical to the OEM part, so no recalibration of the 3500/42M I/O module or System 1 software configuration is needed.

Q2: Can this probe be used to replace a 7200 Series probe in an existing installation?
The 330903-16-23-10-01-00 is designed for the 3300 NSv system and is not a direct drop-in replacement for 7200 Series probes, which use a different sensitivity factor and connector standard. However, if the site is migrating from a 7200 Series rack to a 3500 Series rack, this probe is the correct sensor for the new platform. The 3500 rack channel configuration must be updated in the 3500 Rack Configuration Software to reflect the NSv transducer type before commissioning.

Q3: What pre-shipment testing is performed on each unit?
Each 330903-16-23-10-01-00 unit supplied by SMARTNEXMSK undergoes functional verification including gap voltage output measurement, sensitivity factor confirmation, and cable continuity check prior to shipment. Units are packaged in anti-static, shock-protected packaging to prevent transit damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: How do I confirm wiring compatibility before installation?
Refer to the Bently Nevada 3300 NSv Installation Manual (document 141536-01) for terminal wiring diagrams. At the 3500/42M I/O module field terminal block, confirm the coaxial cable shield grounding scheme matches the site’s existing grounding practice (single-point ground at the rack end is standard). At the junction box, verify that the existing conduit seal and cable gland are compatible with the replacement probe’s cable outer diameter. If the existing extension cable is a 3300 XL 5m or 9m unit, it can be reused with the new probe without modification.
