Bently Nevada 330904-00-02-05-01-00 Safety Proximity Probe

Bently Nevada 330904-00-02-05-01-00 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

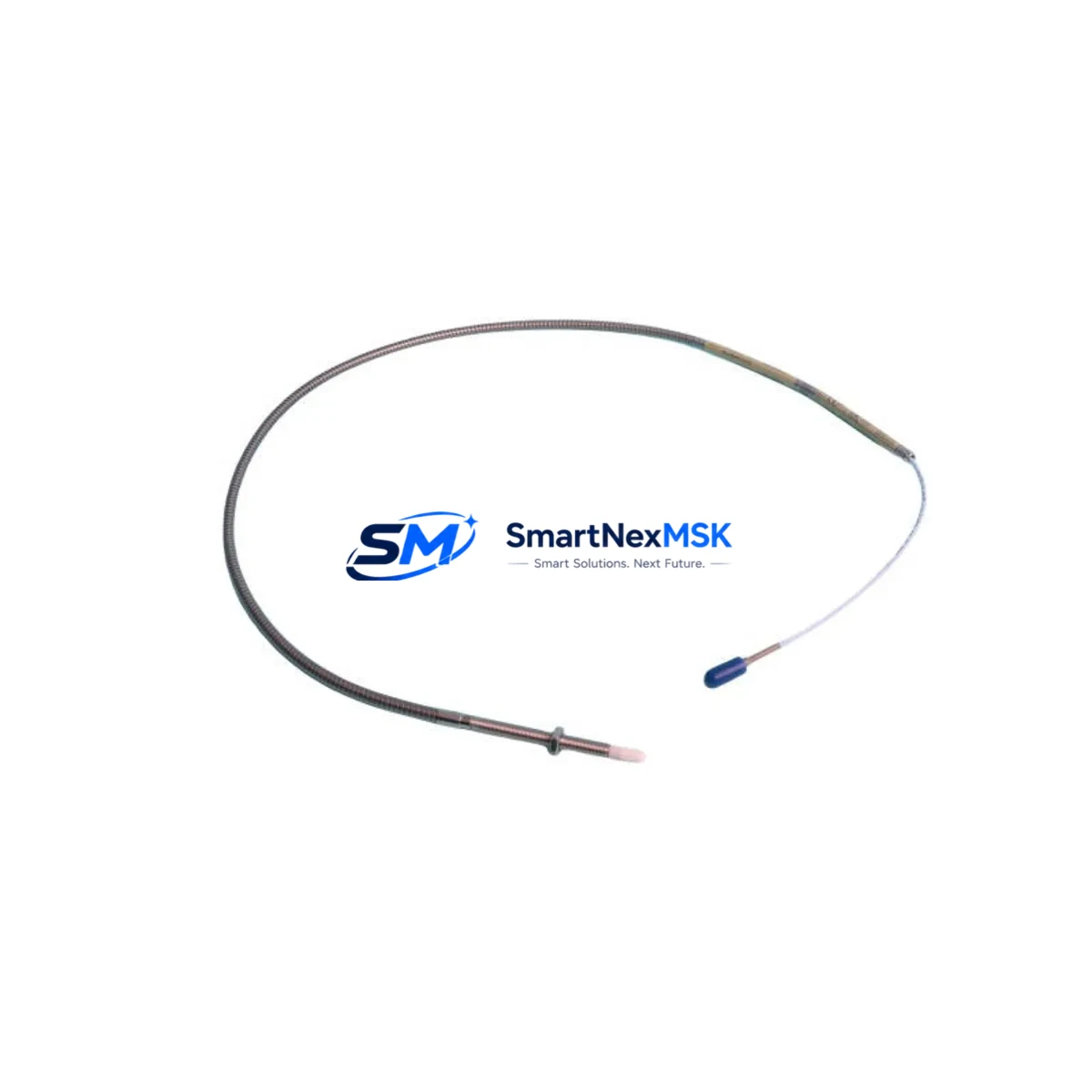

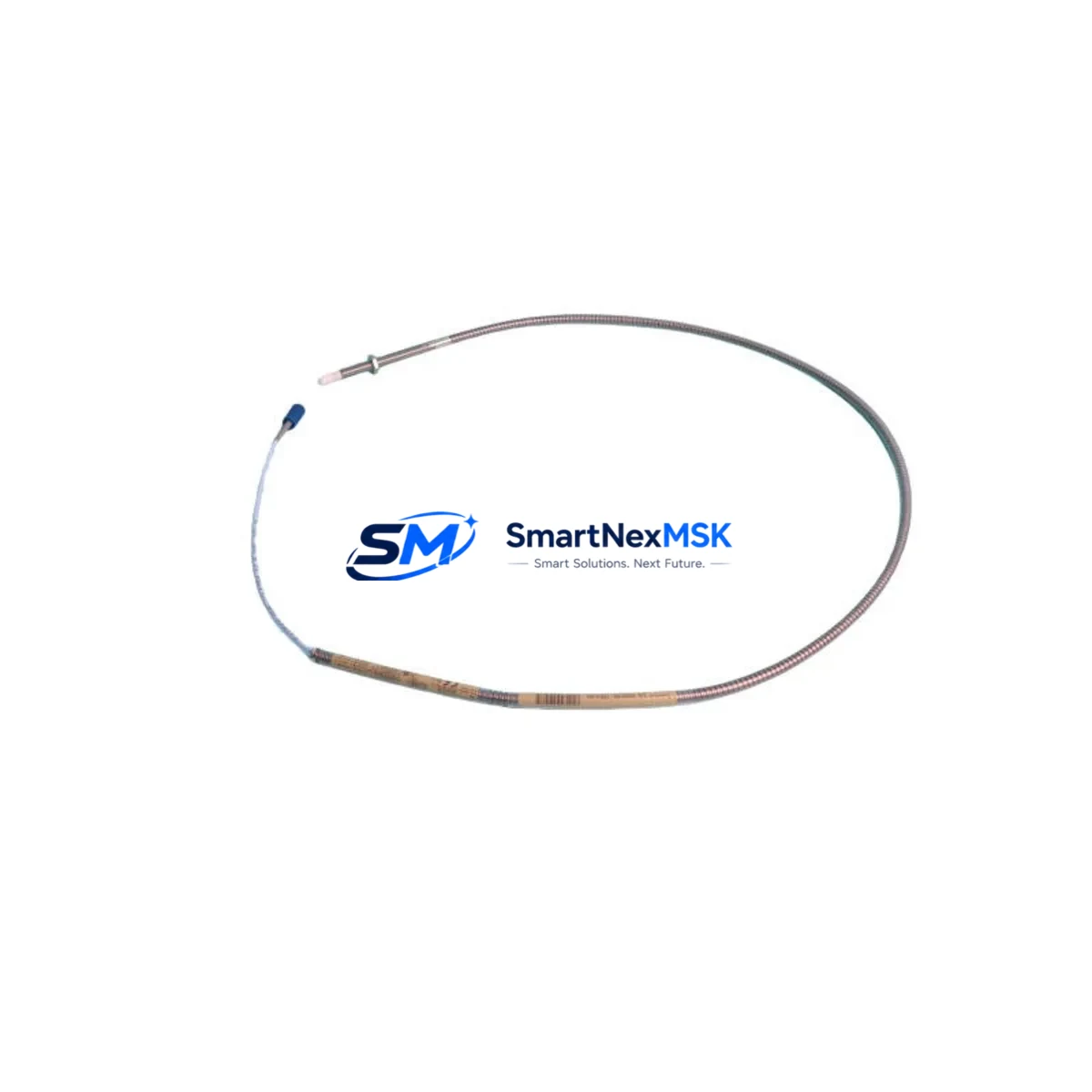

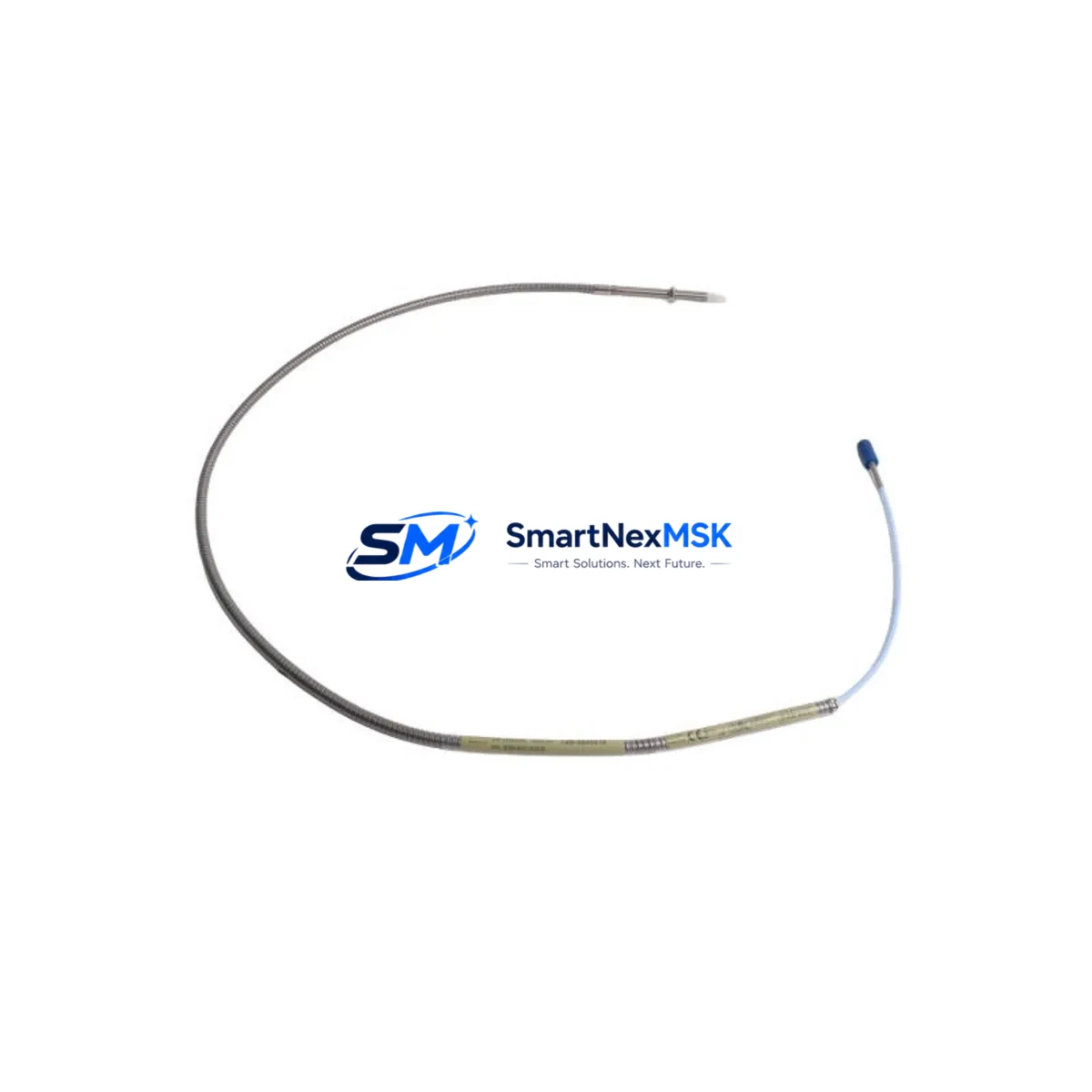

The Bently Nevada 330904-00-02-05-01-00 is an 8mm eddy current proximity probe engineered for the Bently Nevada 3300 XL Series continuous vibration monitoring system. Designed to operate reliably in high-load, high-interference, and safety-critical industrial environments, this probe delivers consistent shaft displacement and vibration data to protect rotating machinery from catastrophic failure. Whether deployed in petrochemical compressor trains, power generation turbines, mining hoists, or continuous steel mill drives, the 330904-00-02-05-01-00 is a cornerstone of any robust machinery protection and safety interlock strategy.

In modern industrial control cabinets and safety instrumented systems (SIS), signal integrity is non-negotiable. The 330904-00-02-05-01-00 proximity probe, when paired with the Bently Nevada 3300 XL 8mm Extension Cable and a compatible 3300 XL Proximitor Sensor, forms a complete eddy current measurement chain that resists electromagnetic interference (EMI), ground loops, and cable-induced signal drift — common failure modes in heavy industrial environments with large motor drives, arc furnaces, or high-frequency switching power supplies. The probe’s ruggedized stainless steel housing and hermetically sealed tip ensure mechanical integrity even when exposed to process fluids, steam, or abrasive particulates.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330904-00-02-05-01-00 proximity probe does not operate in isolation. It is the field-sensing element of a layered protection architecture. The probe feeds raw displacement signals to the Bently Nevada 3300 XL Proximitor Sensor, which conditions and transmits the signal to a Bently Nevada 3500/42M Proximitor / Seismic Monitor module housed in the 3500 rack. The 3500 rack’s backplane distributes power and communication across modules including the 3500/20 Rack Interface Module and 3500/15 Power Supply, ensuring that a single power disturbance does not compromise the entire monitoring chain.

For installations where the probe-to-Proximitor cable run exceeds the standard 5-meter probe cable, the Bently Nevada 330130 Extension Cable is used to maintain signal fidelity over distances up to 9 meters total system length. In high-EMI zones — such as those adjacent to variable frequency drives (VFDs), large contactors, or bus bars — proper cable routing and grounding of the 3300 XL coaxial cable assembly is critical to prevent common-mode noise from corrupting the vibration signal and triggering spurious shutdowns or, worse, masking a genuine fault condition.

The proximity probe measurement chain integrates with plant-level safety systems through the 3500 monitor’s relay outputs, which can be wired directly into a Rockwell Automation GuardLogix Safety PLC or a Siemens SIMATIC S7-300F Fail-Safe CPU to execute automatic trip logic when vibration thresholds are exceeded. In SIL-rated interlock loops, the probe signal may also be routed through a Phoenix Contact safety relay module or a Pilz PNOZ safety controller to provide redundant trip confirmation before actuating emergency shutdown valves or motor contactors. Surge protection devices such as the MTL Instruments surge arrester series are recommended at the cabinet entry point to protect the Proximitor input from transient overvoltages caused by nearby lightning strikes or switching surges on long field cable runs.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor trains and centrifugal pump systems, the 330904-00-02-05-01-00 monitors shaft radial vibration and position to detect bearing wear, rotor imbalance, and oil whirl instability before they escalate to seal failure or catastrophic rotor contact. Continuous monitoring enables condition-based maintenance, reducing unplanned shutdowns in ethylene crackers, LNG liquefaction trains, and crude distillation units.

Power Generation: Steam turbine and gas turbine installations rely on proximity probes to enforce API 670 machinery protection standards. The 330904-00-02-05-01-00 provides the shaft displacement data required by turbine control systems to initiate controlled rundown before bearing damage occurs, protecting multi-million-dollar assets and ensuring grid stability.

Mining & Minerals Processing: In SAG mill drives, conveyor gearboxes, and slurry pump stations, the probe’s IP67 rating and high-temperature tolerance allow reliable operation in dusty, wet, and chemically aggressive environments. Early detection of gearbox eccentricity or shaft misalignment prevents catastrophic failures that could halt ore processing for days.

Water & Wastewater Treatment: Large centrifugal pumps and blower units in water treatment facilities benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing degradation. The 330904-00-02-05-01-00 supports predictive maintenance programs that extend equipment life and reduce emergency repair costs.

Metallurgy & Steel: In continuous casting lines and rolling mill drives, proximity probes monitor roll neck bearings and pinion shaft vibration under extreme load cycles. The probe’s robust construction withstands the thermal radiation, scale, and coolant spray typical of steelmaking environments.

Port & Heavy Lifting: Crane hoist gearboxes and port machinery operate under variable and shock loads. Proximity probe monitoring of hoist drum shafts and slewing ring drives provides early warning of gear tooth damage and bearing spalling, supporting safe lifting operations and regulatory compliance.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330904-00-02-05-01-00?
The 12-month warranty covers all manufacturing defects, calibration failures, and functional anomalies identified under normal operating conditions consistent with the Bently Nevada 3300 XL system specifications. If the probe fails to meet its published sensitivity or linearity specifications within the warranty period, we will provide a replacement unit at no charge. The warranty period begins from the date of confirmed shipment.

Q2: How is each unit tested before shipment?
Every 330904-00-02-05-01-00 unit undergoes a full pre-shipment functional verification, including sensitivity calibration check against a reference target, insulation resistance test, and coaxial cable continuity and impedance verification. Units that do not meet Bently Nevada factory specifications are quarantined and not dispatched. A test record is available upon request for quality-critical applications.

Q3: Is the 330904-00-02-05-01-00 compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330904-00-02-05-01-00 is a direct replacement for all 3300 XL 8mm proximity probe positions. It is fully compatible with the 3300 XL Proximitor Sensor, 3300 XL extension cables, and the 3500 Series monitoring rack when used with the appropriate system scale factor settings. No hardware modifications are required for standard replacement in existing installations.

Q4: Can long-term supply continuity be guaranteed for critical plant spares programs?
We maintain dedicated stock of the 330904-00-02-05-01-00 to support plant spare parts programs and emergency replacement requirements. For customers with critical machinery protection systems, we recommend establishing a standing spare parts agreement to ensure availability during planned turnarounds or unplanned outages. Contact our team to discuss consignment stock or priority supply arrangements tailored to your maintenance schedule.
