Bently Nevada 330904-00-04-10-02-00 Safety Proximity Transducer

Bently Nevada 330904-00-04-10-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

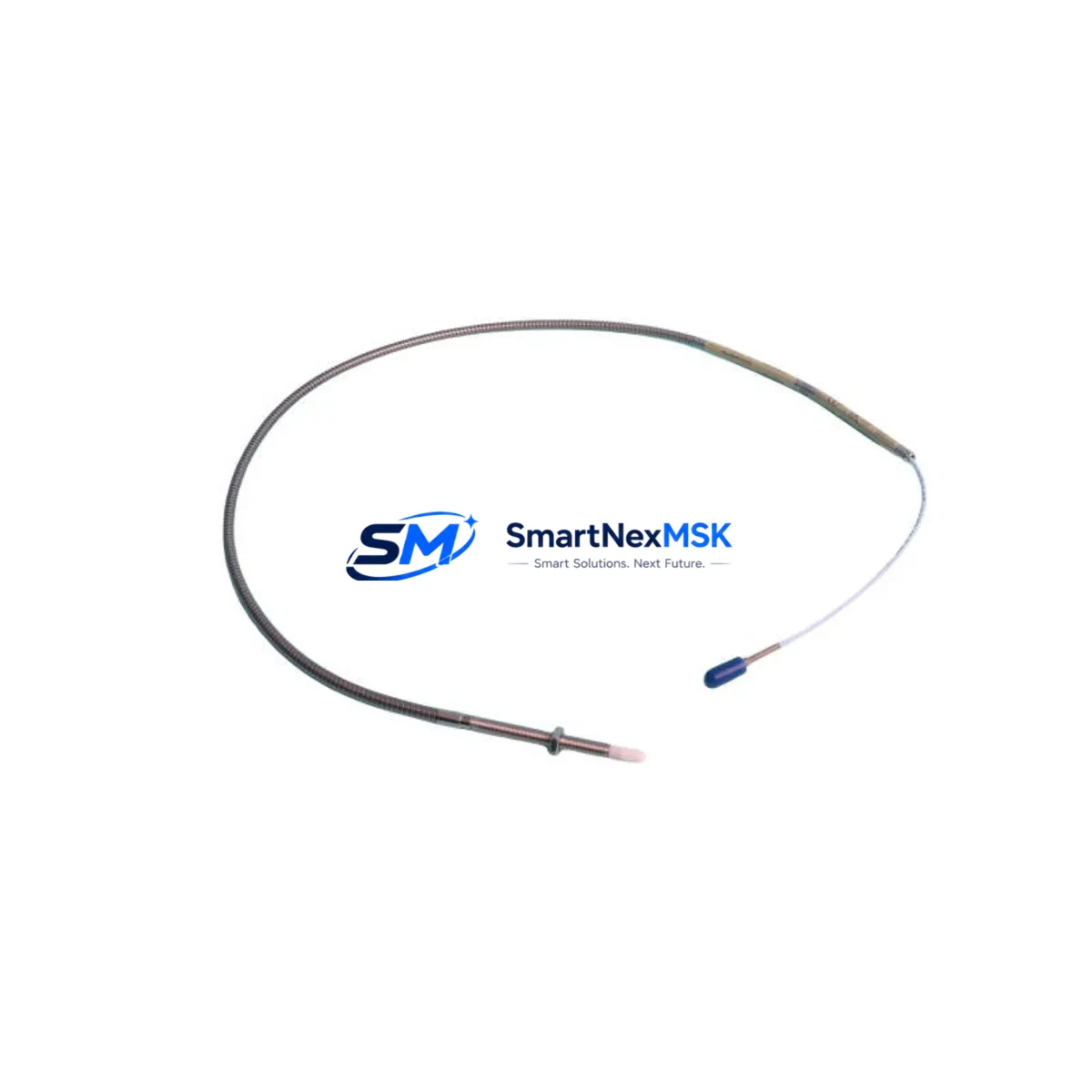

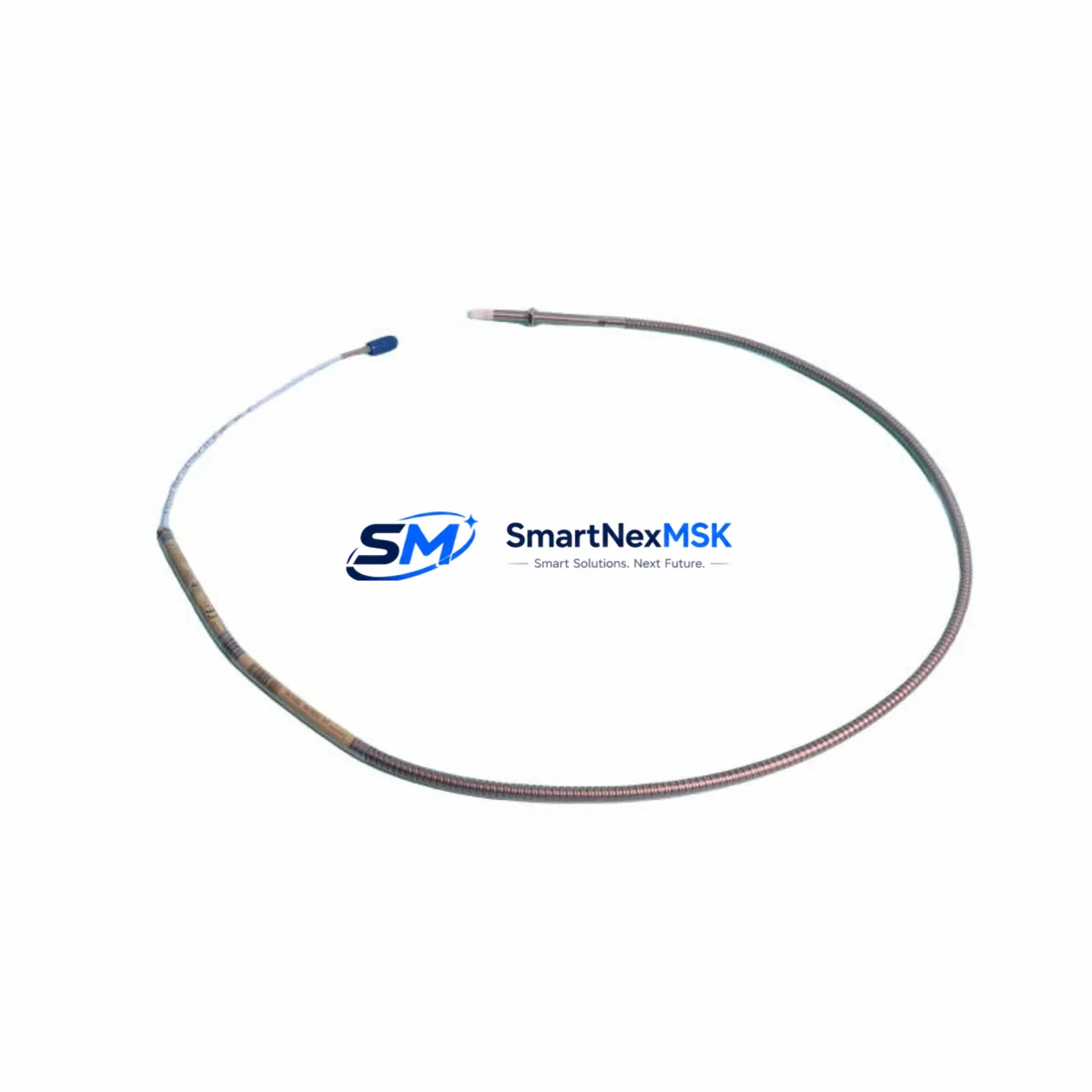

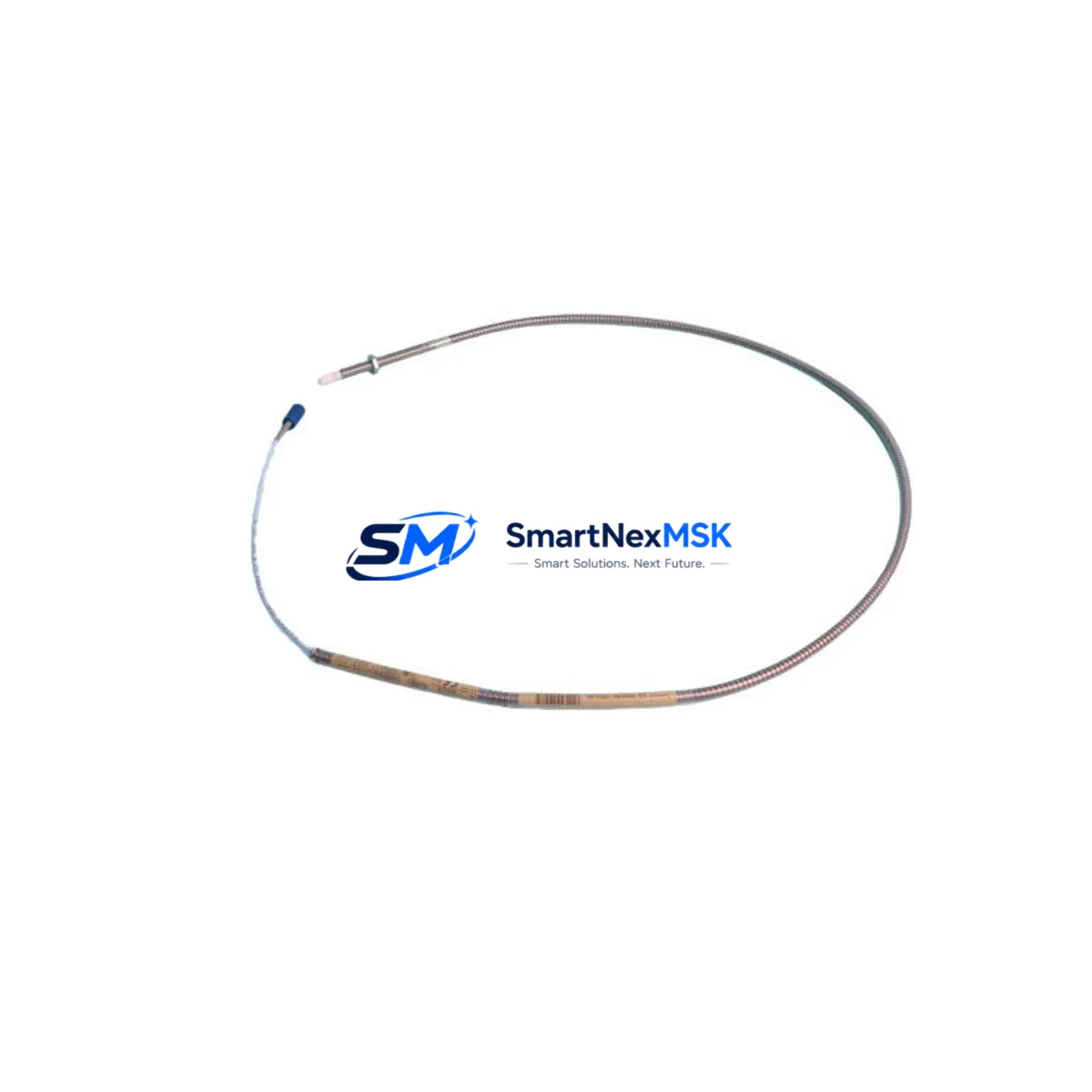

The Bently Nevada 330904-00-04-10-02-00 is a 4-inch proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, high-reliability vibration and position monitoring in the most demanding industrial environments. Designed to operate within critical machinery protection systems, this transducer delivers stable, interference-resistant output signals that form the backbone of safe rotating equipment control — from turbine shafts and compressor trains to pump sets and motor-driven loads in petrochemical, power generation, mining, and metallurgical facilities.

In high-load, high-interference production environments where control interruption is not an option, the 330904-00-04-10-02-00 provides the signal integrity and mechanical robustness required to sustain continuous monitoring without drift, false trips, or measurement degradation. Its eddy-current sensing principle is inherently immune to contamination from oil mist, condensation, and particulate matter — conditions that routinely compromise optical or contact-based sensing technologies in heavy industrial control cabinets and field junction boxes.

Safety Reliability Table

Control Cabinet Protection Strategy

Effective machinery protection in critical industrial installations depends on a tightly integrated system of sensing, conditioning, and protection components. The 330904-00-04-10-02-00 proximity transducer is designed to work seamlessly within the Bently Nevada 3300 XL monitoring architecture, where it pairs with the Bently Nevada 3300 XL 8mm Proximitor Sensor to convert raw eddy-current signals into conditioned DC voltage outputs suitable for direct input to the Bently Nevada 3500/42M Proximitor Seismic Monitor — a rack-mounted module that provides alarm and danger relay outputs to the plant DCS or safety PLC.

Within the control cabinet, surge and transient protection is critical. Proximity transducer signal lines routed from field junction boxes to the monitor rack are vulnerable to induced voltage spikes from nearby variable frequency drives, high-current motor starters, and bus bar switching events. Installing MTL Surge Technologies signal line surge protectors on each transducer channel at the cabinet entry point significantly reduces the risk of Proximitor damage and measurement corruption. For power supply stability, the Bently Nevada 3300 Power Supply module provides regulated, low-ripple -24 VDC to the transducer system, ensuring that supply voltage fluctuations — a common cause of sensitivity drift and false alarms — are eliminated at the source.

In safety-critical interlock loops, the transducer output feeds directly into Bently Nevada 3500 Series rack modules, which interface with the plant’s Triconex or Rockwell GuardLogix Safety PLC via hardwired relay contacts or HART/Modbus communication. This architecture ensures that a shaft displacement event exceeding the danger setpoint triggers an immediate, deterministic machine trip — without relying on software polling cycles that could introduce latency in a time-critical shutdown scenario. Complementary Bently Nevada 3300 XL Extension Cables and field-mount junction boxes complete the signal chain from the rotating machine to the control room, maintaining signal integrity across distances up to 30 meters without amplification.

For installations in classified hazardous areas (Zone 1 or Division 1), the ATEX and FM certifications of the 330904-00-04-10-02-00 allow direct deployment without additional intrinsic safety barriers in many configurations, simplifying the cabinet design and reducing potential failure points in the safety loop. Where barriers are required, Pepperl+Fuchs or MTL zener barriers rated for the 3300 XL system are the recommended interface devices.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In ethylene crackers, crude distillation units, and compressor trains, continuous shaft radial vibration monitoring is a mandatory safety requirement under API 670. The 330904-00-04-10-02-00 is a direct API 670-compliant transducer that supports both radial vibration and axial position measurement when configured with the appropriate Proximitor and monitor module. Undetected shaft displacement in these environments can lead to seal failures, bearing destruction, and catastrophic process releases — making reliable transducer performance a plant safety imperative.

Power Generation: Steam turbines, gas turbines, and large generator sets in thermal and combined-cycle power plants rely on proximity transducer systems for both operational monitoring and overspeed protection. The 330904-00-04-10-02-00 provides the sub-millisecond response time required for turbine protection systems, where a shaft excursion event must be detected and acted upon before mechanical damage propagates to adjacent components.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, shock loading, and abrasive contamination. The IP67-rated probe body and high-temperature tolerance of the 330904-00-04-10-02-00 make it suitable for direct installation in these environments, where conventional sensors fail prematurely due to ingress and thermal cycling.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blower units in water treatment facilities require continuous condition monitoring to prevent unplanned outages that could disrupt municipal water supply. The non-contact sensing principle of this transducer eliminates wear-related drift, ensuring that alarm setpoints remain accurate over multi-year service intervals without recalibration.

Metallurgy and Steel Production: Rolling mills, continuous casters, and induction furnace drives operate in environments with intense electromagnetic interference from high-current bus systems. The shielded coaxial cable construction and high EMI immunity of the 330904-00-04-10-02-00 maintain signal fidelity in these conditions, preventing spurious trips that would interrupt production and cause costly reheating cycles.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330904-00-04-10-02-00?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from published specifications under normal operating conditions. If the unit fails to perform within its specified sensitivity, linearity, or output range during the warranty period, we will provide a replacement or full refund. The warranty period begins from the date of shipment confirmation.

Q2: How is each unit tested before shipment?
Every 330904-00-04-10-02-00 unit undergoes pre-shipment functional verification including gap-versus-output linearity testing, insulation resistance check, and connector integrity inspection. Units are tested against the Bently Nevada 3300 XL system specification to confirm sensitivity (200 mV/mil ±10%) and linear range before packaging. A test report is available upon request.

Q3: Is this transducer compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330904-00-04-10-02-00 is fully compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor and all 3500 Series monitor modules that accept 3300 XL transducer inputs. It is a direct form-fit-function replacement for worn or failed units in existing installations, requiring no reconfiguration of the monitor rack or DCS interface.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain standing inventory of the 330904-00-04-10-02-00 and related 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and multi-unit project requirements. Orders can typically be fulfilled within 3–7 business days for standard quantities. For large-volume or scheduled maintenance contracts, contact our sales team to arrange priority allocation and consignment stock options.
