Bently Nevada 330904-00-04-10-02-05/CN Retrofit Proximity Probe

Bently Nevada 330904-00-04-10-02-05/CN Retrofit Proximity Probe: Compatible Modernization for 3300 NSv Control Systems

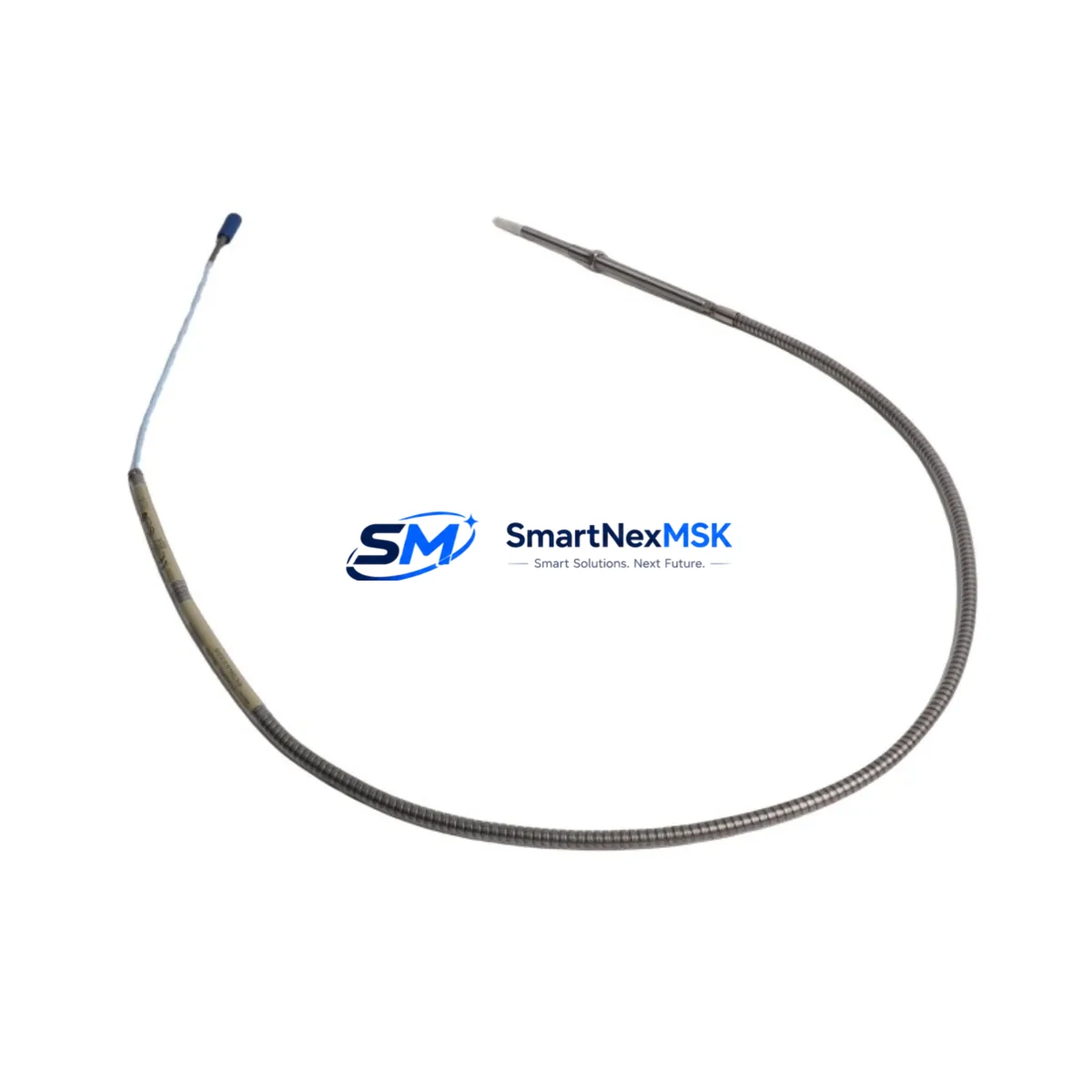

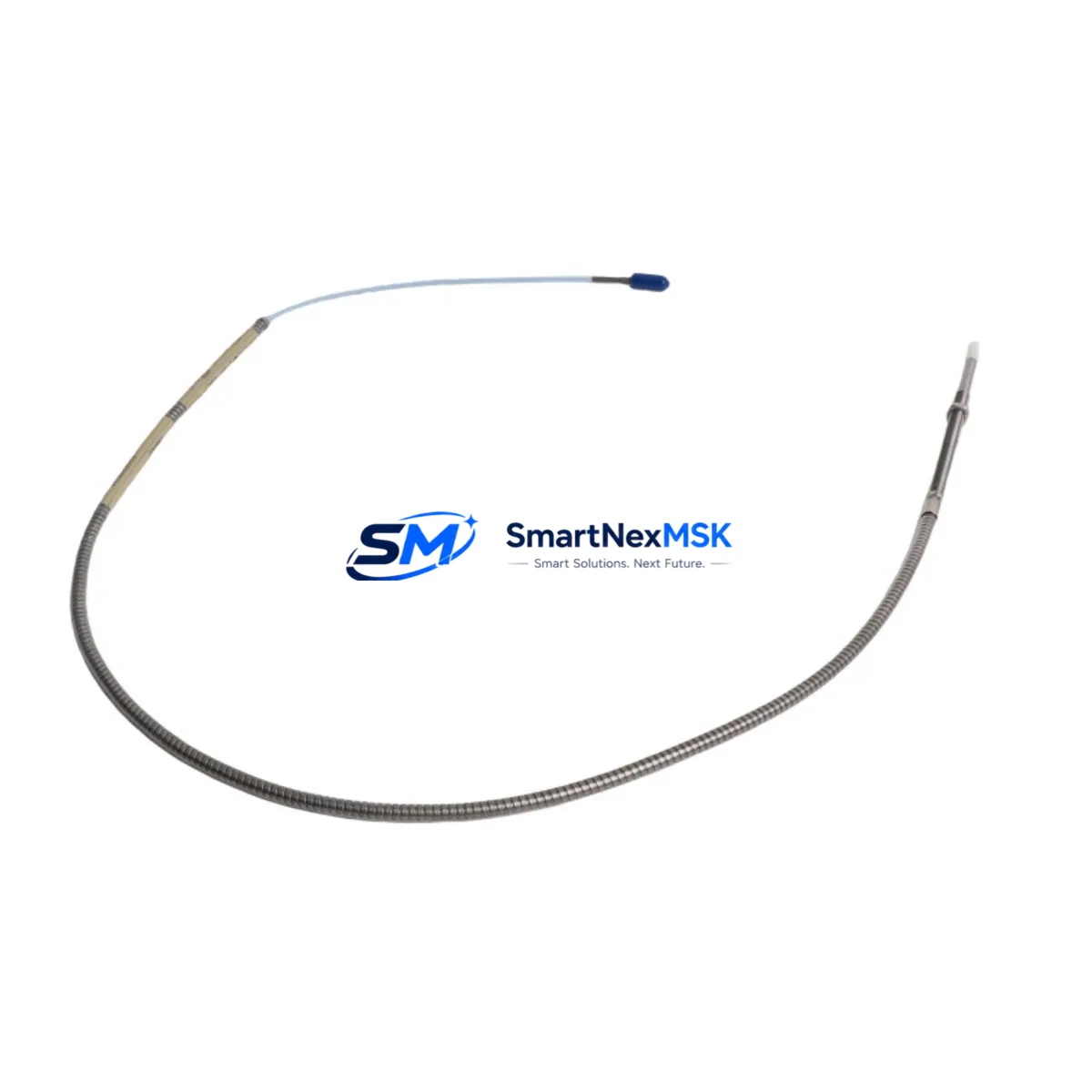

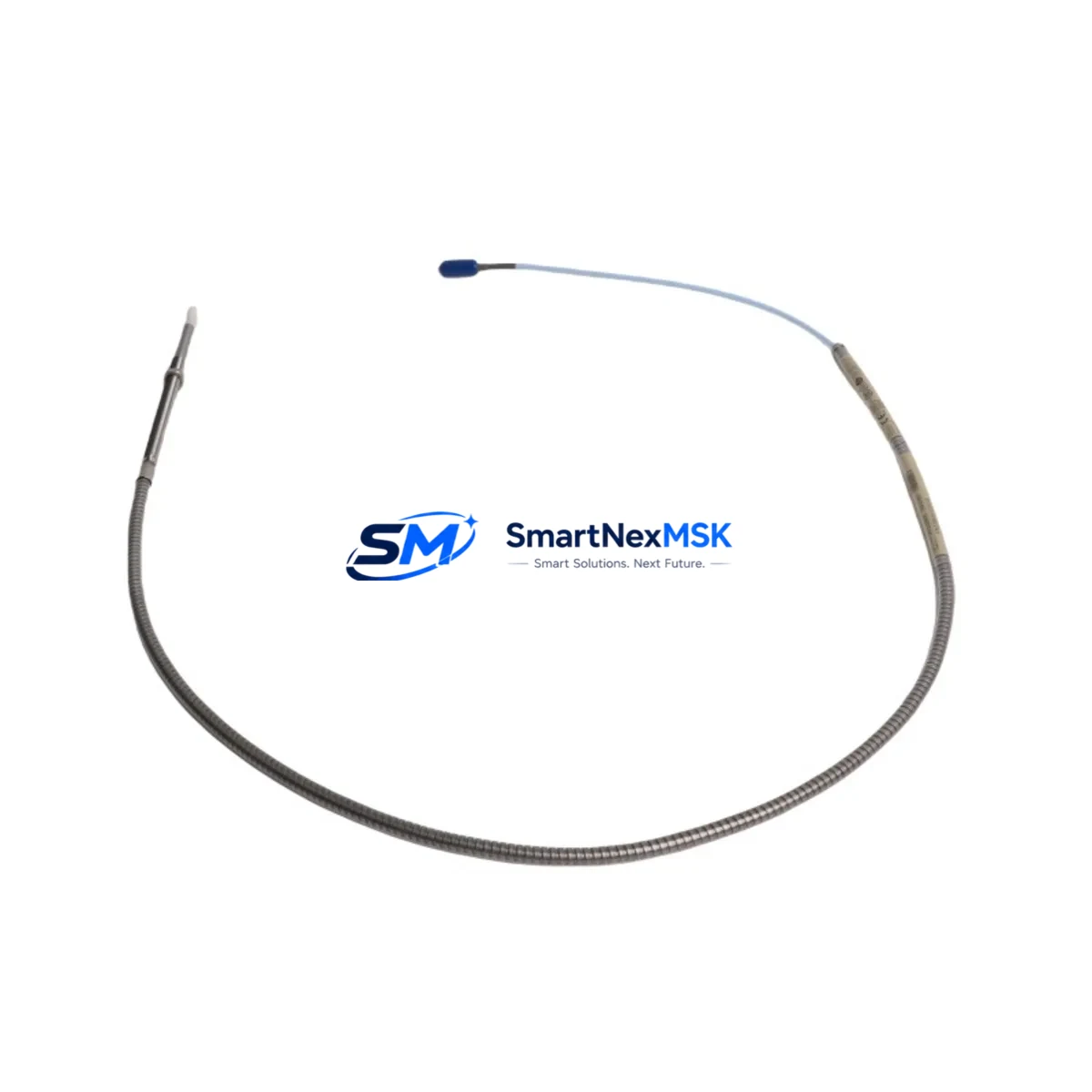

The Bently Nevada 330904-00-04-10-02-05/CN is a high-precision eddy-current proximity probe engineered for the 3300 NSv Proximitor® system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As legacy installations age and OEM support windows close, facilities managing turbines, compressors, pumps, and gearboxes increasingly require verified retrofit-ready replacements that preserve existing wiring infrastructure, Proximitor® signal conditioning, and DCS/PLC integration without forcing a full system overhaul.

This probe is a direct mechanical and electrical replacement for the original 330904-00-04-10-02-05/CN, maintaining the standard 5-metre integral cable length, 8 mm tip diameter, and -24 VDC bias voltage output compatible with the 3300 NSv Proximitor® extension cable and driver electronics. It is suitable for radial vibration, axial position, and differential expansion measurement in API 670-compliant machinery protection systems.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330904-00-04-10-02-05/CN within an active 3300 NSv machinery protection loop requires careful pre-outage planning. The probe interfaces directly with the 3300 NSv Proximitor® module — typically mounted in a 3300/05 or 3300/10 rack — via a 330130-series or 330180-series extension cable. Before removal, engineers should document the existing gap voltage reading (typically -10.0 VDC ±0.5 VDC at nominal air gap) and record the Proximitor® channel configuration, including alert and danger setpoints stored in the 3500/42M or 3500/45 monitor modules if the installation has been migrated to the 3500 rack platform.

For facilities still operating on the legacy 3300 rack, the 3300/05 power supply module should be verified for adequate current capacity before adding or replacing probes on shared rails. The 3300/16 I/O module and 3300/46 position monitor are commonly found alongside proximity probe channels in axial position measurement loops and must be confirmed operational before the new probe is commissioned. In installations where the 3300 system feeds a DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA — the analog input card receiving the -24 VDC proximity signal should be checked for correct scaling and alarm thresholds prior to hot-swap or cold-start commissioning.

Where the control architecture includes a Bently Nevada 3500 rack as the primary machinery protection system, the 330904-00-04-10-02-05/CN probe is equally compatible when paired with the 3500/42M velocity and acceleration monitor or the 3500/40M proximitor I/O module. Technicians should verify that the 3500 rack’s Transient Data Interface (TDI) and System 1 software configuration reflect the correct probe sensitivity (typically 7.87 V/mm or 200 mV/mil) to avoid false alerts during the commissioning window.

For sites undertaking a broader migration from the 3300 platform to the 3500 series, the replacement of proximity probes is typically the first step, followed by swapping the 3300/05 power supply for a 3500/15 power supply module, updating the 3300/16 I/O to 3500/40M I/O modules, and reconfiguring alarm logic in the System 1 condition monitoring software. HMI screens on operator workstations — whether running on a legacy Bently Nevada WMC workstation or a modern System 1 Evolution interface — will require tag remapping if module addresses change during the rack migration.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is a primary concern for rotating machinery operators. The 330904-00-04-10-02-05/CN is designed for in-situ replacement without requiring removal of the Proximitor® module or extension cable, provided the cable connector is undamaged and the probe mount thread (typically M10 × 1.0 or 3/8-24 UNF depending on the probe holder) is in serviceable condition.

Best practice for downtime control includes pre-staging the replacement probe and verifying its static gap voltage output on a bench test rig before the maintenance window begins. The original program logic in the PLC or DCS — including interlock conditions tied to the vibration high-high trip setpoint — should be placed in bypass mode through the approved management-of-change (MOC) procedure before the probe is disconnected. This protects against spurious trips during the gap adjustment phase.

Once the new 330904-00-04-10-02-05/CN probe is installed and the air gap is set to the manufacturer-specified nominal distance (typically 1.0–1.5 mm for 8 mm probes), the Proximitor® output should be measured at the terminal block and compared against the pre-outage baseline. If the installation feeds a 3500/42M or 3500/45 monitor, the System 1 software trend display provides a real-time gap voltage readout that confirms correct installation before the bypass is lifted. All commissioning readings — gap voltage, vibration baseline, and alarm setpoint verification — should be documented in the site’s maintenance management system (CMMS) to support future audits and warranty claims.

Each unit shipped from our inventory undergoes pre-shipment functional testing, including static output verification and cable continuity check, and is supplied with a test report. The 12-month warranty covers manufacturing defects and output drift beyond published specifications under normal operating conditions.

Retrofit Support FAQ

Q1: Is the 330904-00-04-10-02-05/CN a direct replacement for the original Bently Nevada part without rewiring?
Yes. This unit maintains identical connector pinout, cable length, tip geometry, and bias voltage output. No rewiring of the extension cable or Proximitor® terminal block is required. The only field adjustment needed is the standard air gap setting and gap voltage verification during commissioning.

Q2: Which Proximitor® and monitor modules is this probe compatible with?
The probe is compatible with the full 3300 NSv Proximitor® series and is also verified for use with 3500/40M and 3500/42M I/O and monitor modules in the 3500 rack platform. It is suitable for radial vibration, axial position, and differential expansion measurement channels in API 670-compliant systems.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Each unit is tested for static output voltage, cable continuity, and connector integrity before dispatch. A test report is included. The 12-month warranty covers manufacturing defects and output performance outside published specifications under normal service conditions. It does not cover physical damage caused by incorrect installation or gap setting errors.

Q4: Can this probe be used during a migration from the 3300 rack to the 3500 rack platform?
Yes. The probe is mechanically and electrically compatible with both platforms. During a phased migration — where the 3300 NSv Proximitor® is replaced by a 3500/40M I/O module — the probe itself does not need to be changed, reducing migration scope and cost. Sensitivity scaling in the 3500 monitor configuration should be verified to match the probe’s published output (200 mV/mil / 7.87 V/mm).
