Bently Nevada 330904-00-05-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330904-00-05-10-01-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

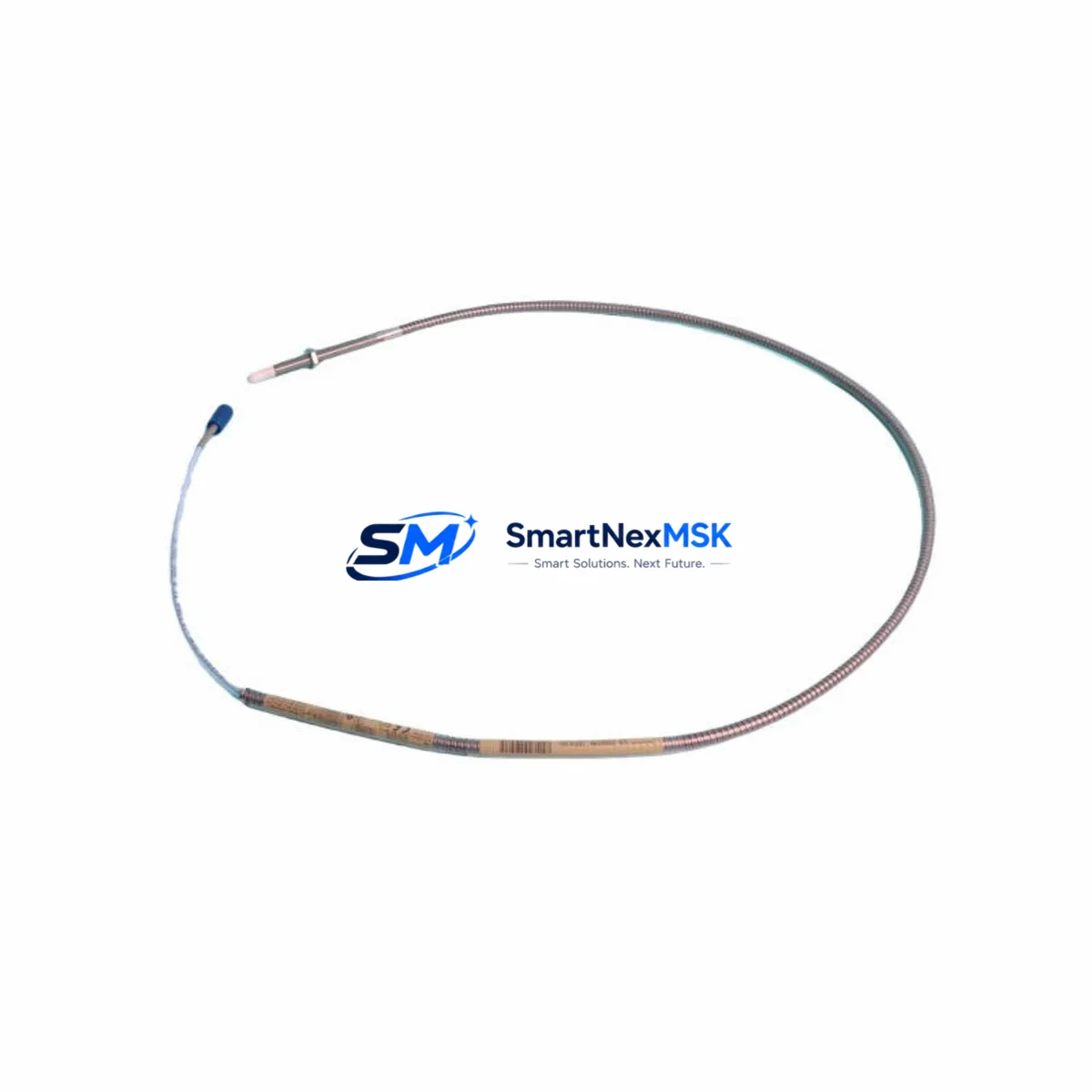

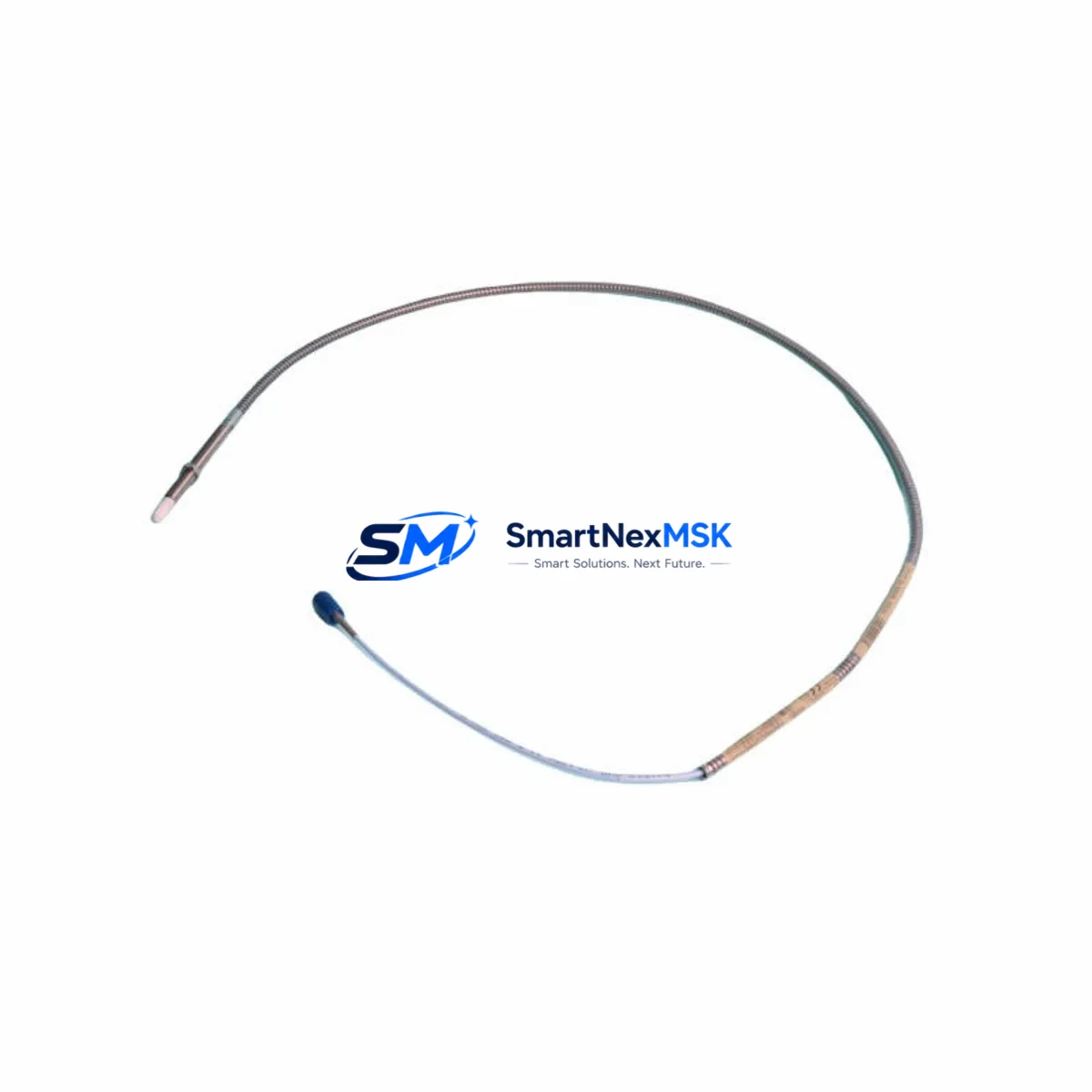

The Bently Nevada 330904-00-05-10-01-00 is an 8mm eddy-current proximity probe engineered for seamless compatibility with the Bently Nevada 3300 XL Series vibration monitoring platform. As legacy 3300 Series installations approach end-of-life and OEM support windows close, this SKU has become a primary retrofit solution for plant engineers managing turbine, compressor, and pump train monitoring systems. Whether you are replacing a failed probe in an emergency shutdown scenario or executing a planned upgrade of an aging control cabinet, the 330904-00-05-10-01-00 delivers verified dimensional, electrical, and signal compatibility with existing 3300 XL monitor cards and field wiring.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330904-00-05-10-01-00 into an operating plant begins well before the probe reaches the field. During the pre-outage engineering phase, technicians should audit the existing 330130-XX-05 extension cable for insulation integrity and connector condition, since a degraded extension cable will introduce gap voltage errors that mimic probe failure. The Proximitor module — typically a 330180-X0-05 or 330180-X0-10 mounted in the 3300 rack — should be inspected for output voltage drift; if the Proximitor is more than ten years old, a parallel replacement is advisable to avoid a repeat outage.

Within the 3300 rack itself, confirm that the 3300/16 Dual Channel Monitor or 3300/25 Keyphasor Monitor firmware is current. Older firmware revisions may not correctly interpret the slightly different sensitivity curve of the XL-generation probe versus the original 3300 probe. If the rack also houses a 3300/55 Overspeed Detection Module or a 3300/46M Machinery Management Module, verify that the channel assignments and OK relay wiring remain consistent after the probe swap.

On the field side, inspect the probe boss thread (M10 × 1.0) for corrosion or galling before installation. Apply anti-seize compound to the probe body threads and torque to the manufacturer specification. After mechanical installation, connect the 330130 extension cable and route it away from high-voltage power cables to prevent electromagnetic interference on the -24 VDC signal loop. The Bently Nevada System 1 software or a portable Commtest VB8 data collector can be used to verify the gap voltage and dynamic signal before the machine is returned to service.

For plants migrating from a legacy 3300 (non-XL) architecture to a 3300 XL platform, the 330904-00-05-10-01-00 probe is the recommended starting point. The migration typically also involves replacing the 3300/20 monitor cards with 3300 XL equivalents and updating the DCS interface — often a Honeywell Experion PKS or Emerson DeltaV node — to accept the revised Modbus or FOUNDATION Fieldbus tag mapping. Coordinate with the DCS engineer to freeze the historian tags before the cutover to avoid data gaps in the process historian.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe retrofit requires a structured hot-swap protocol. Where process conditions permit, request a controlled coast-down rather than an emergency trip so that the machine can be isolated cleanly. Before de-energizing the 3300 XL rack, capture a screenshot or data export of all current alert and danger setpoints from the System 1 configuration database — this record becomes the baseline for post-commissioning verification.

During the probe exchange, keep the 330130 extension cable connected to the Proximitor and monitor the gap voltage on a portable meter. This confirms that the Proximitor and monitor card are healthy before the new probe is installed. Once the 330904-00-05-10-01-00 is gapped and the extension cable reconnected, power the rack and confirm the OK relay closes within the expected voltage window (-10 VDC to -18 VDC at the working gap). Only after the OK relay is confirmed healthy should the machine be released for restart.

For critical trains where zero unplanned downtime is acceptable, consider pre-staging a complete probe-plus-extension-cable assembly on a bench Proximitor before the outage window. This bench test validates the new 330904-00-05-10-01-00 against the actual Proximitor that will be used in the field, eliminating the risk of a mismatched sensitivity pair causing a nuisance trip on first startup.

Retrofit Support FAQ

Q1: Is the 330904-00-05-10-01-00 a direct drop-in replacement for the 330900-00-05-10-01-00?
A: Yes. The 330904-00-05-10-01-00 is the 3300 XL-generation successor to the 330900 probe. It shares the same M10 × 1.0 thread, 5 m integral cable, and -24 VDC supply requirement. Re-gapping to the 3300 XL nominal gap (1.0–1.5 mm) is required; no monitor card reconfiguration is needed if the existing card is already a 3300 XL type.

Q2: What pre-shipment testing is performed on each unit?
A: Every 330904-00-05-10-01-00 shipped by SMARTNEXMSK undergoes bench verification of gap voltage linearity across the full measurement range, insulation resistance testing of the integral cable, and connector continuity check. A test report is available upon request. All units carry a 12-month warranty against manufacturing defects and signal performance deviation.

Q3: Can this probe be used with a non-Bently Nevada Proximitor or monitor?
A: The 330904-00-05-10-01-00 is calibrated for use with Bently Nevada 3300 XL Proximitors. Use with third-party drivers is not recommended without independent calibration, as sensitivity (V/mm) and OK window thresholds are matched to the Bently Nevada system architecture.

Q4: What is the lead time and warranty coverage?
A: In-stock units ship within 1–3 business days. The 12-month warranty covers manufacturing defects, signal output deviation, and cable insulation failure under normal operating conditions. Warranty claims are processed directly through SMARTNEXMSK with advance replacement available for critical applications.
