Bently Nevada 330904-00-07-10-02-05 Safety Proximity Probe

Bently Nevada 330904-00-07-10-02-05 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

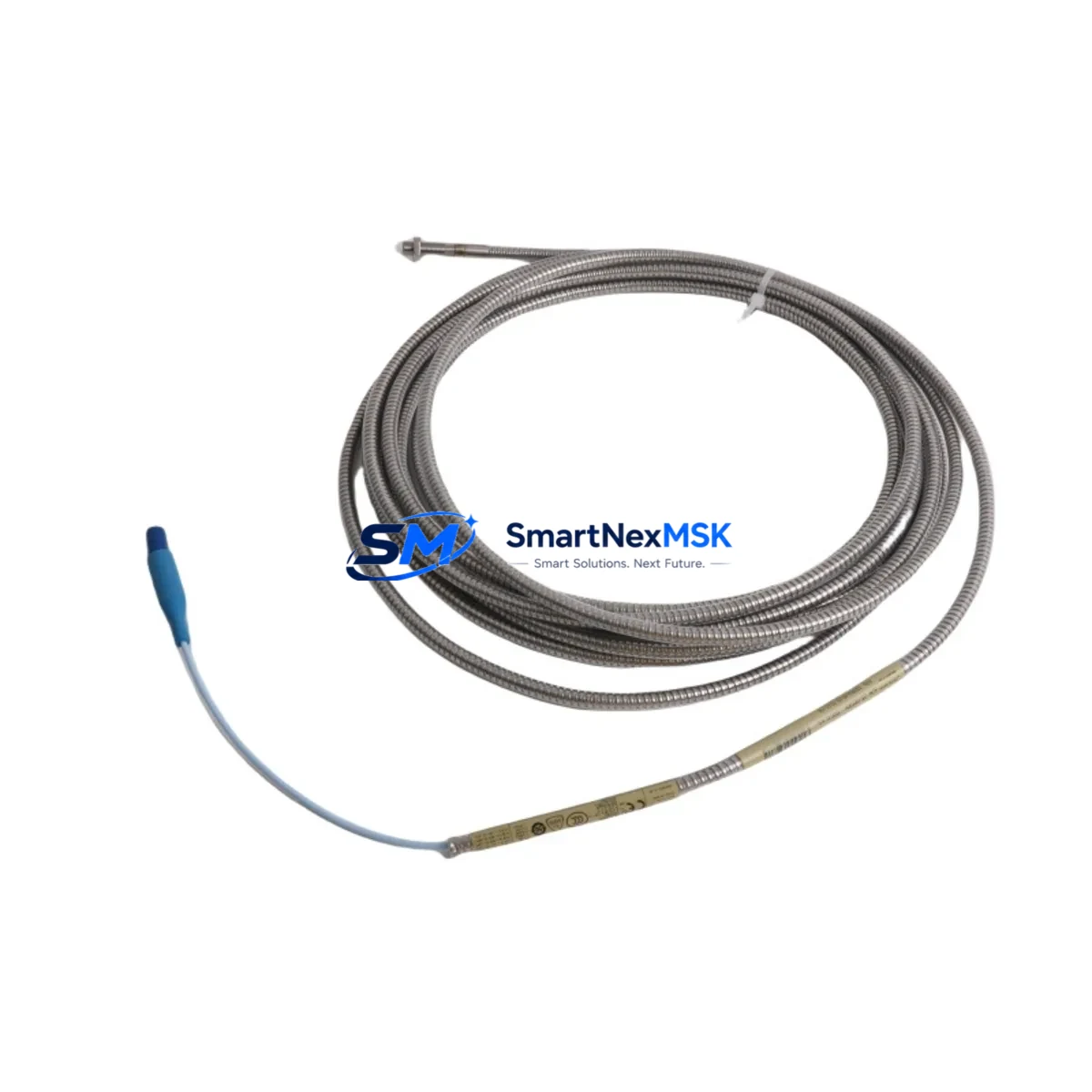

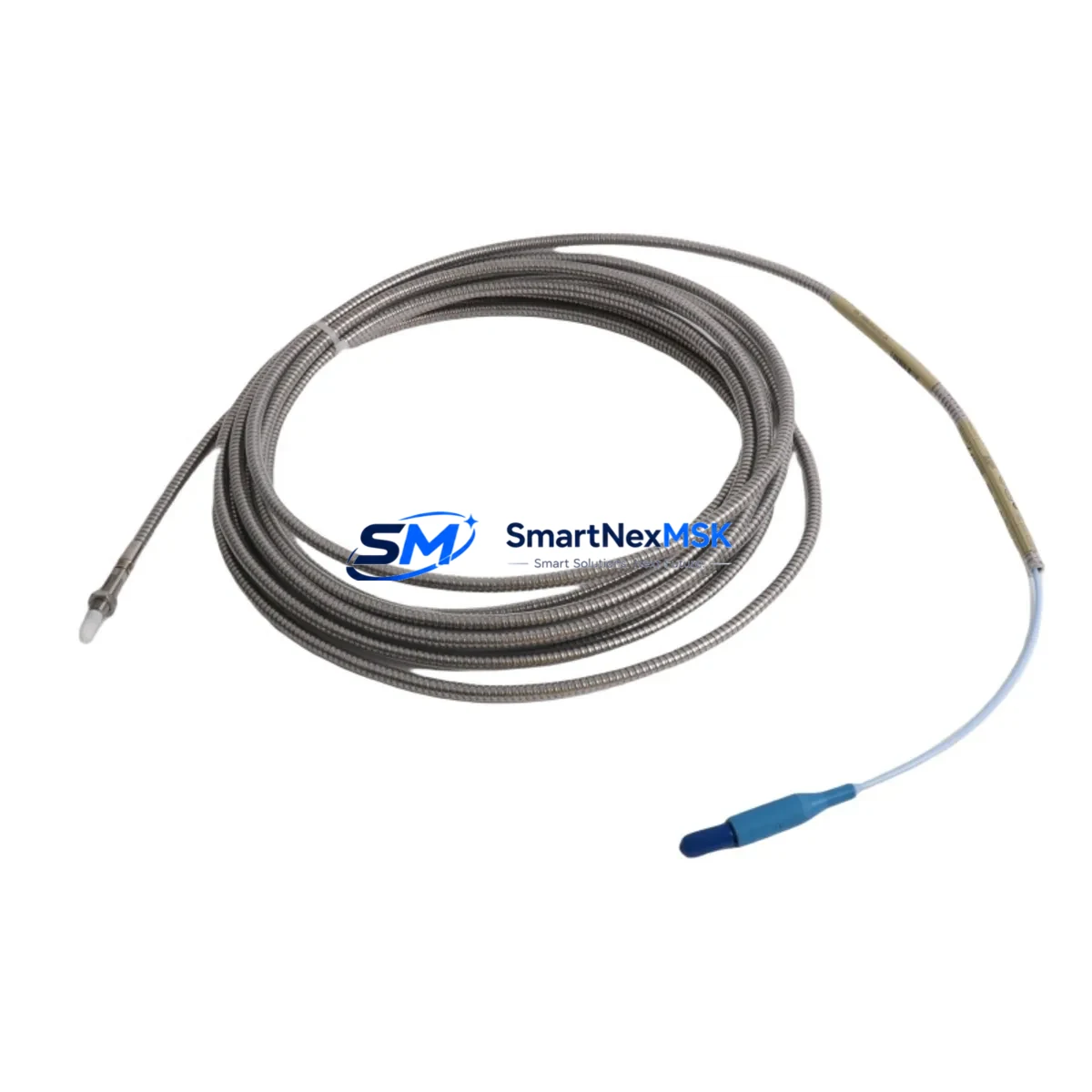

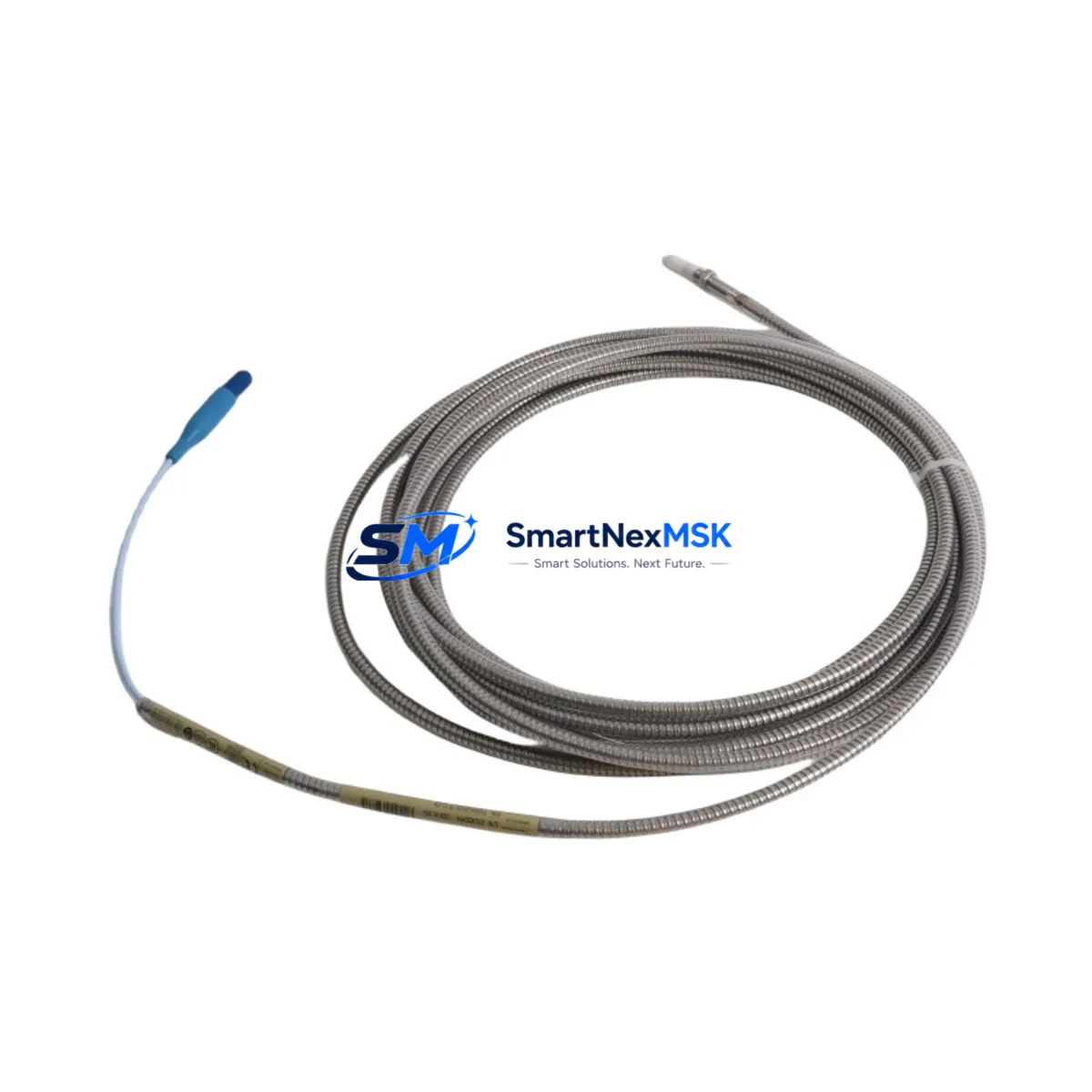

The Bently Nevada 330904-00-07-10-02-05 is a ruggedized 7mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 NSv System, this probe delivers stable, high-resolution shaft displacement and vibration signals even under extreme electromagnetic interference, mechanical shock, high-temperature exposure, and corrosive atmospheres. For plant engineers and reliability teams operating rotating machinery in petrochemical, power generation, mining, water treatment, metallurgical, or port logistics facilities, the 330904-00-07-10-02-05 represents a proven, safety-enhancing solution that minimizes the risk of unplanned shutdowns and protects critical assets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a high-reliability rotating machinery protection system, the 330904-00-07-10-02-05 probe does not operate in isolation — it is the field-sensing front end of a layered safety architecture. The probe connects via a matched Bently Nevada 330130-045-00-00 or 330180-X0-05 extension cable to a dedicated 3300 NSv proximitor / oscillator-demodulator, which conditions the raw eddy-current signal into a clean 0–24 VDC or 4–20 mA output suitable for the Bently Nevada 3500/42M proximity monitor card housed in the 3500 rack.

Within the control cabinet, the 3500 rack is typically powered by a redundant Bently Nevada 3500/15 Power Supply, ensuring that a single power rail fault does not interrupt vibration monitoring. The monitor outputs feed directly into the plant DCS — commonly a Honeywell Experion PKS C300 Controller or an Emerson DeltaV MD Plus Controller — where vibration trip setpoints are enforced as part of the machinery protection interlock logic. For facilities running safety instrumented systems to IEC 61511, the vibration signal may also be routed through a Triconex Tricon TMR Safety Controller or a HIMA HIMatrix F60 safety PLC to provide SIL-rated overspeed or high-vibration trip functions.

Surge and transient protection at the cabinet terminal strip is critical in environments with large motor starts or nearby welding operations. Installing a Phoenix Contact TRABTECH PT 2X2-BE/S-24DC-ST surge protection device on the signal lines prevents voltage spikes from reaching the proximitor input, preserving measurement accuracy and extending probe service life. For facilities with long cable runs between the machine and the control room, a Belden 9182 or equivalent low-capacitance triaxial cable is recommended to maintain signal integrity and minimize phase error at high shaft speeds.

Power quality for the entire instrumentation loop is maintained by a dedicated Phoenix Contact QUINT-PS/1AC/24DC/10 or Siemens SITOP PSU100S 24V/10A DIN-rail power supply, which provides stable 24 VDC with active buffering against input voltage dips. This prevents the false trip events that can occur when a momentary supply interruption causes the proximitor to lose its bias voltage and output a spurious high-vibration signal to the monitor.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, catalytic crackers, and compressor trains, continuous shaft vibration monitoring is a regulatory and insurance requirement. The 330904-00-07-10-02-05 is installed on centrifugal compressors, turbine expanders, and boiler feed pumps where bearing failure or rotor imbalance can trigger catastrophic releases. Its ruggedized armored cable withstands hydrocarbon vapors, H₂S atmospheres, and the thermal cycling common near fired heaters.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on Bently Nevada 3300 NSv probes for shaft eccentricity, differential expansion, and radial vibration measurement. The 330904-00-07-10-02-05 provides the sub-micron resolution needed to detect early-stage rub events and rotor bow conditions before they escalate to forced outages.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, water ingress, and structural vibration. The IP67-rated probe body and ruggedized cable jacket of the 330904-00-07-10-02-05 maintain reliable signal output even when the control cabinet is exposed to fine ore dust and high-pressure washdown cycles.

Water & Wastewater Treatment: High-service pumping stations and blower buildings require continuous monitoring of vertical turbine pumps and centrifugal blowers. The non-contact eddy-current sensing principle of the 330904-00-07-10-02-05 eliminates the wear and drift associated with contact-type sensors, reducing maintenance intervals and improving long-term measurement stability in humid, chemically aggressive environments.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and ID fan shafts in blast furnace systems generate intense electromagnetic noise from large thyristor drives and induction furnaces. The triaxially shielded cable construction of the 330904-00-07-10-02-05 system rejects common-mode interference, ensuring that vibration alarms are triggered by real mechanical events rather than electrical noise artifacts.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330904-00-07-10-02-05?
The 12-month warranty covers all manufacturing defects, sensitivity drift beyond published tolerance, and functional failure under normal operating conditions. If the probe fails to meet Bently Nevada’s published sensitivity specification of 7.87 V/mm ±10% during the warranty period, we will replace or repair the unit at no charge. Warranty claims are processed within 5 business days of receipt of the returned item.

Q2: What pre-shipment testing is performed before dispatch?
Every 330904-00-07-10-02-05 unit undergoes a full functional verification prior to shipment, including sensitivity measurement against a calibrated AISI 4140 steel target, cable continuity and insulation resistance testing, and connector integrity inspection. A test report is available upon request for quality-critical applications.

Q3: Is the 330904-00-07-10-02-05 compatible with the Bently Nevada 3500 Series monitoring system?
Yes. When paired with the appropriate 3300 NSv proximitor (oscillator-demodulator) and a compatible extension cable such as the 330130 or 330180 series, the 330904-00-07-10-02-05 is fully compatible with the Bently Nevada 3500/42M proximity monitor and the broader 3500 rack architecture. Always verify the total system scale factor and gap voltage range match your monitor card configuration before installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain standing inventory of the 330904-00-07-10-02-05 and related 3300 NSv system components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. Blanket purchase orders and consignment stock arrangements are available for facilities with high-volume or time-critical replacement requirements. Contact our team to discuss a dedicated supply agreement.
