Bently Nevada 330904-00-07-50-02-00 Maintenance-Ready Spare for 3300 XL NSv Automation

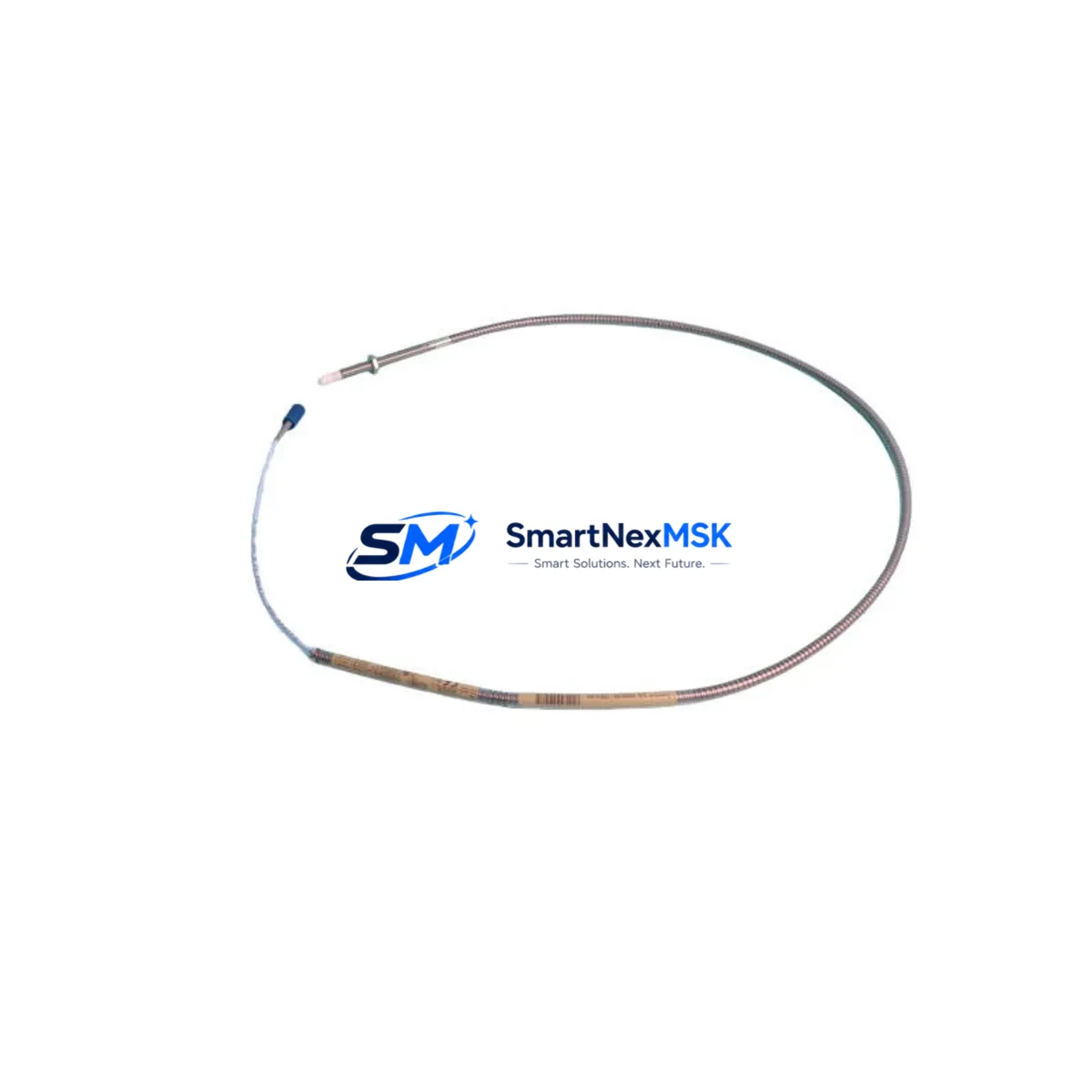

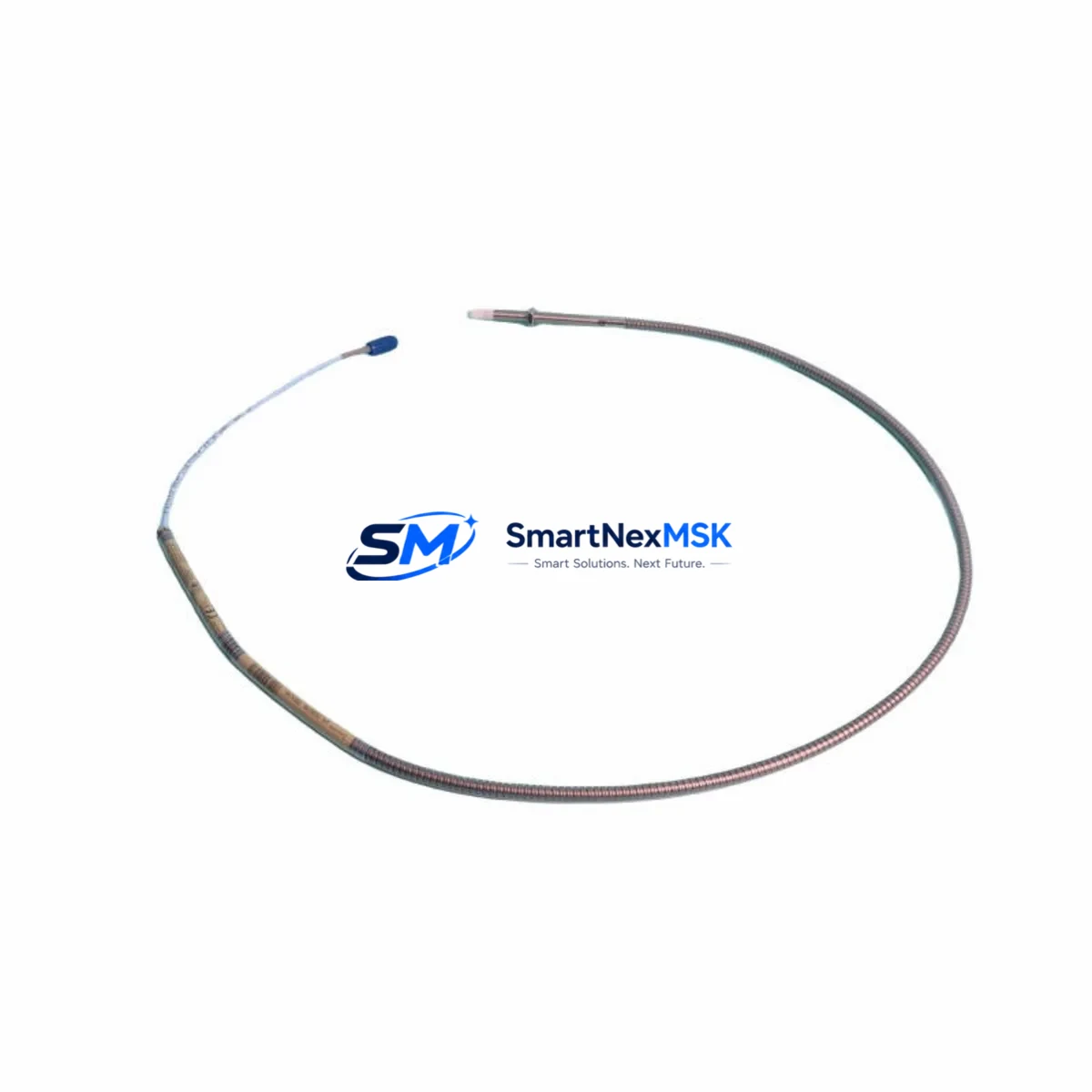

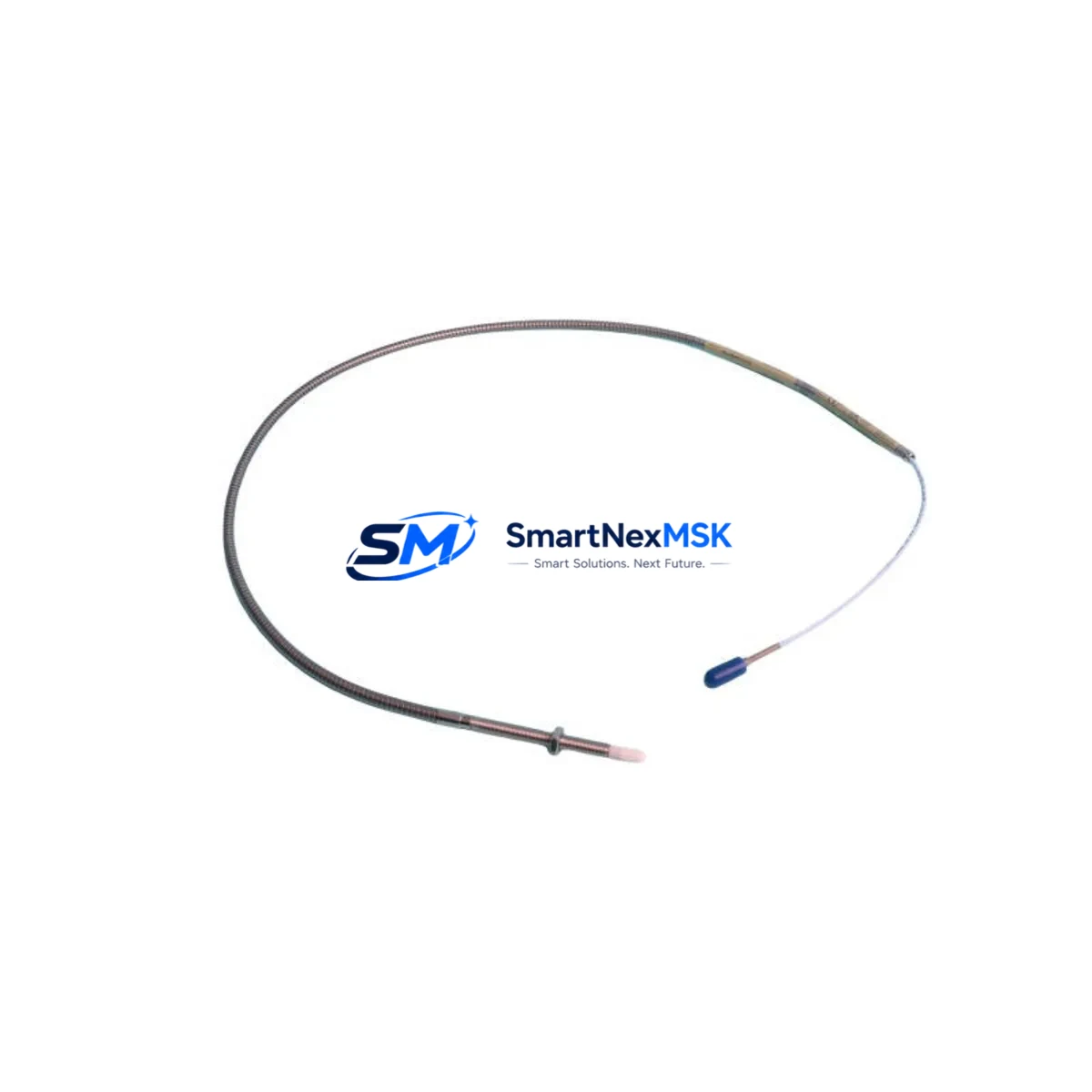

The Bently Nevada 330904-00-07-50-02-00 is an original proximity transducer engineered for continuous vibration monitoring in rotating machinery protection systems. Designed for the 3300 XL NSv series, this transducer delivers reliable non-contact displacement measurement critical to turbine, compressor, and pump protection circuits. For maintenance engineers managing aging machinery protection infrastructure, stocking a verified replacement of the 330904-00-07-50-02-00 is a fundamental element of any proactive downtime-reduction strategy.
When a proximity transducer fails or drifts out of calibration, the entire vibration monitoring loop is compromised. Unplanned shutdowns in rotating equipment environments carry significant production and safety costs. Having a tested, original-specification spare on hand allows site teams to execute a swap within a single maintenance window rather than waiting days or weeks for procurement. This unit ships fully tested against factory electrical specifications, with a 12-month warranty covering manufacturing defects and performance conformance.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330904-00-07-50-02-00 |
| Brand | Bently Nevada |
| Series | 3300 XL NSv |
| Product Type | Proximity Transducer |
| Measurement Principle | Eddy Current (Non-Contact) |
| Cable Length | 7.62 m (25 ft) — encoded in SKU suffix -07 |
| Output Range | -18 VDC nominal (standard 3300 XL driver compatible) |
| Target Material Compatibility | Steel, Inconel, and standard shaft alloys |
| Operating Temperature | -35°C to +121°C |
| Installation | Threaded probe body, standard 3300 XL bracket mount |
| Connector Type | Coaxial, compatible with 3300 XL extension cable |
| Application Environment | Turbines, compressors, pumps, gearboxes |
| Warranty | 12 Months |
| Condition | Original, New / Tested Surplus |
| Origin | United States |
Maintenance Planning for Continuous Operation
Replacing the 330904-00-07-50-02-00 in the field is rarely an isolated task. A thorough maintenance engineer will treat the transducer swap as an opportunity to inspect the entire vibration monitoring loop and adjacent control cabinet components. Begin by verifying the condition of the 3300 XL extension cable (typically a 330130-series cable) that connects the probe to the driver. Cable jacket degradation, connector corrosion, or impedance drift can cause false readings even after a new transducer is installed.
Next, inspect the 3300 XL proximitor/driver module — commonly the 330180 or 330185 series — which conditions the transducer signal and provides the -24 VDC bias voltage. A failing driver will cause the replacement transducer to appear out of range immediately after installation. Confirm the driver’s output voltage and gap voltage are within the 3300 XL system’s acceptance window before closing out the work order.
The power supply feeding the 3300 XL rack should also be checked. Bently Nevada rack power supplies, such as the 3300/20 or equivalent, must deliver stable, regulated DC to ensure accurate transducer readings. Voltage ripple or supply sag will introduce noise into the vibration signal chain. While the cabinet is open, inspect terminal blocks and field wiring for signs of insulation breakdown, loose terminations, or moisture ingress — all common contributors to intermittent transducer faults in industrial environments.
For systems integrated with a DCS or safety instrumented system (SIS), verify that the 4–20 mA or relay output from the 3300 XL monitor card is correctly received at the I/O module. Faulty I/O cards or signal isolators between the monitor and the DCS can mask a successful transducer replacement. If the site uses a Keyphasor module (such as the 3300/25 or 330180 Keyphasor driver), confirm its gap voltage and signal quality as part of the same inspection cycle, since phase reference errors affect overall vibration analysis accuracy.
Finally, review the HMI or condition monitoring software (such as System 1 or equivalent) to confirm that the new transducer’s gap voltage and sensitivity are correctly entered. Incorrect configuration parameters will cause the system to flag a healthy transducer as faulted. Document the as-found and as-left gap voltages in the maintenance record to support future trend analysis and spare parts planning.
Site Replacement Workflow
Before removing the 330904-00-07-50-02-00 from service, confirm the machinery protection system is in bypass or the relevant trip channel is inhibited per site safety procedures. Record the existing gap voltage (typically displayed on the 3300 XL monitor front panel or via System 1) as the baseline for the replacement unit’s installation target.
Remove the old transducer by disconnecting the coaxial connector at the proximitor and unthreading the probe body from its mounting bracket. Inspect the target area on the shaft for surface damage, scoring, or runout that could affect the new transducer’s reading. Install the 330904-00-07-50-02-00 replacement, threading it to the same depth as the previous unit, then fine-adjust to achieve the specified gap voltage per the 3300 XL system documentation (typically 10.0 ± 0.5 VDC for standard steel targets).
Reconnect the extension cable, restore the monitoring channel from bypass, and confirm the gap voltage, vibration reading, and alarm/trip setpoints are all within normal parameters before returning the machine to service. This workflow minimizes downtime and ensures the replacement is fully validated before the maintenance window closes. For aging systems where the original transducer model has been superseded, the 330904-00-07-50-02-00 provides a direct form-fit-function replacement that maintains full compatibility with existing 3300 XL drivers, cables, and monitor cards without requiring reconfiguration.
Spare Parts Support FAQ
Q: Is the 330904-00-07-50-02-00 compatible with all 3300 XL NSv monitor configurations?
A: Yes. The 330904-00-07-50-02-00 is designed for the 3300 XL NSv system and is compatible with standard 3300 XL extension cables and proximitor/driver modules. Always verify the target material and gap voltage specification against your specific monitor card configuration before installation.
Q: What is the warranty coverage and how is it validated?
A: Each unit carries a 12-month warranty from the date of shipment, covering manufacturing defects and performance non-conformance. Units are tested prior to dispatch against key electrical parameters including output voltage range and sensitivity. Test records are available upon request.
Q: How should I manage long-term spare parts inventory for 3300 XL systems?
A: We recommend maintaining at least one spare transducer per critical machine train, along with a matched extension cable and a spare proximitor driver. For facilities with multiple 3300 XL racks, a pooled spare strategy covering the most common transducer lengths and cable configurations reduces both inventory cost and emergency procurement lead time.
Q: Can this unit replace older or discontinued Bently Nevada proximity transducer models?
A: The 330904-00-07-50-02-00 is a current-specification part within the 3300 XL NSv product family. It can serve as a direct replacement for earlier 330900-series transducers of equivalent cable length and sensitivity, provided the gap voltage and target material specifications are compatible. Consult the 3300 XL system documentation or contact our technical team to confirm cross-compatibility for your specific application.
