Bently Nevada 330904-00-08-50-02-00 Safety Proximity Transducer System: Reliable Control in Harsh Industrial Sites

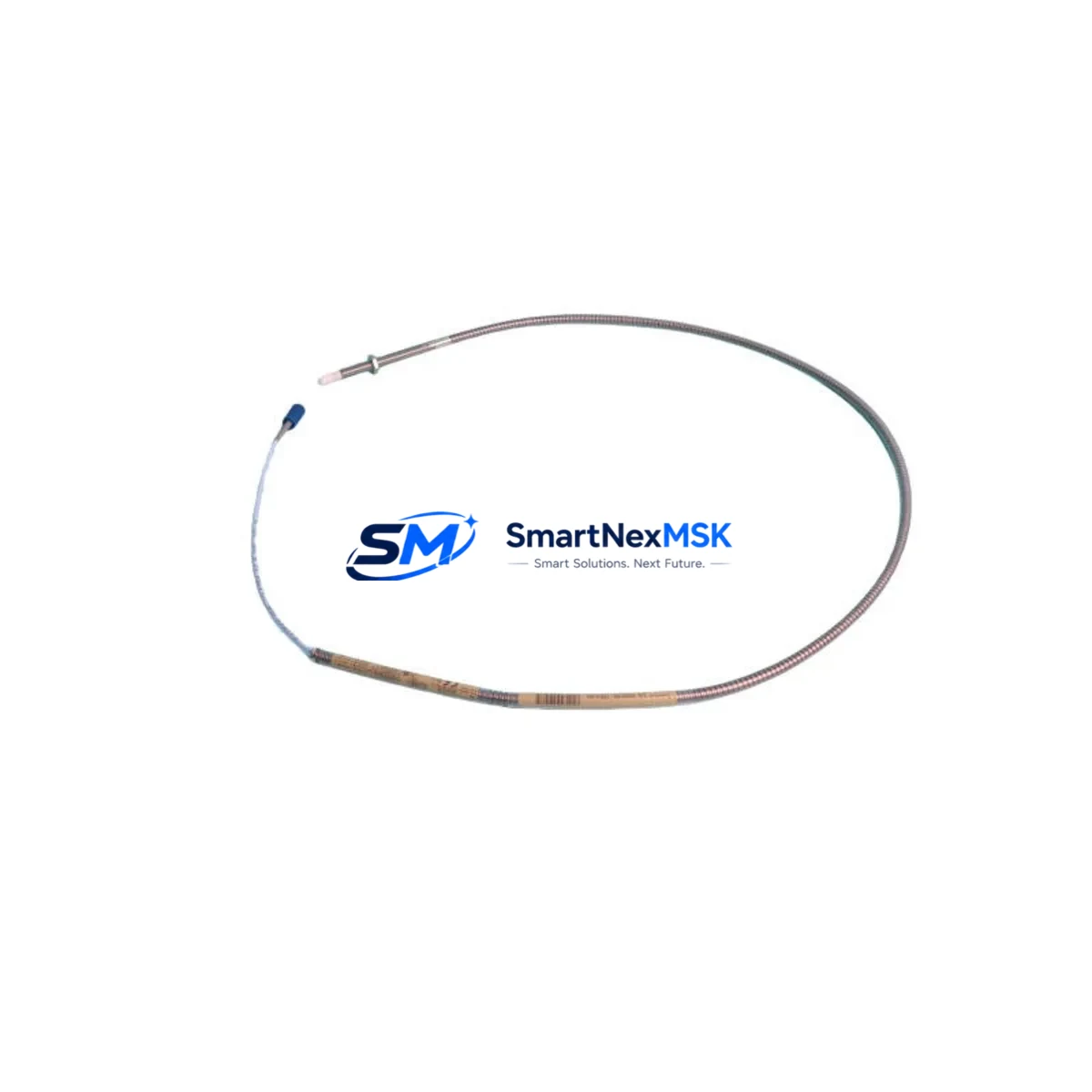

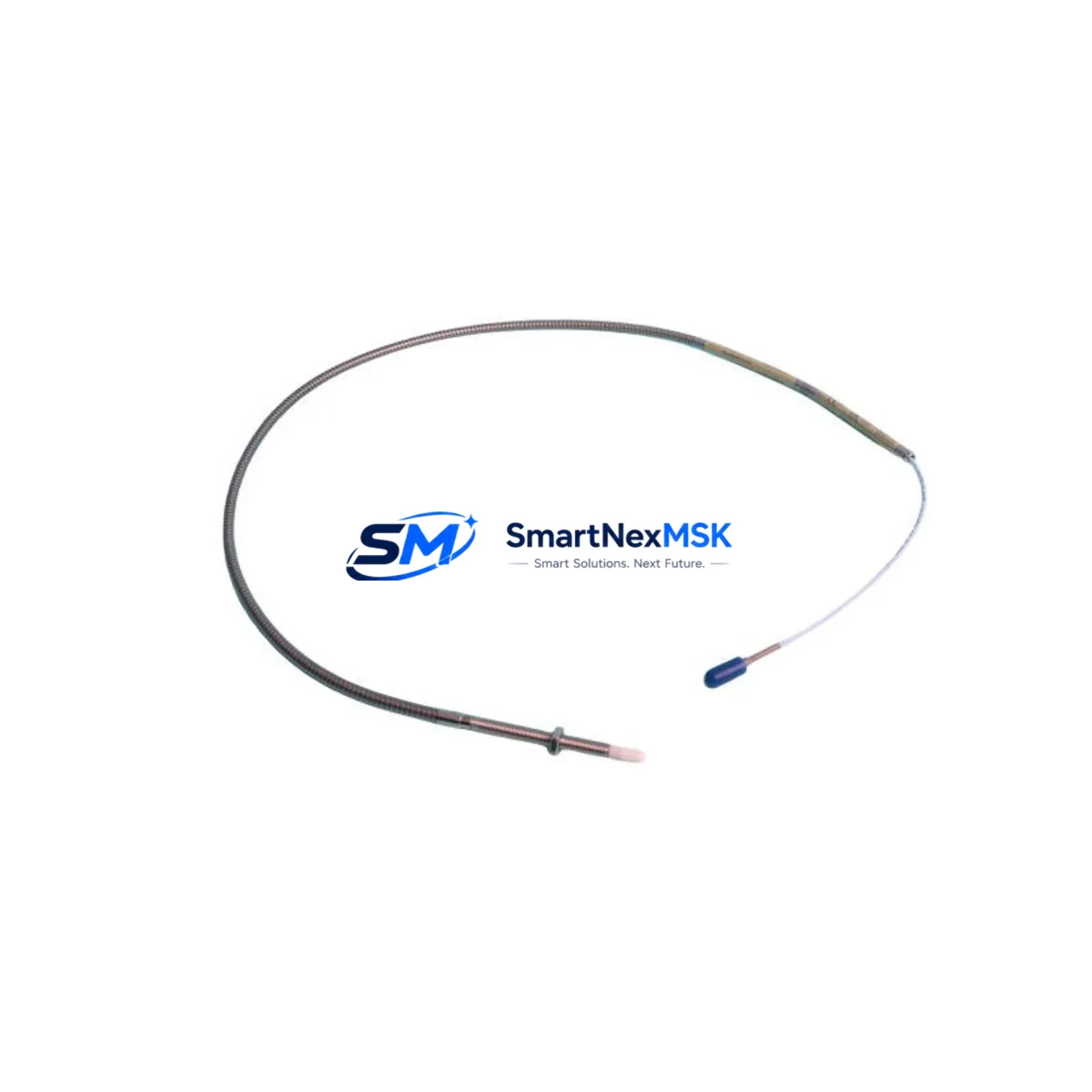

The Bently Nevada 330904-00-08-50-02-00 is a high-performance proximity transducer from the 3300 XL NSv Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and chemically aggressive atmospheres, this transducer is a cornerstone component in rotating machinery protection systems across heavy industry worldwide.
In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port logistics systems — unplanned machinery downtime carries severe safety and financial consequences. The 330904-00-08-50-02-00 is purpose-built to eliminate the root causes of control interruption: signal drift under EMI load, sensor misread during voltage transients, and mechanical failure from vibration fatigue. Its ruggedized construction and precision eddy-current sensing technology ensure that shaft displacement and vibration data remain accurate and continuous, even when the surrounding environment is hostile.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330904-00-08-50-02-00 |
| Series | Bently Nevada 3300 XL NSv |
| Product Type | Proximity Transducer System |
| Cable Length | 8 meters (integral cable) |
| Thread Size | 8 mm |
| Sensing Technology | Eddy-Current (Non-Contact) |
| Output Signal | –24 VDC nominal (compatible with 3300 XL drivers) |
| Operating Temperature | –35°C to +120°C (probe tip) |
| EMI / RFI Resistance | High — shielded coaxial cable construction |
| Vibration Resistance | Rated for continuous high-vibration environments |
| Chemical Resistance | Resistant to oils, coolants, and industrial solvents |
| Ingress Protection | Suitable for harsh industrial enclosures |
| Compatibility | Bently Nevada 3300 XL 8mm Extension Cable, 3300 XL Proximitor Sensor (e.g., 330180, 330130 series) |
| Safety Application | Shaft radial vibration, axial position, differential expansion monitoring |
| Origin | United States |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
Control Cabinet Protection Strategy
In a well-engineered rotating machinery protection cabinet, the 330904-00-08-50-02-00 transducer does not operate in isolation — it is one element of a tightly integrated safety and monitoring architecture. The transducer connects to a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-91-00 or 330130-080-00-00), which conditions the raw eddy-current signal into a calibrated voltage output for the monitoring system. This signal is then processed by a Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which evaluates vibration amplitude against configurable alarm and danger setpoints.
To protect the integrity of the signal path from the transducer to the monitor rack, the installation relies on matched 3300 XL Extension Cables — typically the 330130-080-00-00 series — which maintain the system’s calibrated sensitivity of 7.87 V/mm (200 mV/mil). Any mismatch in cable length or type introduces gain error that can trigger false alarms or, more critically, mask genuine dangerous vibration levels. This is why system integrators specify the complete matched set: probe, extension cable, and Proximitor as a calibrated trio.
Within the control cabinet, the Bently Nevada 3500 Rack — including the 3500/15 Power Supply and 3500/22M Transient Data Interface — provides the regulated –24 VDC bias voltage required by the transducer system. Surge protection devices and EMI filters installed at the cabinet entry points prevent power line transients from corrupting the low-level analog signals. For installations in classified hazardous areas (Zone 1 or Zone 2), Bently Nevada Zener Barrier assemblies or galvanic isolators are inserted in the signal loop to maintain intrinsic safety compliance, ensuring that the transducer circuit cannot become an ignition source even under fault conditions.
In critical interlock loops — such as turbine overspeed protection or compressor high-vibration shutdown — the output of the 3500/42M monitor feeds directly into a Safety Instrumented System (SIS) logic solver, such as a Triconex Tricon or Rockwell GuardLogix safety PLC. The 330904-00-08-50-02-00 transducer’s consistent, drift-free output is essential here: any signal anomaly at this stage can either cause a spurious trip — halting production unnecessarily — or, worse, fail to trigger a protective shutdown when machinery reaches a genuinely dangerous vibration level. The transducer’s robust shielded cable construction and stable eddy-current technology minimize both failure modes.
Critical Industrial Safety Applications
Petrochemical and Refinery Operations: In crude oil processing trains and gas compression stations, the 330904-00-08-50-02-00 monitors shaft radial vibration on centrifugal compressors, pumps, and expanders operating continuously at high speed. Early detection of rotor imbalance, bearing wear, or seal degradation allows maintenance teams to schedule corrective action during planned shutdowns rather than responding to catastrophic failures. In these environments, where a single unplanned trip can cost hundreds of thousands of dollars per hour and create serious safety hazards from uncontrolled hydrocarbon release, the reliability of the vibration monitoring chain is non-negotiable.
Power Generation — Steam and Gas Turbines: Large steam turbines and gas turbines in utility-scale power plants operate at shaft speeds of 3,000 to 3,600 RPM under enormous mechanical loads. The 330904-00-08-50-02-00, installed at the turbine bearing housings, provides continuous radial vibration data to the plant’s Bently Nevada 3500 Series protection system. Differential expansion monitoring — measuring the relative thermal growth between the rotor and casing — is another critical application, preventing blade-to-casing contact during startup and load transients.
Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and chemical exposure. The ruggedized construction of the 330904-00-08-50-02-00 — with its chemically resistant probe tip and shielded cable — maintains reliable operation in these conditions. Continuous vibration monitoring on mill drive trains enables predictive maintenance programs that reduce unplanned downtime in operations where every hour of lost production has significant financial impact.
Water and Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities run continuously, often unattended. Vibration monitoring with the 330904-00-08-50-02-00 provides early warning of impeller wear, cavitation, and bearing failure, allowing operators to maintain service continuity and avoid the public health consequences of treatment plant outages.
Metallurgical and Steel Processing: Rolling mills, continuous casters, and large induction furnace drives operate in environments with intense electromagnetic interference from high-current bus bars and variable-frequency drives. The EMI-resistant design of the 3300 XL NSv transducer system ensures that vibration signals remain clean and accurate even in close proximity to these interference sources, supporting reliable protection of critical drive machinery.
Safety and Quality FAQ
Q: What does the 12-month warranty cover for the 330904-00-08-50-02-00?
A: The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform within its specified parameters during the warranty period, SMARTNEXMSK will arrange replacement or repair. The warranty period begins from the date of shipment and is supported by our pre-shipment inspection documentation.
Q: What pre-shipment testing is performed on this transducer?
A: Every 330904-00-08-50-02-00 unit undergoes functional verification before dispatch, including output signal level check, cable continuity and insulation resistance test, and physical inspection for connector integrity and cable jacket condition. Units that do not meet Bently Nevada’s published specifications are quarantined and not shipped. Test records are available upon request for critical installations.
Q: Is this transducer compatible with existing 3300 XL system installations?
A: Yes. The 330904-00-08-50-02-00 is a direct system-compatible component within the Bently Nevada 3300 XL NSv platform. It is designed to work with the full range of 3300 XL Proximitor Sensors and 3300 XL Extension Cables. When replacing an existing probe in a calibrated system, ensure the replacement uses the same cable length and thread specification to maintain system sensitivity. Consult the Bently Nevada TN-13-1 technical note for matched-system calibration guidance.
Q: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
A: Yes. SMARTNEXMSK maintains stock of the 330904-00-08-50-02-00 and related 3300 XL Series components to support planned maintenance, emergency replacement, and capital spares programs. We supply to end users, EPC contractors, and MRO procurement teams globally. For volume requirements or scheduled delivery programs, contact our sales team to discuss availability and lead times.
