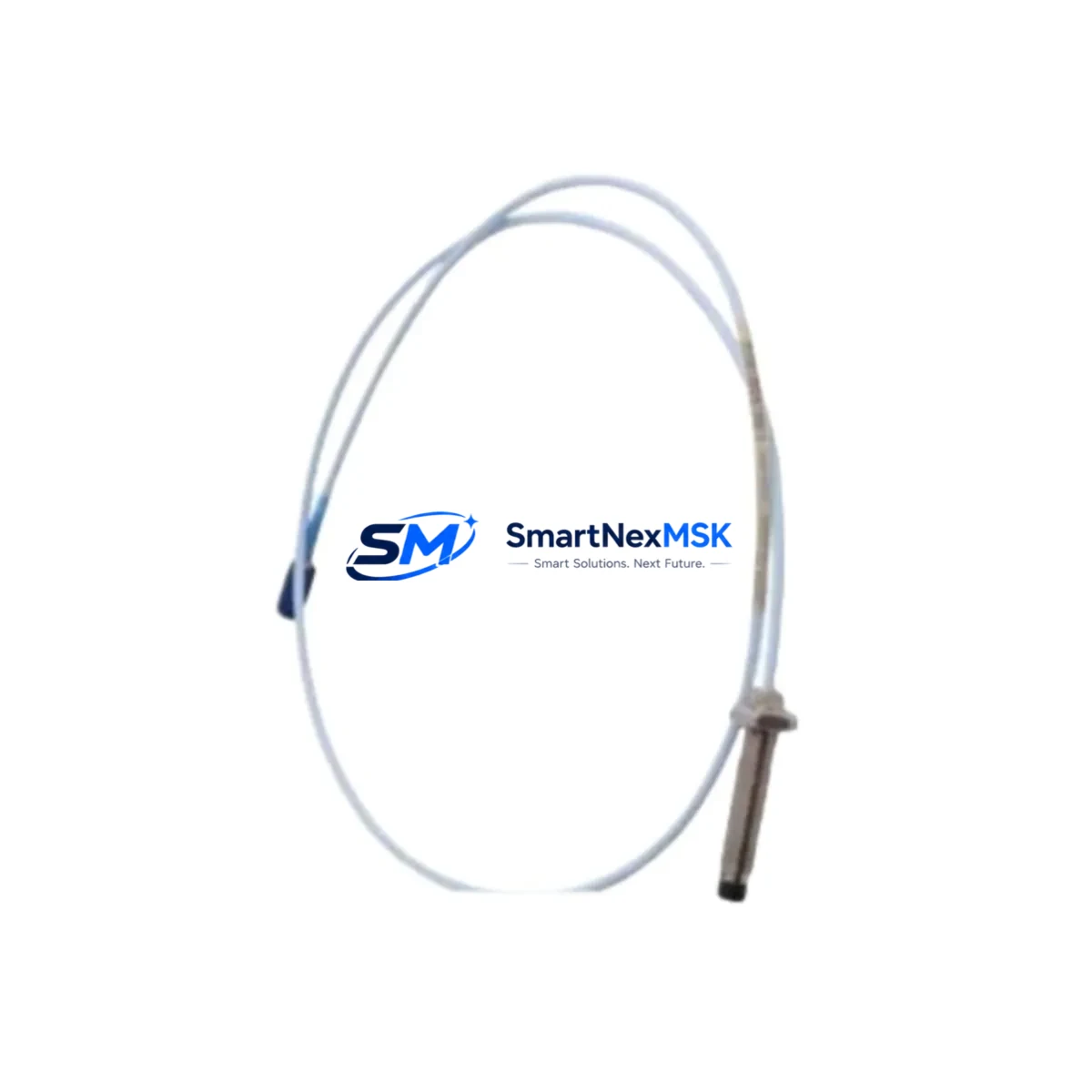

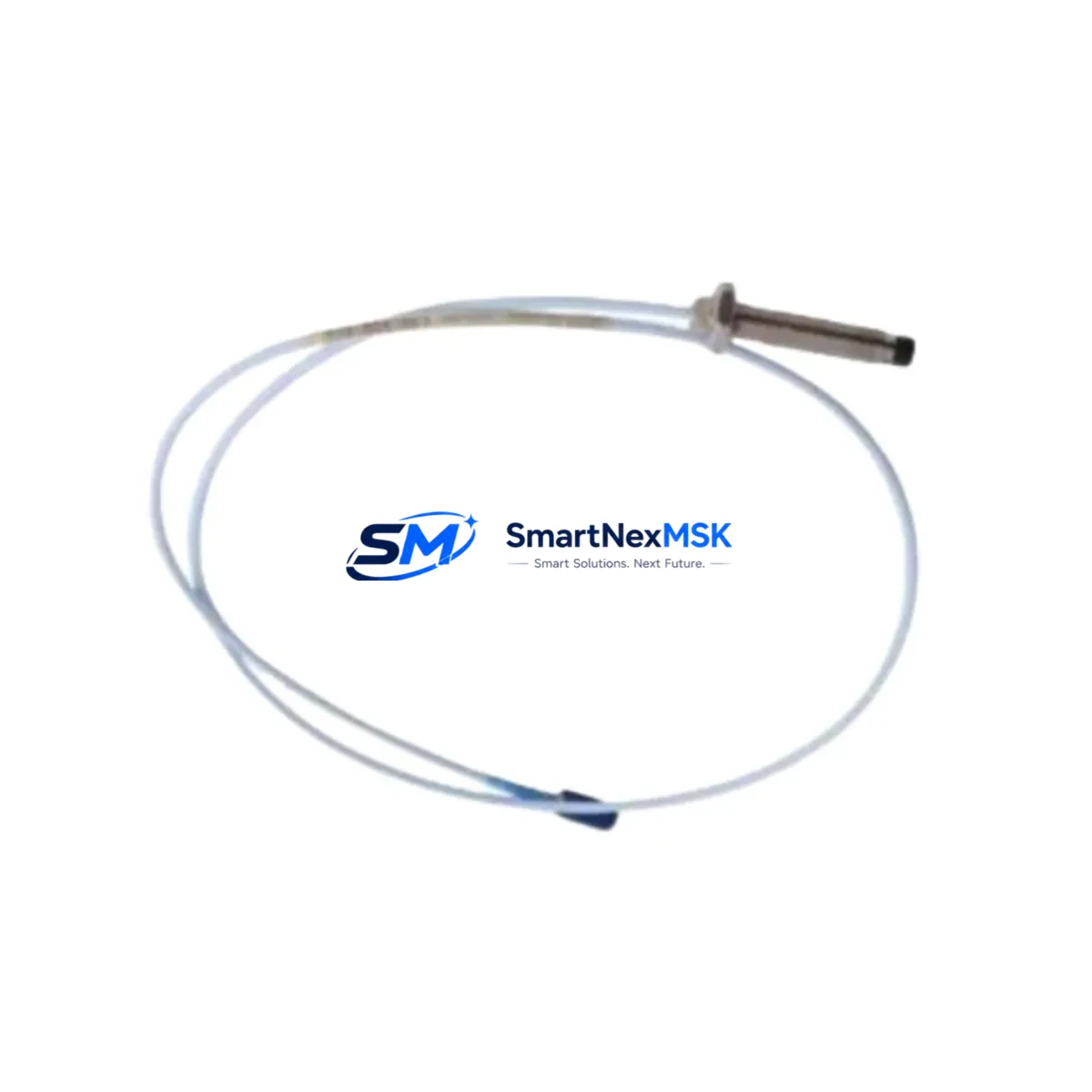

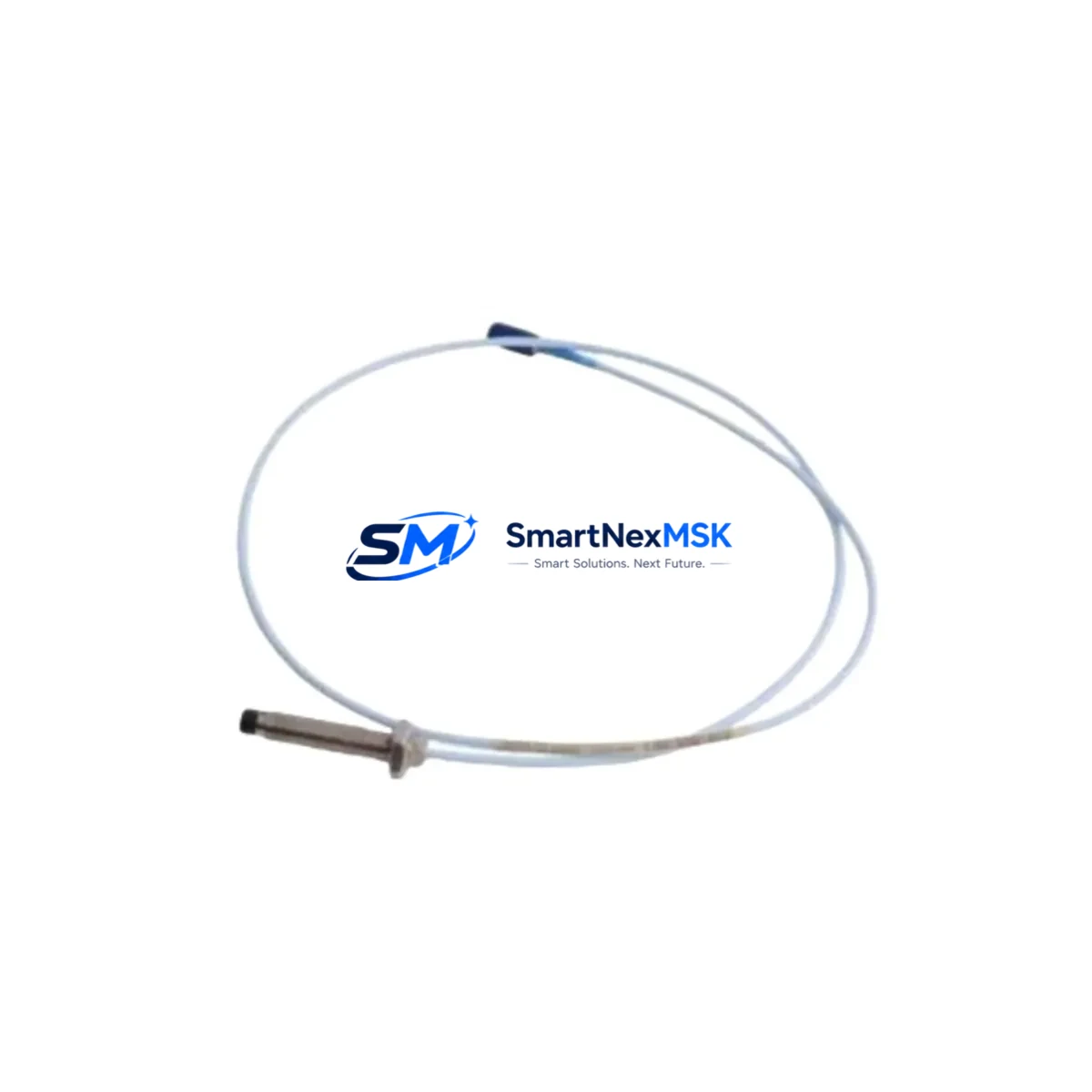

Bently Nevada 330904-00-10-05-01-BR Safety-Enhanced Proximity Probe

Bently Nevada 330904-00-10-05-01-BR Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330904-00-10-05-01-BR is a ruggedized eddy current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the proven 3300 NSv Series, this probe delivers exceptional signal stability, electromagnetic interference immunity, and long-term mechanical durability — making it a trusted component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities worldwide.

In high-load, high-interference production environments, control loop integrity depends on the accuracy and consistency of every sensing element. The 330904-00-10-05-01-BR addresses this directly: its ruggedized housing and precision-wound coil assembly resist signal drift caused by thermal cycling, mechanical vibration, and electromagnetic noise from adjacent variable frequency drives, motor control centers, and high-current bus bars. Where lesser probes introduce measurement uncertainty, this unit maintains sub-micron resolution across its full operating range — a critical requirement for turbine overspeed protection, compressor surge detection, and pump bearing fault identification.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but depends on the integrity of the entire signal chain within the control cabinet. The 330904-00-10-05-01-BR is designed to operate as part of a coordinated protection architecture. In a typical turbine or compressor protection panel, this probe pairs with the Bently Nevada 330130-045-00-00 extension cable to bridge the gap between the probe and the proximitor driver without signal degradation. The Bently Nevada 3300 XL 8mm Proximitor Sensor conditions the raw eddy current signal into a clean DC voltage output, which is then fed into a Bently Nevada 3500/40M Proximitor Monitor for real-time shaft displacement analysis and alarm relay actuation.

Within the same safety loop, power supply stability is non-negotiable. The Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to the monitoring rack, protecting the entire system from upstream voltage transients and surge events common in heavy industrial switchgear environments. For facilities running parallel DCS architectures, the probe’s output integrates cleanly with Emerson DeltaV SIS safety instrumented system inputs, enabling SIL-rated interlock logic without additional signal conditioning.

In high-interference environments — such as those adjacent to large induction motors, arc furnaces, or high-frequency inverters — the shielded cable assembly of the 330904-00-10-05-01-BR works in conjunction with Bently Nevada 330180 series armored extension cables to maintain signal integrity over long cable runs. For installations requiring redundant measurement, dual-probe configurations using a matched 330904-00-10-05-00-CN standard variant alongside the BR ruggedized version provide cross-validation capability within the same bearing housing. Communication of processed vibration data to the plant DCS or historian is typically handled via the Bently Nevada 3500/92 Communication Gateway, enabling seamless integration with Modbus, Profibus, or OPC-UA supervisory systems without disrupting the protection relay logic.

Critical Industrial Safety Applications

The 330904-00-10-05-01-BR is deployed across a broad spectrum of safety-critical rotating machinery applications. In petrochemical and refinery facilities, it monitors shaft radial vibration on centrifugal compressors, boiler feed pumps, and crude oil transfer pumps — where an undetected bearing failure can trigger process shutdown, fire risk, or environmental release. The probe’s high-temperature tolerance and ruggedized connector make it suitable for installation in hot, vapor-laden atmospheres where standard probes would degrade prematurely.

In power generation plants — both thermal and combined-cycle — the probe is used on steam turbine journal bearings and generator shaft extensions, providing the continuous displacement data required by turbine protection systems to initiate emergency trip sequences before catastrophic mechanical failure occurs. Its compatibility with API 670-compliant monitoring racks ensures it meets the machinery protection requirements mandated for critical rotating equipment in power utilities.

In mining and mineral processing operations, the 330904-00-10-05-01-BR is installed on ball mill pinion bearings, crusher drive shafts, and slurry pump assemblies — environments characterized by extreme vibration, dust ingress, and wide ambient temperature swings. The ruggedized BR connector and stainless steel housing provide the mechanical robustness required to survive these conditions across multi-year service intervals.

Water and wastewater treatment facilities use this probe on high-speed centrifugal blowers and vertical turbine pumps, where early detection of rotor imbalance or bearing wear prevents unplanned outages in continuous-duty treatment processes. In metallurgical and steel production plants, it monitors rolling mill drive shafts and continuous caster pinch roll assemblies, where the combination of high radial loads, thermal shock, and electromagnetic interference from induction heating systems demands the highest level of sensor robustness. Port and terminal operators rely on it for crane hoist motor shaft monitoring, ensuring safe load handling in 24/7 logistics operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330904-00-10-05-01-BR?
The 12-month warranty covers all manufacturing defects, functional failures, and performance deviations from Bently Nevada factory specifications. Each unit undergoes pre-shipment functional testing — including sensitivity verification, linearity check, and insulation resistance measurement — before dispatch. If a unit fails within the warranty period under normal operating conditions, we provide replacement or full refund support.

Q2: How is the 330904-00-10-05-01-BR tested before shipment?
Every probe is tested against Bently Nevada OEM performance specifications prior to shipment. Testing includes output sensitivity verification at nominal gap, cable continuity and shielding integrity check, and connector mechanical inspection. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 and 3500 series monitoring systems?
Yes. The 330904-00-10-05-01-BR is fully compatible with the Bently Nevada 3300 NSv proximitor driver, 3300 XL 8mm driver, and the 3500 series monitoring rack when used with the appropriate extension cable. It follows the standard 7.87 V/mm sensitivity convention, ensuring drop-in replacement compatibility without recalibration of the monitoring system.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated inventory of the 330904-00-10-05-01-BR and related 3300 NSv series components to support planned maintenance schedules, emergency replacements, and capital project procurement. For facilities requiring guaranteed spare parts availability under a service agreement, we offer reserved stock arrangements with defined lead times. Contact our team to discuss your site’s specific spare parts strategy.
