Bently Nevada 330904-00-11-10-02-05/CN Safety Proximity Probe

Bently Nevada 330904-00-11-10-02-05/CN Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

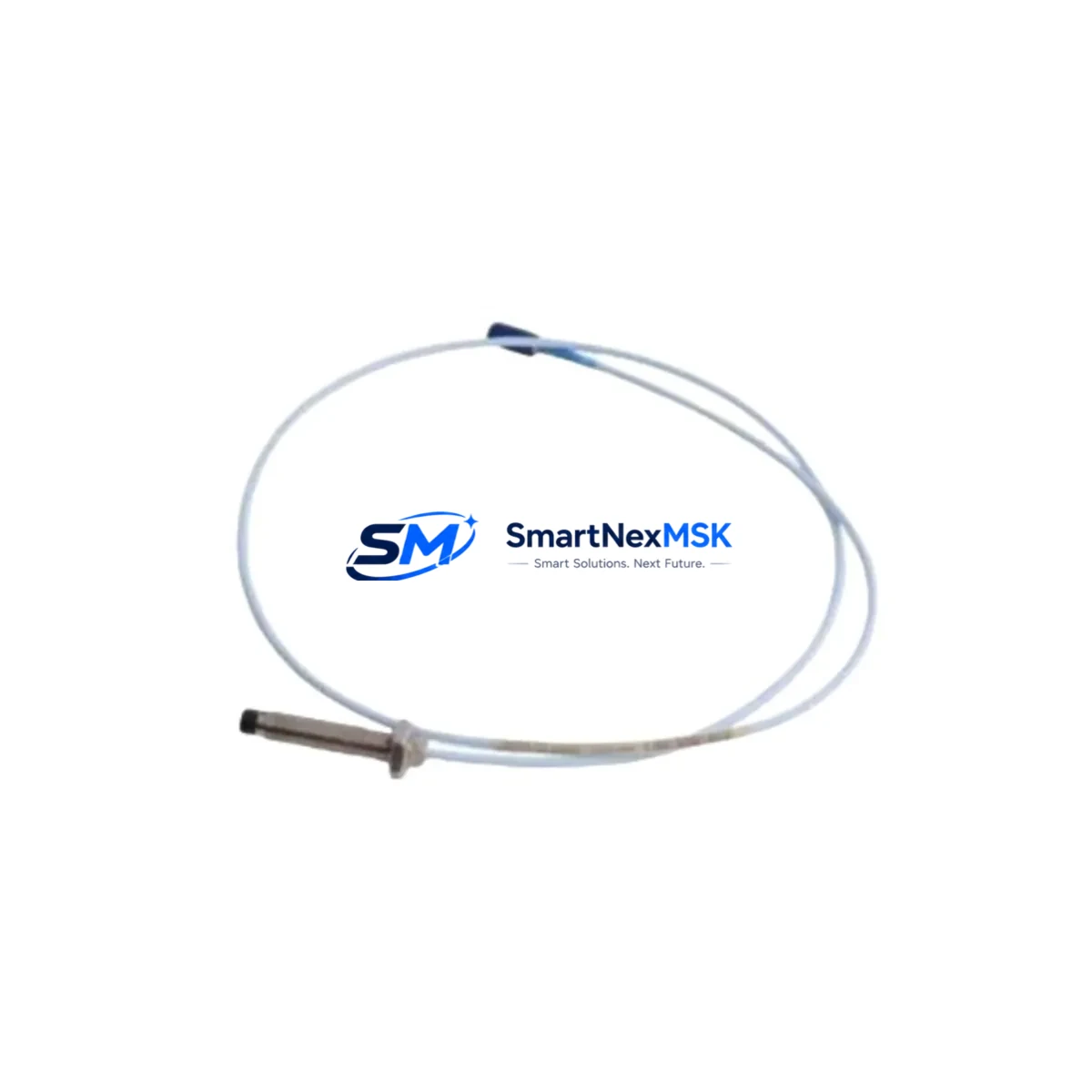

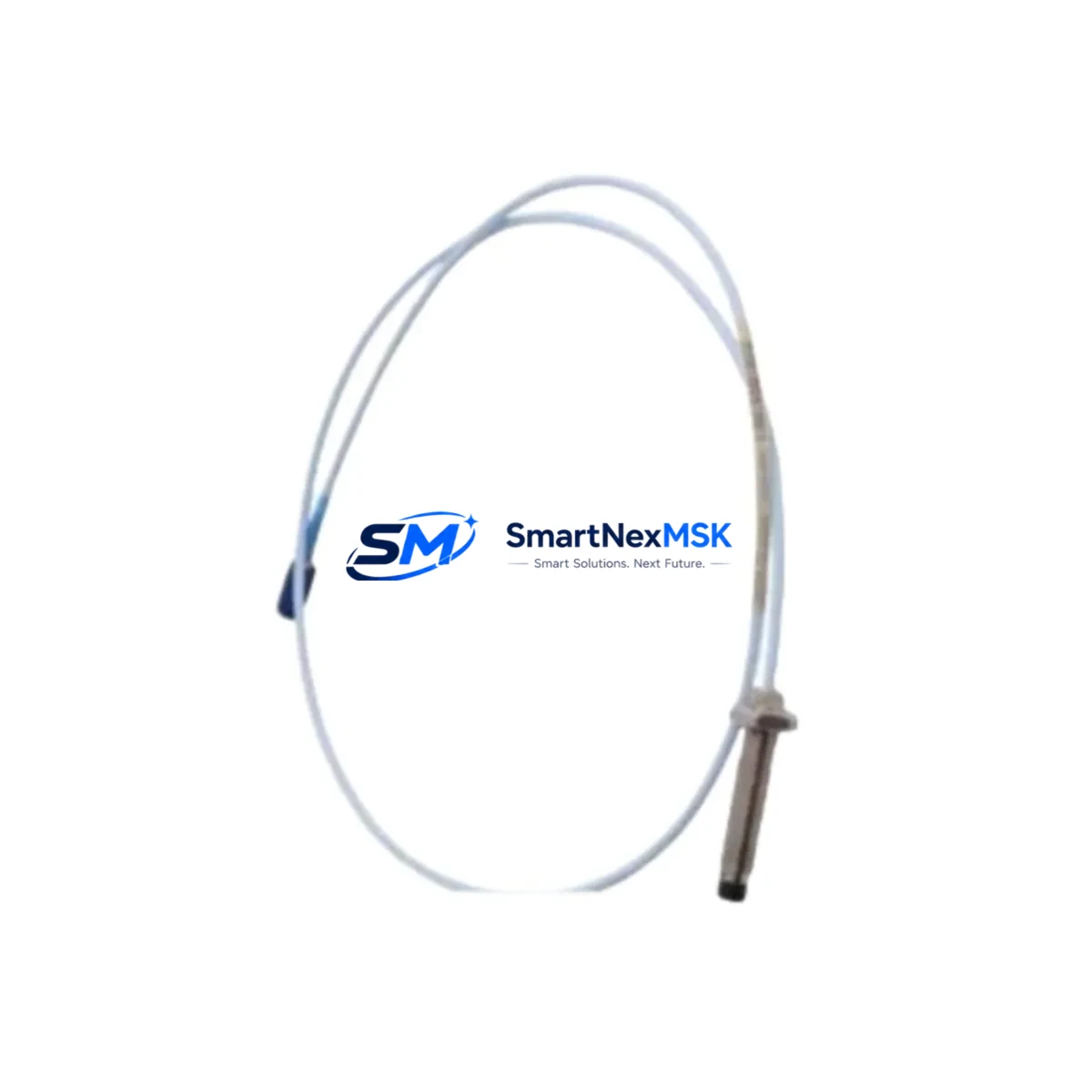

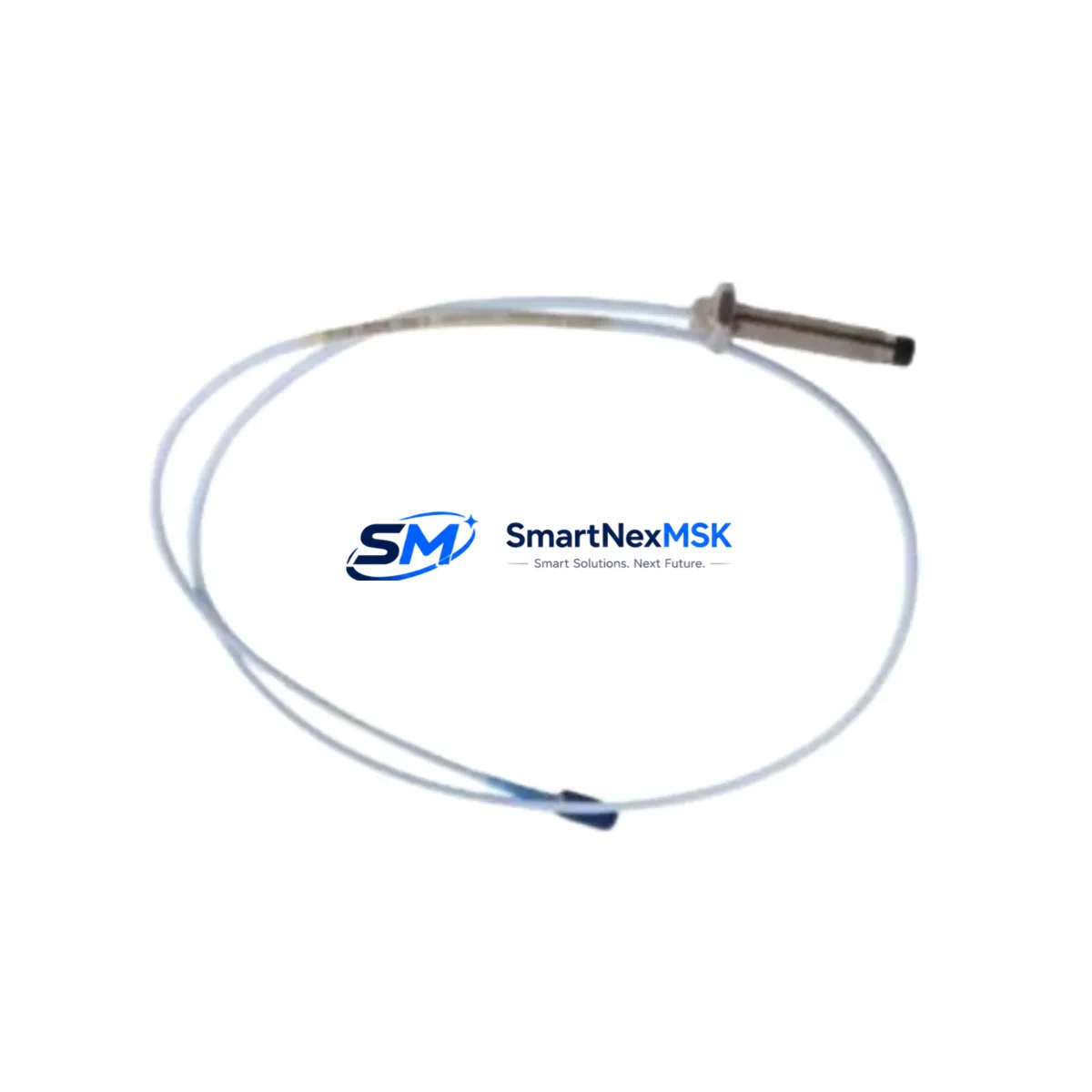

The Bently Nevada 330904-00-11-10-02-05/CN is an 8 mm eddy-current proximity probe from the industry-proven 3300 NSv (Non-contacting Vibration) Series, engineered for continuous shaft vibration, position, and eccentricity monitoring in the most demanding industrial environments. With a 5-metre armored extension cable, IP67-rated stainless-steel housing, and a measurement range optimized for rotating machinery, this probe is a cornerstone component in safety-critical machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous-process industries.

In high-load, high-interference production facilities — where control interruptions, signal drift, and unplanned shutdowns carry severe safety and financial consequences — the 330904-00-11-10-02-05/CN delivers the measurement stability and environmental resilience that plant engineers and reliability teams depend on. Its non-contacting sensing principle eliminates mechanical wear, ensuring consistent output even after years of continuous operation in steam-turbine bearing housings, compressor trains, and pump-motor assemblies. Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional verification and is backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330904-00-11-10-02-05/CN probe does not operate in isolation — it is one element of a tightly integrated machinery protection architecture. In a properly configured control cabinet or machinery protection rack, this probe connects to a Bently Nevada 3300 XL 8 mm Proximitor® Sensor (such as the 330180-91-00), which conditions the raw eddy-current signal into a clean, calibrated voltage output for the monitoring system. The Proximitor is typically housed in a 3500 Rack alongside modules such as the 3500/42M Proximitor®/Seismic Monitor, which processes the vibration data and triggers relay outputs for alarm and trip functions in accordance with API 670 requirements.

To protect the entire signal chain from power-line surges and transient overvoltages — a common threat in heavy industrial sites with large motor starts and arc-flash events — plant engineers routinely install Bently Nevada Transient Voltage Suppressors and dedicated 24 VDC instrument power supplies with high ripple rejection on the same distribution rail. Communication between the 3500 rack and the plant DCS or safety instrumented system (SIS) is typically handled via 3500/92 Communication Gateway modules supporting Modbus TCP or FOUNDATION Fieldbus, ensuring that vibration trip data reaches the control room without latency or packet loss even during network congestion.

For installations in hazardous classified areas (Zone 1 / Division 1), the probe cable is routed through explosion-proof conduit fittings and terminated at Zener barrier assemblies or galvanic isolators — such as the Bently Nevada 990 Series Vibration Transmitter — to maintain intrinsic safety compliance. Redundant probe configurations, using a second 330904-series proximity probe mounted 90° offset on the same journal bearing, are standard practice in critical compressor and turbine trains to eliminate single-point measurement failure. The complete system — probe, Proximitor, monitor rack, power supply, and communication gateway — forms a closed-loop machinery protection strategy that minimizes the risk of undetected shaft excursions, bearing failures, and catastrophic rotor contact events.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units, ethylene crackers, and compressor trains handling flammable hydrocarbons, the 330904-00-11-10-02-05/CN monitors shaft radial vibration and DC gap on critical centrifugal compressors and steam turbines. Any deviation beyond the API 670 alarm setpoint triggers an automated shutdown before seal failure or rotor rub can escalate to a process safety incident.

Power Generation: Steam and gas turbine generators in coal-fired, combined-cycle, and nuclear auxiliary systems rely on 3300 NSv proximity probes for continuous bearing journal orbit analysis. The probe’s high-temperature rating and resistance to steam condensation make it suitable for turbine bearing pedestals where ambient temperatures and humidity are extreme.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pump drives in copper, iron ore, and gold processing plants operate under severe mechanical shock and dust loading. The stainless-steel armored construction of the 330904-00-11-10-02-05/CN withstands these conditions while providing reliable shaft position data to prevent catastrophic bearing failures that would halt production for days.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower trains in municipal water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation onset, and bearing wear — enabling condition-based maintenance scheduling rather than reactive emergency repairs.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and ID fan assemblies in blast furnace systems operate in environments with intense electromagnetic interference from large variable-frequency drives and arc furnaces. The shielded coaxial cable design of the 330904-series probe maintains signal integrity in these high-EMI conditions, preventing false trips that would disrupt continuous casting sequences.

Port & Heavy Lifting: Crane hoist gearboxes and large harbor dredge pump drives benefit from proximity probe monitoring to detect gear mesh anomalies and bearing defects before they result in structural failures or load-drop incidents in safety-critical lifting operations.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the 330904-00-11-10-02-05/CN?
Every unit is covered by a 12-month warranty from the date of shipment. If the probe fails under normal operating conditions within this period, we provide a replacement or full refund. Our warranty process is straightforward — contact sales@smartnexmsk.com with your order reference and a brief fault description.

Q2: How is each probe tested before shipment?
All 330904-00-11-10-02-05/CN units undergo pre-shipment functional verification including cable continuity, coil impedance measurement, and output linearity check against a calibrated Proximitor driver. Units that do not meet Bently Nevada factory specification tolerances are quarantined and not shipped. A test record is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor® drivers and 3500 monitor racks?
Yes. The 330904-00-11-10-02-05/CN is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor family and integrates directly into 3500 Series monitor racks without recalibration, provided the target material matches the factory calibration specification (AISI 4140 steel). For non-standard target materials, a field calibration adjustment at the Proximitor is recommended.

Q4: Can SMARTNEXMSK support long-term and emergency spare-part supply?
Yes. We maintain standing inventory of 330904-series proximity probes and associated 3300 NSv system components to support both planned maintenance schedules and emergency breakdown situations. For critical plant spares programs, we can discuss consignment stock arrangements and priority dispatch agreements. Contact us at sales@smartnexmsk.com or +86 18259474341 for availability and lead-time confirmation.
