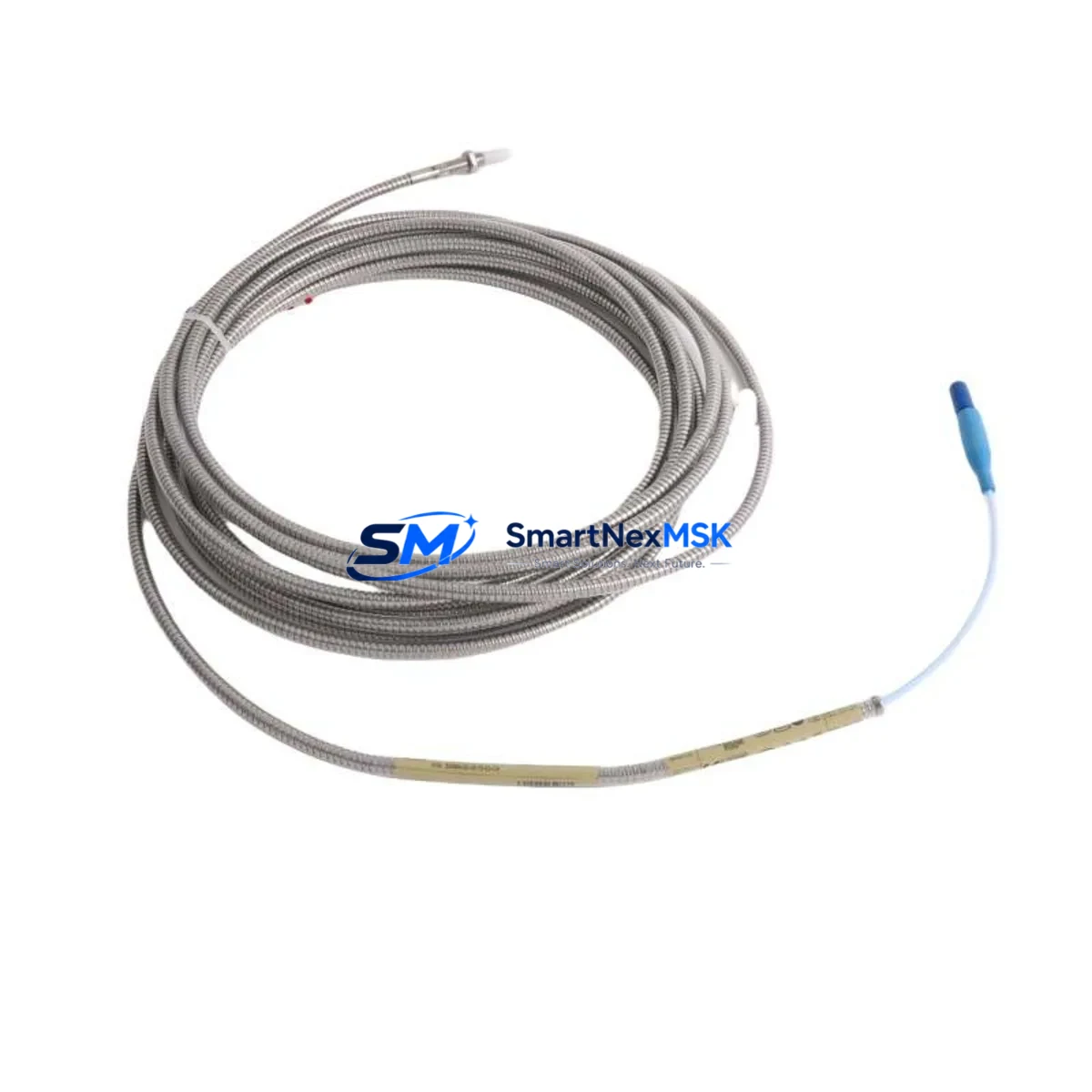

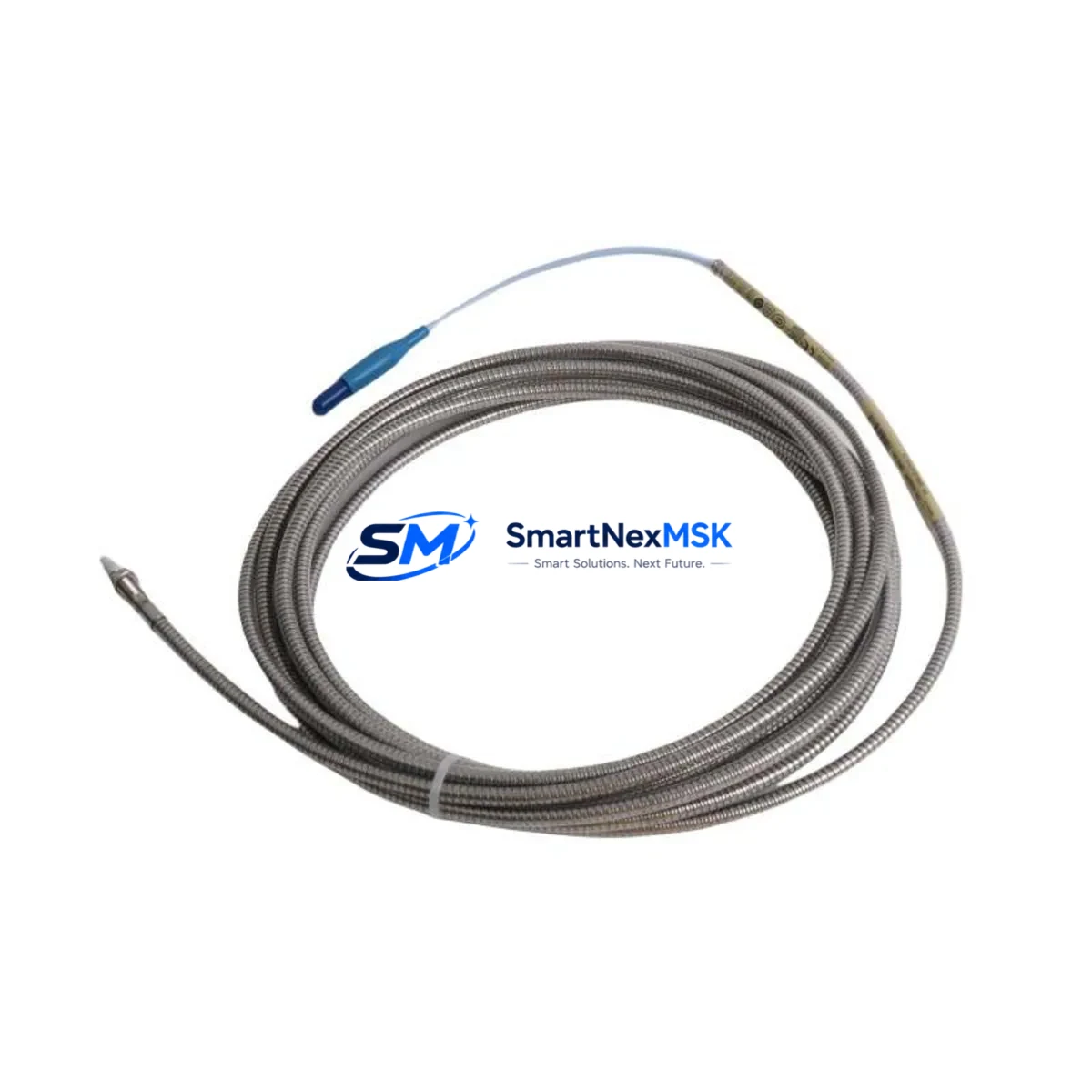

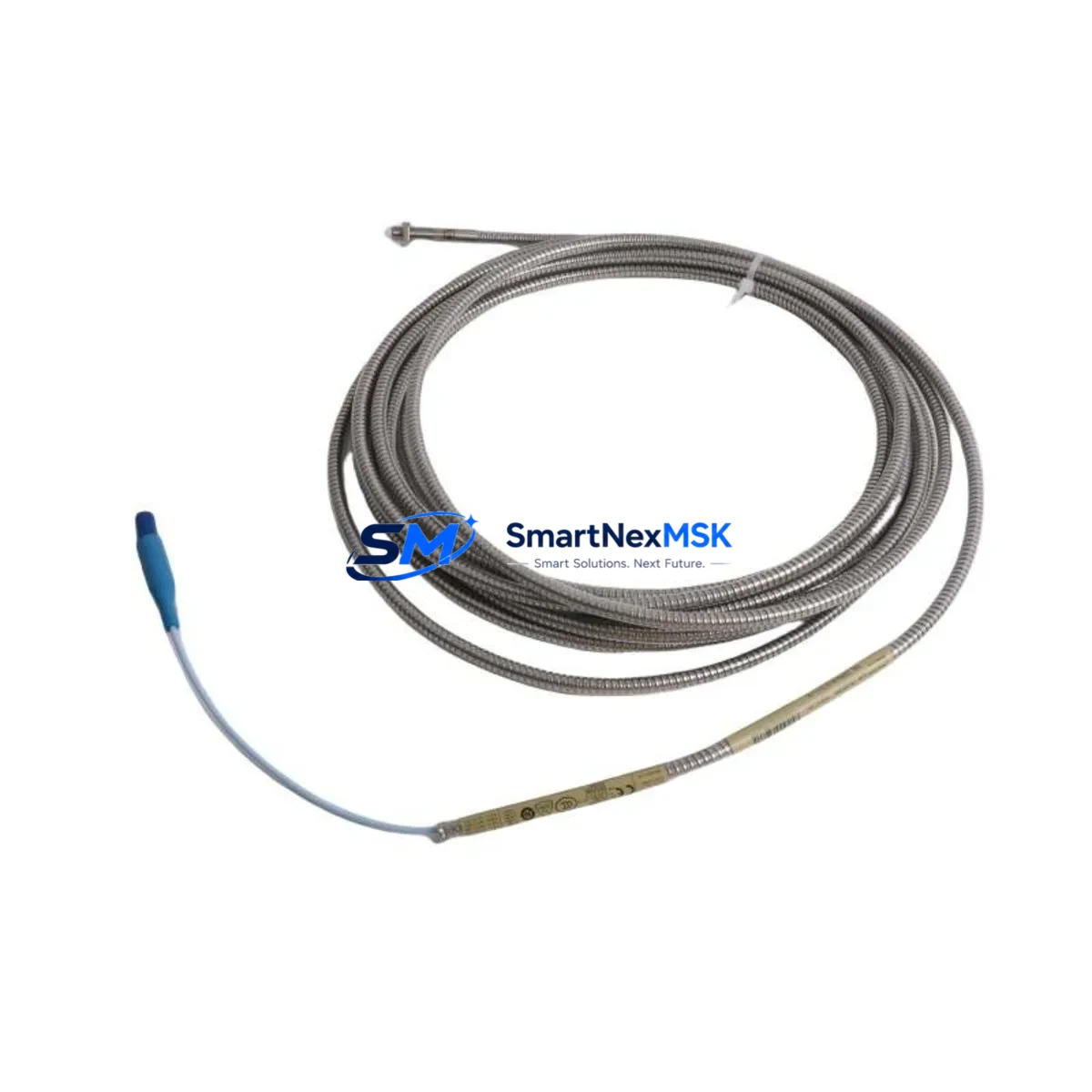

Bently Nevada 330904-00-12-10-02-05/CN Safety Proximity Probe

Bently Nevada 330904-00-12-10-02-05/CN Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330904-00-12-10-02-05/CN is a high-reliability eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the globally trusted Bently Nevada 3300 NSv Series, this 25 mm probe with 5-metre integral cable delivers consistent, drift-free output across rotating machinery protection systems, turbine control cabinets, compressor trains, and critical interlock loops where measurement failure is not an option.

In high-load, high-interference production facilities — including petrochemical plants, power generation stations, metallurgical mills, mining headframes, water treatment pump stations, and continuous-process manufacturing lines — signal integrity and mechanical robustness are the foundation of operational safety. The 330904-00-12-10-02-05/CN is designed to eliminate the root causes of unplanned shutdowns: signal drift under thermal cycling, probe tip contamination, cable-induced noise, and connector corrosion in humid or chemically aggressive atmospheres. Its hardened stainless-steel housing and fully shielded coaxial cable assembly resist electromagnetic interference from adjacent variable-frequency drives, high-current bus bars, and motor starters that are common in heavy industrial control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but depends on the integrity of the entire signal chain within the control cabinet. The 330904-00-12-10-02-05/CN is designed to work seamlessly within a fully coordinated protection architecture. In a typical turbine or compressor protection panel, the probe connects to a Bently Nevada 3300 XL 8-mm Proximitor Sensor (e.g., 330180-91-00), which conditions the raw eddy-current signal into a clean DC voltage before it reaches the Bently Nevada 3500/42M Proximitor Monitor for alarm and trip processing. This monitor communicates over the 3500 Rack Backplane to the 3500/22M Transient Data Interface, enabling real-time waveform capture during surge or rub events.

Power supply stability is equally critical. The Bently Nevada 3500/15 Power Supply Module provides regulated −24 VDC to the proximitor, and a redundant power supply configuration — using a secondary 3500/15 in hot-standby — eliminates single-point power failure as a trip cause. Surge protection at the cabinet entry point, such as a Phoenix Contact TRABTECH surge arrester rated for signal circuits, guards against transient overvoltage from nearby lightning strikes or capacitor bank switching events that could otherwise saturate the probe driver and produce false high-vibration trips.

For facilities running Bently Nevada TDXnet or integrating into a System 1 asset management platform, the 330904-00-12-10-02-05/CN probe data feeds directly into trend analysis and predictive maintenance workflows. Complementary components such as the Bently Nevada 330130-045-00-00 velocity seismic sensor and 330500-02-CN thrust position probe are often installed in the same machinery train to provide a complete axial and radial vibration picture, ensuring that no failure mode goes undetected before it escalates to a safety event.

In high-voltage switchgear rooms and motor control centres where ground loops are a persistent problem, the probe cable shield must be grounded at one end only — typically at the proximitor — to prevent circulating currents that introduce 50/60 Hz noise into the vibration signal. Proper cable routing, segregated from power conductors in dedicated instrumentation trays, further reduces susceptibility to interference from ABB ACS880 or Siemens SINAMICS variable-frequency drives operating in the same cabinet cluster.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking units and ethylene compressor trains, the 330904-00-12-10-02-05/CN monitors shaft radial vibration on centrifugal compressors and steam turbine drivers. A vibration exceedance beyond the API 670 danger setpoint triggers an automatic emergency shutdown via the safety instrumented system, preventing catastrophic seal failure and hydrocarbon release. The probe’s wide operating temperature range ensures stable output even when the machinery casing reaches elevated temperatures during process upsets.

Power Generation: On gas turbine generator sets and steam turbine-generators, continuous shaft proximity monitoring is a regulatory requirement under IEC 61511 and NFPA 85. The 330904-00-12-10-02-05/CN, paired with the 3500/42M monitor, provides the SIL-capable measurement loop needed to satisfy functional safety audits. Its DC-to-10 kHz frequency response captures both slow thermal bow and high-frequency blade-pass events that precede bearing failure.

Mining & Minerals Processing: Ball mill pinion bearings, SAG mill trunnion bearings, and slurry pump shafts in underground and open-cut mines operate in environments saturated with conductive dust, water spray, and vibration from blasting. The IP67-rated connector and stainless-steel housing of the 330904-00-12-10-02-05/CN resist ingress and corrosion, maintaining measurement accuracy over multi-year service intervals without recalibration.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment plants require continuous shaft monitoring to detect impeller imbalance and bearing wear before a pump trip floods a treatment stage. The probe’s low-noise output enables detection of sub-millimetre shaft displacement changes, providing early warning that allows planned maintenance rather than emergency repair.

Metallurgy & Steel: Rolling mill main drive motors and continuous caster pinch-roll drives operate under extreme radial loads and thermal gradients. The 330904-00-12-10-02-05/CN withstands the strong magnetic fields generated by high-current DC drives and the mechanical shock transmitted through the mill stand structure, delivering reliable vibration data to the plant DCS for process optimisation and safety interlock activation.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to meet its specified sensitivity, linearity, or frequency response within the warranty period, we will replace or repair it at no charge. Warranty claims are processed within 5 business days of unit receipt at our facility.

Q2: What outgoing tests are performed before shipment?
Every 330904-00-12-10-02-05/CN unit undergoes a 100% functional test that verifies sensitivity (mV/mil), linear range, cable continuity, and connector integrity before dispatch. A test report is available on request. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is this probe compatible with existing 3300 and 3500 series infrastructure?
Yes. The 330904-00-12-10-02-05/CN is fully compatible with the Bently Nevada 3300 XL Proximitor family and the 3500 series rack-based monitoring system. It is a direct replacement for earlier 330900 and 330903 series probes in the same 25 mm tip diameter class, requiring no recalibration of the proximitor gap voltage when installed within the specified linear range.

Q4: Can you guarantee long-term supply and replacement support?
Yes. SMARTNEXMSK maintains dedicated stock of the 330904-00-12-10-02-05/CN and related 3300 NSv series components to support planned maintenance schedules and emergency replacement requirements. We supply to petrochemical, power, mining, and process industries globally, with same-day dispatch available for in-stock units. Our team can also source end-of-life or obsolete Bently Nevada parts through our verified supplier network.
