Bently Nevada 330904-00-18-50-02-00 Maintenance-Ready Spare for 3300 XL NSv Automation

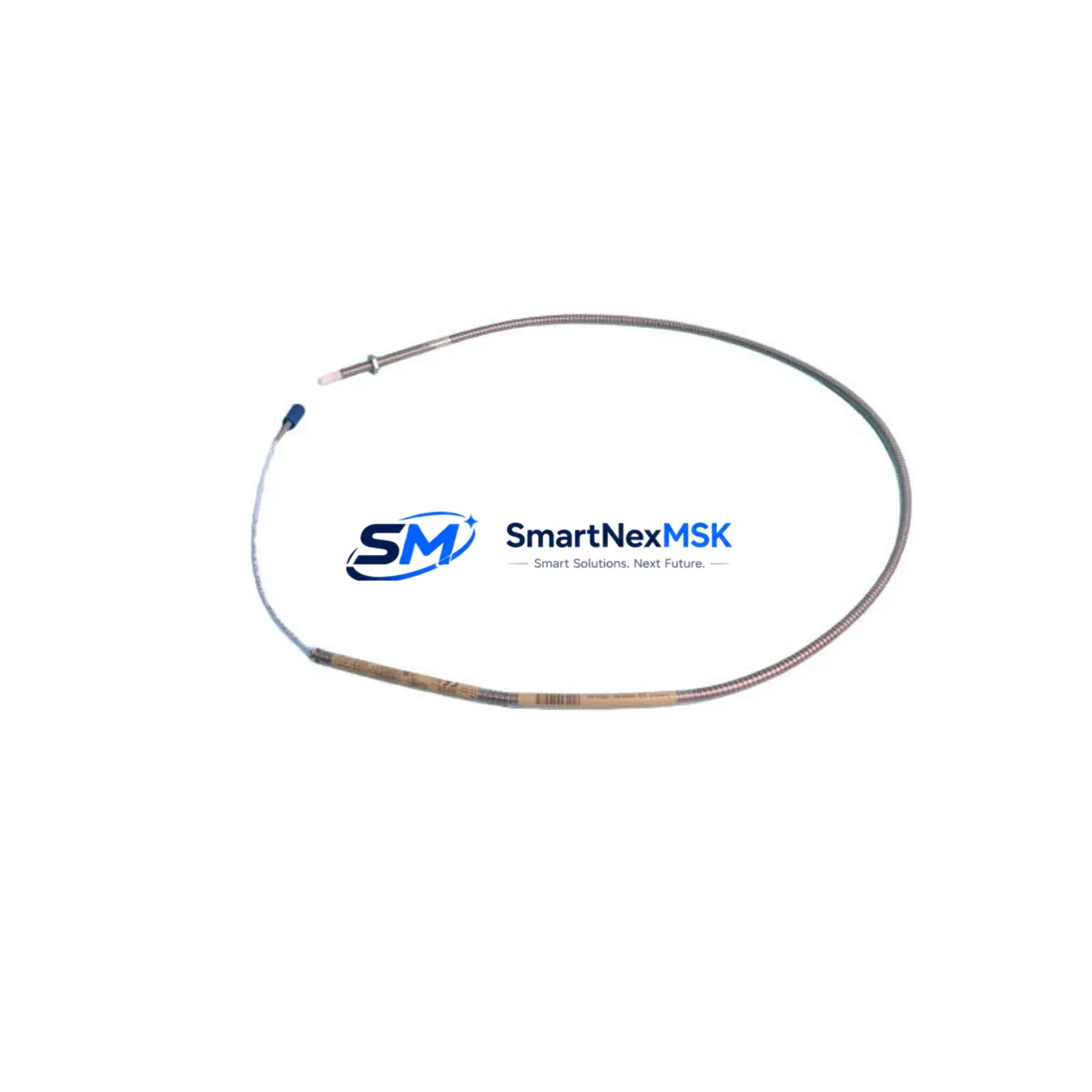

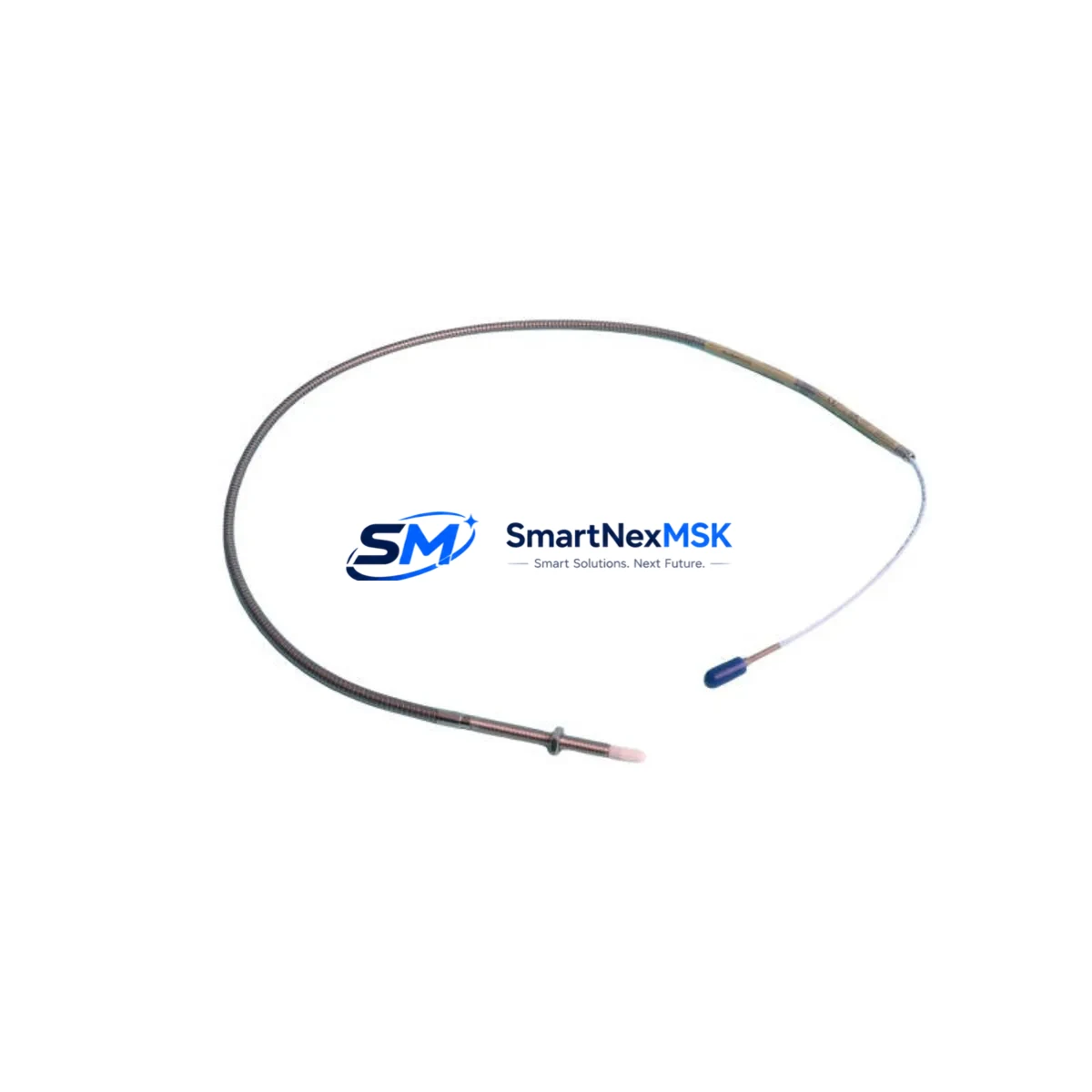

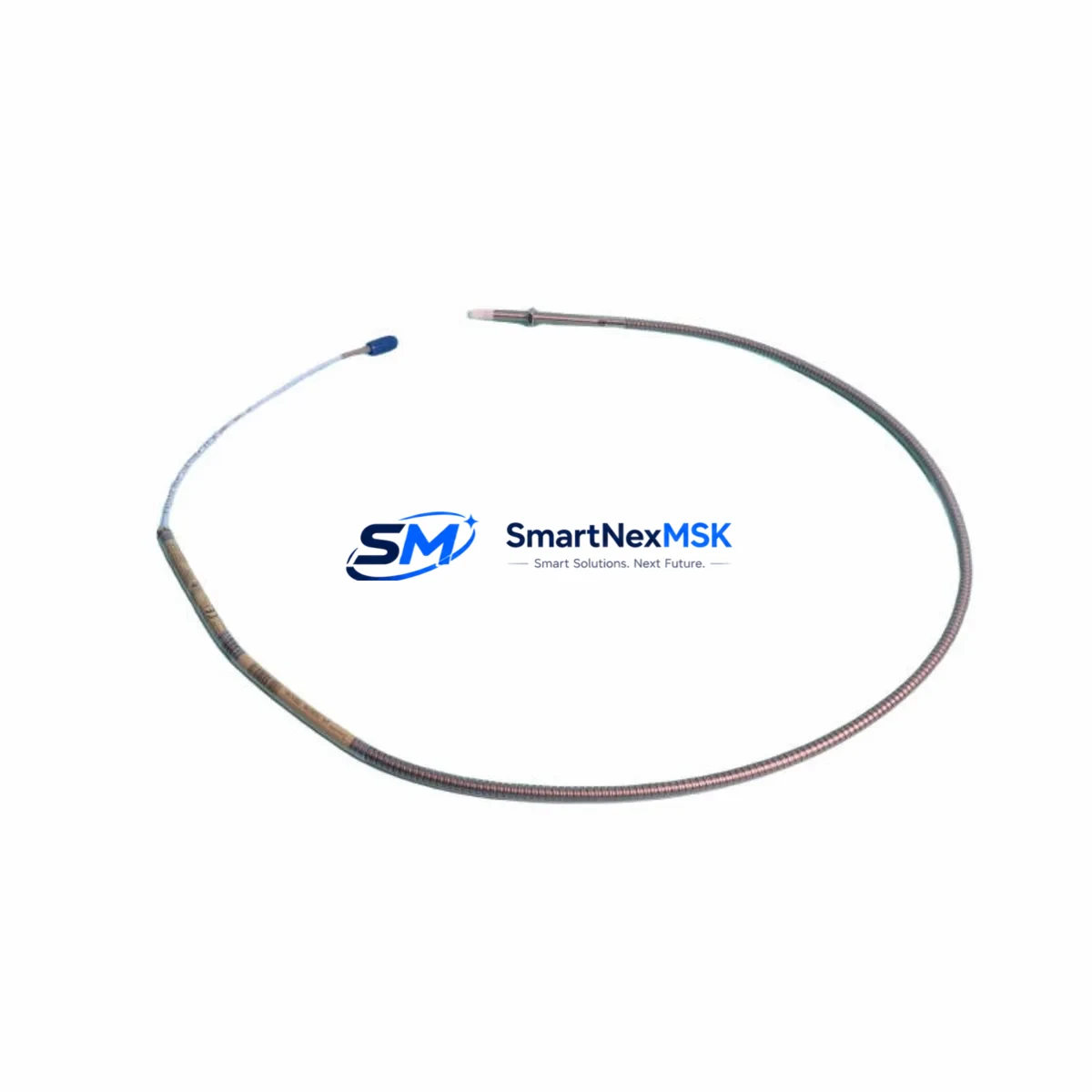

The Bently Nevada 330904-00-18-50-02-00 is an original eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery protection systems. Designed as a direct-fit spare for the 3300 XL NSv series, this probe delivers the signal accuracy and mechanical reliability that maintenance engineers depend on during planned shutdowns, emergency replacements, and long-term asset protection programs. Whether you are managing a turbine protection panel, a compressor monitoring rack, or a critical pump train, having a verified spare of the 330904-00-18-50-02-00 on the shelf is a fundamental element of any responsible predictive maintenance strategy.
Industrial facilities operating Bently Nevada 3300 XL NSv systems understand that unplanned downtime caused by a failed proximity probe can cascade into hours of lost production. The 330904-00-18-50-02-00 is stocked, tested, and ready for immediate dispatch to minimize mean time to repair (MTTR) and restore machine protection coverage as quickly as possible. Each unit ships with a 12-month warranty and passes pre-shipment functional verification to confirm output linearity, gap voltage response, and cable integrity before leaving our facility.
Spare Maintenance Table
| Part Number | 330904-00-18-50-02-00 |
| Brand | Bently Nevada |
| Series | 3300 XL NSv (Non-Standard Voltage) |
| Type | Eddy-Current Proximity Probe |
| Probe Length | 18 inches (457 mm) |
| Cable Length | 50 inches (1270 mm) integral cable |
| Tip Diameter | 8 mm standard |
| Operating Gap Range | 0.25 mm – 2.25 mm (nominal linear range) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) nominal |
| Supply Voltage | –24 VDC (via 3300 XL driver/extension cable) |
| Temperature Range | –35°C to +177°C (probe body) |
| Target Material Compatibility | Steel, 4140, 4340, 17-4PH, Inconel 718 |
| Connector | Integral coaxial, mates with 3300 XL extension cable |
| Application | Radial vibration, axial position, differential expansion monitoring |
| Certifications | CE, ATEX (consult datasheet for zone classification) |
| Warranty | 12 Months from shipment date |
| Condition | Original, new or fully tested surplus |
| Lead Time | In stock – ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a 330904-00-18-50-02-00 proximity probe is flagged during a control cabinet inspection or routine vibration survey, experienced maintenance engineers know that the probe itself is rarely the only component that warrants attention. A complete site assessment should include the matched 3300 XL extension cable (typically the 330130 series), which carries the probe signal from the machine casing to the monitoring rack and is subject to mechanical fatigue, connector corrosion, and insulation breakdown over time. The 3300 XL proximitor / driver module (such as the 330180 or 330185 series) should be bench-tested in parallel, as a degraded driver will produce erroneous gap voltage readings even with a new probe installed.
At the rack level, verify the 3500/42M Proximitor / Seismic Monitor or equivalent 3300 series monitor card for alarm setpoint integrity and channel health. Power supply modules feeding the monitoring rack — including the 3500/15 Power Supply — should be checked for output ripple and voltage stability, since supply noise directly corrupts proximity probe signal quality. Terminal blocks and field wiring within the junction box should be inspected for loose terminations, moisture ingress, and ground loops, all of which are common sources of false vibration alarms.
For facilities running integrated machinery protection systems, the 3500/22M Transient Data Interface and associated Keyphasor modules (3500/25) are part of the same measurement chain and should be included in any planned maintenance window that involves probe replacement. If the machine train also uses temperature monitoring, cross-check the 3300 XL temperature monitor channels and associated thermocouple or RTD inputs for drift. Signal isolators and barriers protecting the intrinsically safe zones adjacent to the probe installation should be tested for correct transfer function and leakage current. Finally, confirm that the System 1 Evolution software configuration reflects the correct probe type, sensitivity constant, and gap calibration for the 330904-00-18-50-02-00 after installation to avoid nuisance trips during machine restart.
Site Replacement Workflow
Replacing the 330904-00-18-50-02-00 in the field follows a structured sequence designed to minimize downtime and eliminate re-work. Begin by documenting the existing gap voltage reading at the installed probe tip using a calibrated digital voltmeter referenced to the proximitor output terminals — this baseline confirms whether the fault is in the probe, the extension cable, or the driver. De-energize the monitoring channel at the rack before disconnecting the extension cable to prevent transient signals from triggering protective trips on adjacent channels.
Remove the probe from the machine casing using the correct spanner to avoid thread damage on the probe boss. Inspect the target area on the shaft for surface irregularities, rust pitting, or runout anomalies that could affect the new probe’s linear range. Install the 330904-00-18-50-02-00 replacement to the manufacturer-specified gap (typically 50 mil / 1.27 mm for steel targets), torque the locknut to specification, and reconnect the extension cable. Re-energize the channel and verify the gap voltage falls within the linear range (–10 VDC to –18 VDC for standard NSv systems). Confirm alarm and danger setpoints are active before returning the machine to service. This workflow is compatible with direct replacement of legacy 330900 and 330903 series probes in the same mounting configuration, allowing older system upgrades without mechanical modification.
Spare Parts Support FAQ
Q1: Is the 330904-00-18-50-02-00 compatible with both 3300 XL and legacy 3300 series monitors?
The 330904-00-18-50-02-00 is designed for the 3300 XL NSv system. Compatibility with legacy 3300 (non-XL) monitors depends on the driver module version. We recommend confirming the proximitor part number before ordering. Our technical team can assist with cross-reference verification.
Q2: What pre-shipment testing is performed on each unit?
Every 330904-00-18-50-02-00 unit undergoes gap voltage linearity verification, cable continuity and insulation resistance testing, and connector integrity inspection before dispatch. A test report is available upon request for quality-critical applications.
Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an anti-static, moisture-proof bag at 15°C–35°C with relative humidity below 75% non-condensing. Avoid coiling the integral cable tighter than a 50 mm bend radius. Inspect annually for connector oxidation and cable jacket condition. Properly stored units maintain full specification for 5+ years.
Q4: What is the warranty coverage and return policy?
All units carry a 12-month warranty from the shipment date covering manufacturing defects and functional failure under normal operating conditions. DOA units are replaced or refunded within 30 days. Warranty claims require the original order reference and a brief fault description. Contact sales@smartnexmsk.com to initiate a claim.
