Bently Nevada 330904-00-22-10-02-05/CN Spare 3300 NSv: Precision Spare for Industrial Vibration Monitoring

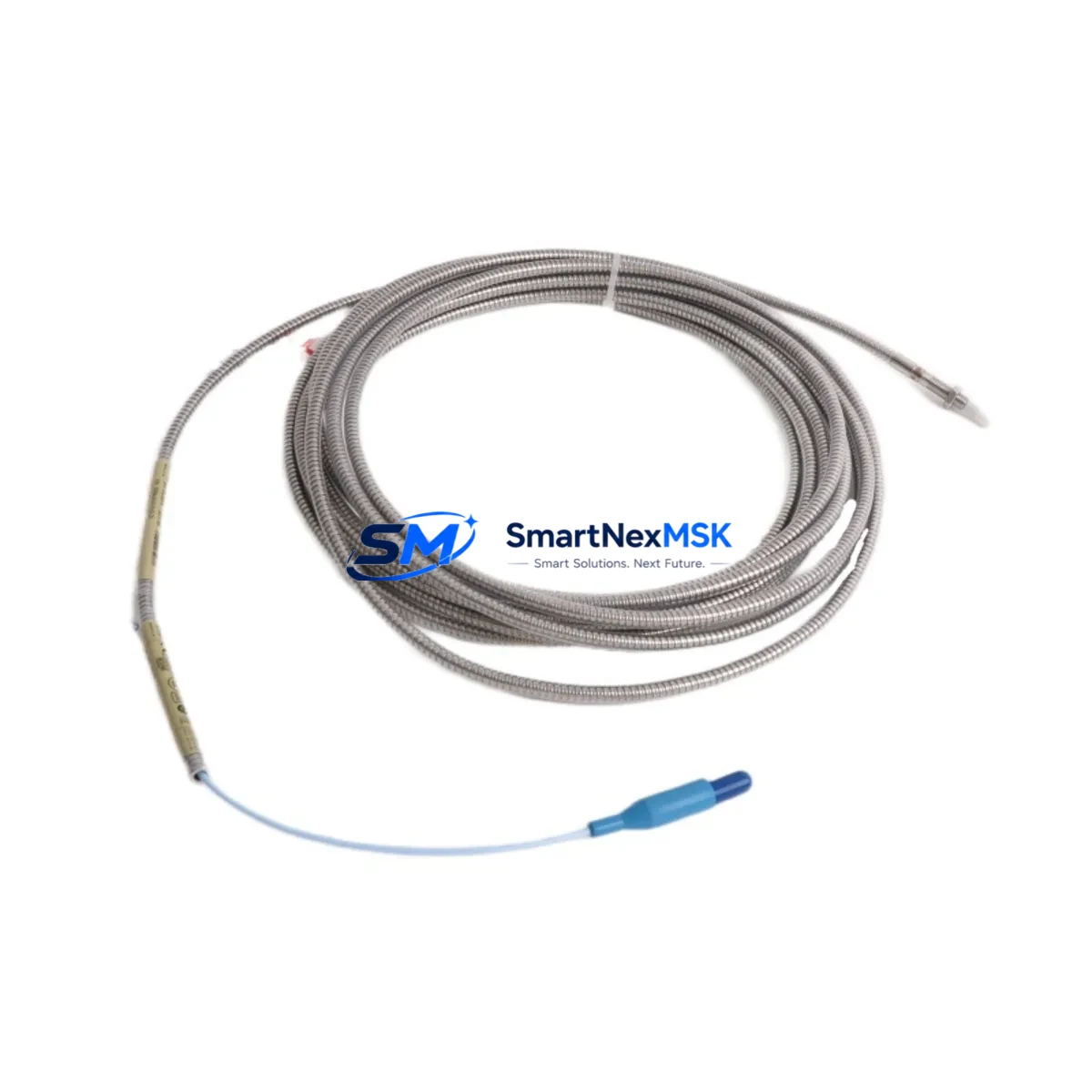

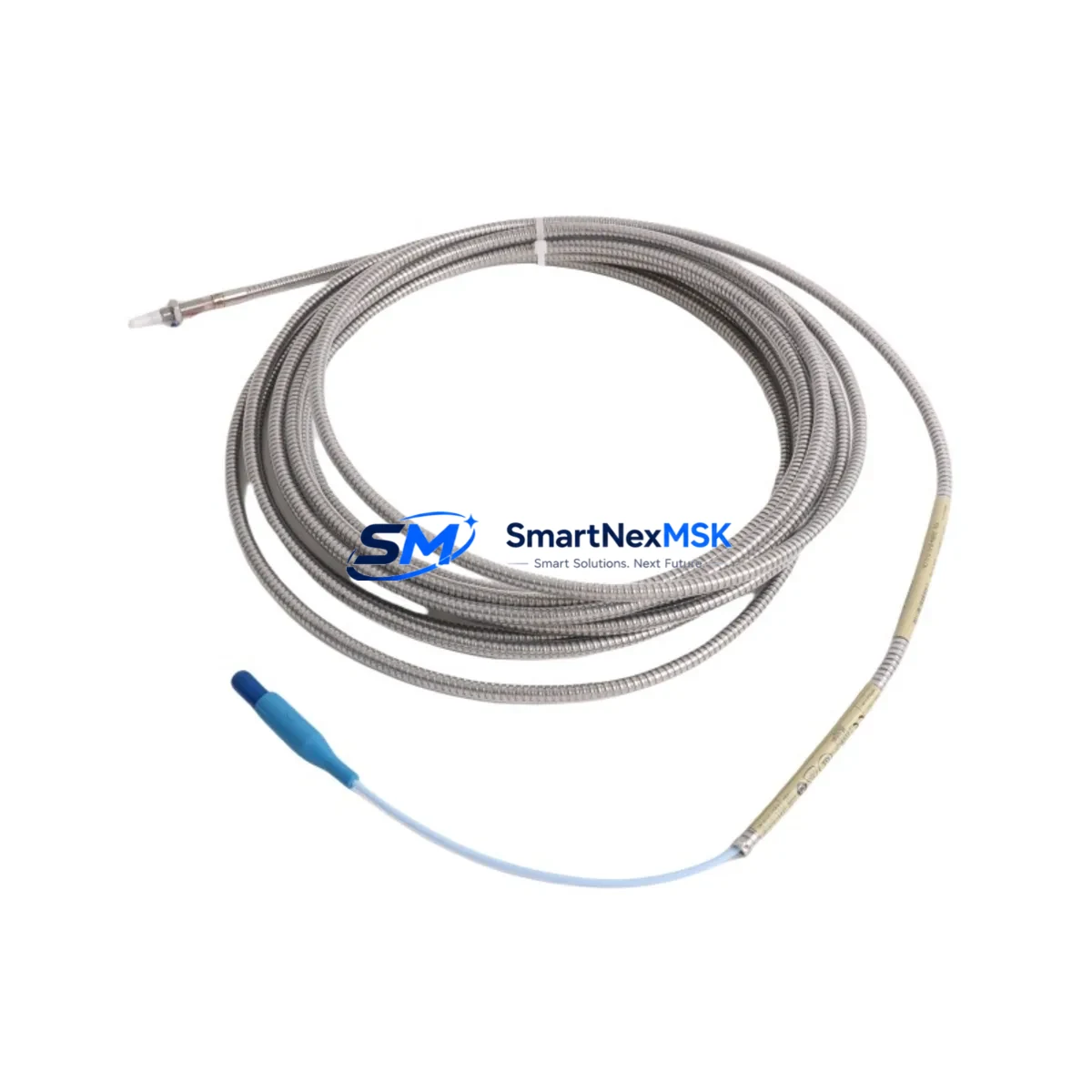

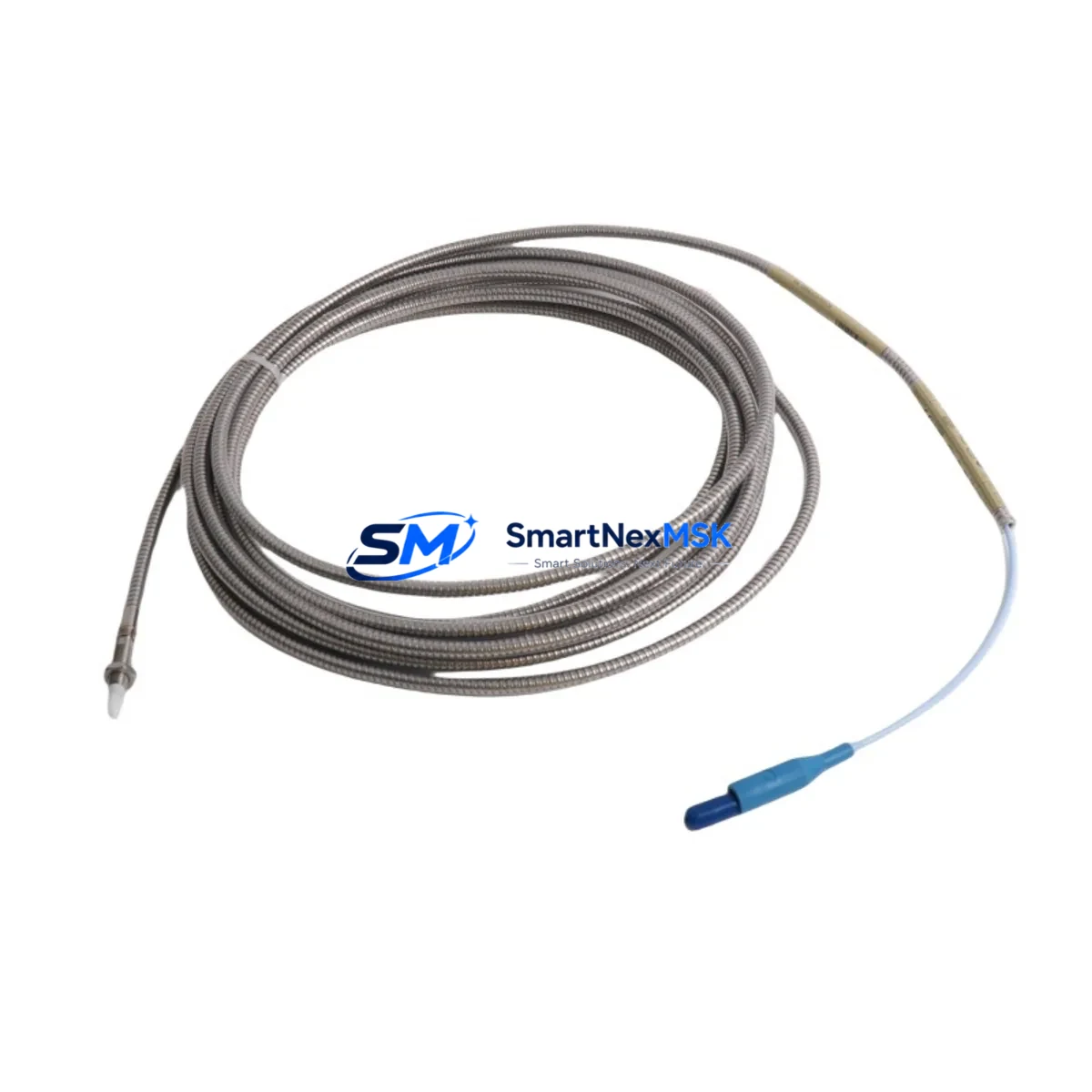

The Bently Nevada 330904-00-22-10-02-05/CN is an original 8mm eddy current proximity probe engineered for the 3300 NSv series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this probe is a critical spare component for turbines, compressors, pumps, and generators operating in demanding industrial environments. When a proximity probe fails or degrades, the consequences extend beyond a single sensor — undetected shaft vibration can escalate to catastrophic bearing failure, unplanned shutdown, and costly production loss. Maintaining a verified, tested spare of the 330904-00-22-10-02-05/CN in your parts inventory is a fundamental element of any proactive maintenance strategy.

This unit ships from verified stock, undergoes pre-shipment functional testing, and is backed by a 12-month warranty. It is fully compatible with the Bently Nevada 3300 NSv monitoring system and is a direct replacement for worn, damaged, or end-of-life probes in the field.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a degraded or failed 330904-00-22-10-02-05/CN proximity probe, the replacement workflow should extend beyond the probe itself. The 3300 NSv system is an integrated measurement chain — probe, extension cable, and Proximitor driver must all be evaluated together. A probe that reads out-of-range gap voltage may indicate a failing 330180-91-00 Proximitor sensor rather than the probe itself. Always verify the driver output before condemning the probe.

During planned or emergency replacement, inspect the 330130-080-00-00 extension cable for jacket damage, connector corrosion, or continuity loss — extension cable degradation is a common root cause of intermittent vibration readings. If the probe is mounted in a high-temperature zone near a turbine bearing housing, also check the 330105-02-12-10-02-05 high-temperature probe variants in adjacent measurement points for similar thermal fatigue.

At the control cabinet level, verify the 3500/42M Proximitor/Seismic Monitor module for alarm setpoint integrity and channel health after any probe swap. A probe replacement that is not followed by a channel calibration check can leave latent faults undetected. Confirm that the 3500 rack backplane I/O connections and termination blocks are secure, as loose terminations are a frequent source of noise in proximity measurement circuits.

For sites running legacy 3300 series racks alongside newer 3500 architecture, ensure that the 3300/16 Dual Voting Trip module or equivalent relay output module is functioning correctly — a probe replacement is an ideal opportunity to verify relay response and trip setpoints. Additionally, inspect the 3300/55 Temperature Monitor if the probe is co-located with thermocouple or RTD inputs in the same cabinet, as ground loops between proximity and temperature circuits can introduce measurement error.

Procurement engineers should note that the 330904-00-22-10-02-05/CN is a long-lead OEM item when ordered through standard channels. Maintaining a minimum of two units per critical machine train — one installed, one on-shelf — is the recommended spare holding strategy for facilities with uptime SLAs. Pairing this probe with a stocked 330130 extension cable and a spare 330180 Proximitor creates a complete, self-contained replacement kit that enables sub-30-minute field swap on most installations.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Coordinate with operations to place the affected measurement channel in bypass mode on the 3500 or 3300 monitor rack. Apply LOTO to the machine if probe access requires entry into a hazardous zone.

Step 2 — Gap Measurement & Documentation: Before removing the old probe, record the installed gap voltage (target: -10.0 VDC ± 0.5 V for most 3300 NSv installations). This baseline is essential for verifying correct reinstallation of the replacement unit.

Step 3 — Probe Removal: Unthread the probe from the mounting bracket using the M10 x 1 thread. Disconnect the integral cable from the extension cable at the junction. Inspect the probe tip for physical damage, pitting, or contamination that may indicate a process ingress issue requiring corrective action beyond probe replacement.

Step 4 — New Probe Installation: Install the 330904-00-22-10-02-05/CN replacement, setting the gap to the documented baseline using a non-ferrous feeler gauge or gap-setting tool. Reconnect the extension cable and verify connector seating and locking.

Step 5 — System Verification: Remove the channel bypass, observe the gap voltage on the monitor, and confirm it falls within the linear range. Perform a slow-roll vibration check if the machine can be safely rotated. Log the replacement in the CMMS with the new probe serial number and installation date.

This workflow minimizes downtime, ensures measurement chain integrity, and provides a documented audit trail for reliability reviews.

Spare Parts Support FAQ

Q: Is the 330904-00-22-10-02-05/CN compatible with both 3300 and 3500 series Bently Nevada systems?
A: The probe itself is mechanically and electrically compatible with any Bently Nevada system that accepts 8mm eddy current probes with a -24 VDC Proximitor driver. However, the 3500 series uses its own Proximitor modules (e.g., 3500/42M), so confirm the driver part number before ordering. The probe-to-Proximitor pairing must be matched for accurate calibration.

Q: What pre-shipment testing is performed on this unit?
A: Each 330904-00-22-10-02-05/CN unit undergoes electrical continuity verification, gap voltage output testing against a calibrated steel target, and visual inspection for connector and cable integrity before dispatch. A test report is available upon request for critical applications.

Q: What is the recommended spare holding quantity for a critical rotating machine?
A: Industry best practice for critical machinery (turbines, compressors, large pumps) is a minimum of two probes per measurement plane, plus one complete Proximitor driver per rack. For facilities with multiple identical machine trains, a pooled spare of 4–6 probes per probe model is a common reliability engineering recommendation.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical exposure, or operation outside the specified temperature and voltage range. Warranty claims are processed with return shipment support.
