Bently Nevada 330904-00-23-10-02-05/CN 3300 NSv Retrofit

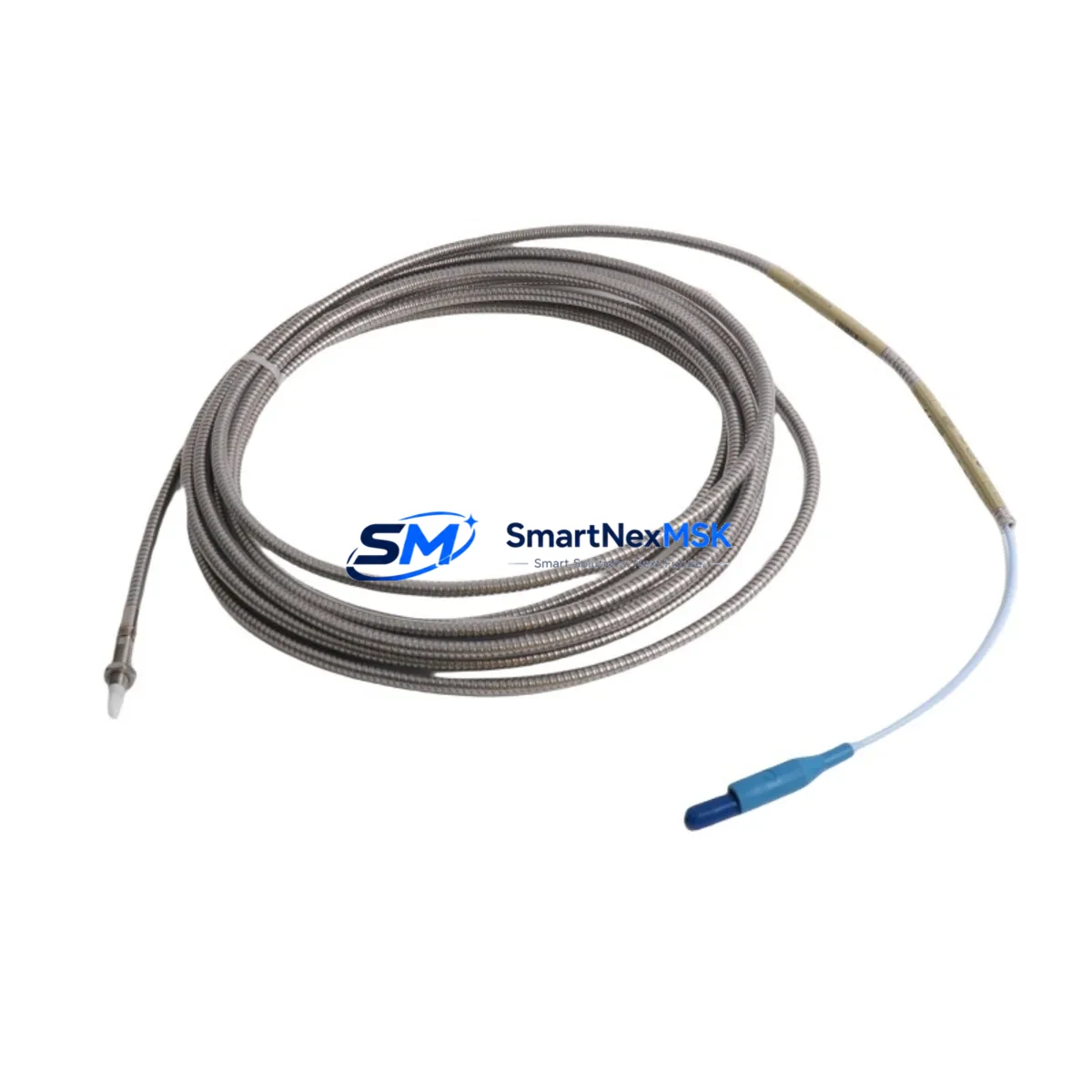

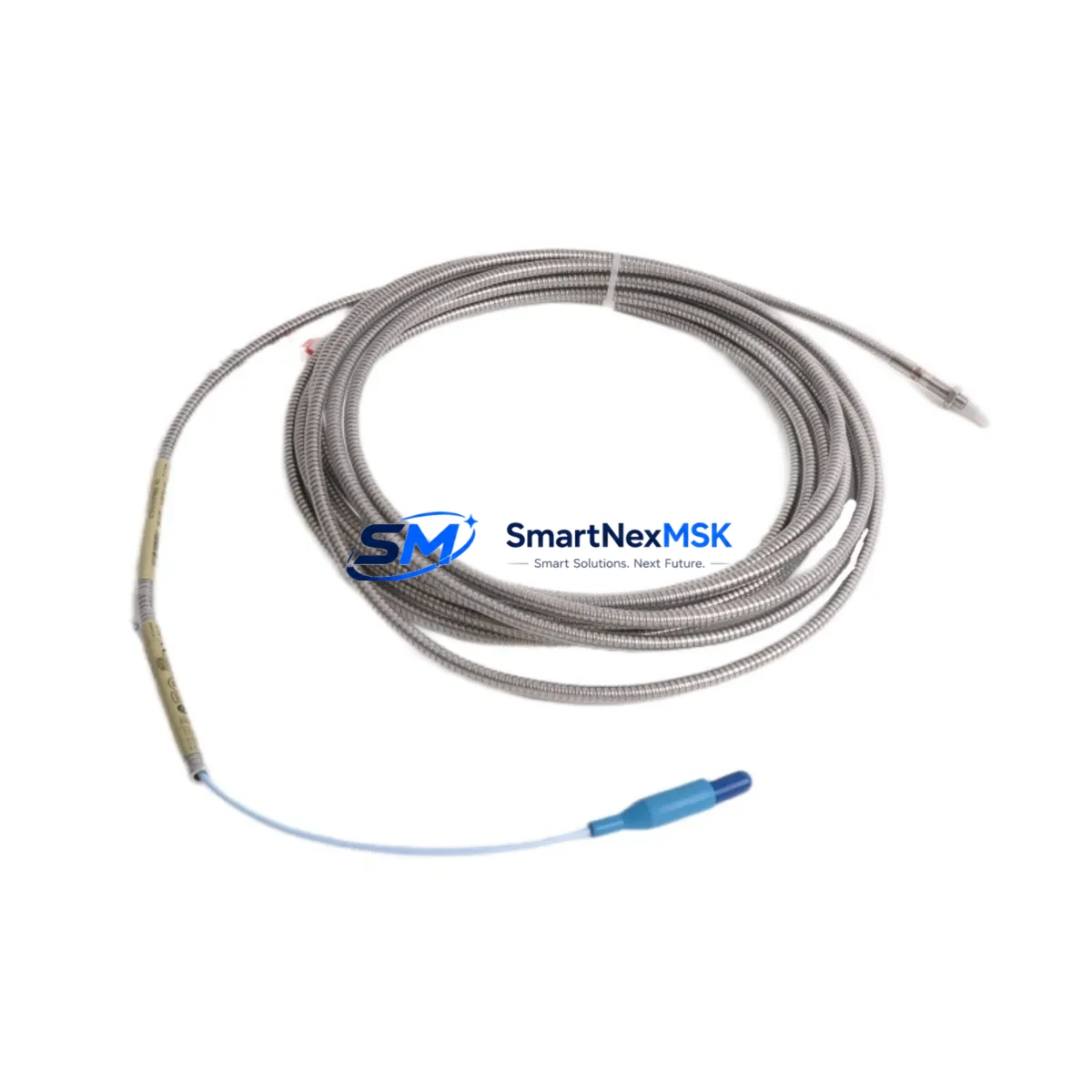

Bently Nevada 330904-00-23-10-02-05/CN 3300 NSv Retrofit-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330904-00-23-10-02-05/CN is a high-precision eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring platform. As rotating machinery protection systems age and OEM support for legacy Bently Nevada 3300 Series hardware is phased out, plant engineers and reliability teams increasingly require verified drop-in replacements that maintain full signal chain compatibility without requiring reprogramming of existing Bently Nevada 3500 rack systems or reconfiguration of connected DCS and safety instrumented systems.

This unit is stocked, tested, and shipped with a 12-month warranty. Each probe undergoes pre-shipment functional verification covering output sensitivity (nominally 7.87 V/mm), gap voltage linearity, cable continuity, and connector integrity. Whether you are executing a planned turnaround, responding to an unplanned trip, or building a critical-spare inventory for a compressor train or turbine skid, this replacement probe is ready for immediate installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant is rarely a standalone task. The 330904-00-23-10-02-05/CN sits at the front end of a signal chain that typically includes a 3300 NSv Proximitor Sensor (such as the 330180-51-05 or 330180-91-05 extension cable assembly), a Bently Nevada 3500/42M Proximitor Monitor I/O module, and a 3500 rack backplane with a 3500/20 Rack Interface Module providing the communication bridge to the plant DCS or safety system.

Before scheduling the probe swap, the maintenance team should audit the full signal path. Confirm that the existing Proximitor sensor is within calibration and that its output voltage at the nominal air gap falls within the linear range specified in the 3300 NSv System Manual. If the Proximitor is also end-of-life, plan to replace it simultaneously with a compatible 330180-series unit to avoid a second outage. Check the 3500/42M I/O module firmware version — older firmware revisions may require a configuration download from System 1 Evolution software after any hardware change in the channel.

For plants running a hybrid architecture where the 3500 rack feeds both a Honeywell Experion PKS DCS and a Triconex Safety Instrumented System via hardwired relay contacts, verify that the NOT OK relay output wiring from the 3500/20 RIM remains intact during the probe replacement window. Temporary bypass procedures should be coordinated with the SIS engineer and documented in the management-of-change system before any work begins.

I/O expansion considerations are also relevant during this type of retrofit. If the plant is simultaneously upgrading from a 3300 Series rack to a full 3500 Series rack, the new rack will require a 3500/01 Power Supply module and a 3500/05 System Display and Reset Module in addition to the monitor I/O cards. Ensure the rack power budget accounts for all installed modules before energizing. The 3500/01 power supply accepts 88–264 VAC or 18–32 VDC input, which should be confirmed against the control cabinet power distribution panel capacity.

HMI integration is another checkpoint. If the plant uses a GE iFIX or Wonderware InTouch SCADA screen that displays vibration trend data from the 3500 rack via OPC-DA, confirm that the OPC server tag addresses remain unchanged after the probe replacement. A channel re-initialization in the 3500 rack can temporarily reset the OK status bit, which may trigger nuisance alarms on the HMI until the system stabilizes. Coordinate with the control room operator before initiating the swap.

For sites migrating from the older Bently Nevada 7200 Series or 3300 Series to the 3500 platform as part of a broader modernization program, the 330904-00-23-10-02-05/CN probe is forward-compatible with the 3500 architecture when paired with the correct Proximitor and I/O module. This makes it a practical interim solution that protects capital investment while the full rack migration is planned and budgeted.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary driver for maintaining a critical-spare inventory of proximity probes. The 330904-00-23-10-02-05/CN is stocked for same-day dispatch, which supports a rapid-response maintenance strategy for compressor trains, steam turbines, pumps, and fans where continuous vibration monitoring is a permit-to-operate requirement.

For planned replacements during a scheduled turnaround, the recommended sequence is: (1) download and archive the current 3500 rack configuration using Rack Configuration software before any hardware is disturbed; (2) record the as-found gap voltage for each channel being replaced; (3) install the new 330904-00-23-10-02-05/CN probe and set the air gap to the OEM-specified nominal value; (4) verify the new gap voltage matches the expected linear range; (5) perform a channel bypass in the 3500 monitor during the brief signal interruption to prevent a spurious trip; (6) restore the channel and confirm OK status before releasing the bypass.

This procedure preserves the existing program logic in the 3500 rack and requires no changes to the DCS historian tags, alarm setpoints, or SIS interlock logic. The original vibration trend baseline can be re-established within one operating cycle after the probe is reinstalled, allowing the reliability team to confirm that the replacement probe is performing within specification before the next scheduled inspection interval.

For emergency replacements outside of a planned outage, the same configuration archive and gap-setting procedure applies, but the timeline is compressed. Having a pre-tested spare on the shelf — with the gap voltage pre-verified on a bench fixture — reduces field commissioning time to under 30 minutes in most installations.

Retrofit Support FAQ

Q1: Is the 330904-00-23-10-02-05/CN a direct replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional and electrical specification as the original 330904-00-23-10-02-05/CN. It is compatible with the 3300 NSv Proximitor Sensor and the 3500/42M Proximitor Monitor I/O module without any modification to the existing wiring or rack configuration.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe air gap to the nominal value specified in the 3300 NSv System Manual (typically 1.0–2.5 mm depending on shaft material). Verify the Proximitor output voltage falls within the linear range. Confirm the OK/NOT OK relay status in the 3500 monitor and check that the DCS or SCADA system is receiving a valid signal before releasing the channel from bypass.

Q3: Can this probe be used with a Bently Nevada 3500/42M monitor configured for a different probe model?
The 3500/42M I/O module configuration must match the probe and Proximitor combination. If the channel was previously configured for a different probe series, a configuration download using Rack Configuration software is required. Contact our technical team with your existing rack configuration file and we can advise on compatibility before you order.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment for output sensitivity, gap voltage linearity, cable continuity, and connector integrity. Warranty claims are supported by our technical team at sales@smartnexmsk.com. Proof of purchase and a brief description of the failure mode are required to initiate a warranty claim.
