Bently Nevada 330904-00-24-10-02-00 Safety Probe 3300 NSv

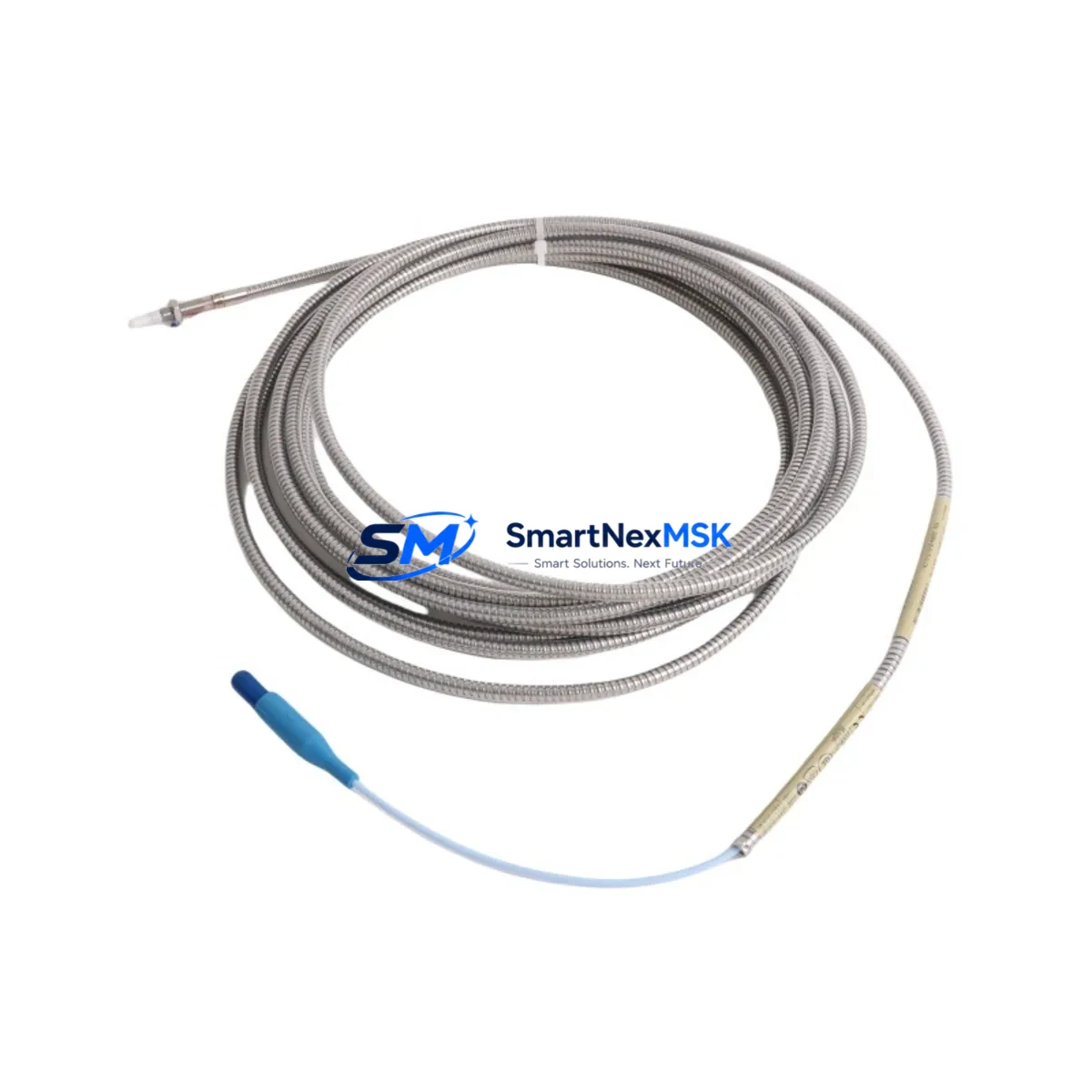

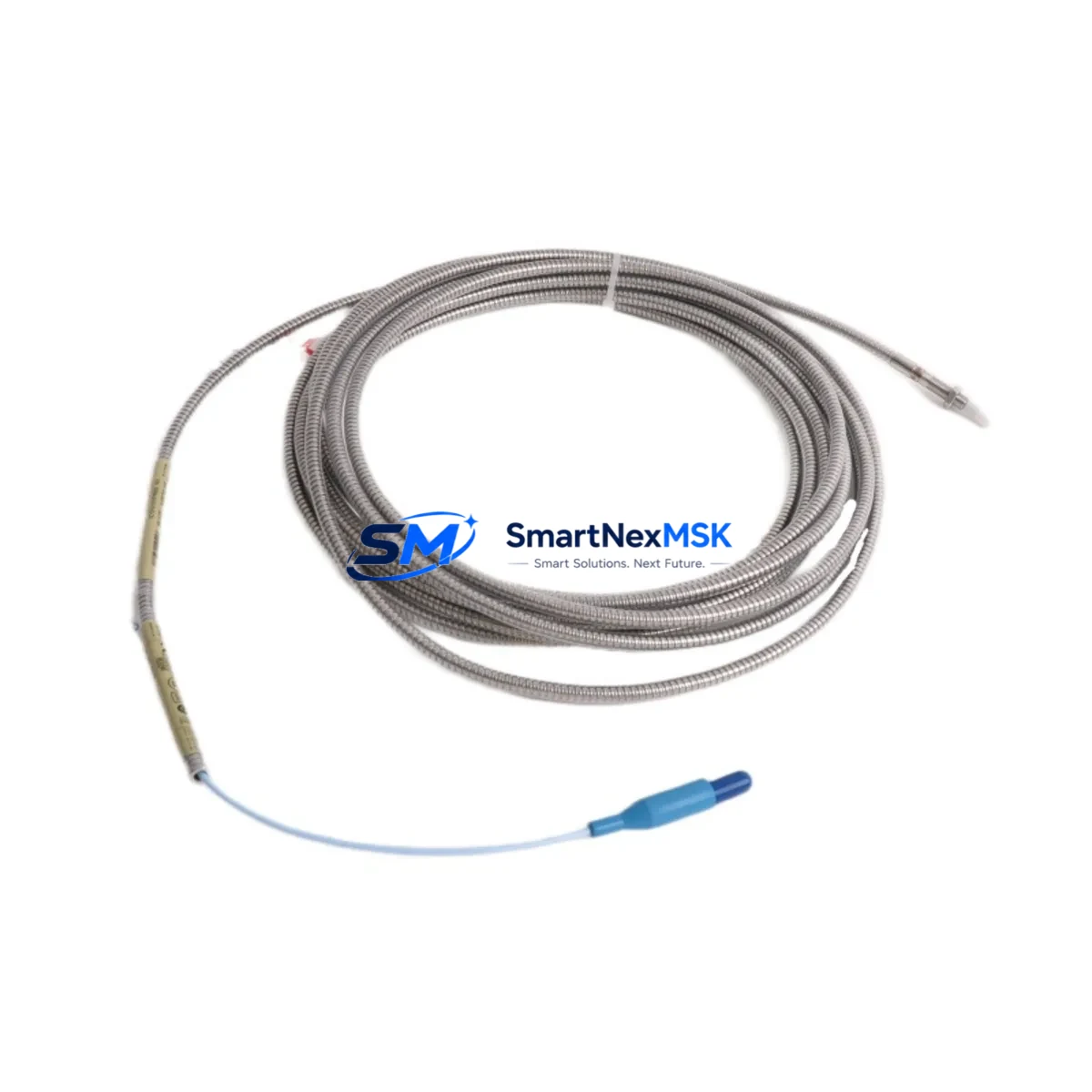

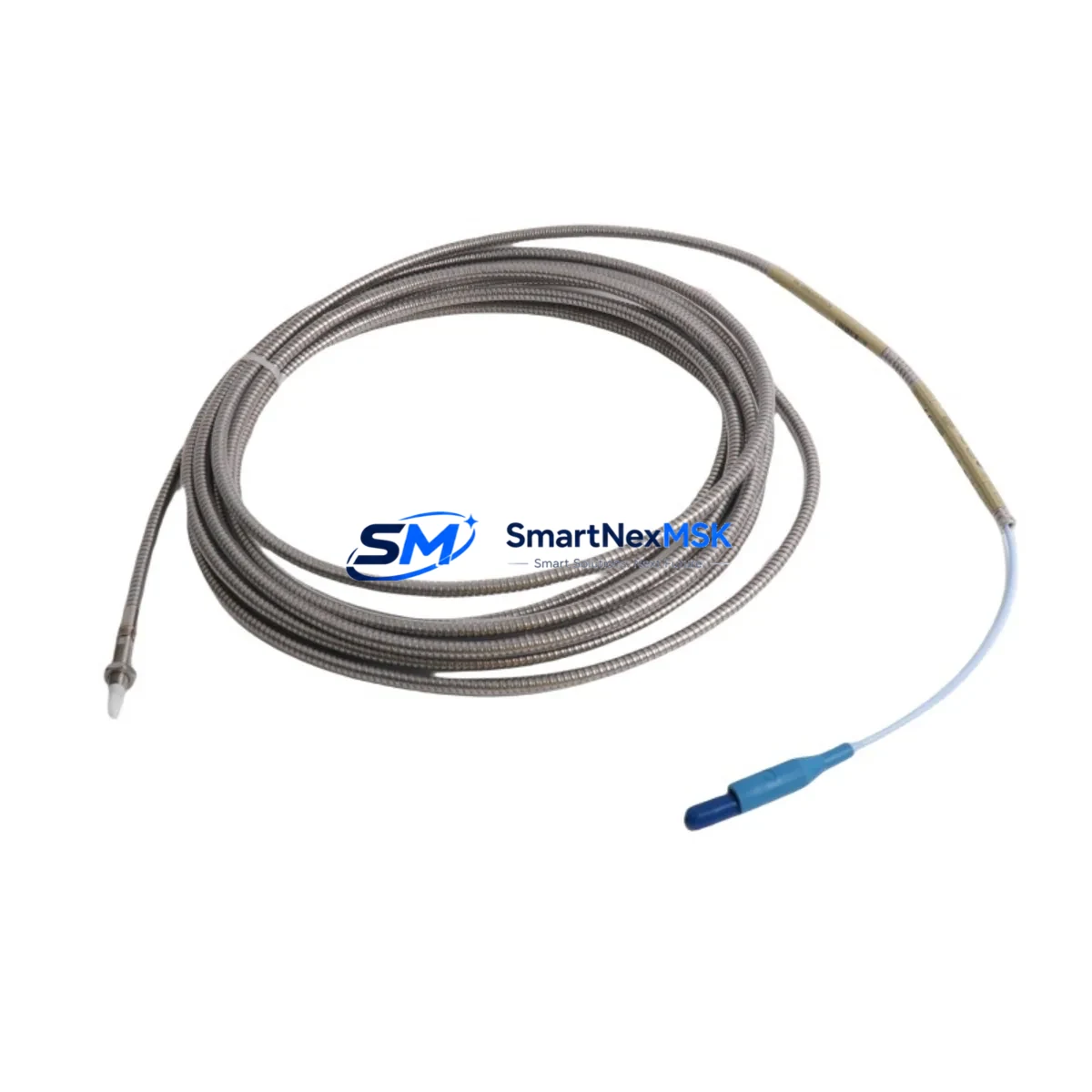

Bently Nevada 330904-00-24-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330904-00-24-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 NSv series vibration monitoring system. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous-process manufacturing — this probe delivers precise shaft displacement and vibration measurements that are critical to machine protection and safety interlock systems. When rotating machinery health is non-negotiable, the 330904-00-24-10-02-00 provides the signal integrity and mechanical durability that maintenance and reliability engineers depend on.

In high-load, high-interference environments, signal drift and probe failure can trigger unplanned shutdowns or, worse, mask developing faults in critical rotating equipment. The 330904-00-24-10-02-00 is built to resist electromagnetic interference, thermal cycling, and mechanical vibration — ensuring that the 3300 NSv monitor receives clean, accurate gap voltage signals at all times. Its rugged stainless-steel housing and hermetically sealed tip make it suitable for continuous immersion in oil mist, process gases, and high-humidity atmospheres without compromising measurement accuracy.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330904-00-24-10-02-00 as part of a comprehensive machine protection strategy requires attention to the entire signal chain and control cabinet ecosystem. The probe connects to a 330180 Series Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage for the 3300 NSv monitor. Any degradation in the Proximitor’s power supply — typically sourced from a 3300/20 Power Supply Module — will directly affect probe sensitivity and gap voltage accuracy. Maintenance engineers should verify the power supply output voltage (nominally -24 VDC) during every scheduled inspection.

Within the control cabinet, the 3300 NSv monitor rack should be inspected alongside its 3300/16 I/O Module and 3300/46 Keyphasor Module, as these components share the backplane and influence the overall vibration monitoring loop. Loose terminal block connections on the 3300 Series Rack Terminal Board are a common source of intermittent signal faults that can be misdiagnosed as probe failure. Torque all terminal screws to specification and inspect for corrosion, particularly in coastal or chemical plant environments.

For installations in hazardous areas classified as Zone 1 or Division 1, the signal cable from the 330904-00-24-10-02-00 must be routed through a certified Zener Barrier or Galvanic Isolator before entering the safe-area control cabinet. This prevents energy transfer that could ignite flammable atmospheres. Pairing the probe system with a Bently Nevada 3500/42M Proximitor I/O Module in a 3500 Series rack provides an upgrade path for facilities transitioning from 3300 NSv to the more advanced 3500 platform while maintaining probe compatibility.

Surge protection on the signal lines — using DIN-rail mounted transient voltage suppressors rated for low-voltage analog circuits — is strongly recommended in facilities with frequent lightning events or large motor starts nearby. Additionally, the 3300/55 Dual Voting Logic Module can be integrated into the safety interlock architecture to provide 2-out-of-3 voting on vibration trip signals, reducing nuisance trips while maintaining safety integrity.

Critical Industrial Safety Applications

The 330904-00-24-10-02-00 proximity probe is deployed across a wide range of critical industrial sectors where rotating machinery reliability directly impacts safety and production continuity.

In petrochemical and refinery operations, this probe monitors shaft vibration on compressors, pumps, and turbines that handle flammable or toxic process fluids. A vibration trip triggered by an accurate probe reading can prevent catastrophic seal failures and uncontrolled releases. In power generation plants — both thermal and combined-cycle — the probe is installed on steam turbine shafts and boiler feed pumps, where vibration exceedance beyond API 670 alarm setpoints initiates automatic shutdown sequences to protect multi-million-dollar rotating assets.

In mining and mineral processing facilities, the probe monitors crusher drives, conveyor head pulleys, and slurry pump shafts in environments with extreme dust loading and mechanical shock. Its IP67 rating and robust cable construction ensure signal continuity even when the control cabinet is subjected to structural vibration from nearby blasting operations. Water treatment and desalination plants rely on the 330904-00-24-10-02-00 to monitor high-speed centrifugal pump shafts, where bearing wear detected early through vibration trending prevents flooding events and service interruptions.

In metallurgical and steel mill environments, the probe operates near induction furnaces and rolling mill drives where electromagnetic interference is severe. Its shielded coaxial cable and the Proximitor’s signal conditioning circuitry maintain measurement accuracy despite high-frequency EMI fields. Port and bulk material handling facilities use this probe on ship unloader drives and stacker-reclaimer slewing mechanisms, where continuous 24/7 operation demands a monitoring solution with zero tolerance for false trips or missed alarms.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330904-00-24-10-02-00?
The 12-month warranty covers manufacturing defects, electrical performance outside published specifications, and mechanical integrity of the probe housing and cable assembly. Every unit undergoes functional testing — including gap voltage linearity verification and insulation resistance measurement — before shipment. If a unit fails to perform within specification under normal operating conditions during the warranty period, we provide a replacement or full refund.

Q2: How is compatibility with my existing 3300 NSv system confirmed before shipment?
The 330904-00-24-10-02-00 is a direct OEM-equivalent probe for the Bently Nevada 3300 NSv monitoring system. Compatibility is confirmed based on the probe’s 8mm tip diameter, 200 mV/mil scale factor, and -24 VDC driver supply requirement — all of which match the 3300 NSv system specifications. If your installation uses a non-standard target material or gap range, please provide your system configuration details and we will verify compatibility before processing your order.

Q3: Can this probe replace older Bently Nevada 330900 series probes in existing installations?
Yes. The 330904-00-24-10-02-00 is dimensionally and electrically compatible with earlier 330900 series 8mm probes used in 3300 NSv systems. The cable length suffix (-24) indicates a 2.4 m integral cable, which should be matched to your existing extension cable length to maintain the correct total system cable length for accurate calibration. If your current installation uses a different cable length variant, we can source the appropriate suffix to ensure a drop-in replacement without recalibration.

Q4: What is your long-term supply commitment for this part number?
We maintain dedicated inventory of the 330904-00-24-10-02-00 and related 3300 NSv series components to support long-term maintenance programs. For facilities with planned maintenance schedules or annual shutdown requirements, we offer reserved stock arrangements and priority fulfillment agreements. Our supply chain covers both current-production and new-old-stock units, ensuring availability even for legacy systems that Bently Nevada has discontinued from active production.
