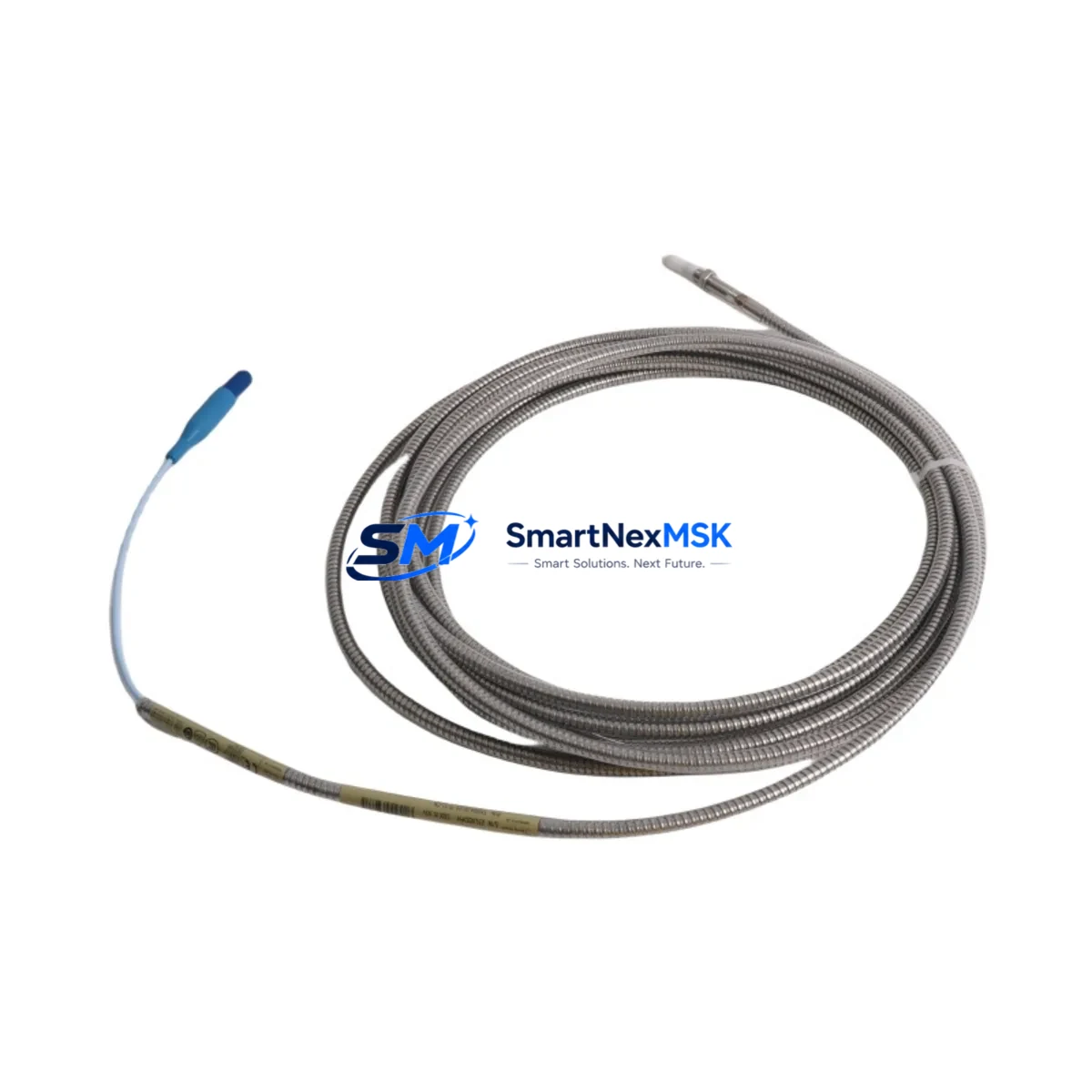

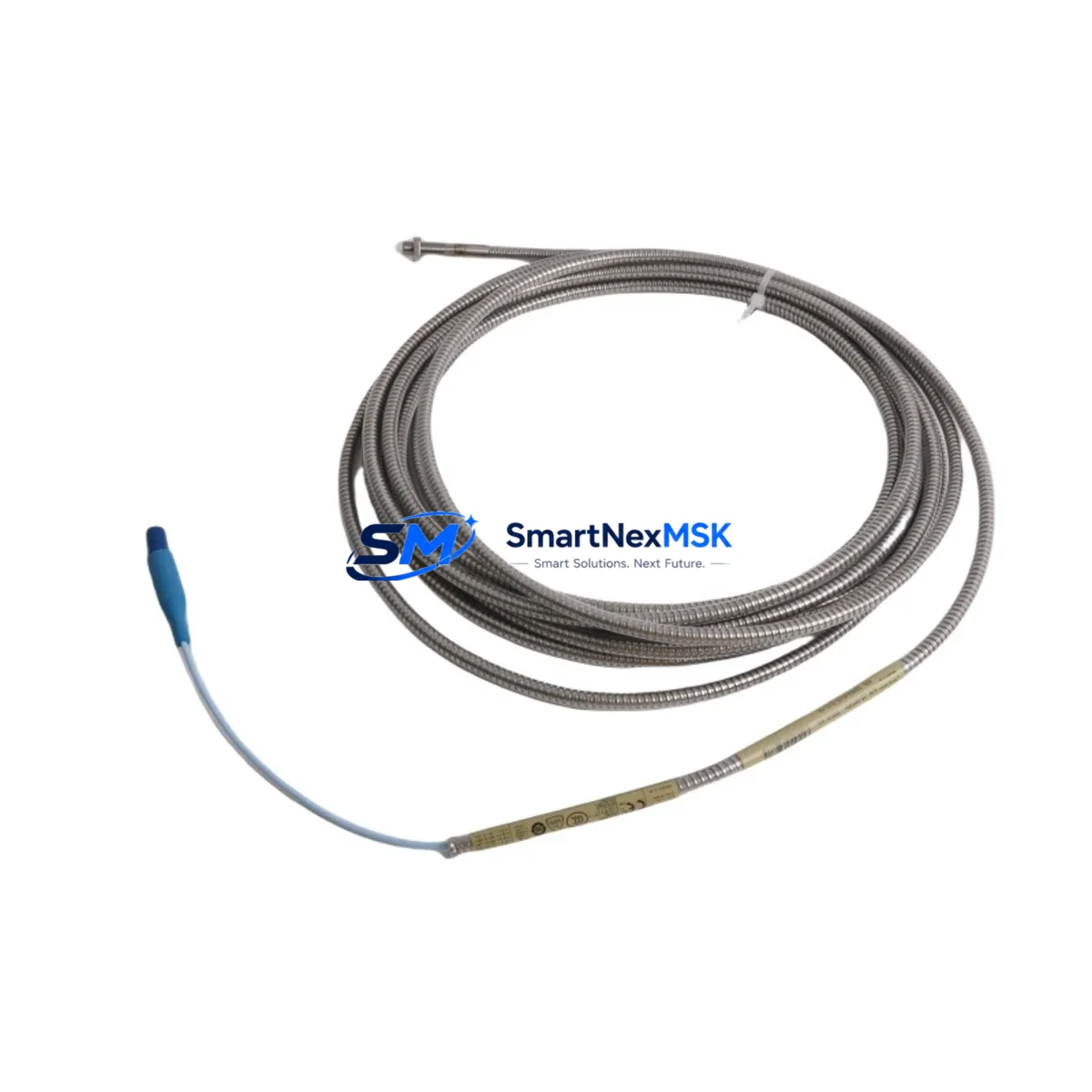

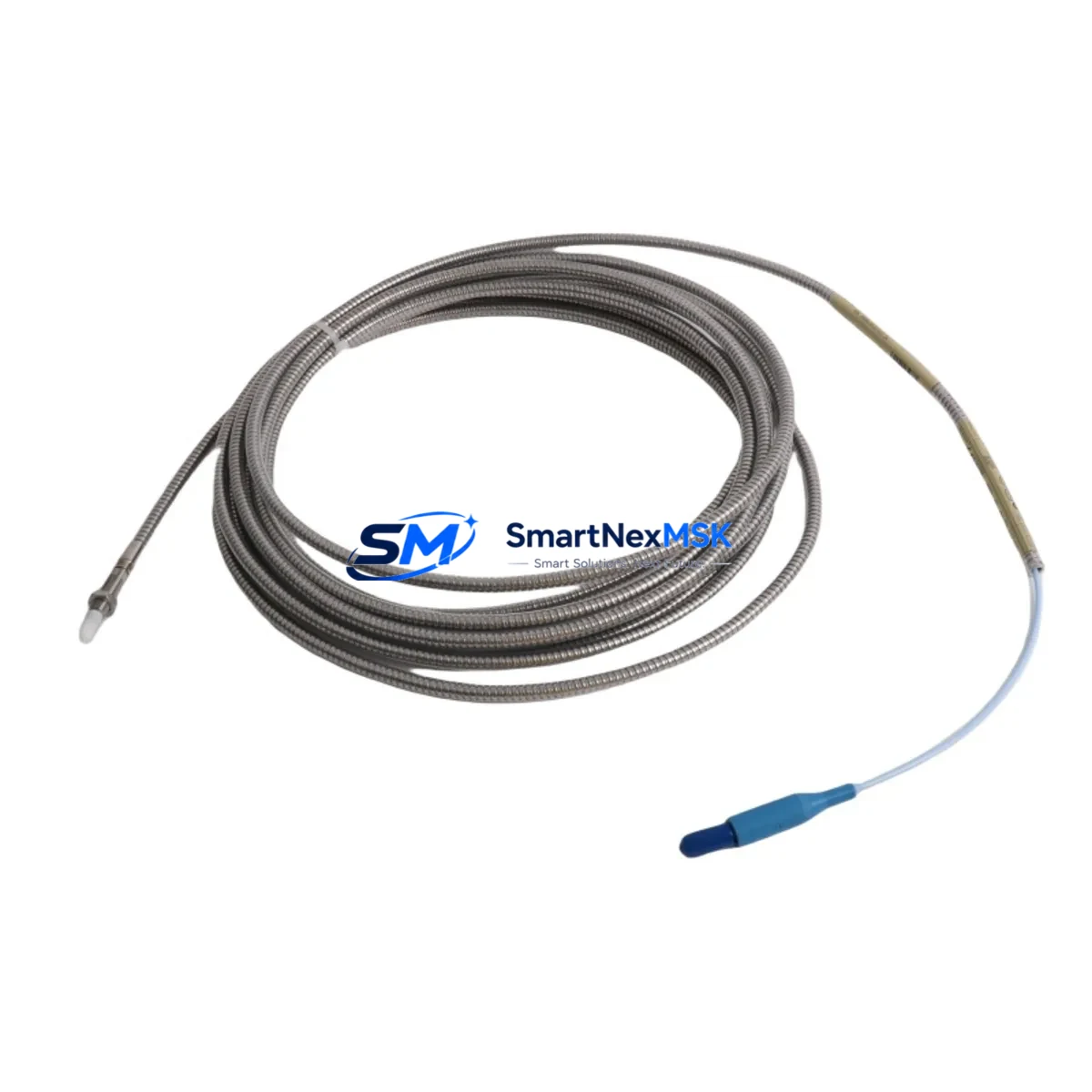

The Bently Nevada 330904-00-25-50-02-00 is an original eddy current proximity probe engineered for the 3300 NSv vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical-path spare parts inventory, this probe delivers the dimensional accuracy, signal linearity, and environmental resilience required for continuous, uninterrupted machinery protection.

Maintenance engineers working on gas turbines, steam turbines, compressors, pumps, and gearboxes rely on the 3300 NSv system to provide real-time shaft displacement, radial vibration, and axial position data. A failed or degraded proximity probe in this chain can trigger false trips, mask genuine faults, or — in the worst case — allow a developing mechanical fault to go undetected until catastrophic failure. Stocking a verified replacement such as the 330904-00-25-50-02-00 is not optional in high-availability plants; it is a fundamental element of any credible maintenance strategy.

This unit ships fully tested against Bently Nevada factory specifications, with documentation confirming output sensitivity, gap voltage linearity, and cable integrity. Each unit carries a 12-month warranty covering manufacturing defects and performance deviation from published specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330904-00-25-50-02-00 probe in the field is rarely an isolated task. Experienced maintenance engineers treat a probe replacement as an opportunity to audit the entire vibration monitoring loop and the surrounding control cabinet. Before returning the machine to service, the following components and assemblies should be inspected or tested in parallel:

The 330130 series extension cable connecting the probe to the Proximitor module is a frequent source of intermittent faults — particularly in high-vibration or high-temperature zones where cable jackets degrade over time. Inspect for chafing, connector corrosion, and shield continuity. Similarly, the 330180 series 3300 XL 8mm Proximitor module should be verified for correct bias voltage output (typically –10.5 VDC at the calibrated gap) and replaced if output drift exceeds ±0.5 V from the baseline.

Within the 3300 NSv rack, the 3300/16 I/O module and associated 3300/20 power supply module should be checked for alarm relay output integrity and DC rail stability. A degraded power supply can introduce noise into the proximity signal chain, causing spurious high-vibration alarms even when the mechanical condition is normal. The 3300/55 Keyphasor module, if installed, should also be verified — a missing or erratic Keyphasor signal will compromise 1X and 2X vector calculations across all channels in the rack.

At the terminal strip level, inspect the 3300 series barrier terminal blocks and any associated Zener barrier or galvanic isolator modules used in hazardous-area installations. Loose terminations and corroded barrier elements are a common root cause of signal degradation that is often misattributed to probe failure. If the installation uses a signal conditioner or signal isolator between the Proximitor and the DCS analog input card, verify that the isolator’s output range (typically 4–20 mA or ±10 V) is correctly scaled and that the isolator itself has not drifted out of calibration.

For plants running legacy 3300 series racks alongside newer 3500 series machinery protection systems, confirm that the replacement probe’s sensitivity and linear range are compatible with the target Proximitor model. Mixing 5 mm and 8 mm probe systems without the correct driver will produce non-linear output and incorrect vibration readings. Finally, if the machine is equipped with a Bently Nevada 3500/42M position monitor for axial thrust measurement, verify that the axial probe gap is within the calibrated linear range after any shaft work or bearing replacement.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a valid work permit and isolate the monitoring channel at the 3300 NSv rack. Inhibit the alarm and trip outputs for the affected channel to prevent a spurious machine trip during probe removal. Document the existing gap voltage reading before disconnecting the probe.

Step 2 — Probe removal: Disconnect the extension cable at the BNC junction. Unthread the probe from the probe holder using the correct spanner — avoid applying torque to the cable. Inspect the probe holder bore for wear, corrosion, or debris that could affect the new probe’s seating depth and gap setting.

Step 3 — Gap setting: Install the 330904-00-25-50-02-00 and adjust the gap to achieve the target bias voltage specified on the machine’s vibration monitoring data sheet (typically –10.5 VDC ± 0.5 V for standard steel targets). Use a calibrated digital voltmeter at the Proximitor output terminals. Do not rely on the rack display alone for initial gap verification.

Step 4 — Signal verification: With the machine at rest, confirm that the static gap voltage is stable and within specification. Reconnect the alarm and trip outputs. Perform a slow-roll check if the machine can be safely barred over, and verify that the dynamic vibration reading is consistent with the adjacent channel and with historical baseline data.

Step 5 — Documentation: Record the new gap voltage, probe serial number, and installation date in the plant maintenance management system. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain the minimum stock level for this critical probe model.

This workflow minimises total downtime to typically under two hours for a single-channel replacement, provided the replacement probe is on-site and the gap setting procedure is performed by a technician familiar with eddy current proximity systems.

Spare Parts Support FAQ

Q1: Is the 330904-00-25-50-02-00 a direct drop-in replacement for older 330900 series probes?
The 330904 series is the current production variant of the Bently Nevada 8 mm eddy current probe family. It is dimensionally and electrically compatible with most 330900 series installations, but you should verify the probe tip diameter, cable length suffix, and connector type against your existing probe holder and extension cable before installation. The suffix breakdown is: 00 (tip diameter code) – 25 (cable length: 2.5 m integral) – 50 (extension: 5.0 m) – 02 (driver: 3300 XL 8mm Proximitor) – 00 (connector: standard). Confirm each field matches your system documentation.

Q2: What is the recommended spare parts stocking strategy for 3300 NSv proximity probes?
For critical rotating machinery (gas turbines, large compressors, main pumps), industry best practice is to hold a minimum of two probes per monitored machine at site, plus one additional unit in the central warehouse as a float. For non-critical machines, one on-site spare per machine type is generally sufficient. Given the 3300 NSv system’s widespread deployment, the 330904-00-25-50-02-00 is a high-velocity spare that should be treated as a permanent line item in the annual MRO budget.

Q3: How is each unit tested before shipment?
Every 330904-00-25-50-02-00 unit is tested for gap voltage output at the nominal calibrated gap, output sensitivity (V/mm), cable shield continuity, and connector integrity before dispatch. A test record is available upon request. Units that do not meet Bently Nevada published specifications are not shipped. The 12-month warranty covers any performance deviation from specification that arises under normal operating conditions.

Q4: Can this probe be used with the Bently Nevada 3500 series machinery protection system?
Yes, with the correct Proximitor module. The 3500 series uses the 3500/42 or 3500/46 monitor cards, which accept input from 3300 XL 8mm Proximitor modules (330180 series). If your 3500 rack is configured for 8 mm probes, the 330904-00-25-50-02-00 is compatible. Always verify the Proximitor model and rack configuration with your system documentation or a qualified Bently Nevada service engineer before substituting probe models in a 3500 series installation.
