Bently Nevada 330904-01-14-05-02-00 Safety Proximity Probe

Bently Nevada 330904-01-14-05-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

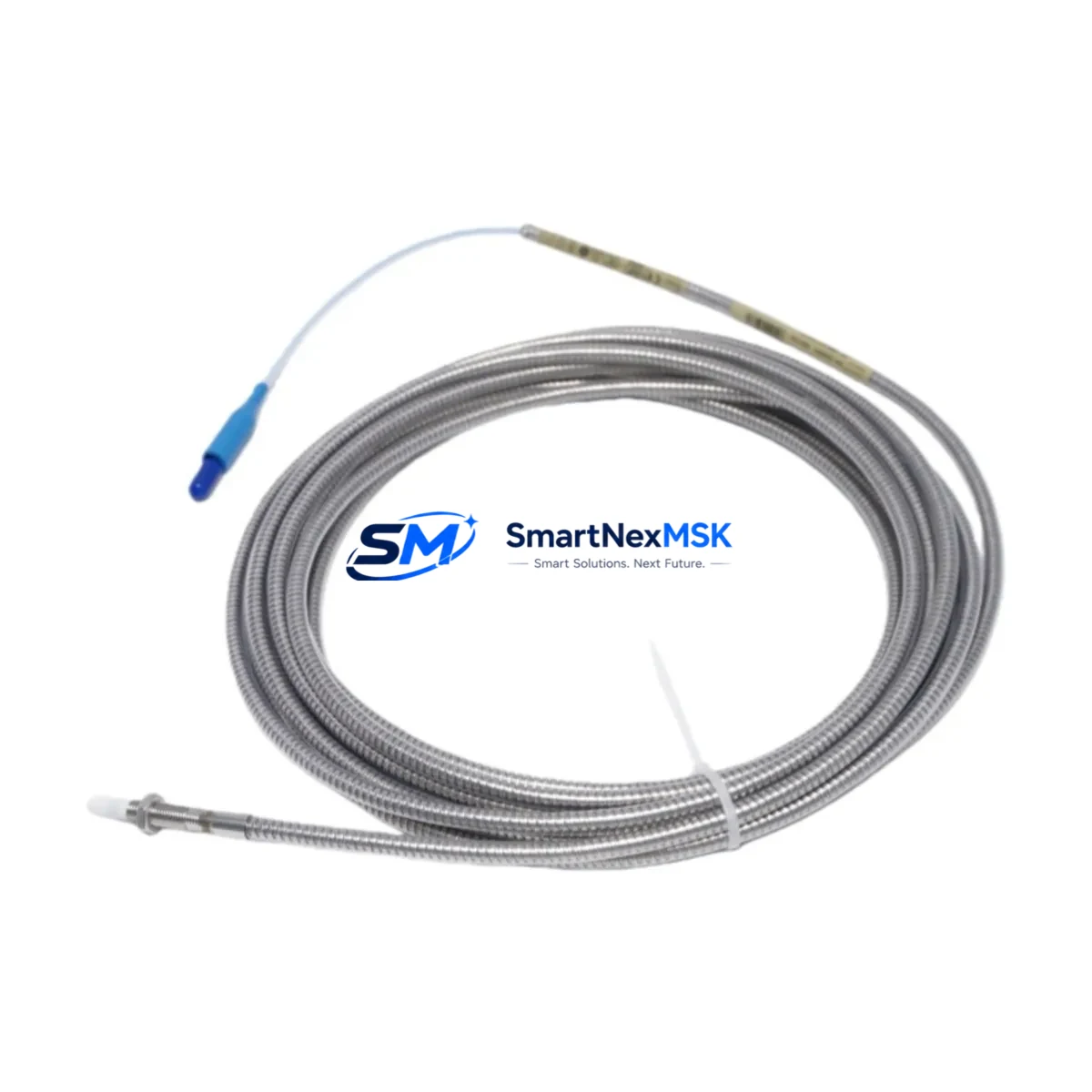

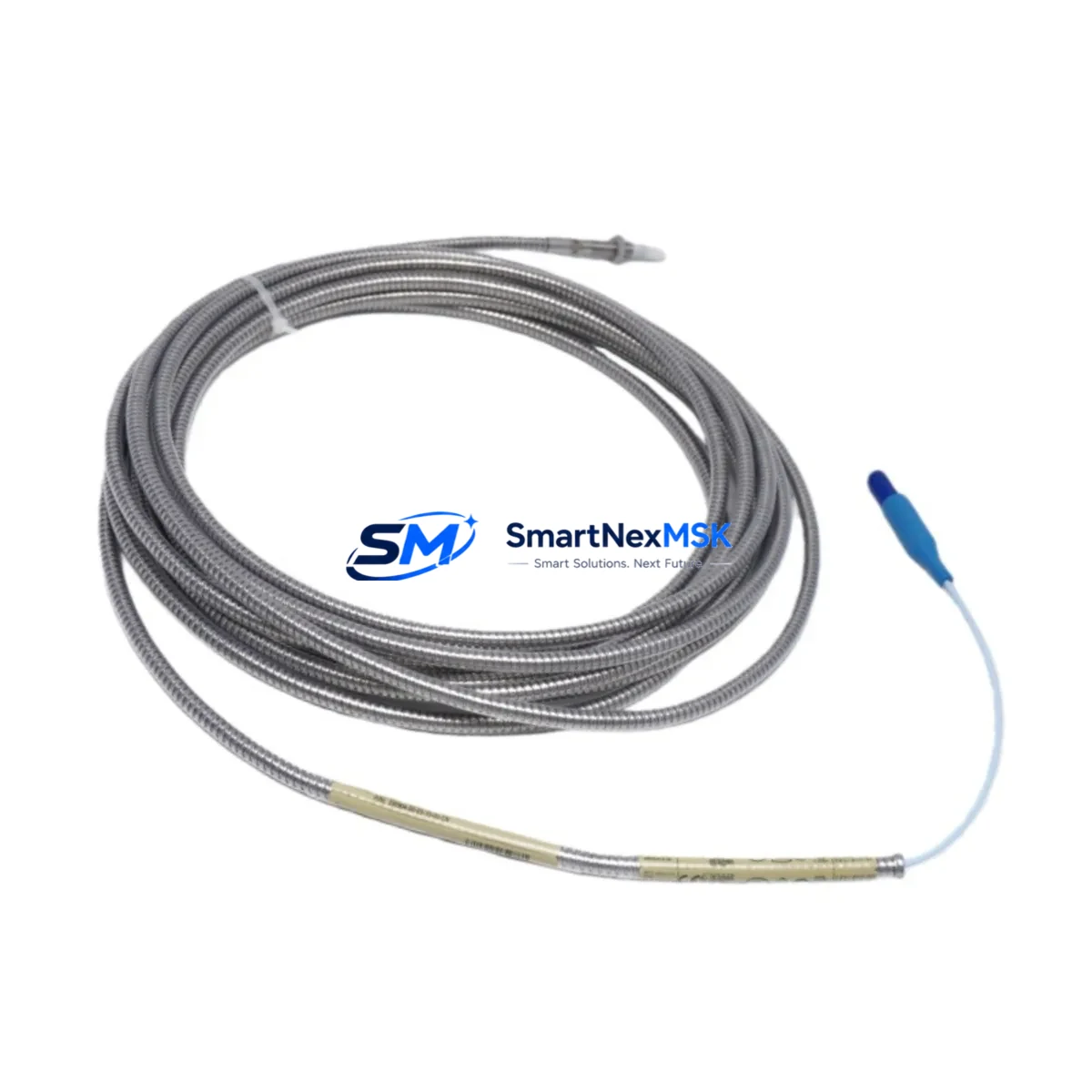

The Bently Nevada 330904-01-14-05-02-00 is a 5mm NSv Series eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably inside high-voltage control cabinets, rotating machinery enclosures, and critical interlock circuits, this probe delivers the signal integrity and mechanical durability that heavy industry demands. Whether deployed in petrochemical compressor trains, power generation turbines, mining hoists, or metallurgical rolling mills, the 330904-01-14-05-02-00 provides the real-time shaft displacement data that underpins every layer of machine protection strategy.

Eddy-current proximity probes are the backbone of API 670-compliant machinery protection systems. The 330904-01-14-05-02-00 integrates directly with the Bently Nevada 3500 Series Machinery Protection System, feeding conditioned signals to monitor modules such as the 3500/42M Proximitor I/O Module and the 3500/22M Transient Data Interface. Its non-contact sensing principle eliminates mechanical wear, ensuring that signal drift caused by probe degradation does not introduce false trips or missed alarms in safety interlock loops. In facilities where an unplanned shutdown costs tens of thousands of dollars per hour, this level of measurement reliability is not optional — it is a fundamental safety requirement.

Safety Reliability Table

Control Cabinet Protection Strategy

In a fully integrated machinery protection architecture, the 330904-01-14-05-02-00 probe does not operate in isolation. It is one node in a layered protection strategy that spans the field instrument level, the signal conditioning level, and the safety logic level. At the field level, the probe is paired with a 330130-045-00-00 Extension Cable to bridge the distance between the rotating shaft and the control cabinet-mounted NSv Proximitor Driver. The Proximitor converts the raw impedance change into a calibrated DC voltage signal, which is then routed to the Bently Nevada 3500/42M Proximitor I/O Module for processing.

Within the 3500 rack, the signal passes through the 3500/20 Rack Interface Module, which manages communication between the protection rack and the plant DCS or safety PLC. For facilities running Modbus or FOUNDATION Fieldbus architectures, the 3500/92 Communication Gateway Module ensures that vibration data is available to the control room without introducing latency that could delay a protective trip. Power integrity for the entire rack is maintained by the 3500/15 Power Supply Module, which provides redundant 24 VDC rails and protects against voltage surges that could corrupt proximity signal baselines.

In high-interference environments — such as variable-frequency drive (VFD) motor rooms, arc furnace bays, or high-voltage switchgear rooms — the coaxial cable assembly of the 330904-01-14-05-02-00 provides inherent shielding against electromagnetic interference. Supplementary protection is achieved by routing cables through grounded conduit and maintaining separation from high-current power cables. Where additional surge protection is required at the cabinet entry point, transient voltage suppression devices compatible with the –24 VDC Proximitor supply circuit are recommended. The Bently Nevada 330180-X0-05 Proximitor Sensor can serve as a direct driver companion in installations where the standard NSv driver is not already present in the rack.

For critical interlock applications — such as high-vibration trip circuits on steam turbines, gas compressors, or boiler feed pumps — the 330904-01-14-05-02-00 is typically deployed in a dual-redundant or 2oo3 voting configuration. This means three probes monitor the same shaft plane, and a protective trip is initiated only when at least two of the three probes agree that a dangerous vibration level has been reached. This voting logic, implemented in the 3500/40M Proximitor Monitor Module, eliminates nuisance trips caused by a single probe fault while ensuring that a genuine machinery threat is never missed.

Critical Industrial Safety Applications

The 330904-01-14-05-02-00 is deployed across the full spectrum of continuous-process and heavy industrial facilities where rotating machinery failure carries safety, environmental, and financial consequences.

In petrochemical and refinery environments, this probe monitors the radial vibration of centrifugal compressors and pumps handling flammable or toxic process fluids. A bearing failure in these machines can result in seal loss, process release, and fire — making real-time vibration monitoring a core element of the facility’s process safety management (PSM) program. The probe’s ability to operate at elevated temperatures and in oil-mist-saturated atmospheres makes it well suited to compressor seal areas and gearbox housings.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the 330904-01-14-05-02-00 is used to monitor turbine shaft eccentricity, rotor runout, and thrust position. These measurements feed directly into the turbine protection system, which can initiate an emergency shutdown before a rub event causes catastrophic rotor damage. The probe’s fast response time ensures that even high-speed transient events, such as a sudden load rejection, are captured before the shaft displacement exceeds safe limits.

In mining and mineral processing operations, the probe is installed on crusher drives, conveyor head pulleys, and slurry pump shafts. These machines operate in environments with extreme dust loading, high ambient vibration, and frequent electrical transients from large motor starters. The eddy-current sensing principle is immune to contamination on the probe face, making it far more reliable in these conditions than contact-type sensors.

In water and wastewater treatment facilities, the 330904-01-14-05-02-00 monitors the shaft alignment and bearing condition of large vertical turbine pumps and blower units. Continuous monitoring allows maintenance teams to detect developing bearing faults weeks before failure, enabling planned replacement during scheduled outages rather than emergency repairs during peak demand periods.

In metallurgical and steel mill environments, the probe is used on rolling mill drive spindles, continuous caster pinch rolls, and blast furnace blower trains. The combination of high ambient temperature, heavy electromagnetic interference from induction furnaces, and continuous 24/7 operation makes this one of the most demanding applications for any proximity measurement system — and one where the reliability of the 330904-01-14-05-02-00 is most clearly demonstrated.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330904-01-14-05-02-00?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the probe fails to meet its specified scale factor, linearity, or temperature performance within the warranty period, we will provide a replacement unit at no charge. The warranty does not cover damage caused by installation errors, overvoltage events beyond the specified supply range, or physical damage from improper handling.

Q2: What outgoing inspection and testing is performed before shipment?
Every 330904-01-14-05-02-00 unit undergoes a 100% functional test prior to dispatch. This includes signal linearity verification across the full measurement range, scale factor confirmation against the 7.87 V/mm nominal specification, insulation resistance check on the coaxial cable assembly, and visual inspection of the connector and probe tip. A test report is available upon request for units destined for safety-critical or regulated applications.

Q3: Is the 330904-01-14-05-02-00 compatible with existing Bently Nevada 3500 Series racks?
Yes. The 330904-01-14-05-02-00 is designed for use with the NSv Proximitor driver system and is fully compatible with the Bently Nevada 3500 Series Machinery Protection System when paired with the appropriate NSv-rated Proximitor module. It is not interchangeable with standard 3300 XL 8mm probes without recalibration of the associated monitor channel. Always verify the driver model and rack configuration before installation.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain standing inventory of the 330904-01-14-05-02-00 and related NSv series components to support both planned maintenance programs and emergency replacement requirements. For facilities with critical spare parts strategies, we can discuss consignment stock arrangements or scheduled supply agreements to ensure that replacement probes are available within your required lead time. Contact our technical sales team to discuss your site’s specific spare parts and supply continuity requirements.
