Bently Nevada 330905-00-02-10-01-00 Safety-Enhanced Proximity Transducer

Bently Nevada 330905-00-02-10-01-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

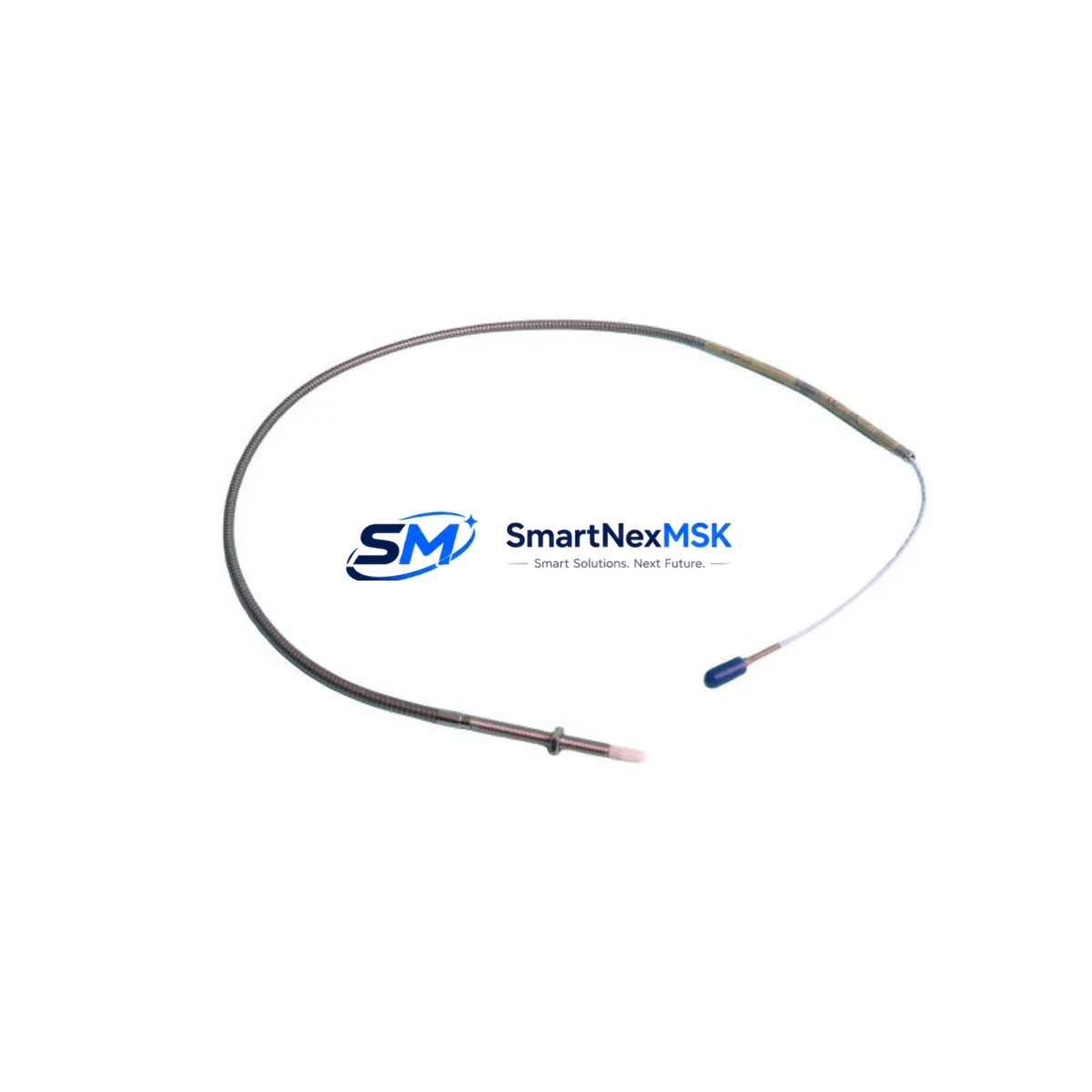

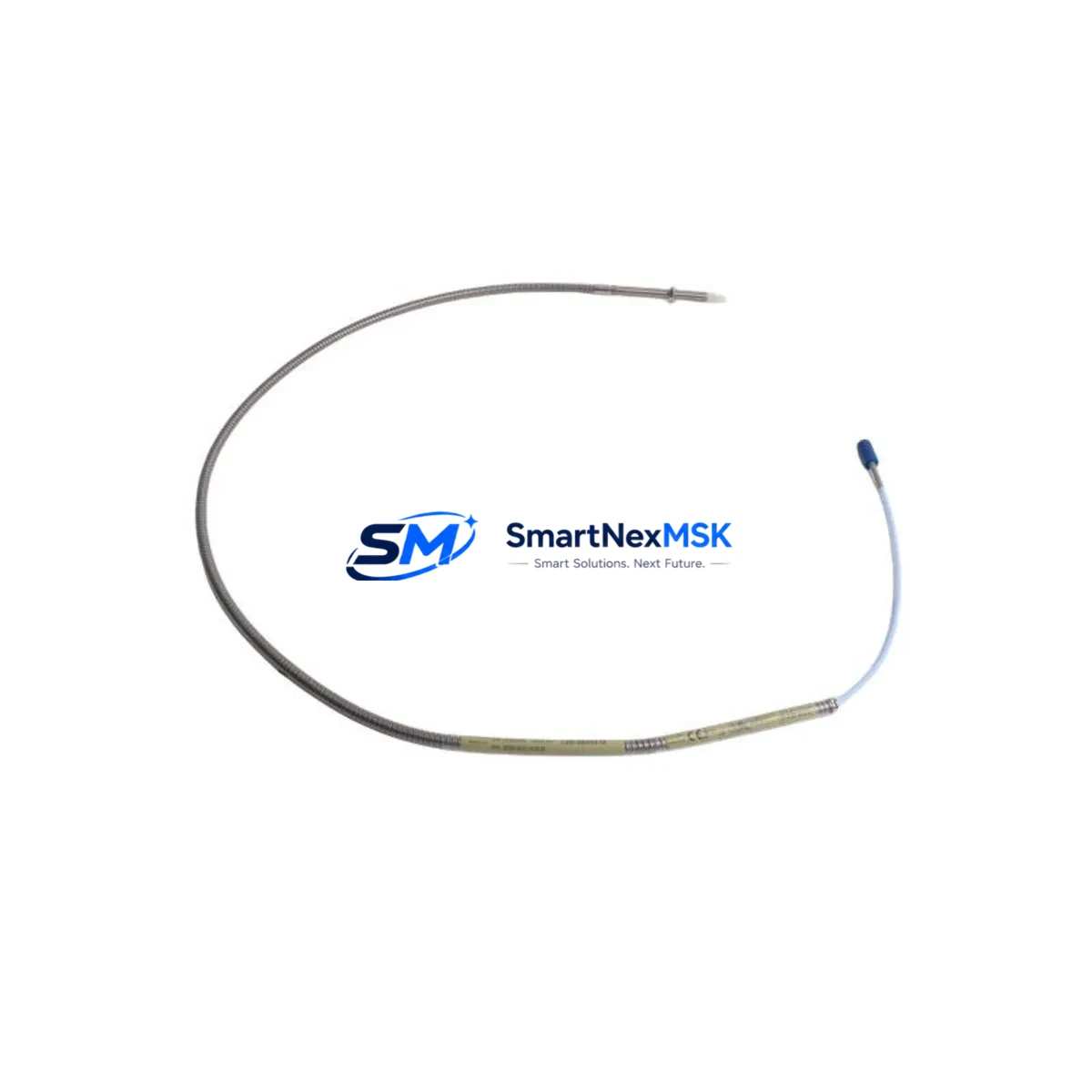

The Bently Nevada 330905-00-02-10-01-00 is a ruggedized proximity transducer from the 3300 XL NSv Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal stress, and corrosive atmospheres, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and heavy manufacturing facilities.

In high-stakes control architectures — where a single point of signal failure can trigger unplanned shutdowns, equipment damage, or personnel hazards — the 330905-00-02-10-01-00 delivers the measurement stability and response accuracy that safety interlock systems demand. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring long-term signal integrity without drift or degradation even after years of continuous operation in harsh field conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-designed rotating machinery protection cabinet, the 330905-00-02-10-01-00 proximity transducer does not operate in isolation — it is the field-sensing front end of a layered safety and monitoring architecture. The transducer connects via a matched Bently Nevada 330130-045-00-00 extension cable to a Bently Nevada 330180-X1-05 Proximitor Sensor, which conditions the raw eddy-current signal into a clean, calibrated voltage output suitable for the monitoring system’s input cards.

This conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor / Seismic Monitor rack module, where it is processed against user-defined alert and danger setpoints. In safety-instrumented systems (SIS), the output of the 3500/42M may drive a Bently Nevada 3500/32 4-Channel Relay Module to trigger automated shutdown sequences — isolating compressors, turbines, or pumps before catastrophic bearing failure or rotor rub can occur.

Power integrity is equally critical. The entire 3300 XL NSv signal chain requires a stable, low-ripple DC supply. A dedicated Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures that voltage fluctuations, brownouts, or upstream switching transients do not propagate into the measurement chain and cause false trips or missed alarms. In high-interference environments — such as those near large variable-frequency drives (VFDs) or high-current bus bars — additional surge protection devices (SPDs) and signal isolators are recommended at the cabinet entry point to suppress conducted EMI before it reaches the Proximitor input.

For facilities running parallel condition monitoring alongside protection, the 330905-00-02-10-01-00 signal can be simultaneously routed to a Bently Nevada System 1 Evolution software platform via a 3500/92 Communication Gateway Module, enabling real-time waveform analysis, trend logging, and predictive maintenance alerts without interrupting the primary protection loop. Complementary sensors such as the Bently Nevada 330400-00-00 Velomitor Seismic Transducer and 330500-00-01-00 Accelerometer are often installed alongside proximity probes to provide a complete vibration signature — radial displacement, velocity, and acceleration — for comprehensive machinery health assessment.

Critical Industrial Safety Applications

The 330905-00-02-10-01-00 is deployed across the full spectrum of heavy industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery environments, it monitors radial shaft vibration on centrifugal compressors and process pumps handling flammable or toxic media. Its ATEX/IECEx certification makes it suitable for Zone 1 classified areas, where ignition risk demands intrinsically safe or explosion-proof instrumentation. A vibration exceedance detected by this transducer can initiate an emergency shutdown (ESD) sequence before a seal failure releases hazardous process fluid.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the 330905-00-02-10-01-00 is used on turbine shaft trains to detect rotor imbalance, misalignment, and oil whirl instability. Early detection of these conditions, enabled by the transducer’s wide frequency response (DC to 10,000 Hz), allows operators to schedule corrective maintenance during planned outages rather than responding to forced trips.

In mining and mineral processing, where crushers, mills, and conveyor drive motors operate under extreme mechanical loading and high ambient dust levels, the IP67-rated probe body resists particulate ingress while maintaining measurement accuracy. The transducer’s ability to function across a wide temperature range (-35°C to +177°C) makes it equally suitable for Arctic mining operations and high-temperature kiln drive monitoring.

In metallurgical and steel mill applications, the 330905-00-02-10-01-00 monitors rolling mill drive shafts and continuous caster pinch rolls, where shaft position accuracy directly affects product dimensional quality and roll gap control. In water and wastewater treatment facilities, it protects large vertical turbine pumps and blower trains that must operate continuously to maintain regulatory compliance. In port and marine applications, it is used on propulsion shaft monitoring systems and crane hoist drive protection panels.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330905-00-02-10-01-00?
All units are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, signal output failures, and premature component degradation under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your site downtime.

Q2: How is each unit tested before shipment?
Every 330905-00-02-10-01-00 unit undergoes pre-shipment functional verification including bias voltage output check, sensitivity calibration confirmation, insulation resistance test, and cable continuity inspection. Units sourced as surplus new are additionally inspected for physical integrity and re-verified against Bently Nevada factory specifications before dispatch.

Q3: Is this transducer compatible with existing 3300 XL NSv system installations?
Yes. The 330905-00-02-10-01-00 is a direct fit within the 3300 XL NSv system architecture and is fully compatible with standard 3300 XL extension cables, Proximitor sensors (330180 series, 330130 series), and 3500 Series rack monitors. No recalibration of the monitoring system is required when replacing a like-for-like unit, provided the target material and gap setting remain unchanged.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated stock of the 330905-00-02-10-01-00 and related 3300 XL NSv components to support planned maintenance schedules, critical spare inventories, and emergency replacement requirements. For facilities with multi-unit installations or annual maintenance contracts, volume reservation and priority allocation arrangements are available. Contact our team to discuss your site’s long-term supply requirements.
