Bently Nevada 330905-00-02-10-02-05/CN Safety Proximity Probe

Bently Nevada 330905-00-02-10-02-05/CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

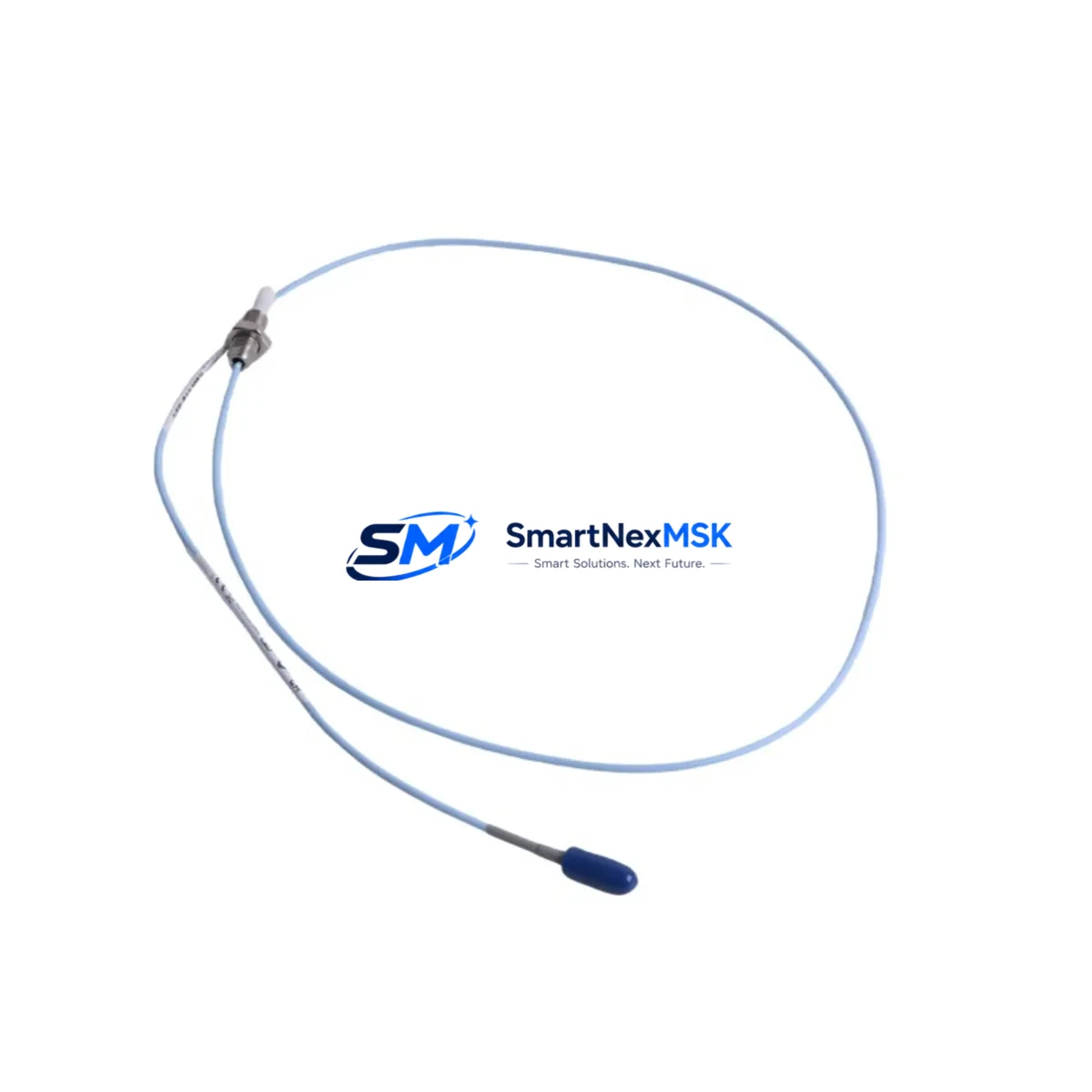

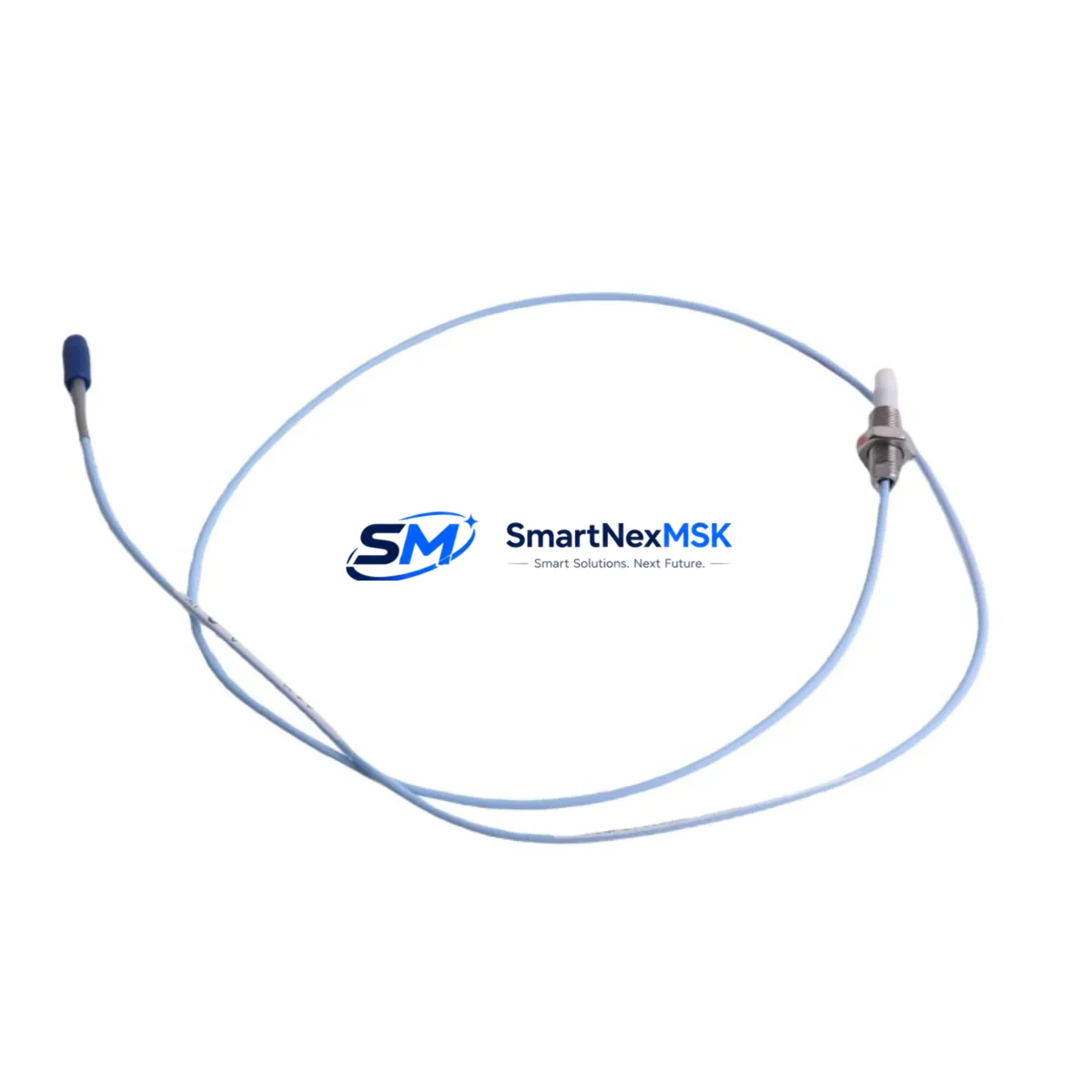

The Bently Nevada 330905-00-02-10-02-05/CN is a ruggedized eddy-current proximity probe from the industry-trusted 3300 NSv Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. With a 5-meter armored cable and a robust stainless-steel tip, this probe delivers stable, drift-free output even under extreme electromagnetic interference, mechanical shock, high-temperature exposure, and corrosive atmospheres — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, metallurgical mills, and continuous process manufacturing sites.

In critical rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — signal integrity is non-negotiable. The 330905-00-02-10-02-05/CN maintains a linear output across its full measurement range, ensuring that the Bently Nevada 3300 XL 8mm Proximitor Sensor (the paired signal conditioning module) receives clean, accurate gap voltage data at all times. Any deviation caused by probe degradation, cable damage, or connector corrosion can trigger false trips or, worse, missed fault detection — both of which carry severe safety and financial consequences. This probe’s ruggedized construction directly mitigates those risks.

When integrated into a complete machinery protection architecture, the 330905-00-02-10-02-05/CN works in concert with the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module to provide real-time radial vibration, axial position, and differential expansion measurements. The probe’s output feeds directly into the 3500 Series rack, where configurable alert and danger setpoints trigger protective shutdowns before catastrophic bearing failure or rotor rub can occur. Paired with the Bently Nevada 3500/22M Transient Data Interface, operators gain full waveform capture capability for post-event forensic analysis — a critical tool for root-cause investigation after any unplanned shutdown.

Power supply stability is equally critical in these installations. The Bently Nevada 3500/15 Power Supply module provides redundant, regulated DC power to the entire 3500 rack, eliminating the risk of monitor dropout caused by upstream voltage fluctuations or transient surges. In high-interference environments such as variable-frequency drive (VFD) motor control centers or arc furnace control rooms, the probe cable’s shielding and the Proximitor’s differential input architecture work together to reject common-mode noise that would otherwise corrupt vibration readings and generate nuisance trips.

For installations requiring intrinsic safety certification in Zone 1 or Zone 2 hazardous areas — such as offshore platforms, LNG terminals, or chemical reactor buildings — the 330905-00-02-10-02-05/CN is compatible with approved Bently Nevada Zener Barrier and galvanic isolator assemblies, ensuring that the probe circuit remains within safe energy limits even under fault conditions. This compliance is essential for meeting IEC 60079 and ATEX requirements in explosive atmosphere installations.

Field replacement of proximity probes is a routine maintenance activity in any rotating machinery program, and the 330905-00-02-10-02-05/CN is designed for straightforward swap-out without requiring full system recalibration. The probe’s standardized 8mm tip diameter and thread specification are interchangeable with other probes in the Bently Nevada 3300 Series family, including the 330103 and 330130 standard proximity probes, allowing maintenance teams to standardize their spare parts inventory and reduce mean time to repair (MTTR). Keeping a verified, tested spare on the shelf is a fundamental element of any reliability-centered maintenance (RCM) strategy for critical rotating assets.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including tip resistance measurement, cable continuity check, and output linearity confirmation against a calibrated gap simulator. This ensures that the probe you receive is ready for immediate installation without the risk of introducing a defective component into a live safety system. All units are covered by a 12-month warranty against manufacturing defects and performance deviation, with documented test records available upon request.

In addition to the 330905-00-02-10-02-05/CN, SMARTNEXMSK maintains ready stock of complementary components including the Bently Nevada 330130-080-00-00 proximity probe, 330180-X1-05 extension cables, 3300 XL Proximitor Sensors, and 3500 Series rack modules — enabling complete system builds or targeted spare parts replenishment from a single, reliable source. Our inventory is continuously refreshed to support both planned turnaround maintenance and emergency breakdown scenarios, with same-day dispatch available for in-stock items.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust rotating machinery protection cabinet built around the 330905-00-02-10-02-05/CN typically integrates multiple layers of hardware redundancy and signal conditioning. The probe connects via a 330180 Series extension cable to a 3300 XL 8mm Proximitor Sensor mounted inside the junction box or marshalling cabinet, which converts the raw probe inductance change into a calibrated DC voltage signal. This signal is then routed to a Bently Nevada 3500/42M Proximitor/Seismic Monitor card seated in a 3500 Rack chassis, powered by a redundant 3500/15 Power Supply module.

To protect against surge events from nearby high-voltage switching equipment or lightning-induced transients on field cables, surge protection devices (SPDs) rated for instrumentation circuits should be installed at the cabinet entry point. In SIL-rated safety instrumented systems (SIS), the proximity probe channel may be voted in a 2oo3 (two-out-of-three) configuration using three independent 330905-series probes and three separate 3500/42M monitor channels, with the final trip output routed through a Bently Nevada 3500/32 Relay Module to the machine’s emergency shutdown (ESD) solenoid valve or circuit breaker. Communication to the plant DCS or safety PLC is handled via the 3500/92 Communication Gateway, supporting Modbus RTU, Modbus TCP, or OPC-DA protocols depending on the control system architecture.

For installations where the control cabinet is located in a classified hazardous area, all wiring between the probe and the Proximitor must pass through certified Bently Nevada Zener barriers or active galvanic isolators mounted in the safe area, maintaining intrinsic safety integrity across the entire measurement loop. This multi-layer protection strategy — from the probe tip to the final control element — is the foundation of a defensible functional safety design that satisfies IEC 61511 requirements for SIL 1 and SIL 2 machinery protection loops.

Critical Industrial Safety Applications

The 330905-00-02-10-02-05/CN proximity probe is deployed across a wide spectrum of heavy industrial applications where continuous, uninterrupted machinery monitoring is a safety and production imperative.

In petrochemical and refinery environments, it monitors radial shaft vibration and axial position on critical compressor trains and reactor charge pumps, providing the early warning data needed to prevent catastrophic seal failures or bearing collapses that could release hazardous hydrocarbons. In power generation facilities — both thermal and combined-cycle — it is installed on steam turbine journal bearings and generator shaft extensions, feeding real-time data to the turbine supervisory instrumentation (TSI) system that governs automatic runback and trip logic.

In mining and mineral processing operations, the probe monitors large SAG mill pinion bearings, crusher main shafts, and slurry pump impellers operating in high-dust, high-vibration environments where conventional contact sensors would fail within weeks. The eddy-current operating principle requires no physical contact with the rotating shaft, eliminating wear and ensuring measurement continuity across multi-year operating campaigns between planned shutdowns.

In metallurgical and steel mill applications, the probe operates reliably in the presence of intense electromagnetic fields generated by induction furnaces and large DC drive motors, environments where lesser sensors produce corrupted outputs. In water and wastewater treatment plants, it monitors high-speed centrifugal blowers and booster pump sets that must operate continuously to maintain regulatory compliance, with any unplanned downtime triggering environmental and public health consequences. In port and bulk material handling facilities, it protects the large conveyor drive gearboxes and ship-loader slewing ring drives that are the critical path for cargo throughput.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers any functional performance failure attributable to manufacturing defects, including output non-linearity, cable insulation breakdown, connector failure, or tip damage under normal operating conditions. To initiate a claim, contact sales@smartnexmsk.com with the order reference and a description of the observed fault. SMARTNEXMSK will arrange return shipping and provide a tested replacement unit or full refund within an agreed lead time. Pre-shipment test records are retained for all dispatched units and can be provided as supporting documentation.

Q2: What pre-shipment testing is performed on each unit?
Every 330905-00-02-10-02-05/CN unit undergoes a three-point functional verification before dispatch: (1) tip coil resistance measurement to confirm probe integrity, (2) full cable continuity and insulation resistance check from tip to connector, and (3) output linearity verification using a calibrated gap simulator across the full 0.25–2.26 mm measurement range. Units that do not meet Bently Nevada’s published specification tolerances are quarantined and not dispatched. Test records are available upon request for quality-critical installations.

Q3: Is the 330905-00-02-10-02-05/CN directly compatible with existing 3300 and 3500 Series installations?
Yes. The 330905-00-02-10-02-05/CN is a direct form-fit-function replacement for other 8mm probes in the Bently Nevada 3300 NSv Series family and is fully compatible with the 3300 XL Proximitor Sensor and the 3500 Series rack monitors. No recalibration of the Proximitor or monitor is required when replacing a like-for-like probe, provided the gap is reset to the nominal operating point per the installation procedure. Compatibility with third-party monitors using the same 200 mV/mil scale factor should be verified against the monitor’s input specification.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains a dedicated inventory buffer of the 330905-00-02-10-02-05/CN and related 3300 NSv Series components specifically to support customers with multi-year maintenance contracts and planned turnaround schedules. Customers operating large fleets of Bently Nevada-monitored machinery are encouraged to contact us to discuss consignment stock arrangements, blanket purchase orders, or scheduled delivery programs that guarantee parts availability without requiring large upfront capital commitments. Emergency breakdown orders are prioritized for same-day dispatch from available stock.
