Bently Nevada 330905-00-03-10-02-05/CN 3300 NSv Spare

Bently Nevada 330905-00-03-10-02-05/CN 3300 NSv Maintenance-Ready Spare for 3300 Automation

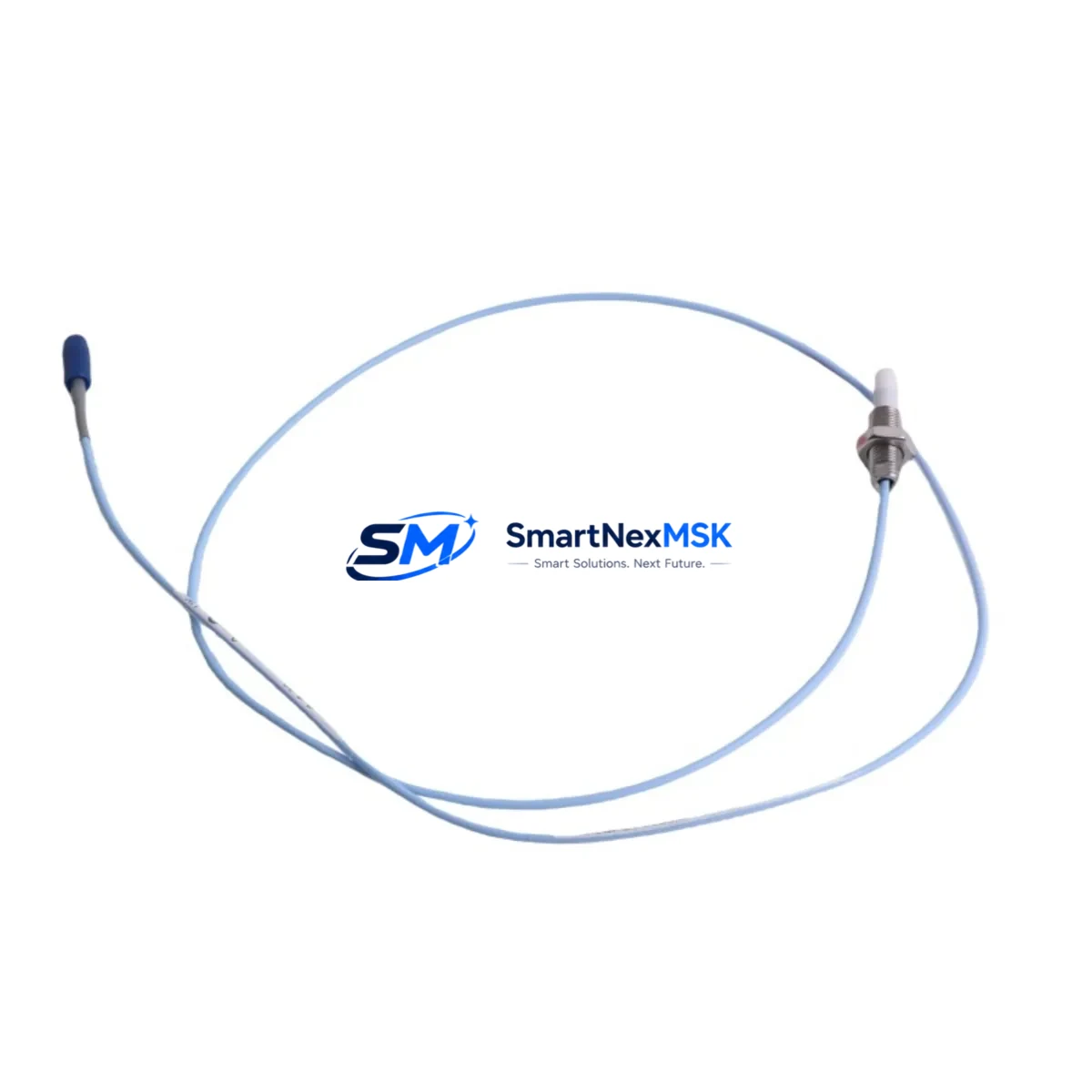

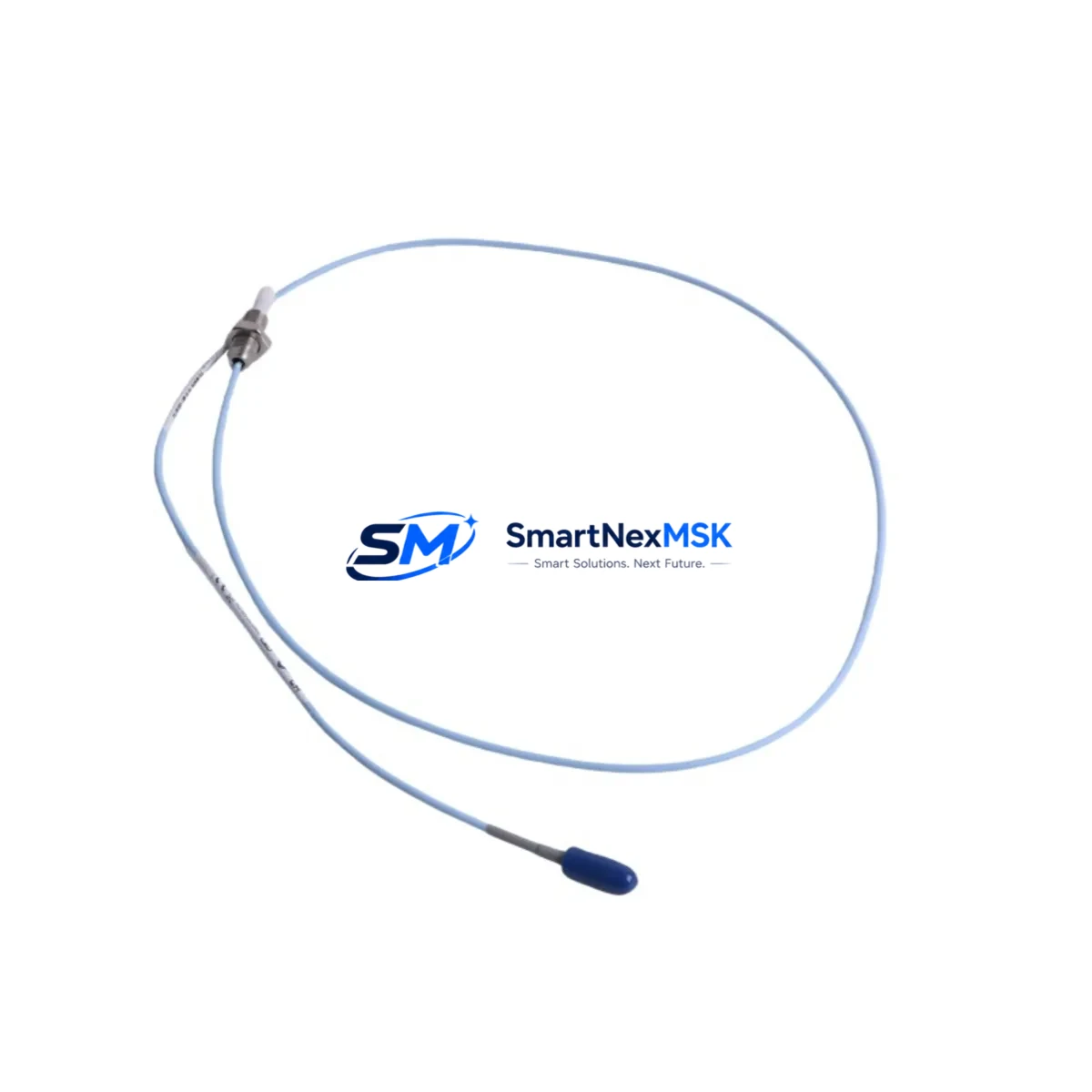

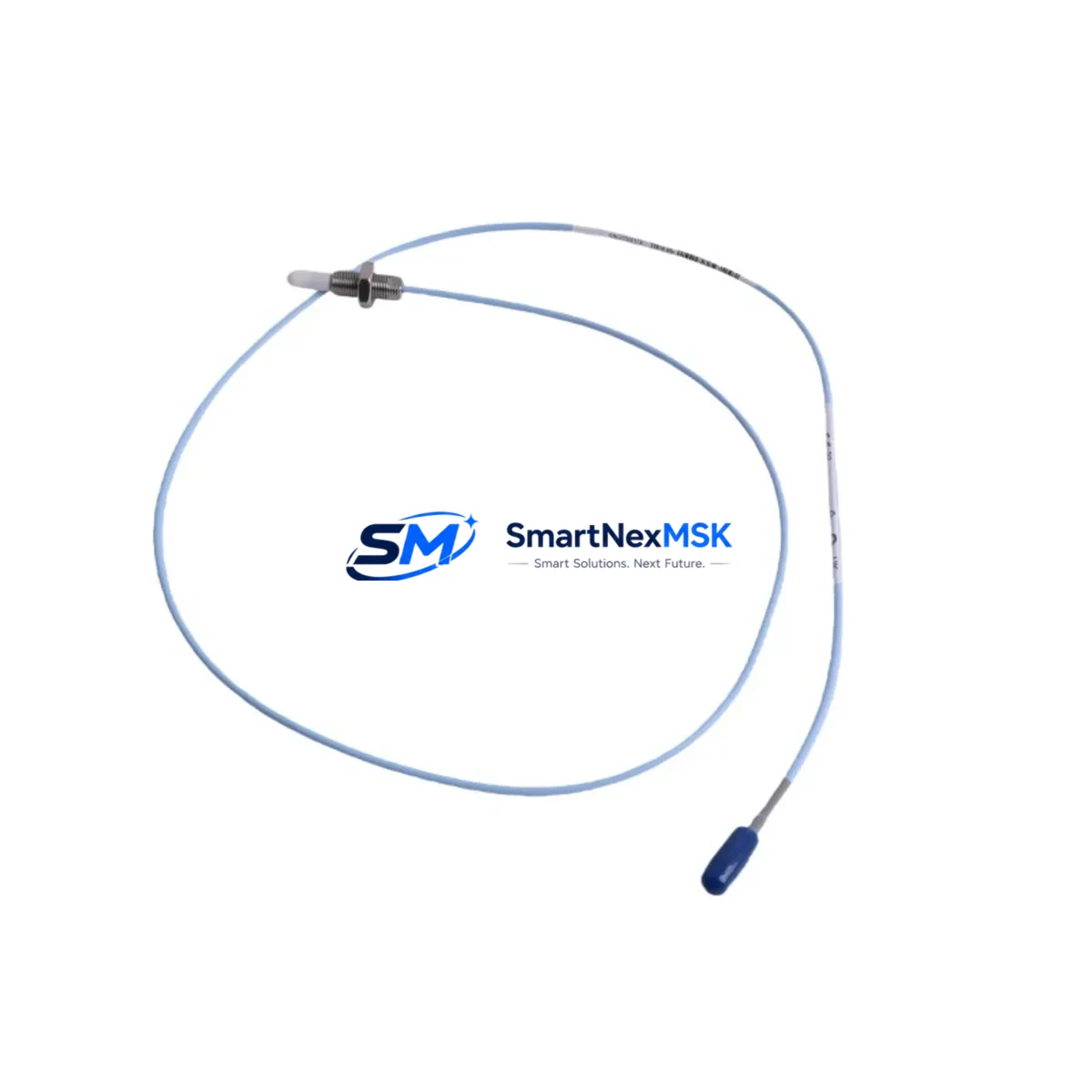

The Bently Nevada 330905-00-03-10-02-05/CN is an original 8mm eddy-current proximity probe engineered for the 3300 NSv Series vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a critical front-line sensor responsible for shaft displacement, radial vibration, and thrust position measurement. When this component degrades or fails, the entire machinery protection loop is compromised, triggering unplanned shutdowns and costly downtime. Maintaining a verified spare on the shelf is the single most effective strategy for rapid restoration of continuous operation.

This spare is sourced, inspected, and shipped with full traceability. Each unit undergoes pre-shipment functional verification to confirm output sensitivity, gap voltage linearity, and cable integrity before dispatch. A 12-month warranty is included on every unit, covering manufacturing defects and performance deviations from factory specification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330905-00-03-10-02-05/CN proximity probe, the scope of inspection should extend beyond the probe itself. The 3300 NSv measurement chain is a tightly coupled system: probe, extension cable, Proximitor sensor, and monitor card must all be evaluated together to ensure the replacement restores full measurement integrity.

Begin with the 3300 XL 8mm Proximitor Sensor (typically mounted in the junction box or terminal enclosure). Verify its bias voltage output and confirm it falls within the -10 VDC to -18 VDC window at the nominal installation gap. A drifted or failed Proximitor will produce erroneous readings even with a new probe installed. Alongside this, inspect the 330130-080-00-00 extension cable — the 8-meter armored cable that bridges the probe to the Proximitor. Cable shield continuity and connector pin integrity are common failure points in high-vibration environments.

At the monitor rack level, confirm the 3300/16 or 3300/20 monitor card is correctly configured for the NSv probe type and that the OK relay output is functioning. If the plant runs a 3500 Series rack, the 3500/42M Proximitor I/O Module should be inspected for terminal block tightness and channel calibration. Loose field wiring at the I/O terminal strip is a frequent root cause of intermittent OK dropouts that are misdiagnosed as probe failures.

For plants operating legacy 3300/05 or 3300/10 monitor cards, verify that the card firmware and jumper configuration are compatible with the NSv output range. Older cards configured for standard voltage (SV) probes will misinterpret NSv output, producing false high-vibration alarms. This is a critical compatibility check before commissioning the replacement probe.

Additionally, inspect the power supply module feeding the Proximitor — typically a -24 VDC regulated rail. Voltage sag or ripple on this supply directly degrades probe sensitivity and gap linearity. If the control cabinet houses a 3300/55 Power Supply or equivalent, verify output voltage under load. While the cabinet is open, check the terminal blocks and field wiring conduit entries for moisture ingress, especially in outdoor or wash-down environments where the IP67 rating of the probe body may be the only barrier against contamination.

For plants with integrated safety systems, confirm that the 3500/33 16-Channel Relay Module or equivalent trip relay output is correctly mapped to the channel being replaced, and that the relay test function is operational post-replacement. Finally, if the machinery protection system feeds a DCS historian or SCADA platform via a 3500/92 Communication Gateway, verify that the channel data is being received correctly after the probe swap to confirm end-to-end signal integrity.

Site Replacement Workflow

Replacing the 330905-00-03-10-02-05/CN on a live or recently shutdown machine follows a structured sequence to minimize downtime and eliminate re-work:

1. Pre-work verification: Confirm the replacement probe part number matches the installed probe exactly — tip diameter (8mm), cable length (3m), and NSv designation. Substituting a standard voltage (SV) variant will require Proximitor reconfiguration and monitor card re-ranging.
2. Gap setting: Using a calibrated gap tool or digital multimeter, set the probe installation gap to achieve a bias voltage of -10.0 VDC ± 0.5 VDC at the Proximitor output. Document the as-found and as-left gap values.
3. Cable routing and connector seating: Route the 3m probe cable through the existing conduit, ensuring no sharp bends within 150mm of the probe body. Torque the MIL-spec connector to the manufacturer’s specification and apply thread-locking compound if required by site procedure.
4. Functional verification: With the Proximitor powered, confirm OK LED status, bias voltage, and a dynamic check (if accessible) by gently deflecting the shaft or using a calibrated target to verify sensitivity output.
5. Monitor card reset and alarm check: Reset any latched alarms on the 3300 or 3500 monitor card, confirm the channel returns to OK status, and verify that the DCS or historian is receiving valid process values.
6. Documentation: Record the replacement in the plant CMMS with the new probe serial number, installation gap, bias voltage, and technician sign-off. Update the spare parts inventory to trigger reorder of the consumed spare.

This workflow is applicable to both planned outage replacements and emergency in-service swaps. For emergency replacements, steps 1–3 can be compressed to under 30 minutes by a trained technician with the spare pre-staged and gap tool on hand.

Spare Parts Support FAQ

Q1: Is the 330905-00-03-10-02-05/CN a direct drop-in replacement for older 330905 variants?
The /CN suffix designates a specific cable and connector configuration. Verify the connector type and cable length against the installed unit before ordering. The probe tip diameter (8mm) and sensitivity (7.87 V/mm) are consistent across the 330905 family, but connector and cable variants must match the existing Proximitor and conduit entry.

Q2: What is the recommended spare parts inventory strategy for this probe?
For critical rotating machinery (turbines, compressors), maintain a minimum of two units per machine train in the plant warehouse. For non-critical applications, one unit per four installed probes is a common industry benchmark. Given typical lead times for OEM procurement (8–16 weeks), holding pre-verified spares from a reliable distributor eliminates the risk of extended downtime waiting for factory supply.

Q3: How is each unit verified before shipment?
Every 330905-00-03-10-02-05/CN unit is bench-tested prior to dispatch: bias voltage output, sensitivity linearity across the operating gap range, cable continuity, and connector integrity are all confirmed. A test report is available upon request. Units are shipped in anti-static packaging with original labeling and traceability documentation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, sensitivity drift beyond factory tolerance, and cable or connector failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, or operation outside the specified temperature and voltage range. Warranty claims are processed with return of the defective unit and submission of the installation gap and bias voltage records.
