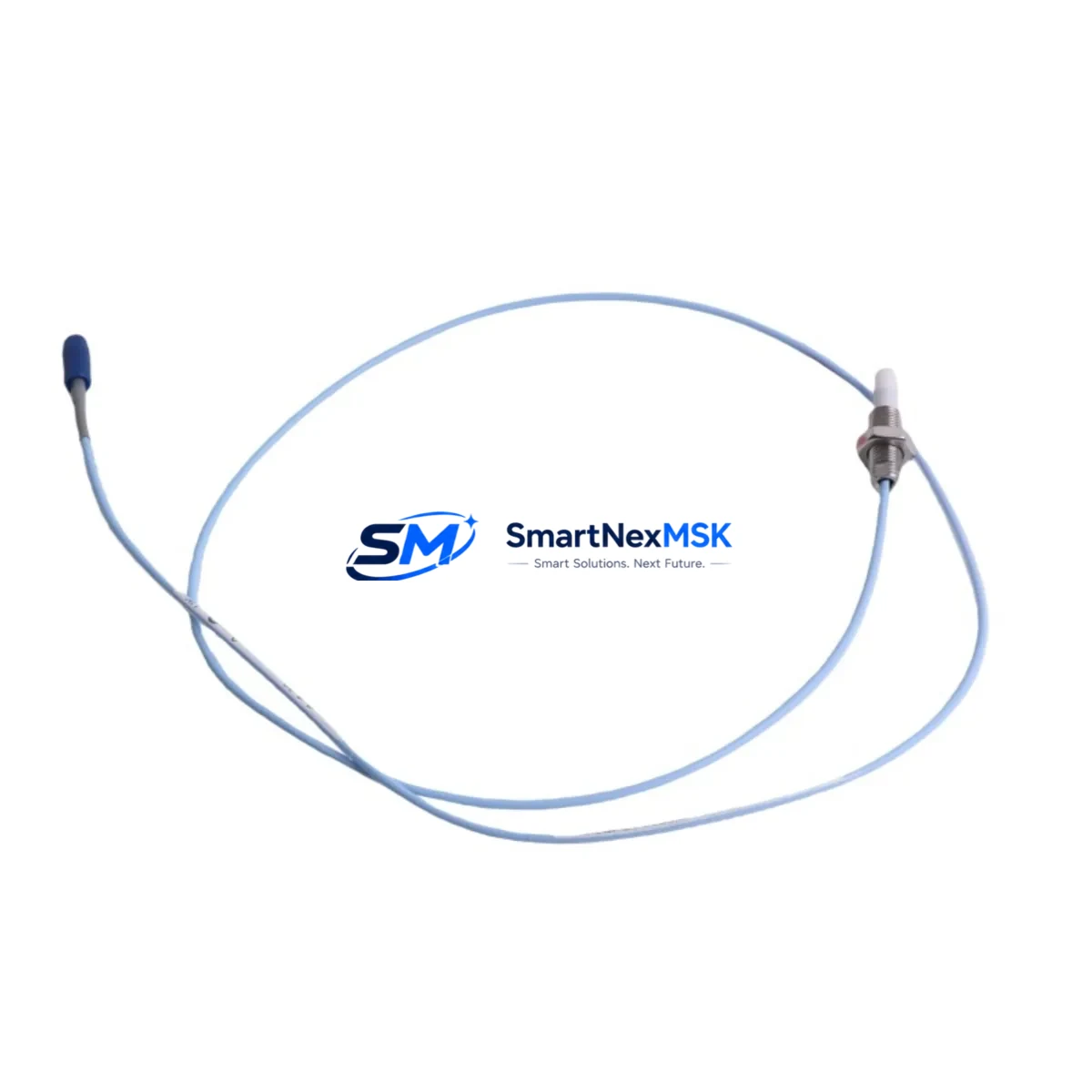

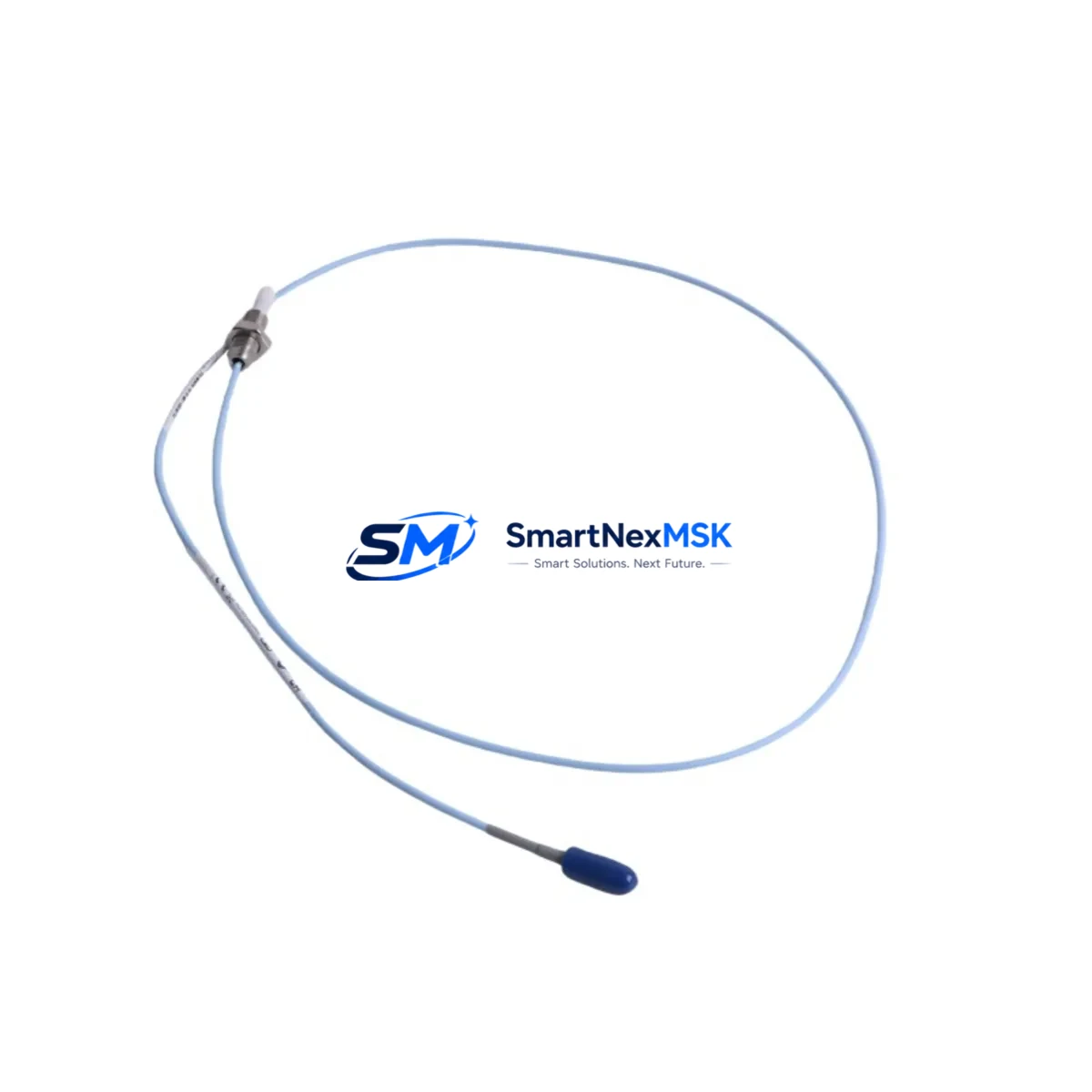

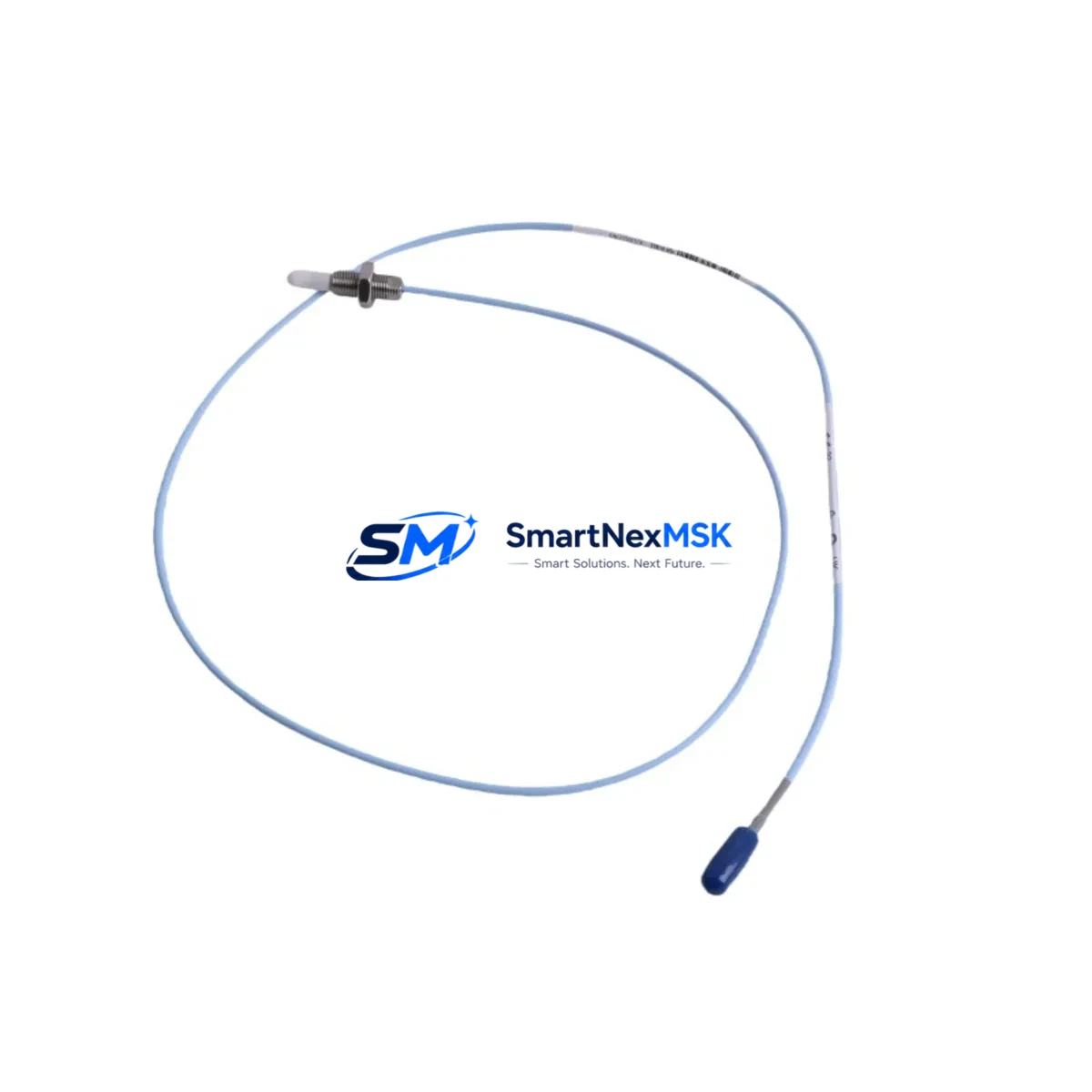

Bently Nevada 330905-00-04-10-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330905-00-04-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330905-00-04-10-02-00 is a 5mm eddy-current proximity probe engineered for safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 NSv Series system, this probe delivers continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion — functions that are indispensable in high-stakes rotating machinery protection across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In high-load, high-interference production environments, control interruptions caused by signal drift, power fluctuations, or module malfunction can result in catastrophic equipment failure and unplanned downtime. The 330905-00-04-10-02-00 addresses these risks through its robust eddy-current sensing technology, which operates without physical contact, eliminating mechanical wear and ensuring long-term measurement stability even under severe electromagnetic interference, thermal cycling, and vibration stress. Its 10-meter armored cable assembly provides reliable signal transmission from the probe tip to the proximitor extension cable and ultimately to the 3300 XL 11 mm proximitor module, maintaining signal integrity across the full measurement chain.

When integrated into a properly configured control cabinet, this probe works in concert with the Bently Nevada 3300 XL 11 mm Proximitor Sensor and the 3300/16 Dual Voting Logic Module to form a redundant safety interlock loop capable of triggering emergency shutdowns before bearing damage or rotor rub events escalate. Paired with the Bently Nevada 3500/42M Proximitor/Seismic Monitor, the system provides both continuous trending and alarm/trip output, feeding directly into DCS or safety instrumented system (SIS) architectures. For installations requiring IEC 61511-compliant safety loops, the probe’s stable output characteristics support SIL-rated system designs when combined with certified logic solvers.

Power supply stability is equally critical in these applications. The probe system is typically powered through the Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to the proximitor and probe assembly. In facilities where power quality is a concern — such as those with large variable-frequency drives, arc furnaces, or heavy motor switching — supplementing the rack power with a dedicated Phoenix Contact QUINT UPS or equivalent industrial UPS module ensures uninterrupted probe operation during grid transients and surge events. Surge protection devices such as the MTL 5053 Zener Barrier or equivalent galvanic isolators are recommended in hazardous area installations to protect the signal circuit from voltage spikes and ground loops that could cause false trips or measurement errors.

Communication of vibration data to the plant control system is handled through the Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus, Profibus, and other industrial protocols, enabling seamless integration with Emerson DeltaV, Honeywell Experion, Siemens PCS 7, or ABB 800xA distributed control systems. This connectivity ensures that vibration trends, alarm states, and trip events are visible to operators in the central control room in real time, supporting proactive maintenance decisions and reducing the risk of undetected machinery degradation.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust rotating machinery protection cabinet built around the 330905-00-04-10-02-00 probe typically includes the following layers of protection and control. At the field level, the probe assembly — comprising the probe, extension cable, and Bently Nevada 330130-080-00-00 Extension Cable — connects to the proximitor, which conditions the raw eddy-current signal into a calibrated voltage output. The Bently Nevada 3500/22M Transient Data Interface captures high-resolution waveform data during startup and coast-down events, providing critical insight into rotor dynamics that steady-state monitoring alone cannot reveal.

Within the monitoring rack, the Bently Nevada 3500/40M Proximitor/Seismic Monitor processes the probe signal and compares it against configurable alert and danger setpoints. When a danger threshold is crossed, the module’s relay outputs activate, triggering the plant’s emergency shutdown system (ESD) or safety instrumented function (SIF). The Bently Nevada 3500/32 4-Channel Relay Module provides additional relay capacity for complex trip logic, including voting configurations (1oo2, 2oo3) that prevent spurious shutdowns while maintaining safety integrity.

For facilities operating in classified hazardous areas (Zone 1 or Zone 2), intrinsic safety barriers such as the Pepperl+Fuchs KFD2-STC4-Ex1 Signal Conditioner or equivalent Zener barriers are installed between the field device and the monitoring rack to limit energy in the hazardous zone. Grounding and shielding discipline — including single-point grounding of cable shields and use of the Bently Nevada 3500/05 System Rack‘s integrated grounding bus — is essential to prevent ground loops that degrade signal quality and trigger nuisance alarms.

Critical Industrial Safety Applications

The Bently Nevada 330905-00-04-10-02-00 proximity probe is deployed across a wide range of critical industrial applications where continuous, reliable shaft monitoring is a safety and operational imperative.

In petrochemical and refinery facilities, the probe monitors compressor and pump shafts in API 670-compliant machinery protection systems, providing early warning of bearing wear, rotor imbalance, and seal degradation before they result in process upsets or fire and explosion hazards. In power generation plants — including coal, gas, nuclear, and hydroelectric — it monitors turbine and generator shaft vibration and axial position, feeding trip signals to the turbine control system to prevent catastrophic overspeed or bearing failure events.

In mining and mineral processing operations, the probe is used on large ball mills, SAG mills, and crusher drives, where the consequences of undetected bearing failure include not only equipment damage but also personnel safety risks from sudden mechanical disintegration. Water and wastewater treatment facilities rely on the probe for continuous monitoring of large centrifugal pumps and blowers, where unplanned downtime can compromise public health infrastructure. In metallurgical plants — including steel rolling mills and aluminum smelters — the probe operates in extreme thermal and electromagnetic environments, where its wide operating temperature range and EMI resistance are critical to reliable performance.

Port and marine applications include monitoring of large crane drives and ship propulsion systems, where the probe’s compact 5mm tip diameter allows installation in space-constrained machinery housings. Across all these applications, the 330905-00-04-10-02-00 serves as the primary sensing element in safety loops that protect both equipment and personnel, making its reliability, availability, and replaceability key procurement considerations.

Safety and Quality FAQ

Q1: What warranty does the 330905-00-04-10-02-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers defects in materials and workmanship under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair at no additional cost.

Q2: How is each unit tested before shipment?
Every 330905-00-04-10-02-00 unit undergoes pre-shipment functional verification, including output voltage linearity checks across the specified measurement range, cable continuity and insulation resistance testing, and visual inspection for connector and housing integrity. Test records are available upon request for quality-critical applications.

Q3: Is this probe compatible with existing 3300 NSv and 3500 Series installations?
Yes. The 330905-00-04-10-02-00 is fully compatible with the Bently Nevada 3300 NSv Proximity Transducer System and integrates directly with 3500 Series monitoring racks, including the 3500/40M, 3500/42M, and 3500/22M modules. It is also backward-compatible with legacy 3300 Series installations using the same 5mm probe standard.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains stock of the 330905-00-04-10-02-00 and related Bently Nevada 3300/3500 Series components to support planned maintenance, emergency replacement, and capital project requirements. We offer supply agreements for customers requiring guaranteed availability over multi-year maintenance cycles, minimizing the risk of extended downtime due to spare parts shortages.
