Bently Nevada 330905-00-04-10-02-05 Safety Proximity Probe

Bently Nevada 330905-00-04-10-02-05 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

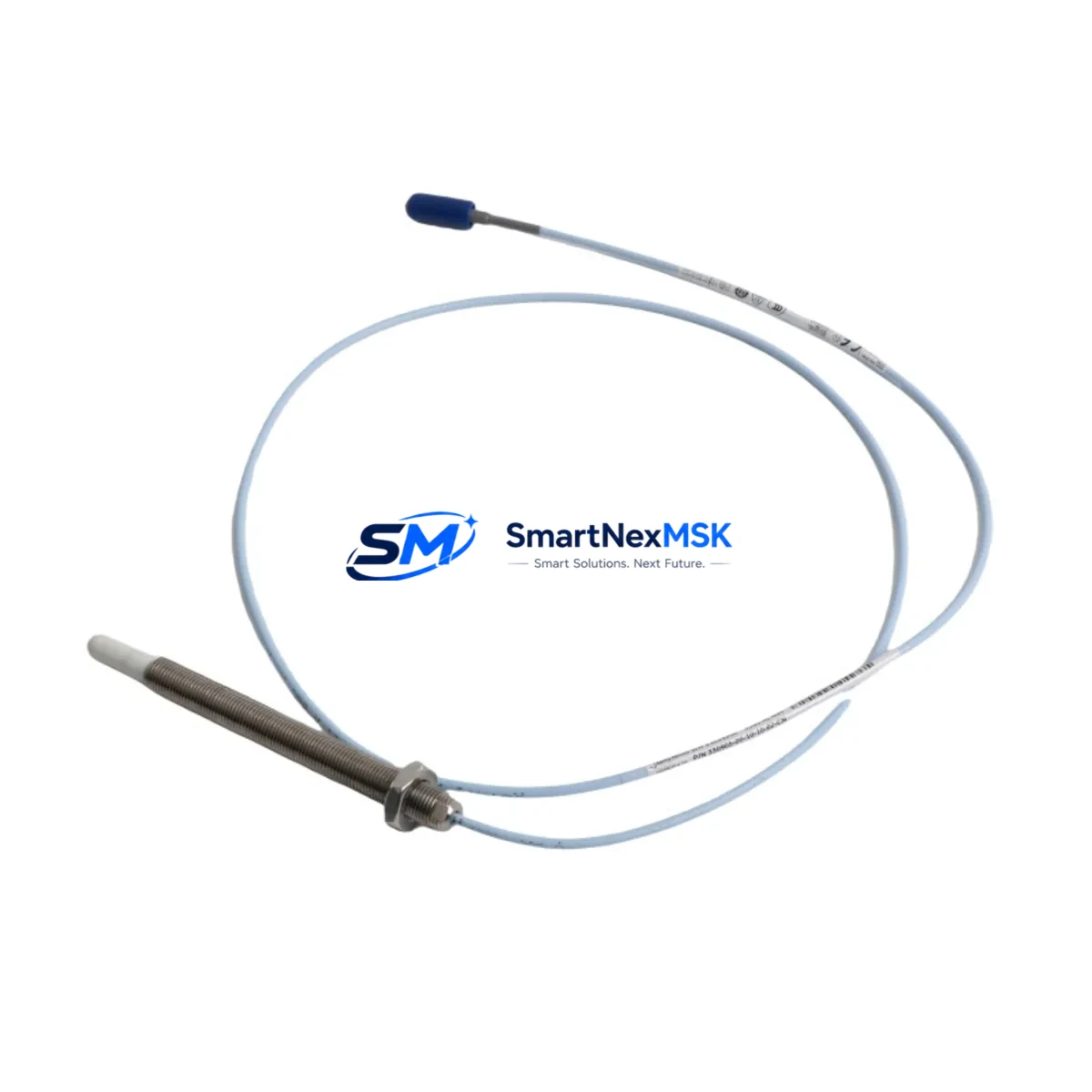

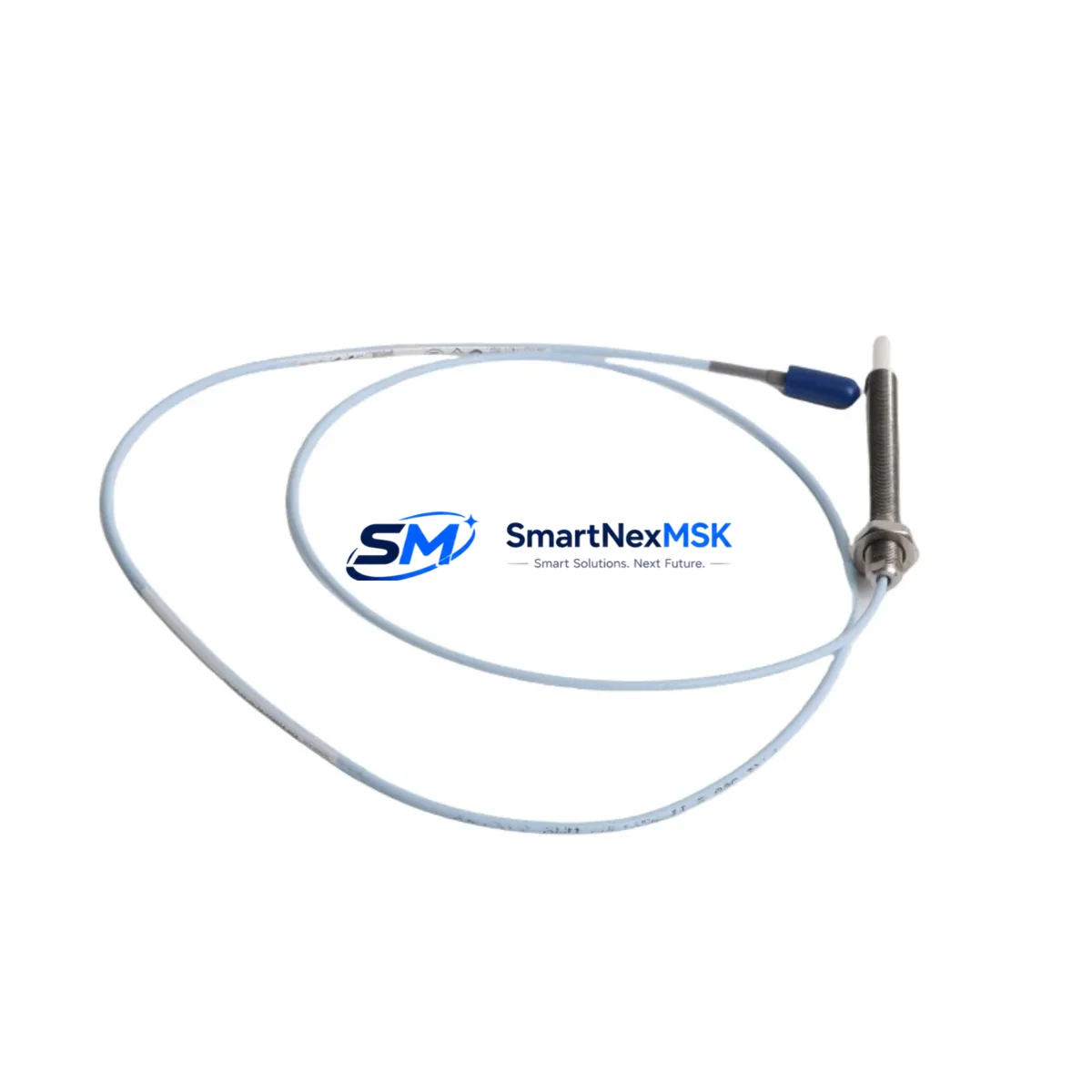

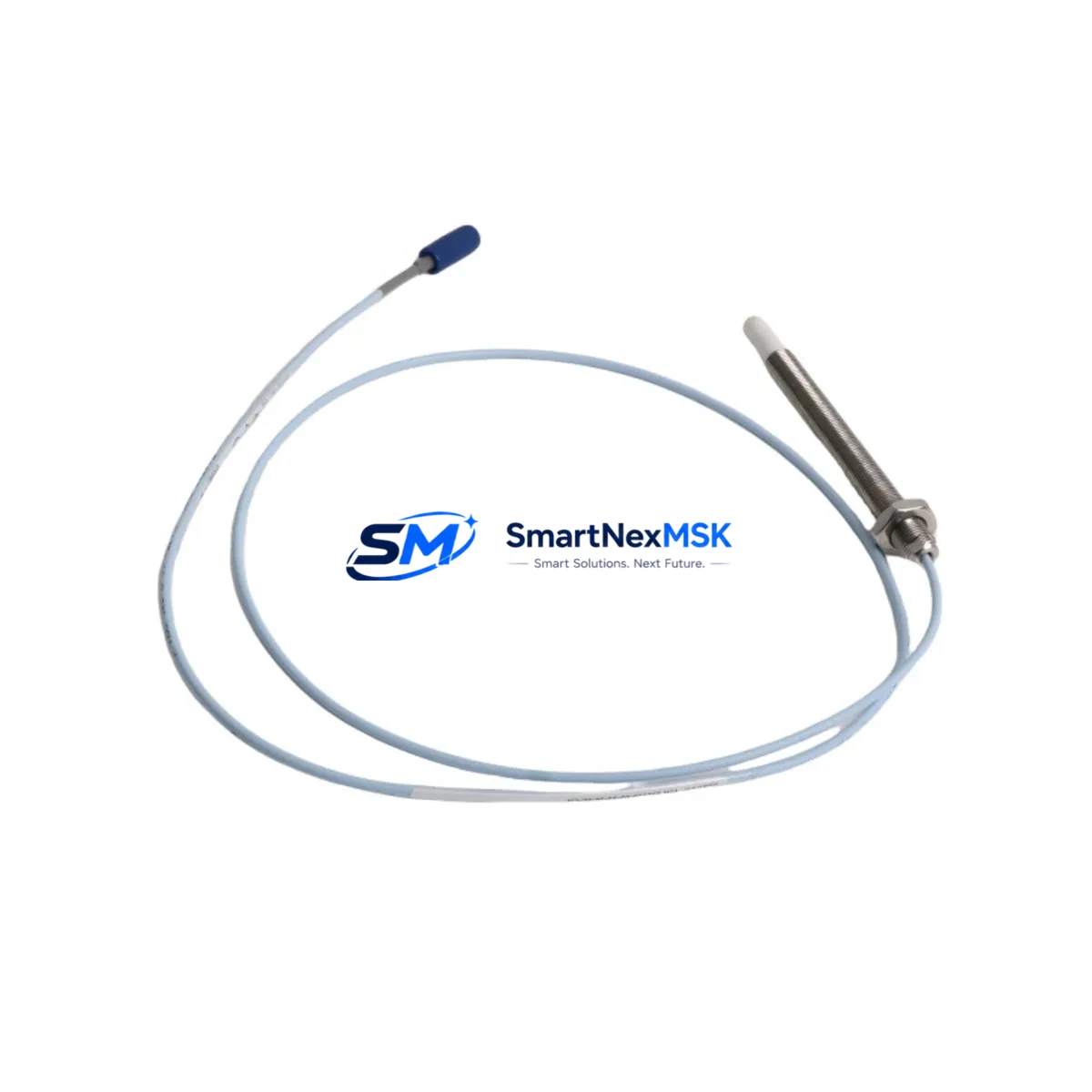

The Bently Nevada 330905-00-04-10-02-05 is a ruggedized eddy current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the proven 3300 NSv Series, this probe delivers exceptional signal stability, immunity to electromagnetic interference, and long-term mechanical durability — making it a cornerstone component in high-stakes control loops where measurement failure is not an option.

In heavy industrial facilities — from petrochemical compressor trains to power generation turbines — shaft vibration monitoring is a primary line of defense against catastrophic equipment failure. The 330905-00-04-10-02-05 is purpose-built to maintain accurate, drift-free output even under conditions of extreme temperature cycling, high-frequency electrical noise, aggressive chemical exposure, and continuous mechanical vibration. Its ruggedized housing and precision-wound sensing coil resist physical degradation over extended service intervals, reducing the risk of false trips, missed alarms, and unplanned shutdowns.

When integrated into a Bently Nevada 3300 XL 8mm Proximity Transducer System, this probe pairs with the 330180-X1-05 extension cable and 330130-045-00-00 Proximitor sensor to form a complete, calibrated measurement chain. The Proximitor converts the probe’s raw eddy current signal into a clean 0–24 VDC output, which feeds directly into the 3500/42M Proximitor/Seismic Monitor rack card — a critical node in any API 670-compliant machinery protection system. Together, these components form a tightly integrated safety loop capable of detecting shaft displacement anomalies within microseconds, triggering protective relay outputs before damage propagates.

In control cabinet environments, the 330905-00-04-10-02-05 is typically deployed alongside 3500/15 Power Supply modules that provide clean, regulated DC power to the monitoring rack, and 3500/20 Rack Interface Modules that manage communication between the protection system and the plant DCS or safety PLC. Surge protection devices — such as dedicated transient voltage suppressors on signal cable entries — are recommended to shield the probe circuit from lightning-induced surges and switching transients common in large motor control centers. The probe’s coaxial cable interface is also compatible with 330130 series Proximitor housings mounted in ATEX/IECEx-rated enclosures for Zone 1 and Zone 2 hazardous area installations.

For facilities running System 1 Evolution condition monitoring software, the 330905-00-04-10-02-05 feeds real-time vibration vectors into trend databases, enabling predictive maintenance teams to track bearing wear, rotor imbalance, and misalignment long before they reach alarm thresholds. This proactive data loop — from probe to Proximitor to rack monitor to software — is the foundation of a modern, safety-integrated asset protection strategy. Complementary components such as the 330500-02-05 velocity transducer and 330850-50-00 temperature sensor can be co-located in the same machinery train to provide a multi-parameter health picture within a single 3500 Series rack.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330905-00-04-10-02-05 within a well-engineered control cabinet requires attention to the entire signal chain. The probe connects via a 330180-X1-05 coaxial extension cable to a 330130-045-00-00 Proximitor sensor mounted inside or adjacent to the cabinet. The Proximitor’s output is routed to a 3500/42M monitor card seated in a 3500 Series rack powered by a 3500/15 redundant power supply. This architecture ensures that a single power supply failure does not interrupt the protection function — a critical requirement in API 670 systems protecting high-value rotating machinery.

Signal integrity is further protected by proper cable routing: the coaxial probe cable must be separated from high-voltage power conductors and variable frequency drive (VFD) output cables, which are primary sources of conducted and radiated EMI. In installations near large motors or transformer banks, additional shielding conduit or ferrite chokes on the Proximitor power leads may be warranted. The 3500/20 Rack Interface Module provides the Modbus or Ethernet/IP gateway function, allowing the 3500 rack to report alarm and danger states to the plant safety PLC or DCS without introducing ground loops that could corrupt the low-level probe signal.

For interlock-critical applications — such as compressor anti-surge control or turbine overspeed protection — the 330905-00-04-10-02-05 is often installed in a 2-out-of-3 (2oo3) voting configuration using three independent probes on the same shaft plane. Each probe feeds its own 3500/42M channel, and the voting logic is executed in the safety PLC (e.g., a Triconex Tricon or Rockwell GuardLogix controller) to prevent spurious trips while maintaining SIL 2 integrity. Surge suppressors and galvanic isolators on each signal input further harden the loop against transient faults from nearby welding operations or switchgear switching events.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330905-00-04-10-02-05 is widely used on centrifugal compressors, pumps, and expanders in refinery and gas processing plants, where continuous shaft position monitoring is mandatory under API 670 and process safety management (PSM) regulations. Probe failure in these environments can lead to undetected rotor rub, bearing seizure, and catastrophic seal failure — making ruggedized, high-reliability sensors non-negotiable.

Power Generation: Steam and gas turbines in utility and industrial power plants rely on eddy current proximity probes for both radial vibration and axial position monitoring. The 330905-00-04-10-02-05’s wide operating temperature range and stable sensitivity make it suitable for high-temperature turbine bearing pedestals, where ambient temperatures can approach the probe’s rated limit during peak load operation.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject instrumentation to extreme vibration, dust ingress, and corrosive slurry splash. The ruggedized construction of the 330905-00-04-10-02-05 provides reliable service in these conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in municipal water treatment facilities benefit from continuous vibration monitoring to detect impeller wear and bearing degradation before pump failure disrupts treatment capacity. The probe’s IP67-equivalent protection suits wet, chemically aggressive pump room environments.

Metallurgy & Steel: Rolling mill drives, continuous casters, and large induction furnace cooling pumps in steel plants operate under severe electrical noise conditions generated by high-current DC drives and induction heating systems. The 330905-00-04-10-02-05’s shielded coaxial construction and high EMI immunity maintain signal fidelity in these electrically hostile environments.

Port & Heavy Lifting: Crane hoist motors and large gearboxes in port terminals require reliable vibration monitoring to prevent catastrophic mechanical failure during heavy lift operations. Proximity probes installed on hoist drum bearings provide early warning of gear tooth wear and bearing race damage, enabling planned maintenance during scheduled downtime windows.

Safety and Quality FAQ

Q: What does the 12-month warranty cover?
A: The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. This includes probe sensitivity drift beyond specification, cable insulation failure, and connector defects. Warranty claims are processed with full replacement or repair at no additional cost.

Q: What pre-shipment testing is performed on the 330905-00-04-10-02-05?
A: Each unit undergoes functional verification including sensitivity calibration against a reference target, insulation resistance testing of the coaxial cable, and visual inspection of the probe tip and connector. Test records are available upon request for quality-critical applications.

Q: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series systems?
A: Yes. The 330905-00-04-10-02-05 is fully compatible with the 3300 NSv Proximitor system and integrates directly with 3500 Series monitor racks via standard 330130 and 330180 series extension cables and Proximitor sensors. No system reconfiguration is required for direct replacement of equivalent 3300 NSv probes.

Q: Can long-term supply be guaranteed for maintenance and spare parts programs?
A: We maintain dedicated stock of the 330905-00-04-10-02-05 to support planned maintenance schedules and emergency replacement requirements. Bulk orders for spare parts programs are accommodated with lead time commitments. Contact our sales team to discuss consignment stock or scheduled delivery arrangements for your facility.
