Bently Nevada 330905-00-05-05-05-02-05 3300 NSv Spare

Bently Nevada 330905-00-05-05-05-02-05 3300 NSv Spare: Precision Proximity Probe for Industrial Downtime Control

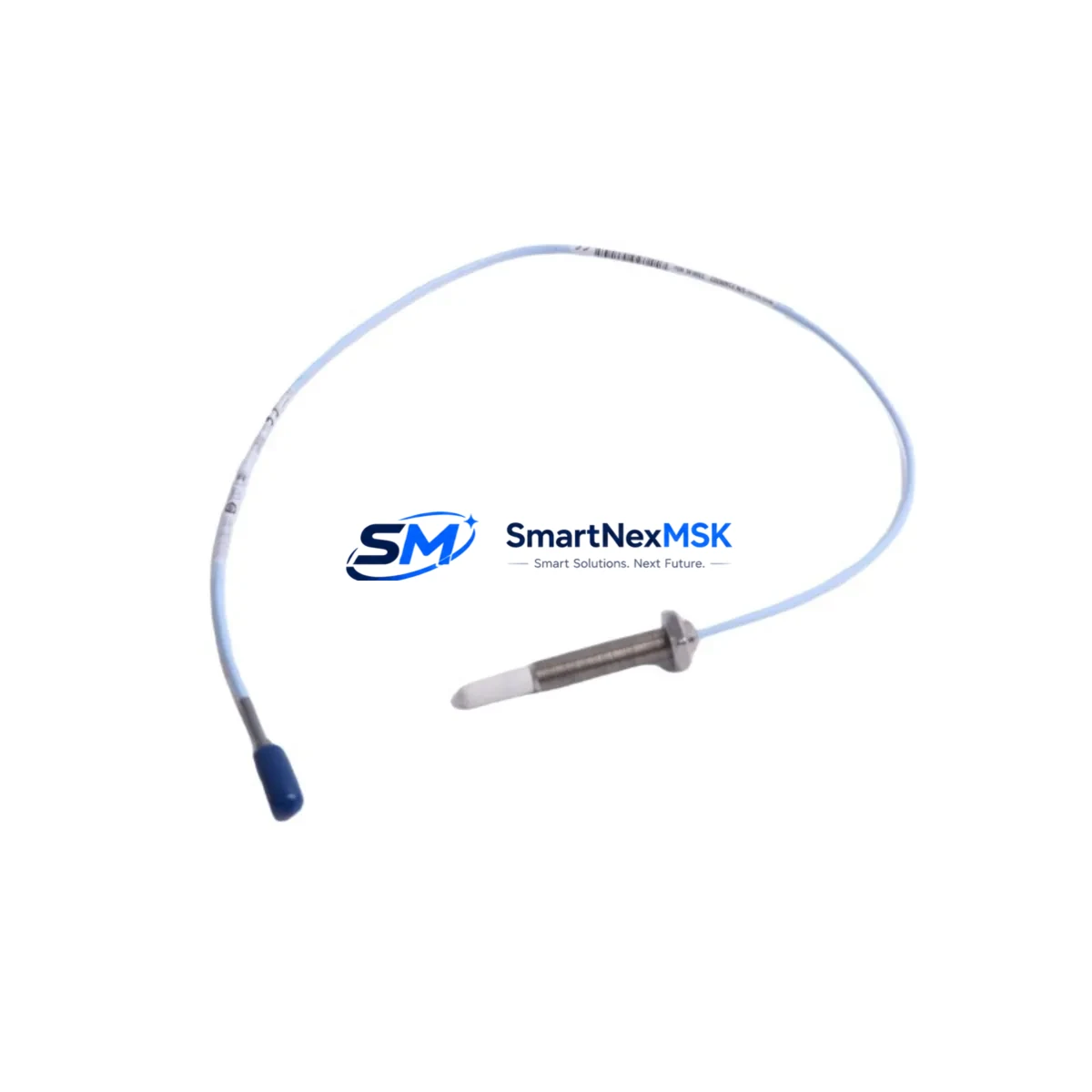

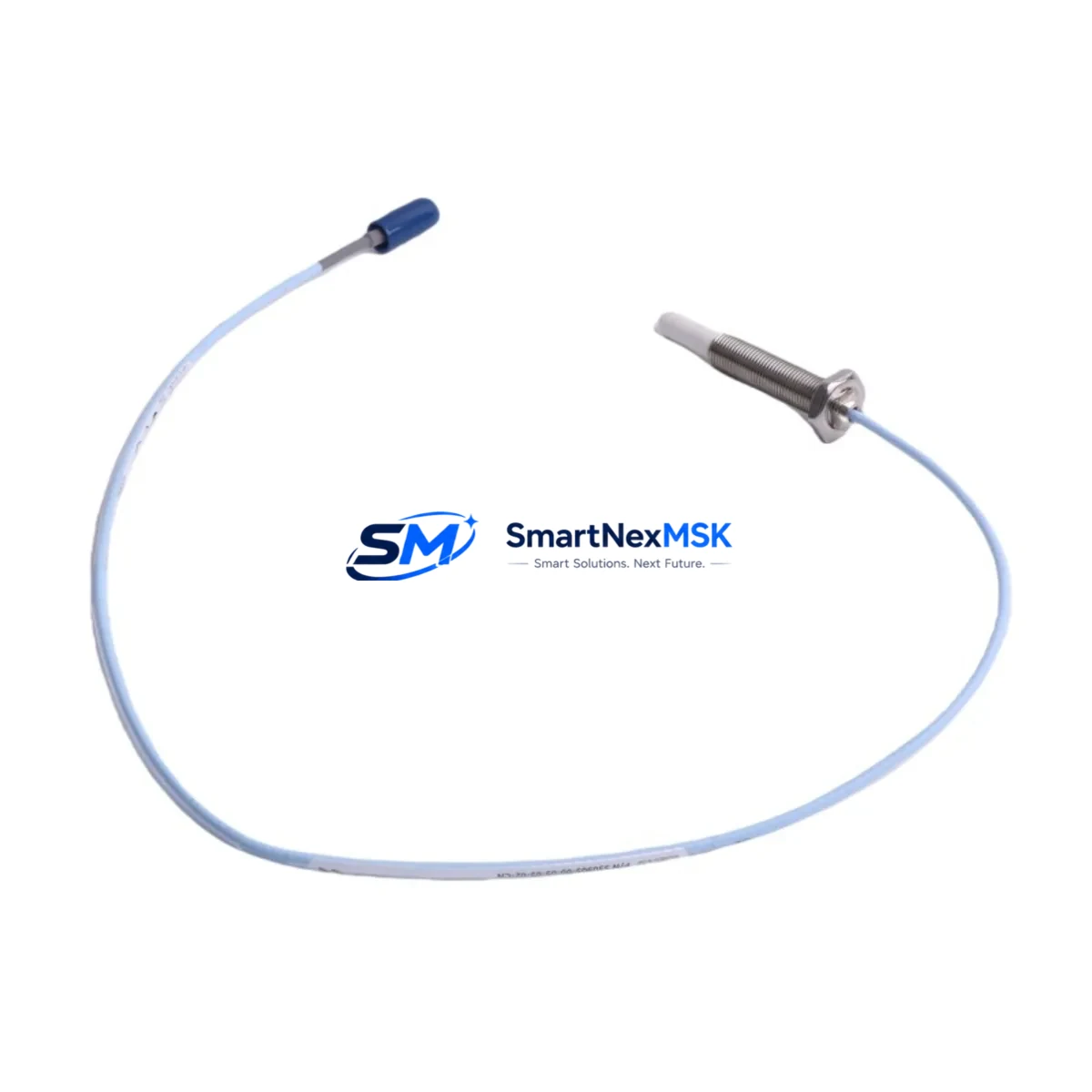

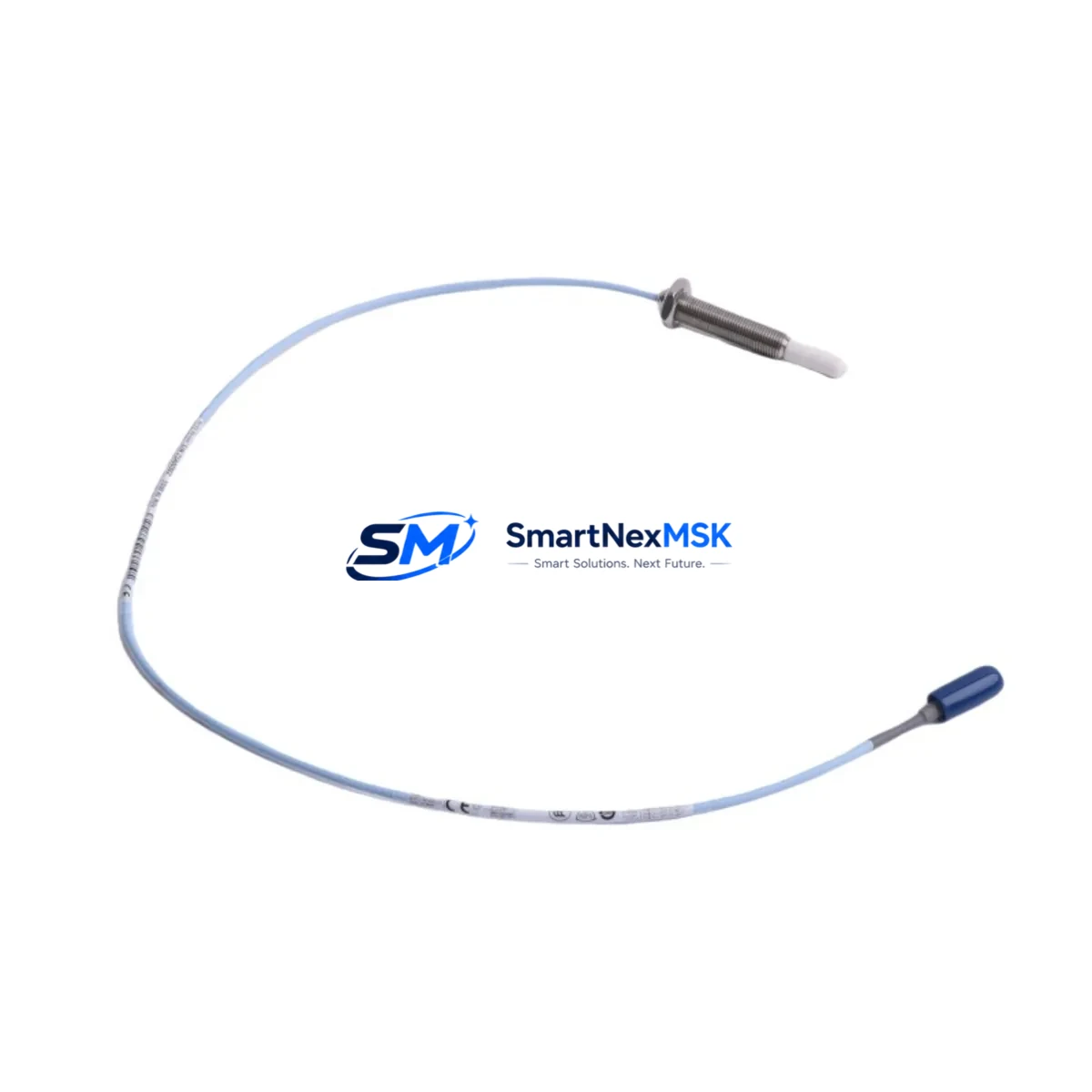

The Bently Nevada 330905-00-05-05-05-02-05 is an original 5mm eddy-current proximity probe engineered for the 3300 NSv (Non-contacting Vibration) monitoring system. Designed for continuous shaft vibration, axial position, and differential expansion measurement in rotating machinery, this probe is a critical maintenance-ready spare for turbines, compressors, pumps, and generators operating in process-critical environments. Sourced directly from verified supply channels, each unit is inspected, tested, and shipped with a 12-month warranty to support fast replacement and minimal unplanned downtime.

For maintenance engineers managing aging 3300 NSv installations, having a verified replacement probe on the shelf is the single most effective strategy to reduce mean time to repair (MTTR). The 330905-00-05-05-05-02-05 is a direct fit for standard 3300 NSv probe driver and extension cable assemblies, maintaining the calibrated gap voltage and sensitivity curve required for accurate vibration trending and alarm setpoint integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330905-00-05-05-05-02-05 proximity probe during a planned outage or emergency shutdown, a disciplined maintenance engineer will treat the probe replacement as the starting point of a broader loop verification — not the end. The 3300 NSv measurement chain is only as reliable as its weakest component, and a probe swap is the ideal moment to audit the entire signal path.

Begin by inspecting the 330130 series extension cable for jacket abrasion, connector corrosion, or shield continuity loss — extension cables are frequently overlooked and are a common source of intermittent vibration alarms. Next, verify the 3300 NSv Proximitor® Sensor (typically a 330180 or 330185 driver module) for correct gap voltage output at the installed probe gap; a driver that has drifted outside its calibration window will produce false readings even with a new probe installed.

Check the 3300 XY/Z rack power supply module supplying the Proximitor® — a marginal 24 VDC rail will cause sensitivity errors that mimic probe degradation. If the cabinet houses a 3500 series rack alongside legacy 3300 NSv hardware, confirm that the I/O module termination boards and 3500/42M Proximitor®/Seismic Monitor cards are seated and free of corrosion on the backplane connectors.

For installations where the probe monitors axial thrust position, cross-check the 3300/55 Dual Voting Trip Module or equivalent relay output card to ensure trip setpoints have not shifted after the replacement. Relay output modules and 3300/16 I/O modules in the same chassis should be visually inspected for discoloration or heat damage, particularly in high-ambient-temperature enclosures.

If the machine train includes a Keyphasor® transducer (such as the 330980 series), verify its gap and signal integrity simultaneously — Keyphasor® phase reference is essential for accurate 1X/2X vibration vector analysis after the probe is reinstalled. Finally, review the System 1® or Orbit® software trend data to establish a new baseline immediately after commissioning the replacement probe, and archive the pre-replacement gap voltage reading for future reference.

Procurement engineers should note that stocking a minimum of two 330905-00-05-05-05-02-05 probes per monitored machine train, alongside one spare extension cable set and one spare Proximitor® driver, represents best-practice inventory strategy for critical rotating equipment. Long-term supply continuity is supported through our verified distribution channel with consistent lead times.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the Proximitor® driver before disconnecting the probe cable to avoid electrostatic discharge to the driver input circuit.

Step 2 — Gap Measurement: Record the existing probe gap voltage (target: –10.0 VDC ± 0.5 V at nominal gap) before removal. This baseline confirms whether the outgoing probe had drifted or failed catastrophically.

Step 3 — Probe Removal: Loosen the locknut and unthread the 330905-00-05-05-05-02-05 probe from the bracket. Inspect the probe tip for impact damage or target surface contamination that may indicate a secondary mechanical issue.

Step 4 — New Probe Installation: Thread the replacement probe to the correct gap per the machine OEM specification (typically 1.0–1.5 mm / 40–60 mil for most steel targets). Torque the locknut to specification and reconnect the extension cable, ensuring the connector is fully seated and the locking sleeve is engaged.

Step 5 — Energize & Verify: Re-energize the Proximitor® and measure the output voltage at the monitor rack. Confirm the gap voltage is within the linear range and matches the calibration curve for the 330905-00-05-05-05-02-05 / 330130 / 330180 system combination.

Step 6 — Alarm Reset & Baseline: Clear any latched alarms in the 3300 or 3500 rack, reset the System 1® or equivalent monitoring software, and record the new baseline vibration amplitude and phase for the first post-maintenance run.

This workflow minimizes re-work risk, preserves system calibration integrity, and ensures the replacement probe is fully commissioned before the machine returns to service — reducing the probability of a repeat trip event within the first 72 hours of operation.

Spare Parts Support FAQ

Q1: Is the 330905-00-05-05-05-02-05 a direct replacement for older 3300 NSv probe assemblies?
Yes. The 330905-00-05-05-05-02-05 is the current catalog part number for the 5mm, 5m cable, standard-temperature 3300 NSv proximity probe. It is a direct mechanical and electrical replacement for earlier 330905 variants used in the same series, provided the extension cable and Proximitor® driver are also 3300 NSv-compatible. Always verify the full system combination (probe + extension + driver) against the Bently Nevada System Compatibility Chart before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 330905-00-05-05-05-02-05 unit is bench-tested for output sensitivity, DC bias voltage, and cable continuity prior to dispatch. Units that do not meet the 7.87 V/mm ± 10% sensitivity specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an anti-static bag, in a dry environment between –20°C and +70°C, away from strong magnetic fields. Inspect the connector and cable jacket annually. Shelf life under proper storage conditions exceeds 5 years without performance degradation. Rotate stock on a first-in, first-out basis if multiple units are held.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, premature sensitivity drift beyond specification, and cable/connector failures under normal operating conditions. It does not cover physical impact damage, chemical contamination, or installation errors. Warranty claims are processed with return of the defective unit and a completed failure report. Replacement units are dispatched within 5 business days of claim approval.
