Bently Nevada 330905-00-07-05-02-00 Maintenance-Ready Spare for 3300 XL Automation

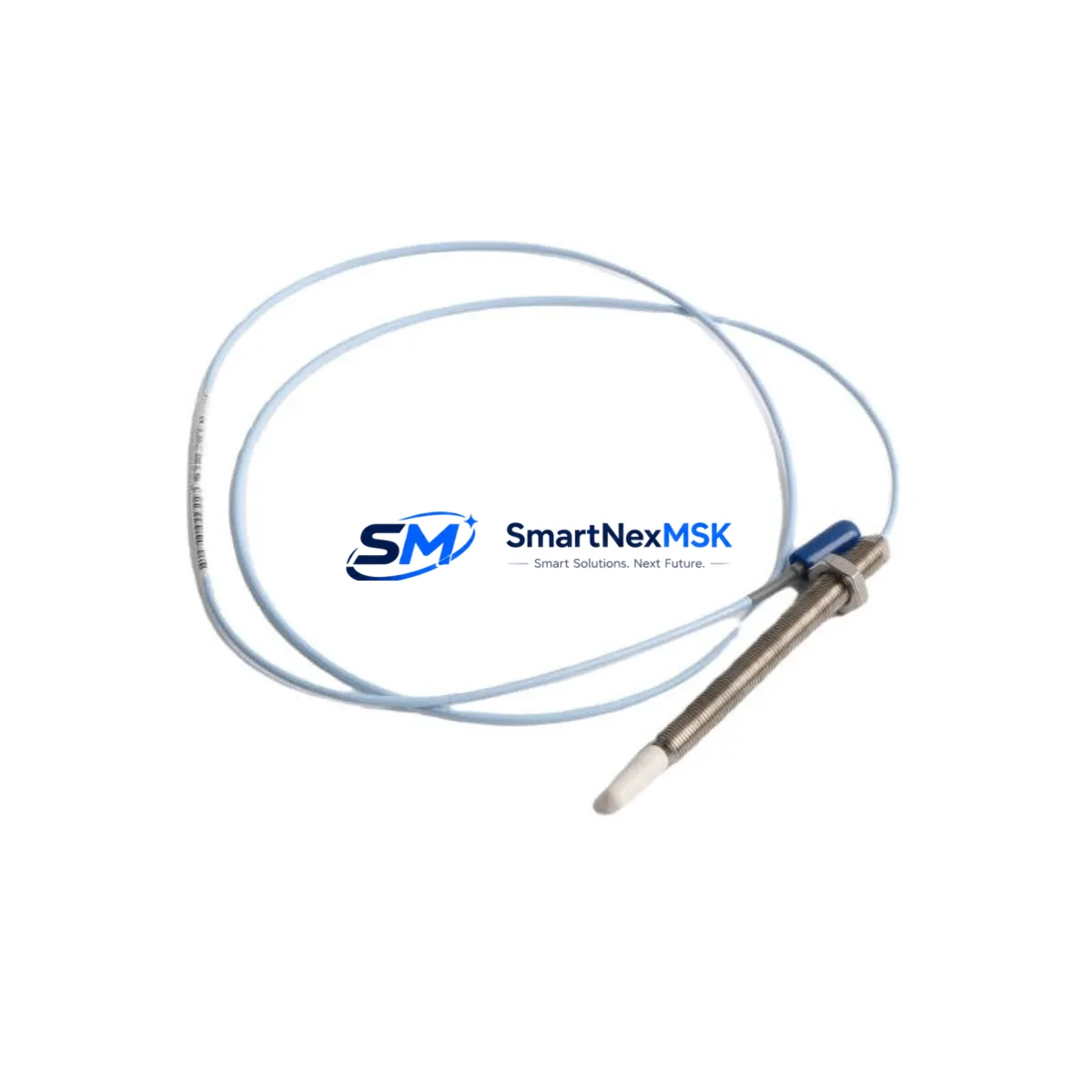

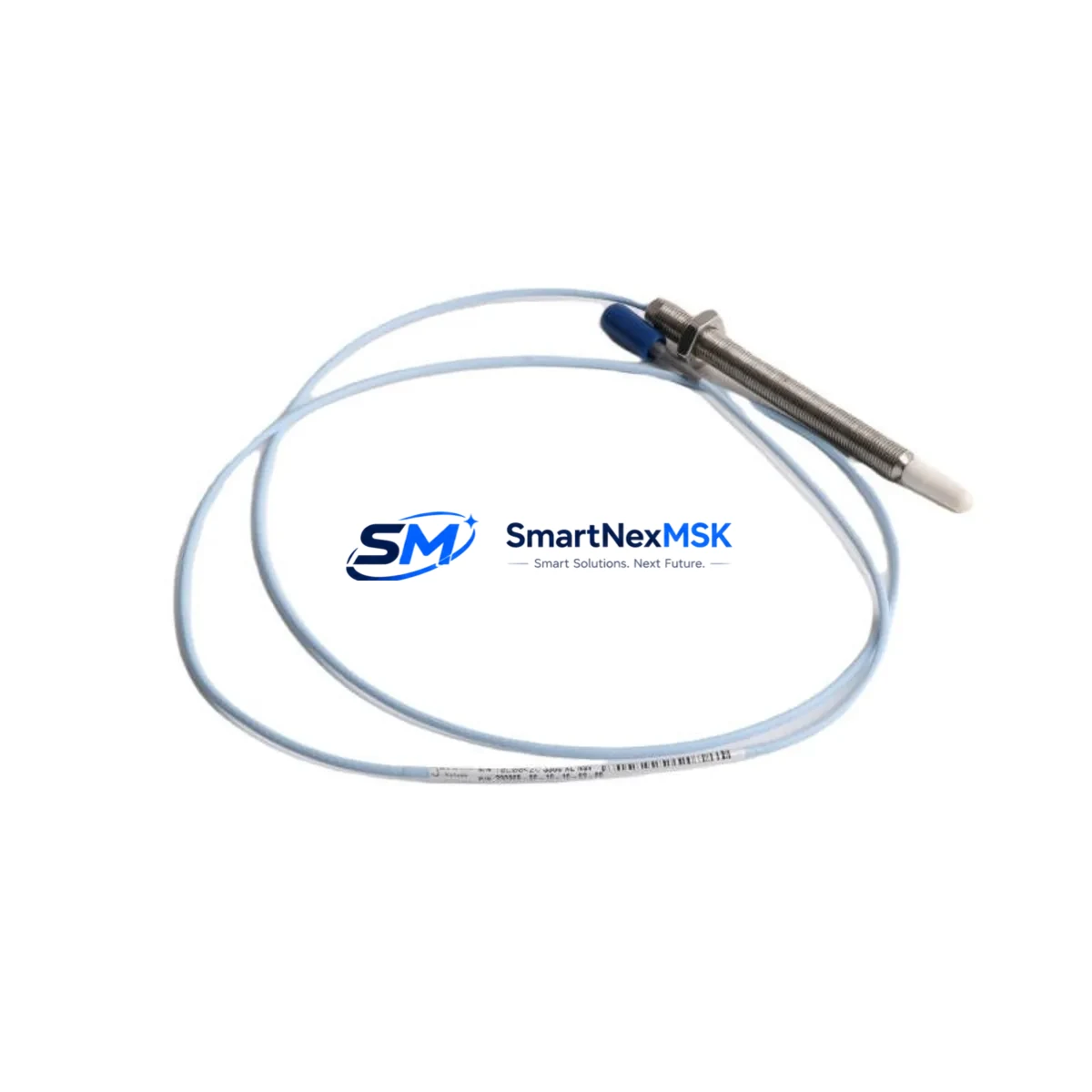

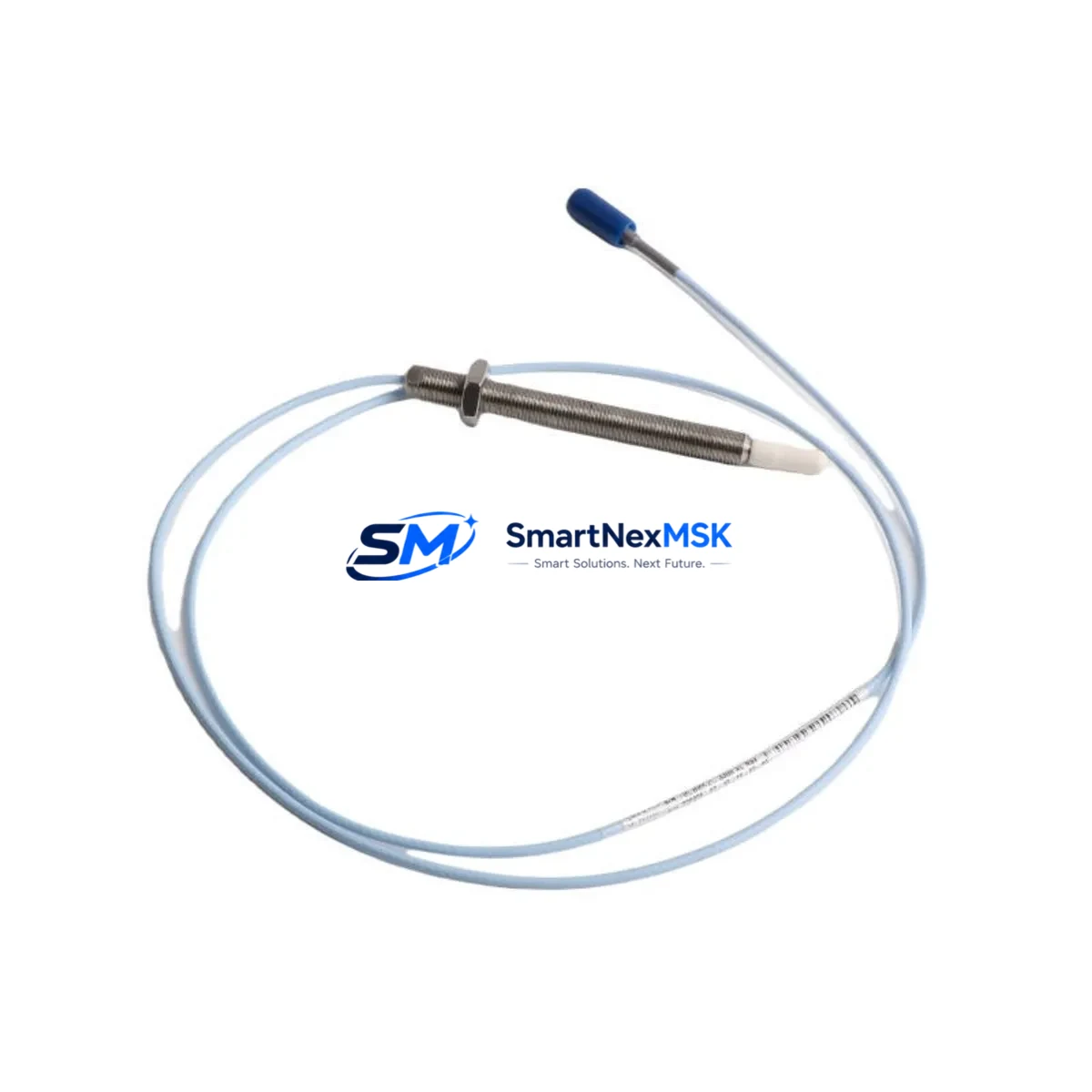

The Bently Nevada 330905-00-07-05-02-00 is an original eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and generators, this probe is a critical spare for maintenance engineers managing predictive maintenance programs and emergency downtime recovery. Every unit shipped by SMARTNEXMSK is sourced from verified supply channels, bench-tested prior to dispatch, and covered by a 12-month warranty.
For maintenance and procurement engineers, having a verified replacement on the shelf is the single most effective strategy to reduce mean time to repair (MTTR). The 330905-00-07-05-02-00 integrates directly into existing 3300 XL monitor racks without reconfiguration, making it the preferred drop-in spare for facilities running Bently Nevada-based machinery protection systems.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330905-00-07-05-02-00 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Product Type | Eddy-Current Proximity Probe |
| Probe Length | 7 inches (177.8 mm) |
| Cable Length | 5 meters (extension cable) |
| Connector Type | 02 (standard industrial connector) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Operating Temperature | -35°C to +177°C |
| Gap Voltage Range | -2 VDC to -18 VDC |
| Compatibility | 3300 XL Monitor, 3300/16 Monitor, 3500 Series (with adapter) |
| Application | Radial vibration, axial position, differential expansion monitoring |
| Installation | Direct replacement; no recalibration required for matched system |
| Warranty | 12 Months — tested and verified before shipment |
Maintenance Planning for Continuous Operation
When replacing the 330905-00-07-05-02-00 in the field, a disciplined maintenance engineer will not stop at the probe alone. The 3300 XL system is a tightly integrated signal chain, and a probe fault often signals stress on adjacent components. During the same maintenance window, inspect and consider stocking the following:
The 330130-080-00-05 extension cable and 330180-51-05 proximitor/oscillator form the complete probe system — probe, cable, and driver must be matched for accurate gap calibration. If the probe has failed due to cable damage or connector corrosion, the extension cable is frequently the root cause and should be replaced simultaneously.
The 3300/16 Monitor or 3500/42M Proximitor Monitor rack card should be inspected for input channel integrity. A degraded probe can mask a failing monitor input, and replacing only the probe without verifying monitor channel health risks repeat failures. Check the 3300/20 Power Supply module for stable -24 VDC output — voltage sag is a common cause of false proximity alarms and probe signal drift.
For facilities running combined vibration and temperature monitoring, the 3300/55 Temperature Monitor and associated Pt100 RTD sensors should be verified during the same cabinet inspection. Terminal blocks and DIN rail-mounted signal isolators in the signal conditioning circuit are often overlooked; corroded or loose terminations introduce noise that mimics probe degradation.
If the control cabinet includes a Bently Nevada 3500/22M Transient Data Interface or TDI module, confirm firmware compatibility after any hardware swap. For older installations, the 3300 XL keyphasor probe (typically a 330980 series) should be inspected alongside radial probes, as keyphasor signal integrity is essential for phase-referenced vibration analysis.
Procurement engineers building a spare parts kit for a 3300 XL-protected machine train should consider a minimum inventory of one matched probe set (probe + cable + proximitor), one spare monitor card, and one power supply module per critical machine. This kit strategy eliminates the most common single points of failure and supports same-shift restoration after an unplanned trip.
Site Replacement Workflow
Step 1 — Verify Compatibility: Confirm the replacement 330905-00-07-05-02-00 matches the existing probe length (7 in), cable length (5 m), and connector code (02) against the machine’s probe installation drawing. Mismatched probe-cable-proximitor combinations will produce incorrect gap voltages and trigger false alarms.
Step 2 — Safe Isolation: Follow site LOTO procedures. The 3300 XL system can remain powered during probe swap on non-trip-critical channels if permitted by site safety rules; otherwise, inhibit the monitor channel before disconnecting the probe.
Step 3 — Physical Replacement: Remove the failed probe from the probe holder. Clean the probe tip and target area. Install the replacement probe, set the gap to the manufacturer-specified voltage (typically -10 VDC ±0.5 VDC at nominal gap), and torque the locknut to specification.
Step 4 — Signal Verification: With the system live, confirm gap voltage at the proximitor output is within the linear range. Check for noise on the vibration channel using the monitor’s OK relay status and the raw DC/AC output. A clean signal confirms successful installation.
Step 5 — Documentation: Record the replacement in the equipment maintenance log, noting the new probe serial number, installation date, gap voltage, and technician ID. Update the spare parts inventory to trigger reorder of the consumed spare.
This workflow supports rapid restoration — typically under 2 hours for a trained technician — and maintains full system compatibility without requiring monitor reconfiguration or recalibration of adjacent channels.
Spare Parts Support FAQ
Q: Is the 330905-00-07-05-02-00 a direct replacement for older 3300 XL probes?
A: Yes. The 330905-00-07-05-02-00 is backward compatible with 3300 XL monitor systems and can replace earlier 330905 variants provided the probe length, cable length, and connector code match the original installation. Always verify the three-digit suffix codes against the machine’s probe specification sheet before ordering.
Q: How is each unit tested before shipment?
A: Every 330905-00-07-05-02-00 shipped by SMARTNEXMSK undergoes bench verification of DC gap output, AC sensitivity, and cable continuity. Units that do not meet Bently Nevada factory specifications are quarantined. A test report is available upon request for critical applications.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and verified performance failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage from improper installation, mechanical impact, or operation outside the specified temperature and gap voltage range. SMARTNEXMSK provides direct technical support for warranty claims.
Q: Can this probe be used with the Bently Nevada 3500 Series monitors?
A: The 330905-00-07-05-02-00 is natively designed for the 3300 XL system. Use with 3500 Series monitors is possible in some configurations with appropriate proximitor matching, but compatibility must be confirmed against the 3500 system’s probe input specifications. Contact SMARTNEXMSK sales for application-specific guidance before ordering for a 3500 installation.
