Bently Nevada 330905-00-07-10-01-00 Spare 3300 XL Automation

Bently Nevada 330905-00-07-10-01-00 Maintenance-Ready Spare for 3300 XL Automation

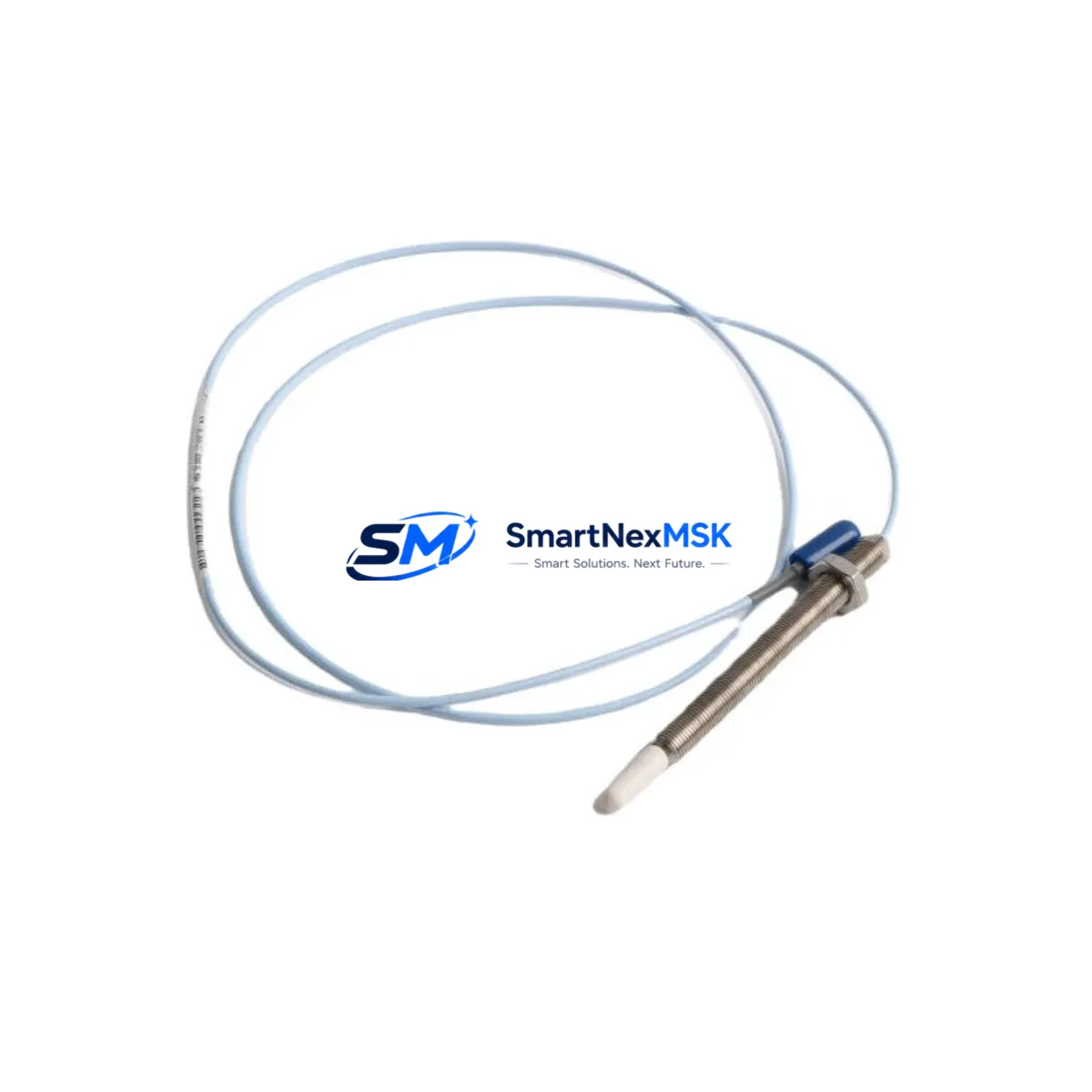

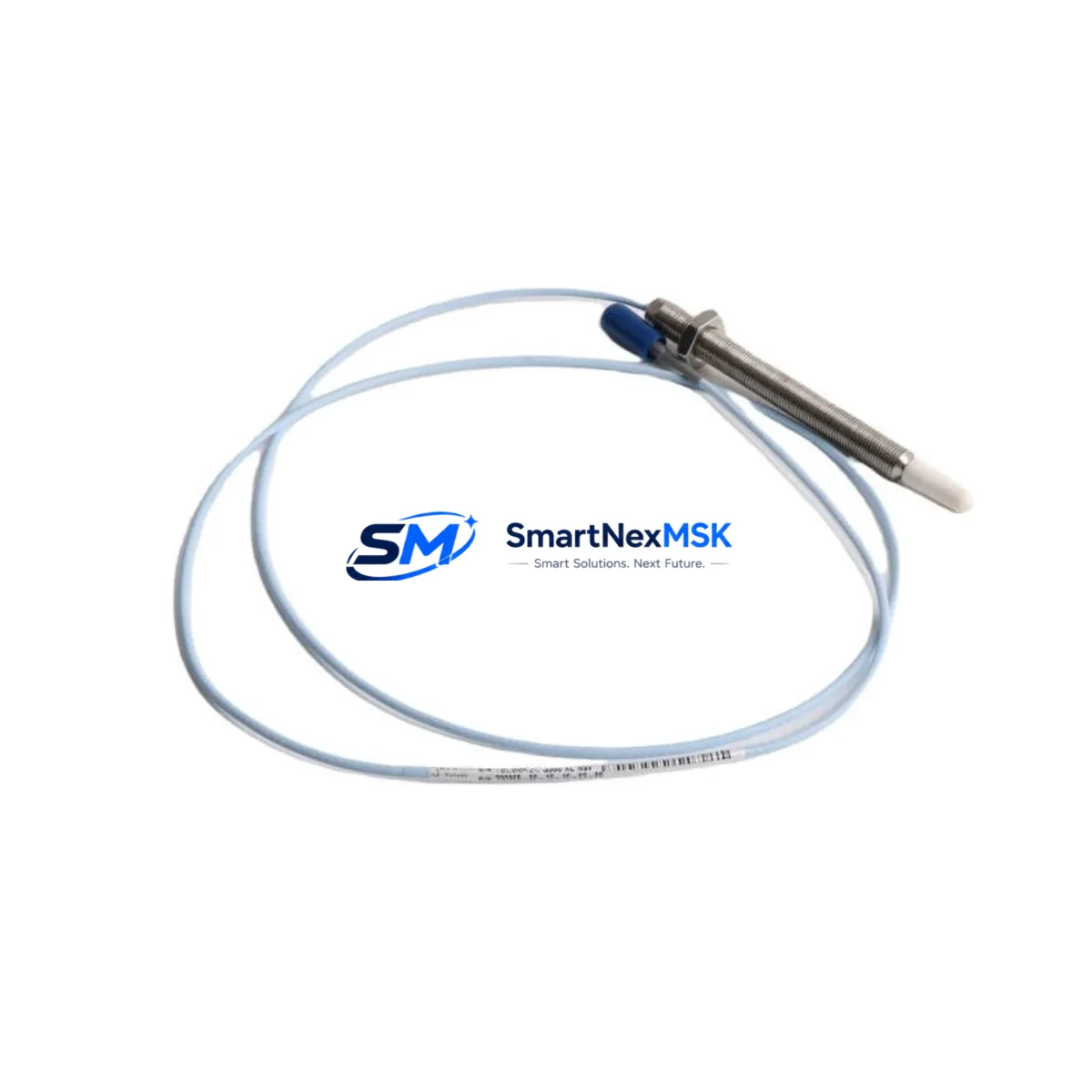

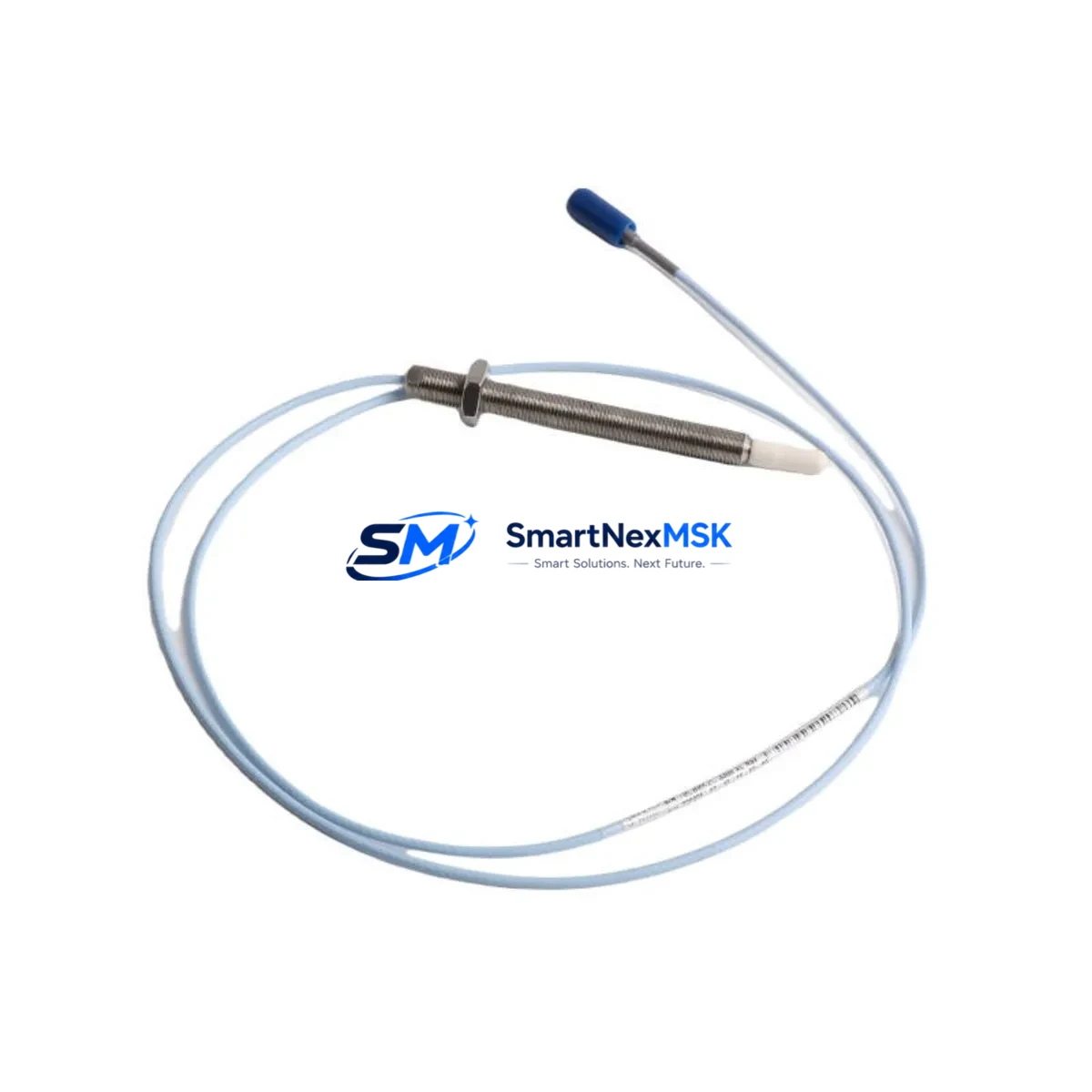

The Bently Nevada 330905-00-07-10-01-00 is an original 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. In rotating machinery environments — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor for radial shaft vibration, axial position, and differential expansion measurement. When this component fails or degrades, the entire condition monitoring loop is compromised, exposing critical assets to undetected mechanical faults and unplanned downtime. Maintaining a certified spare on the shelf is not optional; it is a fundamental element of any serious predictive maintenance program.

This listing provides a tested, original-specification replacement unit with full compatibility verification against the 3300 XL monitor rack. Each unit is inspected prior to dispatch and ships with a 12-month warranty covering manufacturing defects and performance conformance. Lead time is minimized to support emergency replacement scenarios where every hour of downtime carries significant production cost.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330905-00-07-10-01-00 probe in the field is rarely an isolated task. Maintenance engineers and procurement teams should treat this replacement as a trigger for a broader inspection of the entire vibration monitoring loop and the associated control cabinet. The probe operates as part of a three-component system: the probe itself, the extension cable (typically the 330130 series), and the proximitor/driver module (such as the 3300 XL 8mm Proximitor). All three components must be verified for continuity, correct gap voltage, and signal integrity before the loop is returned to service.

During the same maintenance window, it is best practice to inspect the 3300 XL monitor card installed in the rack for alarm setpoint integrity and channel health. If the rack houses a 3300/16 or 3300/20 monitor, verify that the OK relay output and danger relay are functioning correctly. The 3500/42M Proximitor Monitor is a common upgrade path for aging 3300 XL racks and should be evaluated if the existing rack is approaching end-of-support.

Power supply integrity is critical. The 3300 XL Power Supply module provides the regulated -24 VDC bias voltage to the proximitor; a marginal power supply will cause erratic gap voltage readings that mimic probe failure. Inspect the power supply output under load and check for ripple before concluding the probe is at fault. Similarly, the 3300 XL I/O module and associated terminal blocks should be checked for loose connections, corrosion on screw terminals, and correct shielding continuity on the coaxial cable run.

For plants running integrated safety systems, the vibration channel may feed a TMR Safety Logic Solver or a Triconex ESD module. Confirm that the replacement probe’s output voltage at the installed gap falls within the monitor’s configured OK window before re-enabling the safety interlock. Signal isolators — particularly galvanic isolation barriers used where the proximitor output crosses into a DCS analog input card — should also be tested for correct pass-through gain and offset.

Procurement engineers building a spare parts list around the 330905-00-07-10-01-00 should also stock the matching 330130 extension cable in the same length configuration, a spare 3300 XL Proximitor module, and at minimum one spare 3300 XL monitor card per critical machine train. For plants with multiple identical machine trains, a single spare set covering probe, extension cable, and proximitor can serve as a rotating pool, reducing total inventory cost while maintaining coverage.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and confirm the machine is in a safe state. For online replacement on non-trip-critical channels, coordinate with the control room to acknowledge the channel before disconnecting.

Step 2 — Document existing gap voltage: Record the DC gap voltage at the proximitor output before removal. The nominal gap voltage for a correctly installed 8mm probe at 1.0 mm gap is approximately -10.0 VDC. Deviations indicate either a gap error or a degraded probe/proximitor.

Step 3 — Remove and inspect: Unscrew the probe from the bracket. Inspect the probe tip for mechanical damage, contamination, or corrosion. Inspect the integral cable for chafing, kinking, or connector damage. If the cable is damaged, replace the full probe assembly — do not attempt field cable repair on a coaxial proximity probe.

Step 4 — Install replacement 330905-00-07-10-01-00: Thread the replacement probe into the bracket. Set the gap to the OEM-specified value using a non-ferromagnetic feeler gauge or a calibrated gap-setting tool. Reconnect the extension cable and verify connector seating.

Step 5 — Verify gap voltage and signal: Power the proximitor and measure the DC output voltage. Confirm it falls within the monitor’s configured OK band. Check the AC vibration signal at low speed or during coast-down to confirm the probe is reading correctly.

Step 6 — Return to service: Clear the channel acknowledgment in the control room, confirm the monitor is displaying valid data, and update the maintenance record with the replacement date, gap setting, and gap voltage. Log the removed probe for failure analysis or recertification.

This workflow minimizes downtime by ensuring the replacement is verified before the machine is returned to full load, avoiding a repeat outage caused by an installation error or a secondary fault in the monitoring loop.

Spare Parts Support FAQ

Q: Is the 330905-00-07-10-01-00 compatible with the 3500 Series monitor rack?
A: The 330905-00-07-10-01-00 is natively designed for the 3300 XL platform. It can be used with 3500 Series monitors when paired with the correct 3500 XL proximitor module and verified against the 3500 system’s gap voltage OK window. Always confirm compatibility with the specific 3500 monitor card part number before installation.

Q: What is included in the 12-month warranty?
A: The warranty covers manufacturing defects and performance non-conformance against OEM specifications, including sensitivity, gap range, and connector integrity. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and gap range. Warranty claims are processed with return of the defective unit for inspection.

Q: How is each unit tested before shipment?
A: Each 330905-00-07-10-01-00 unit undergoes gap calibration verification, sensitivity measurement at the nominal gap, insulation resistance check on the coaxial cable, and connector continuity test. A test report is available upon request for units destined for safety-critical applications.

Q: What is the recommended spare inventory strategy for this probe?
A: For a single critical machine train, maintain a minimum of one spare probe assembly (probe + extension cable + proximitor) in the plant warehouse. For facilities with three or more identical machine trains, a pool of two spare sets is recommended. Probes should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for connector condition and cable integrity.
