Bently Nevada 330905-00-09-05-01-00 Safety Proximity Probe

Bently Nevada 330905-00-09-05-01-00 Safety Proximity Probe: Precision Vibration Monitoring for Harsh Industrial Control Environments

In high-stakes industrial facilities — from petrochemical refineries and power generation plants to offshore platforms and continuous steel mills — the integrity of rotating machinery monitoring is not a convenience; it is a safety imperative. The Bently Nevada 330905-00-09-05-01-00 eddy current proximity probe, part of the renowned 3300 XL Series, is engineered to deliver uncompromising signal accuracy and mechanical durability in the most demanding field conditions. Whether installed in a critical turbine protection loop, a compressor vibration interlock circuit, or a high-speed pump monitoring rack, this probe is designed to keep your control system informed, your operators protected, and your plant running without unplanned shutdowns.

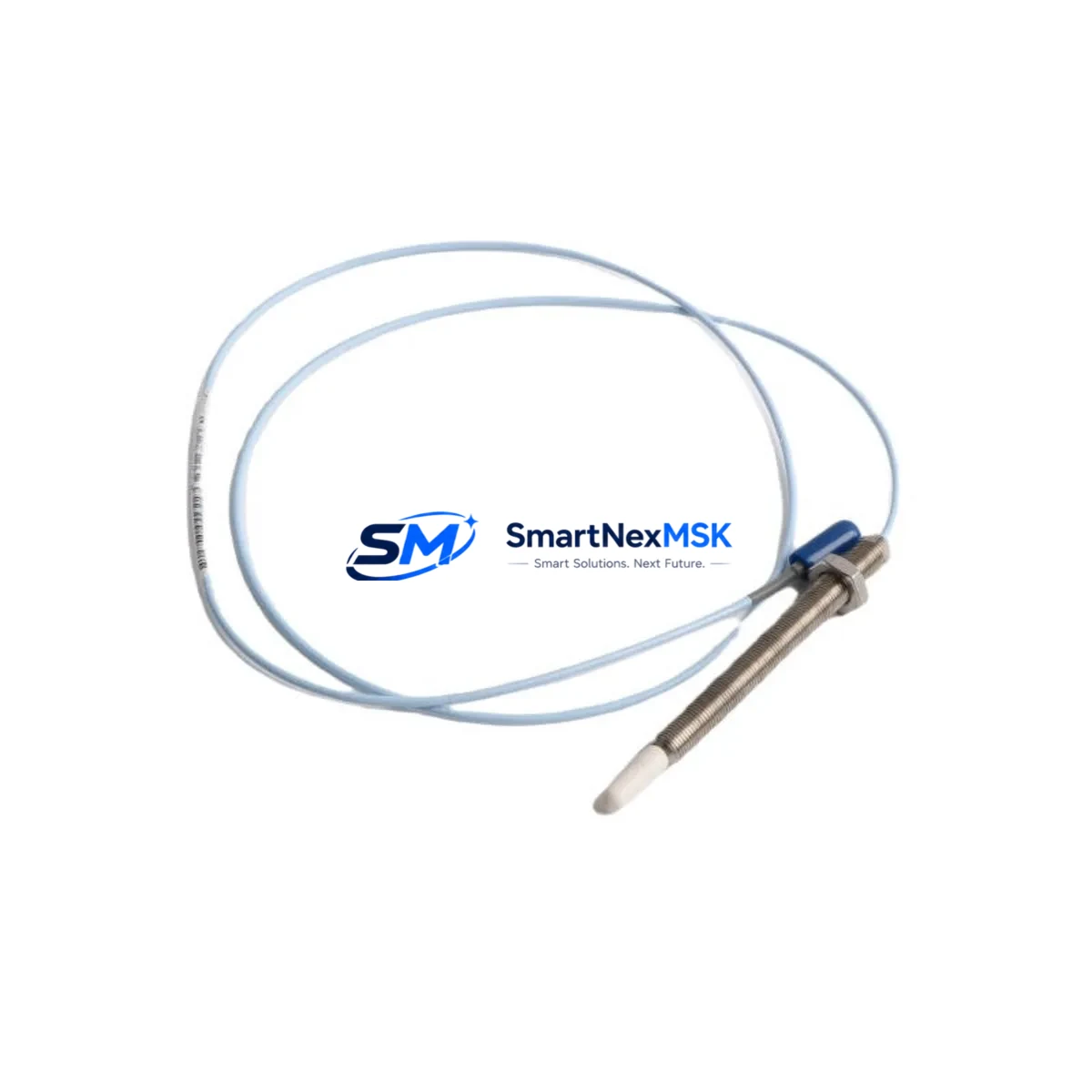

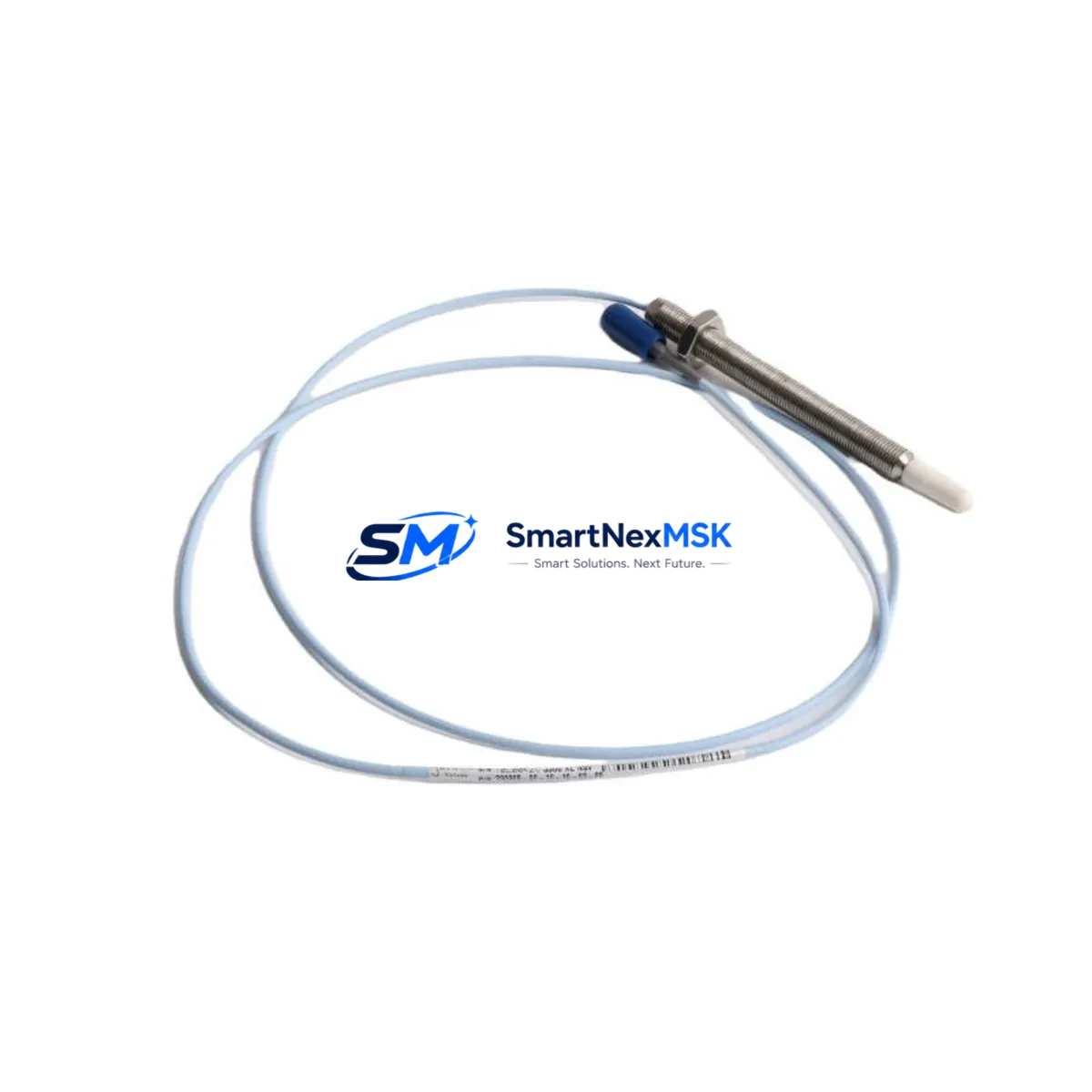

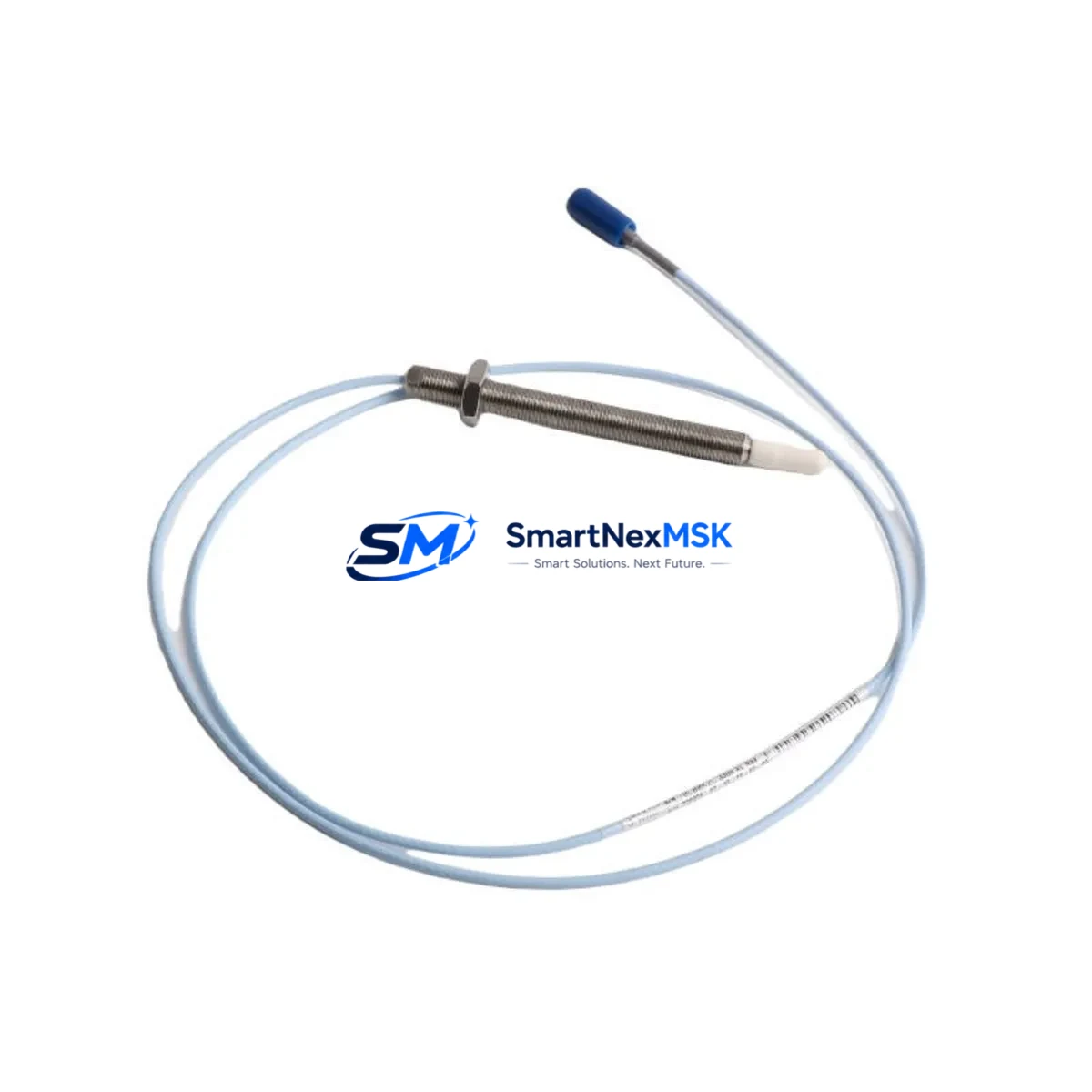

The 330905-00-09-05-01-00 is a 9mm diameter eddy current proximity probe supplied with a 5-metre armored extension cable, factory-matched to the Bently Nevada 3300 XL signal conditioning ecosystem. Its non-contact sensing principle eliminates mechanical wear, making it inherently suited for continuous 24/7 operation in environments where vibration, thermal cycling, chemical exposure, and electromagnetic interference are constant threats. The probe’s ruggedized stainless steel housing and hermetically sealed tip resist ingress from oils, coolants, and process gases, ensuring that signal integrity is maintained even when the surrounding environment is hostile.

In a properly configured machinery protection system, the 330905-00-09-05-01-00 works in concert with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor to form a complete eddy current measurement chain. The Proximitor converts the probe’s raw impedance signal into a calibrated DC voltage output — typically –24 VDC at the linear center — which is then fed into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card. This rack card performs real-time gap, 1X, and 2X vector analysis, triggering alarm and danger relay outputs when shaft displacement exceeds safe thresholds. The entire signal chain depends on the dimensional and electrical consistency of the probe; a substandard or uncalibrated replacement can introduce gap offset errors that mask developing faults or generate spurious trips.

For installations in classified hazardous areas — Zone 1 gas atmospheres or Division 1 dust environments — the 330905-00-09-05-01-00 is compatible with Bently Nevada Zener Barrier and Galvanic Isolator assemblies that provide intrinsic safety (IS) certification compliance. When paired with an IS-rated barrier mounted in a safe-area junction box, the probe can be deployed in explosive atmospheres without compromising the integrity of the safety loop. This is particularly critical in LNG terminals, chemical reactors, and offshore gas compression trains where a single ignition event can have catastrophic consequences.

Power supply stability is equally critical to probe performance. Fluctuations in the –24 VDC bias supply — commonly sourced from a Bently Nevada 3500/15 Power Supply or an equivalent regulated DC rail — can shift the probe’s operating point and introduce apparent vibration signals that do not reflect actual shaft motion. In facilities where power quality is poor, installing a dedicated DC/DC Isolated Power Conditioner upstream of the Proximitor supply rail eliminates ripple-induced noise and protects the measurement chain from transient surges originating in variable-frequency drives, large motor starters, or welding equipment operating nearby.

Communication and data integrity are also part of the safety picture. The 3500 rack system, which hosts the monitor cards that process signals from the 330905-00-09-05-01-00, typically communicates with the plant DCS or safety instrumented system (SIS) via Modbus TCP or OPC-DA/UA gateways. Ensuring that the Bently Nevada 3500/22M Transient Data Interface and associated network switches are properly configured and shielded from EMI prevents communication dropouts that could leave operators blind to developing machinery faults during critical production windows.

Every unit of the 330905-00-09-05-01-00 supplied by SMARTNEXMSK undergoes a pre-shipment functional verification that includes gap sensitivity linearity check, cable continuity and insulation resistance test, and connector integrity inspection. Units are shipped in anti-static, moisture-barrier packaging with individual test records. Our inventory is sourced from authorized distribution channels and decommissioned OEM-maintained installations, with full traceability documentation available upon request. A 12-month warranty covers all supplied units against manufacturing defects and premature failure under normal operating conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330905-00-09-05-01-00 extends well beyond the probe itself. In a typical heavy-industry control cabinet, the probe signal enters the Bently Nevada 3500/42M Proximitor/Seismic Monitor card, which is housed in a 3500 Rack alongside a 3500/15 Power Supply module providing clean, regulated –24 VDC to all Proximitor sensors in the loop. The rack’s 3500/20 Rack Interface Module manages communication with the plant historian and DCS, while the 3500/22M Transient Data Interface captures high-resolution waveform data during transient events such as machine startups, coastdowns, and fault conditions.

To protect the signal chain from surge events — common in facilities with large inductive loads such as overhead cranes, arc furnaces, or high-voltage switchgear — a Bently Nevada Transient Voltage Suppressor (TVS) Assembly is recommended at the field junction box where probe cables terminate before entering the control room conduit. Grounding discipline is equally important: the probe cable shield must be grounded at one end only (typically the Proximitor end) to prevent ground loop currents from injecting 50/60 Hz noise into the vibration signal, which could mask sub-synchronous instability or rub events.

For facilities operating under IEC 61511 or ISA-84 functional safety standards, the vibration monitoring loop incorporating the 330905-00-09-05-01-00 may be designated as a Safety Instrumented Function (SIF). In such configurations, the monitor’s relay outputs feed directly into a Safety PLC or Emergency Shutdown System (ESD) input card, with proof-test intervals and diagnostic coverage documented in the Safety Requirements Specification. Maintaining a verified spare inventory of matched probe-and-cable assemblies — with calibration certificates — is a standard requirement for SIL-rated loops to ensure rapid replacement without recalibration delays during a plant emergency.

Critical Industrial Safety Applications

The 330905-00-09-05-01-00 is deployed across a wide spectrum of critical industrial environments where rotating machinery failure carries severe safety and financial consequences. In petrochemical and refinery settings, it monitors shaft radial vibration on centrifugal compressors, hot gas expanders, and boiler feed pumps — machines whose undetected bearing failure can trigger fires, toxic releases, or catastrophic mechanical disintegration. In power generation facilities, it is installed on steam turbine shafts and generator rotors, where it provides the primary vibration signal for both alarm annunciation and automatic turbine trip interlock circuits.

In mining and mineral processing operations, the probe monitors large ball mill pinion bearings, SAG mill trunnion journals, and slurry pump shafts in environments characterized by extreme dust loading, water ingress, and structural vibration from blasting. Its IP67-rated housing and armored cable withstand these conditions without signal degradation. In water and wastewater treatment plants, it is used on high-speed centrifugal blowers and vertical turbine pumps where continuous operation is mandated by regulatory compliance and public health obligations.

Metallurgical and steel mill applications include monitoring of rolling mill drive spindles, continuous caster pinch roll drives, and ladle turret slewing bearings — all operating in environments with intense electromagnetic interference from large DC drives and induction furnaces. The probe’s shielded coaxial construction and the 3300 XL system’s differential signal processing provide the noise immunity required to extract valid vibration data in these electrically hostile conditions. In port and bulk material handling facilities, it monitors ship unloader slewing ring drives and conveyor head pulley bearings, where unplanned downtime directly impacts vessel turnaround schedules and demurrage costs.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects, premature electrical failure, and mechanical integrity issues under normal operating conditions as defined by Bently Nevada’s published installation and environmental specifications. To initiate a claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the unit serial number, shipment date, and a description of the observed failure mode. Replacement units are dispatched within 5 business days of claim verification, and failed units are returned for root-cause analysis.

Q2: What pre-shipment testing is performed on each unit?
Every 330905-00-09-05-01-00 unit undergoes a structured pre-shipment verification protocol: (1) gap sensitivity linearity check across the full 0.25–2.25 mm measurement range using a calibrated target fixture; (2) cable insulation resistance test at 500 VDC to verify jacket and shield integrity; (3) connector pin continuity and retention force check; and (4) visual inspection of the probe tip, housing, and cable armor for physical damage. Test records are retained and available upon request.

Q3: Is the 330905-00-09-05-01-00 a direct drop-in replacement for other 3300 XL 9mm probes, and does it require recalibration after installation?
Yes — the 330905-00-09-05-01-00 is dimensionally and electrically interchangeable with other Bently Nevada 3300 XL 9mm probe assemblies of the same cable length, provided the target material is AISI 4140 steel or an equivalent ferromagnetic alloy. For non-standard target materials (e.g., titanium, Inconel, or duplex stainless), a scale factor correction must be applied at the Proximitor or monitor level. No rack recalibration is required for like-for-like replacement on standard steel targets; however, a gap reset and alarm verification should always be performed after any probe replacement as part of standard maintenance practice.

Q4: Can SMARTNEXMSK support long-term supply continuity for this part number?
Yes. SMARTNEXMSK maintains a standing inventory of the 330905-00-09-05-01-00 and related 3300 XL series components to support planned maintenance programs, emergency replacements, and capital project requirements. For facilities with critical spare requirements, we offer reserved inventory agreements and priority dispatch arrangements. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss volume pricing, lead times, and supply continuity contracts.
