Bently Nevada 330905-00-10-05-02-00 Spare 3300 NSv: Precision Spare Parts Replacement for Industrial Downtime Control

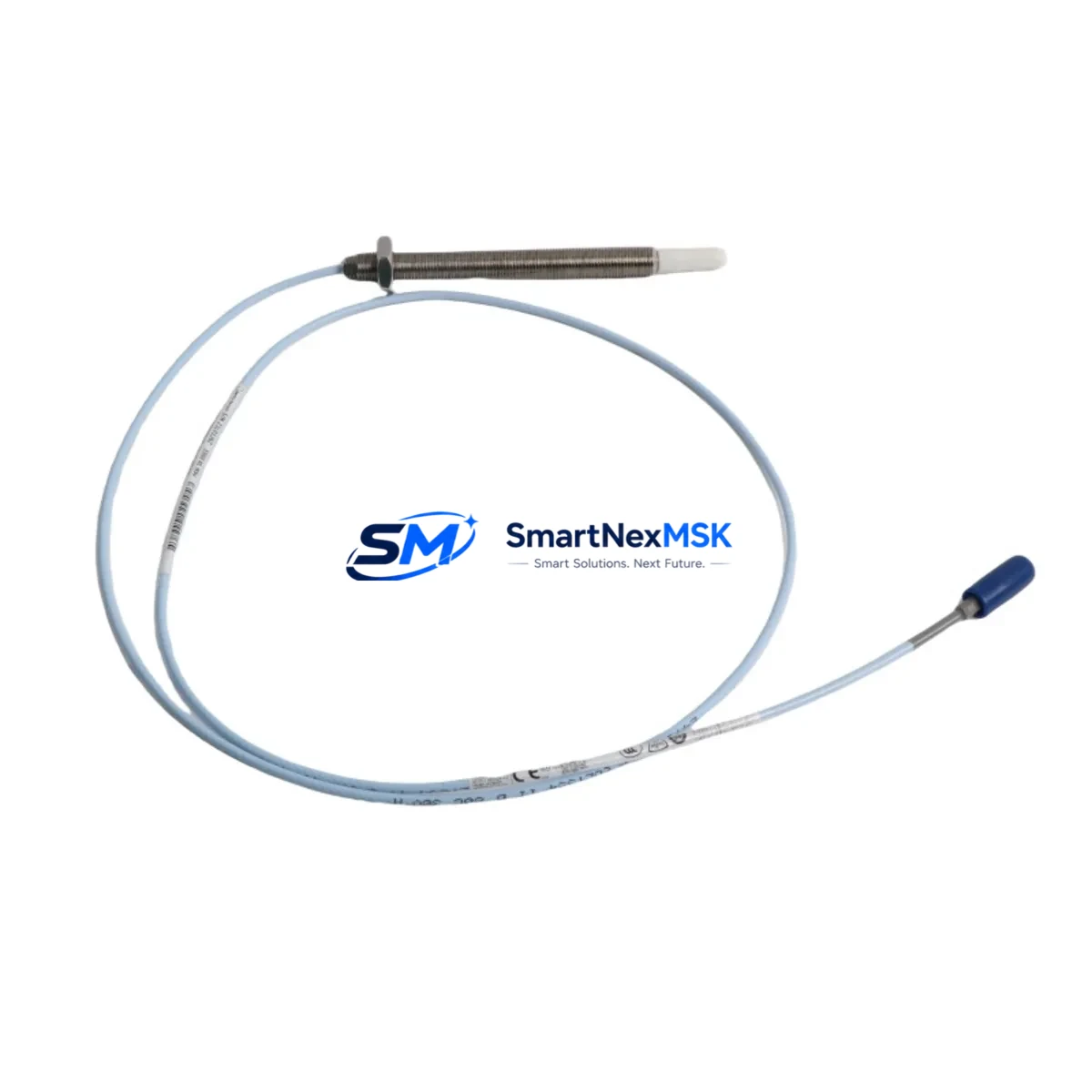

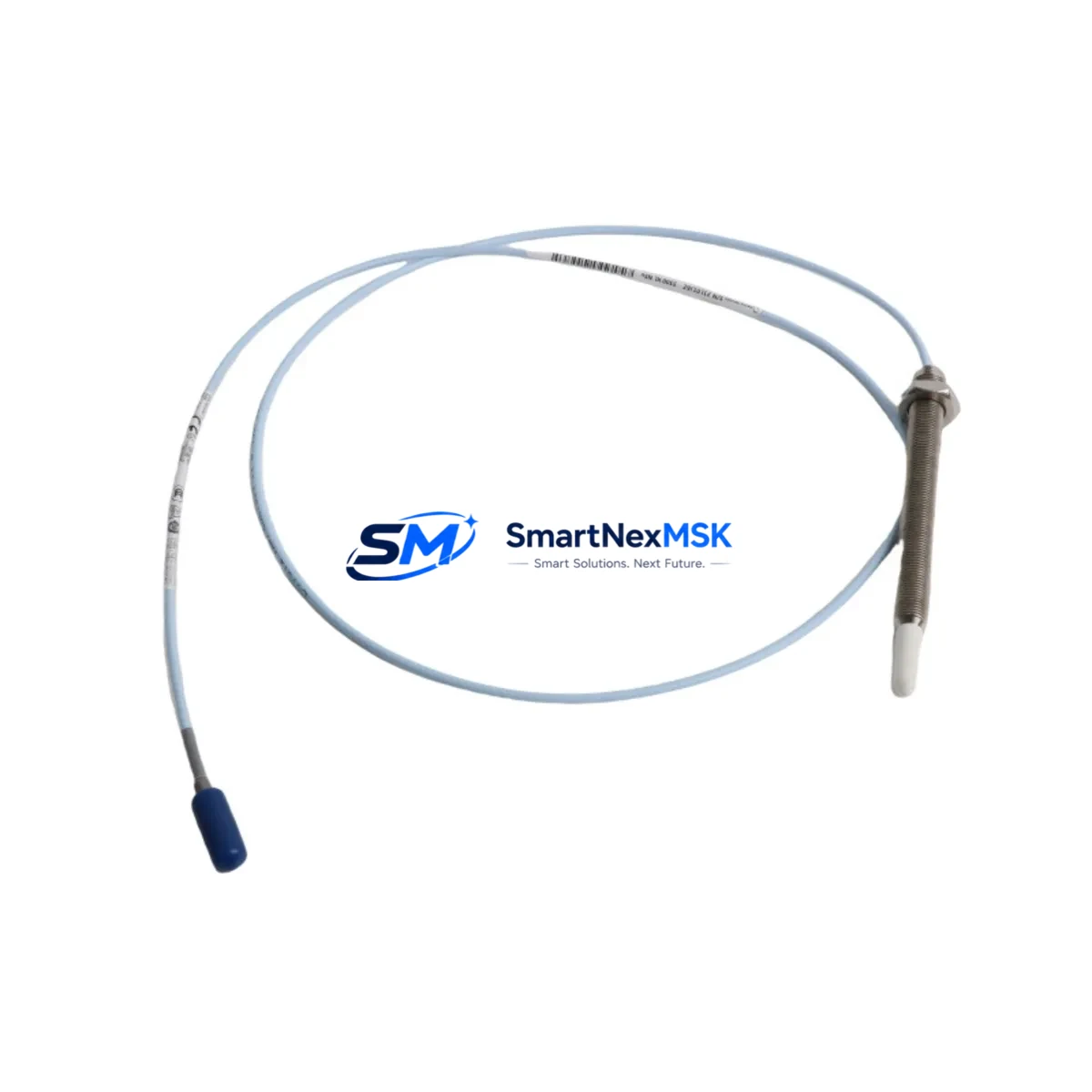

The Bently Nevada 330905-00-10-05-02-00 is an original eddy-current proximity probe engineered for the 3300 NSv (Non-contacting Vibration) monitoring system. As a critical sensing element in rotating machinery protection, this probe delivers continuous shaft displacement and vibration data to the 3300 NSv monitor rack. When this component fails or degrades, the entire vibration monitoring loop is compromised — exposing turbines, compressors, pumps, and gearboxes to undetected mechanical faults and unplanned shutdowns.

Sourced as an original spare, the 330905-00-10-05-02-00 is tested prior to shipment, backed by a 12-month warranty, and available for immediate dispatch to minimize your plant downtime. Whether you are executing a planned turnaround, responding to a trip event, or building a critical-spare inventory for a long-running 3300 NSv installation, this probe is the correct OEM replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330905-00-10-05-02-00 proximity probe is flagged for replacement during a routine control cabinet inspection or after a vibration monitor alarm, maintenance engineers should treat the event as an opportunity to audit the entire measurement chain. The probe does not operate in isolation — its output is only as reliable as the components upstream and downstream in the 3300 NSv loop.

Begin by inspecting the 330130 or 330180 extension cable that connects the probe to the Proximitor sensor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown in high-temperature or high-vibration environments. A degraded cable will introduce signal noise or DC bias errors that mimic probe failure. Replace the extension cable as a matched set whenever the probe is changed.

Next, verify the 3300 NSv Proximitor sensor (driver) — typically a 330180-X0-05 or equivalent — which conditions the probe signal and provides the -24 VDC excitation. A Proximitor with a drifted output scale factor will produce incorrect vibration readings even with a new probe installed. Confirm the driver’s output voltage at the gap voltage test point before declaring the loop healthy.

The 3300 NSv monitor card in the rack should also be inspected. Check for alarm setpoint integrity, OK relay status, and any latched trip conditions. If the monitor has been in service for more than five years without calibration verification, schedule a bench check against a known gap simulator.

On the power supply side, confirm that the 3300 NSv rack power supply module is delivering stable -24 VDC within specification. Voltage sag or ripple on the supply rail will affect all probes in the rack simultaneously, making it appear as a multi-channel probe failure. A dedicated DC/DC isolated power converter or UPS buffer for the monitoring rack is recommended for critical machinery trains.

For the I/O side, trace the 4–20 mA or voltage output from the monitor card to the DCS analog input module or safety system. Verify that the signal isolator or barrier — often a Pepperl+Fuchs or MTL signal isolator — is not introducing offset or clipping the signal range. A faulty isolator is a common source of false high-vibration alarms after a probe replacement.

If the machinery train uses a Bently Nevada 3500 series rack in parallel for overspeed or axial position protection, cross-check that the 3500/42M or 3500/45 position monitor is also reading correctly, as both systems often share the same probe or are mounted on the same bearing housing. Additionally, inspect any terminal blocks and field junction boxes in the probe cable run for moisture ingress, loose terminations, or corrosion — particularly in outdoor or coastal installations.

For plants running legacy 3300 NSv systems on aging turbine trains, maintaining a minimum stock of two 330905-00-10-05-02-00 probes per critical machine, along with matched extension cables and a spare Proximitor sensor, is the industry-standard approach to achieving sub-4-hour MTTR (Mean Time to Repair) on vibration monitoring loops.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the measurement loop at the monitor rack. Note the current gap voltage reading before disconnection — this serves as a baseline for the new probe installation.

Step 2 — Probe Removal: Disconnect the extension cable at the field junction box. Unthread the 330905-00-10-05-02-00 probe from the probe holder using the correct 8 mm spanner. Inspect the probe holder threads and bracket for wear or corrosion.

Step 3 — New Probe Installation: Thread the replacement probe to the specified torque (typically 1.1 N·m / 10 in-lb). Set the initial gap to the midpoint of the linear range — approximately 1.0 mm (40 mil) — using a non-ferrous feeler gauge or a calibrated gap-setting tool.

Step 4 — Cable Reconnection and Gap Verification: Reconnect the extension cable. Power the loop and measure the gap voltage at the Proximitor output. Adjust the probe gap until the output reads within the linear range specified on the Proximitor label (typically -10 VDC ± 0.5 V at the nominal gap).

Step 5 — Loop Verification: Confirm OK relay status on the 3300 NSv monitor. Clear any latched alarms. Verify that the DCS is receiving the correct vibration value. Document the as-left gap voltage and vibration baseline in the maintenance management system.

Step 6 — Return to Service: Remove the work permit, restore normal monitoring, and update the spare parts inventory to reflect the consumed probe and any replaced extension cables.

This workflow is compatible with direct replacement of legacy 330900 series probes in existing 3300 NSv installations, requiring no firmware changes or monitor reconfiguration when the same probe geometry and cable length are maintained.

Spare Parts Support FAQ

Q1: Is the 330905-00-10-05-02-00 a direct replacement for older 330900 series probes in a 3300 NSv system?
Yes. The 330905-00-10-05-02-00 is the current production part number for the 8 mm, 5 m cable, standard-temperature proximity probe in the 3300 NSv product family. It is a direct mechanical and electrical replacement for earlier 330900-series variants with the same cable length and thread specification, requiring no changes to the Proximitor sensor or monitor configuration.

Q2: What pre-shipment testing is performed on this spare?
Each 330905-00-10-05-02-00 unit is functionally tested for output sensitivity (V/mm), linear range, and OK status prior to dispatch. Units are shipped with a test record and are covered by a 12-month warranty from the date of shipment. If a unit fails to perform within specification upon installation, we provide replacement or full refund under warranty terms.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an anti-static, moisture-proof bag in a temperature-controlled environment (0°C to 40°C, <70% RH non-condensing). Avoid storing near strong magnetic fields or in areas with high mechanical vibration. Inspect the connector and cable jacket annually. Properly stored, the probe has a shelf life of 5+ years without performance degradation.

Q4: Can you supply matched sets of probe, extension cable, and Proximitor sensor for a full loop replacement?
Yes. We can supply the 330905-00-10-05-02-00 probe together with compatible 330130 or 330180 extension cables and 330180-series Proximitor sensors as a matched loop kit. Ordering as a matched set ensures consistent sensitivity calibration across the measurement chain and simplifies site acceptance testing. Contact us with your system configuration for a matched-set quotation.
