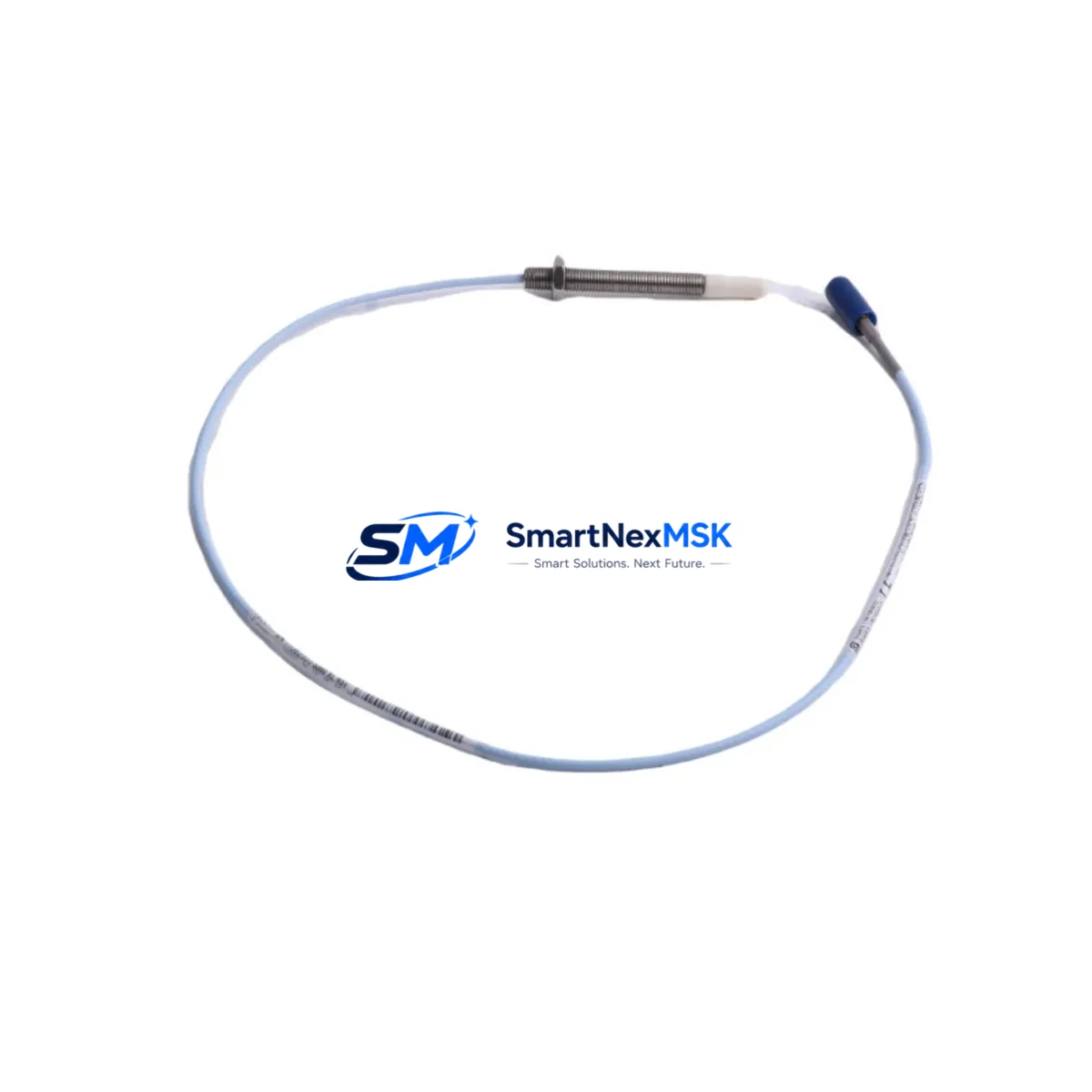

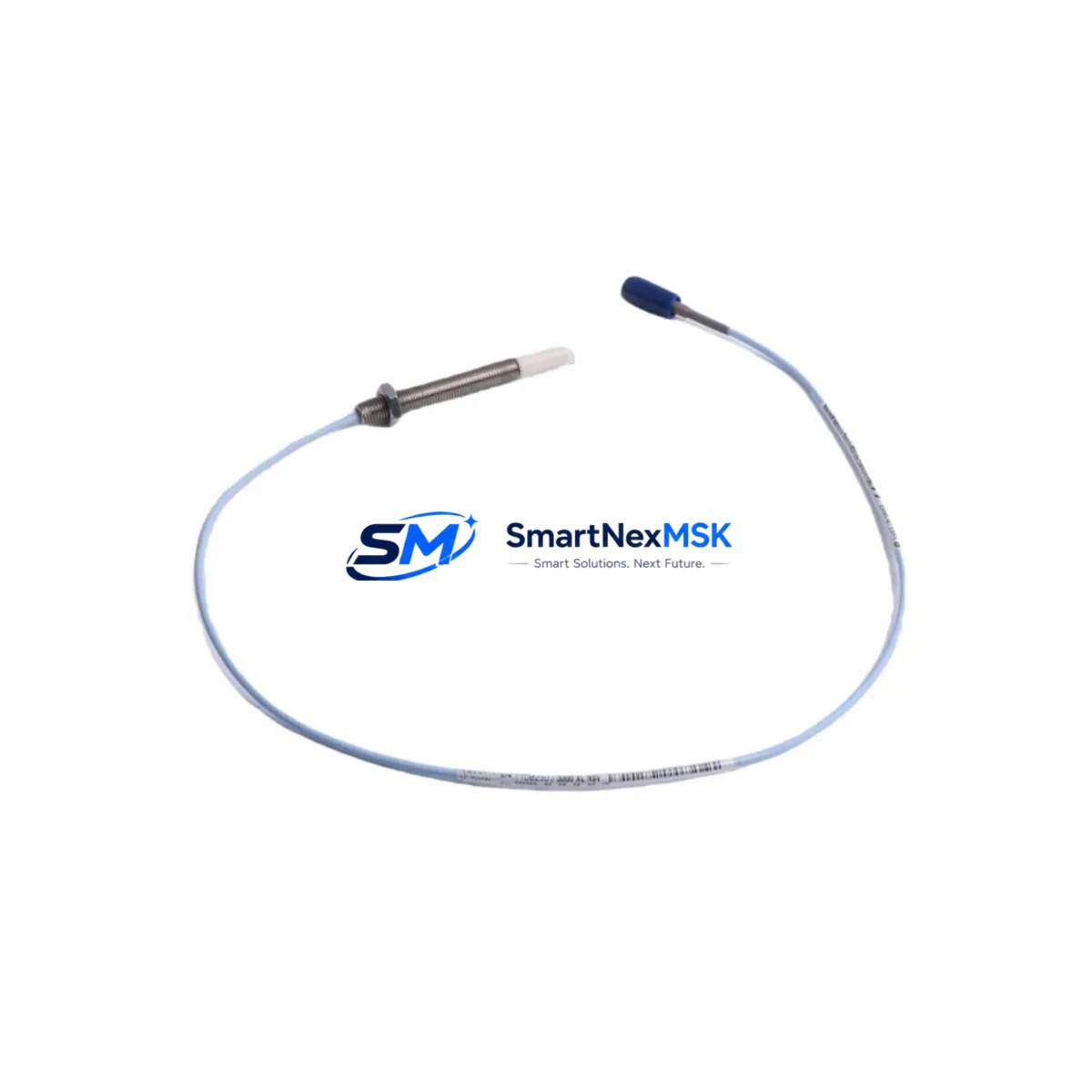

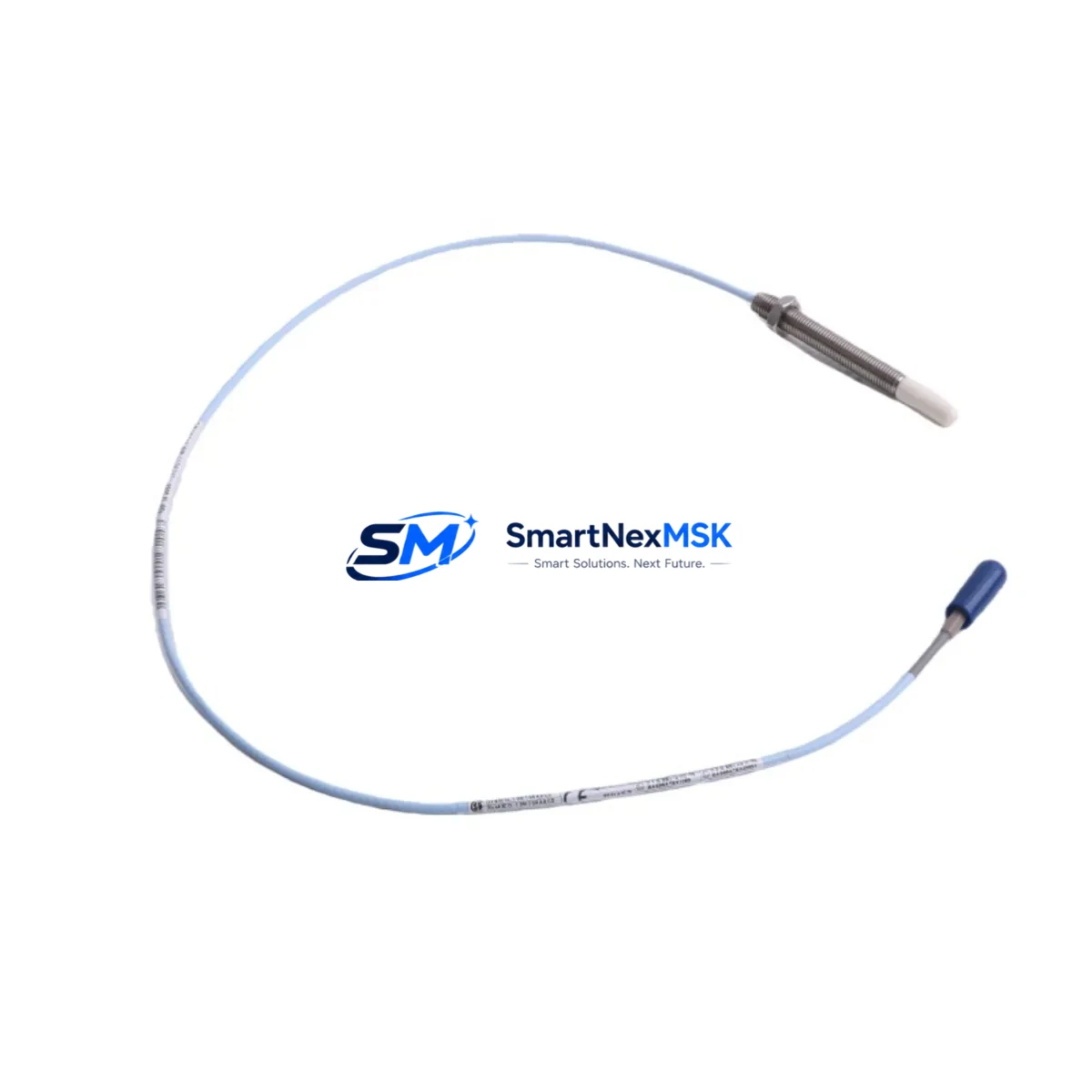

Bently Nevada 330905-00-10-05-02-05 Safety Proximity Transducer

Bently Nevada 330905-00-10-05-02-05 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330905-00-10-05-02-05 is an 8mm eddy-current proximity transducer from the 3300 XL NSv Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, and extreme temperature cycling, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and heavy manufacturing facilities.

Where control interruption is not an option — in critical turbine interlocks, compressor surge protection loops, or pump bearing monitoring circuits — the 330905-00-10-05-02-05 delivers consistent, drift-free signal output. Its ruggedized construction resists signal drift caused by cable capacitance variation, temperature-induced impedance shifts, and ground loop interference, ensuring that your safety instrumented system (SIS) receives accurate, uninterrupted data at all times.

Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional testing, including gap voltage verification, sensitivity calibration check, and insulation resistance measurement, so you receive a component that is field-ready from day one.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330905-00-10-05-02-05 probe does not operate in isolation. It forms the sensing front-end of a complete vibration monitoring chain. The probe connects via a matched Bently Nevada 330130-080-00-00 or 330180-X0-05 Proximitor extension cable to a dedicated 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage output. This conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor/Seismic Monitor or a 3500/45 Position Monitor rack card, where trip and alarm setpoints are enforced in hardware.

For power supply integrity — a frequent source of field failures — the 3500 rack system relies on a Bently Nevada 3500/15 Power Supply Module with redundant input capability. Pairing this with a dedicated 24 VDC UPS module or an isolated DC/DC converter eliminates power sag events that can cause false trips or monitor resets during grid disturbances. In high-interference environments such as variable frequency drive (VFD) motor rooms or arc furnace bays, additional signal isolation barriers and Bently Nevada 3500/20 Rack Interface Module communication cards are recommended to maintain Modbus or RS-485 data integrity to the DCS or SCADA layer.

For facilities running a Bently Nevada System 1 software platform, the 330905-00-10-05-02-05 integrates seamlessly into the asset health monitoring architecture, enabling trend analysis, alarm rationalization, and predictive maintenance scheduling without additional signal conditioning hardware. Complementary components such as the Bently Nevada 330500 Velomitor seismic velocity sensor and the 330900-05-05 standard proximity probe can be co-mounted on the same bearing housing to provide both absolute and relative vibration data — a dual-measurement strategy increasingly required by API 670 machinery protection standards in critical service applications.

Critical Industrial Safety Applications

The 330905-00-10-05-02-05 is deployed across a wide spectrum of safety-critical rotating machinery applications:

Petrochemical & Refinery: Installed on centrifugal compressors, steam turbine-driven pumps, and reactor agitators where API 670-compliant vibration monitoring is mandatory. Shaft radial vibration data from this probe feeds directly into the Safety Instrumented System (SIS) emergency shutdown (ESD) logic, triggering automatic isolation valves if vibration exceeds trip thresholds — preventing catastrophic seal failures and hydrocarbon releases.

Power Generation: Used on gas turbine generator sets, boiler feed pumps, and induced draft fans in coal and combined-cycle power plants. Continuous shaft position monitoring via the 330905 probe enables operators to detect rotor bow, thermal growth, and bearing wear trends before they escalate into forced outages, protecting grid stability and reducing unplanned downtime costs.

Mining & Mineral Processing: Applied to SAG mill pinion bearings, slurry pump drive trains, and conveyor head pulley shafts in environments with extreme dust loading, water ingress, and mechanical shock. The IP67-rated probe body and ruggedized cable assembly maintain measurement integrity even when exposed to wash-down cycles and abrasive particulate contamination.

Water & Wastewater Treatment: Monitors large vertical turbine pumps and blower units in municipal water infrastructure. Early detection of shaft misalignment and bearing degradation through proximity measurement prevents unplanned pump failures that could disrupt water supply to entire districts.

Metallurgy & Steel: Deployed on rolling mill main drive motors, continuous caster pinch rolls, and ladle turret slewing rings. The probe’s high-temperature tolerance and EMI resistance make it suitable for installation near induction heating equipment and high-current bus bars without signal corruption.

Port & Heavy Lifting: Used on crane hoist gearboxes and ship-loader conveyor drives where intermittent high-load cycles create transient vibration signatures that must be captured accurately to prevent structural fatigue failures.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330905-00-10-05-02-05?
The 12-month warranty covers all manufacturing defects, functional failures under normal operating conditions, and calibration deviations from factory specifications. If the unit fails to perform within its rated linear range or scale factor during the warranty period, SMARTNEXMSK will provide a replacement or full refund. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330905-00-10-05-02-05 unit undergoes a multi-point inspection before dispatch: gap voltage output verification at standard air gap, coaxial cable continuity and insulation resistance check, connector integrity inspection, and physical dimensional verification of the probe tip. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series monitor racks?
Yes. The 330905-00-10-05-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and integrates directly with 3500 Series monitor cards including the 3500/42M and 3500/45. It is also backward-compatible with legacy 7200 Series systems when used with the appropriate extension cable and Proximitor. Always verify the target material calibration curve matches your specific shaft alloy.

Q4: Can SMARTNEXMSK support long-term or repeat supply of this part?
Yes. SMARTNEXMSK maintains ongoing inventory of Bently Nevada 3300 XL NSv Series components and can support scheduled maintenance programs, annual turnaround spare kits, and emergency replacement orders. Lead times for in-stock units are typically 1–3 business days for international express shipment. Contact our team to discuss blanket order arrangements or consignment stock programs for high-criticality sites.
