Bently Nevada 330905-00-10-10-02-CN Safety Proximity Probe

Bently Nevada 330905-00-10-10-02-CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

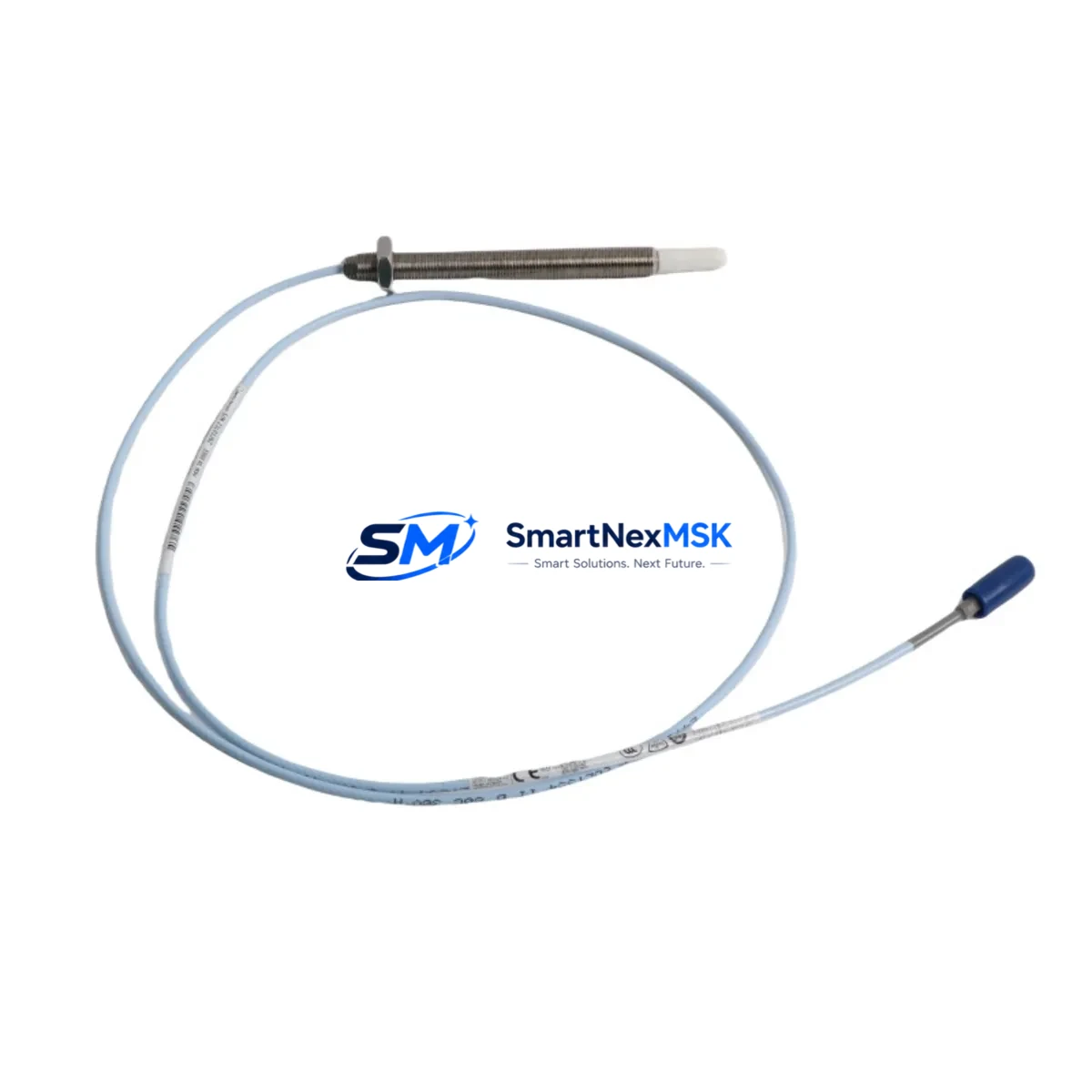

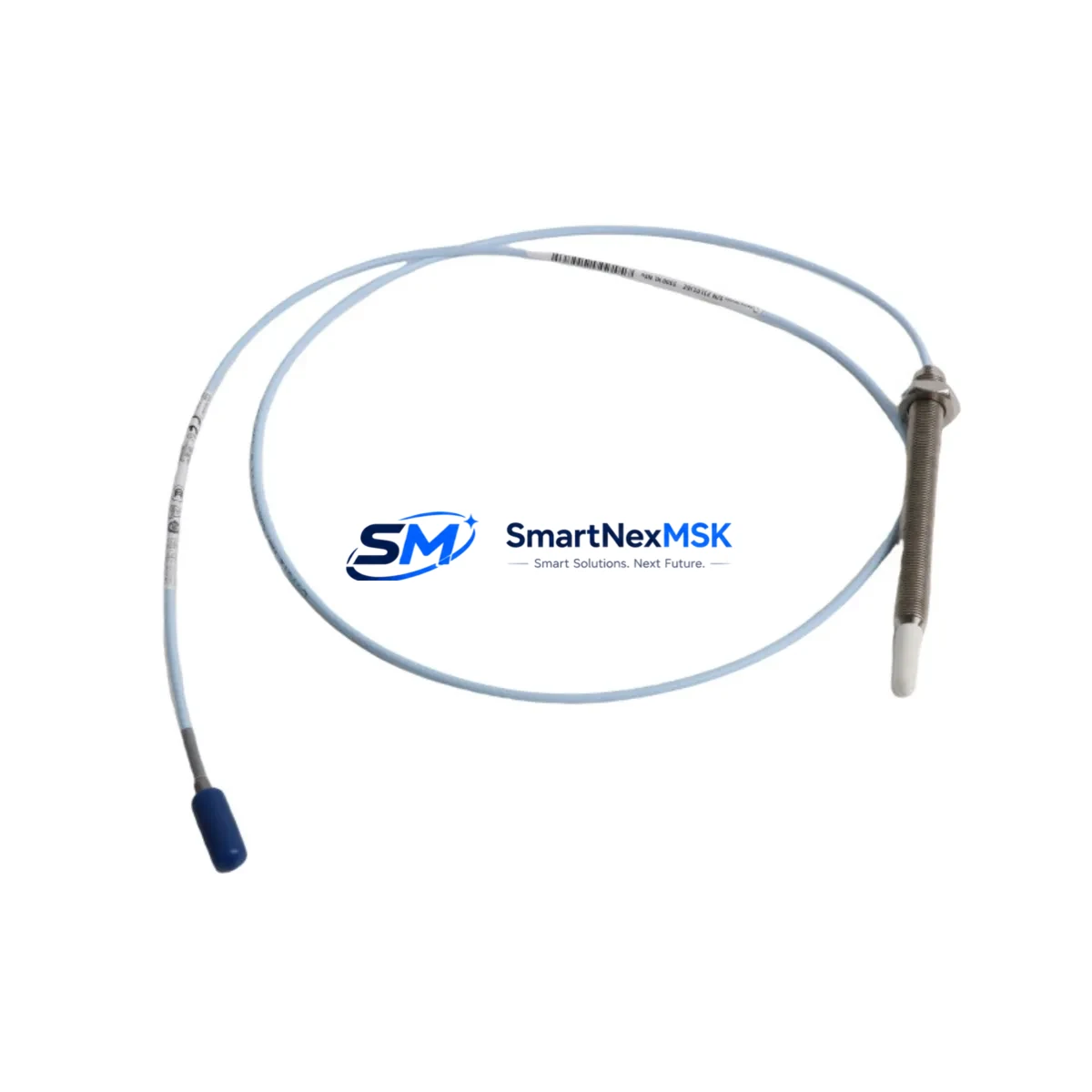

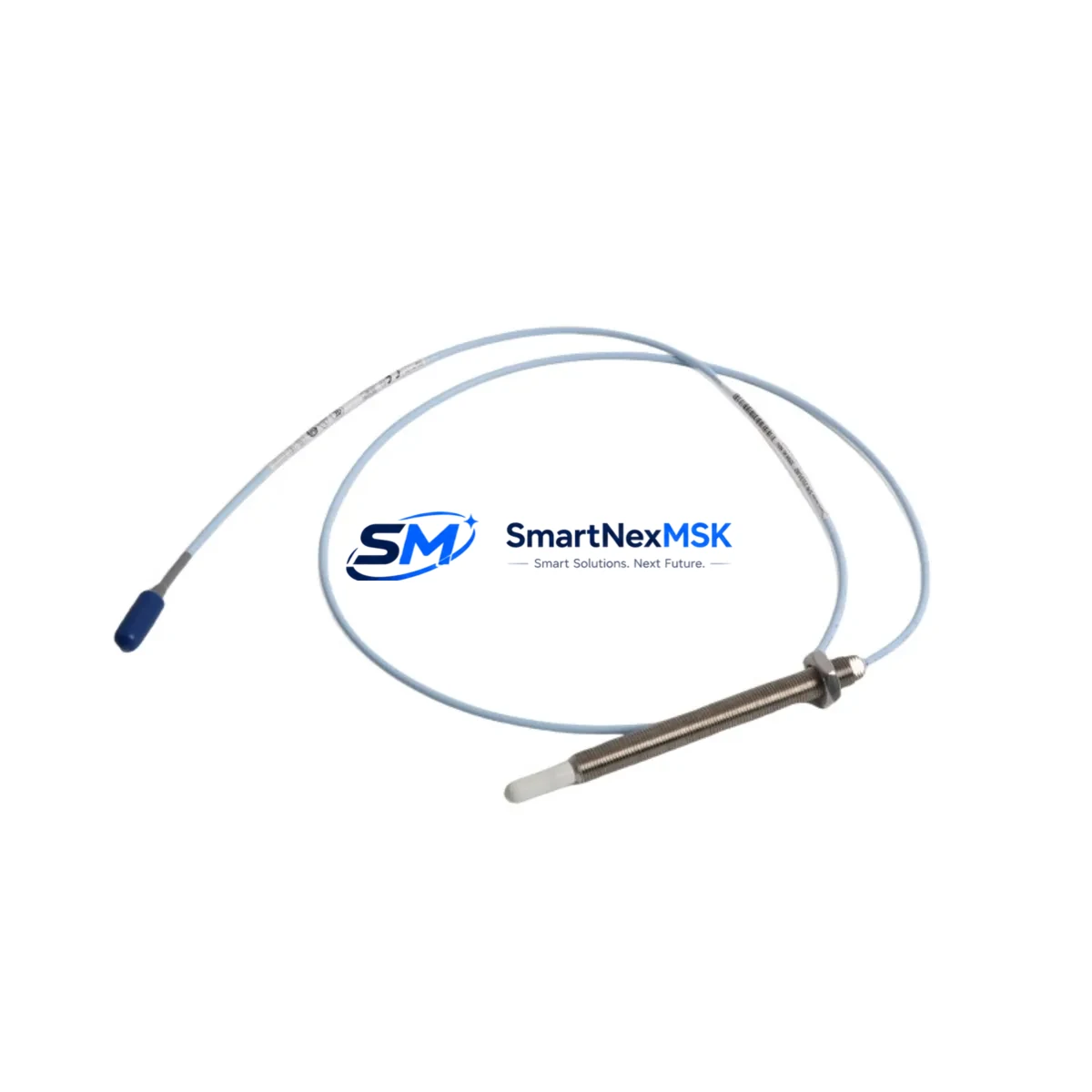

The Bently Nevada 330905-00-10-10-02-CN is a 5mm eddy current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 NSv Series, this probe delivers stable, interference-resistant signal output in high-load rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — where control interruption or signal drift can trigger unplanned shutdowns or catastrophic equipment failure.

Designed to operate reliably in the presence of electromagnetic interference, mechanical vibration, thermal cycling, and chemical exposure, the 330905-00-10-10-02-CN maintains measurement integrity across its full operating range. Its ruggedized construction and sealed cable assembly resist moisture ingress, oil contamination, and corrosive atmospheres, making it a trusted choice for petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port machinery control systems.

When integrated into a complete 3300 NSv monitoring loop — alongside the Bently Nevada 330130-040-01-00 extension cable and the Bently Nevada 330180-X1-05 proximitor/driver — the 330905-00-10-10-02-CN forms a fully calibrated, end-to-end proximity measurement chain. This system architecture ensures that signal conditioning is handled close to the measurement point, minimizing cable-induced noise and reducing the risk of false trips in safety instrumented systems (SIS).

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330905-00-10-10-02-CN operates as the field-sensing element within a layered protection architecture. The probe signal is routed through the Bently Nevada 330130-040-01-00 extension cable to the Bently Nevada 330180-X1-05 proximitor, which conditions the raw eddy current signal into a calibrated DC voltage output. This output feeds directly into a Bently Nevada 3500/40M proximitor I/O module housed in the 3500 rack, where vibration amplitude and phase are continuously compared against alarm and danger setpoints.

To protect the monitoring system from power-line transients and voltage spikes — common in heavy industrial environments with large motor starts and arc flash events — the 3500 rack is typically powered through a Phoenix Contact QUINT-PS/1AC/24DC/10 or equivalent DIN-rail power supply with integrated surge output protection. Upstream, a Bently Nevada 3500/15 power supply module provides redundant 24 VDC distribution within the rack, ensuring that a single power fault does not disable the entire monitoring loop.

Communication between the 3500 rack and the plant DCS or safety PLC is handled via the Bently Nevada 3500/92 communication gateway, which supports Modbus TCP and OPC-DA protocols. For facilities operating a Rockwell Automation ControlLogix or Siemens S7-400H safety PLC, the gateway provides seamless integration into the safety instrumented function (SIF) without requiring custom protocol conversion. Relay output modules such as the Bently Nevada 3500/32 provide hardwired trip signals to the emergency shutdown (ESD) system, ensuring that a danger-level vibration event triggers an immediate, deterministic machine trip independent of network communication status.

For installations in classified hazardous areas (Zone 1 or Zone 2), the probe assembly is paired with a Pepperl+Fuchs KFD2-VR4-Ex1.26 or equivalent Zener barrier or galvanic isolator to maintain intrinsic safety compliance and prevent ignition-capable energy from reaching the hazardous zone.

Critical Industrial Safety Applications

The 330905-00-10-10-02-CN is deployed across a wide range of critical industrial safety applications where continuous, accurate shaft vibration monitoring is essential to prevent equipment damage, protect personnel, and maintain regulatory compliance.

In petrochemical and refinery operations, the probe monitors radial vibration on high-speed centrifugal compressors and process pumps handling flammable or toxic media. Early detection of rotor imbalance, bearing wear, or seal degradation allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency shutdowns — reducing both safety risk and production loss.

In power generation facilities — including coal-fired, gas turbine, and nuclear auxiliary systems — the 330905-00-10-10-02-CN provides the primary vibration input to the turbine protection system. Accurate, drift-free measurement is critical here: a false trip on a base-load unit can cost hundreds of thousands of dollars per hour in lost generation, while a missed danger condition can result in catastrophic rotor failure.

In mining and mineral processing, the probe is used on large ball mills, SAG mills, and conveyor drive motors operating in dusty, high-vibration environments. Its sealed construction and wide operating temperature range ensure reliable performance even when ambient conditions fluctuate significantly between day and night shifts.

In water and wastewater treatment, the probe monitors vertical turbine pumps and blower units in continuous-duty service. Unplanned pump failures in water treatment can have direct public health consequences, making reliable vibration monitoring a regulatory requirement in many jurisdictions.

In metallurgical and steel mill applications, the probe is installed on rolling mill drive trains and continuous casting machine drives, where high electromagnetic interference from large DC drives and induction furnaces demands a probe with superior EMI rejection — a characteristic strength of the 3300 NSv eddy current design.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330905-00-10-10-02-CN?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or repair, and our technical team provides application guidance throughout the warranty period.

Q2: What pre-shipment testing is performed on each unit?
Each 330905-00-10-10-02-CN probe undergoes functional verification prior to shipment, including continuity testing, insulation resistance checks, and visual inspection for cable and connector integrity. Units are shipped in anti-static, moisture-resistant packaging to prevent transit damage.

Q3: Is the 330905-00-10-10-02-CN compatible with existing 3300 NSv and 3500 system installations?
Yes. The 330905-00-10-10-02-CN is a direct form-fit-function replacement for standard 3300 NSv 5mm probe assemblies with CN connectors. It is fully compatible with Bently Nevada 330180-series proximitors and 3500-series monitoring racks without requiring recalibration of the system scale factor, provided the target material and gap distance are set per the original system documentation.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement requirements?
Yes. We maintain stock of the 330905-00-10-10-02-CN and related 3300 NSv components to support both planned maintenance programs and emergency replacement needs. For critical plant spares programs, we can provide lead-time commitments and reserved inventory arrangements. Contact our sales team at sales@smartnexmsk.com or +86 18259474341 to discuss your supply requirements.
