Bently Nevada 330905-00-12-05-01-00 Safety Proximity Transducer

Bently Nevada 330905-00-12-05-01-00 Safety Proximity Transducer: Reliable Control in Harsh Industrial Sites

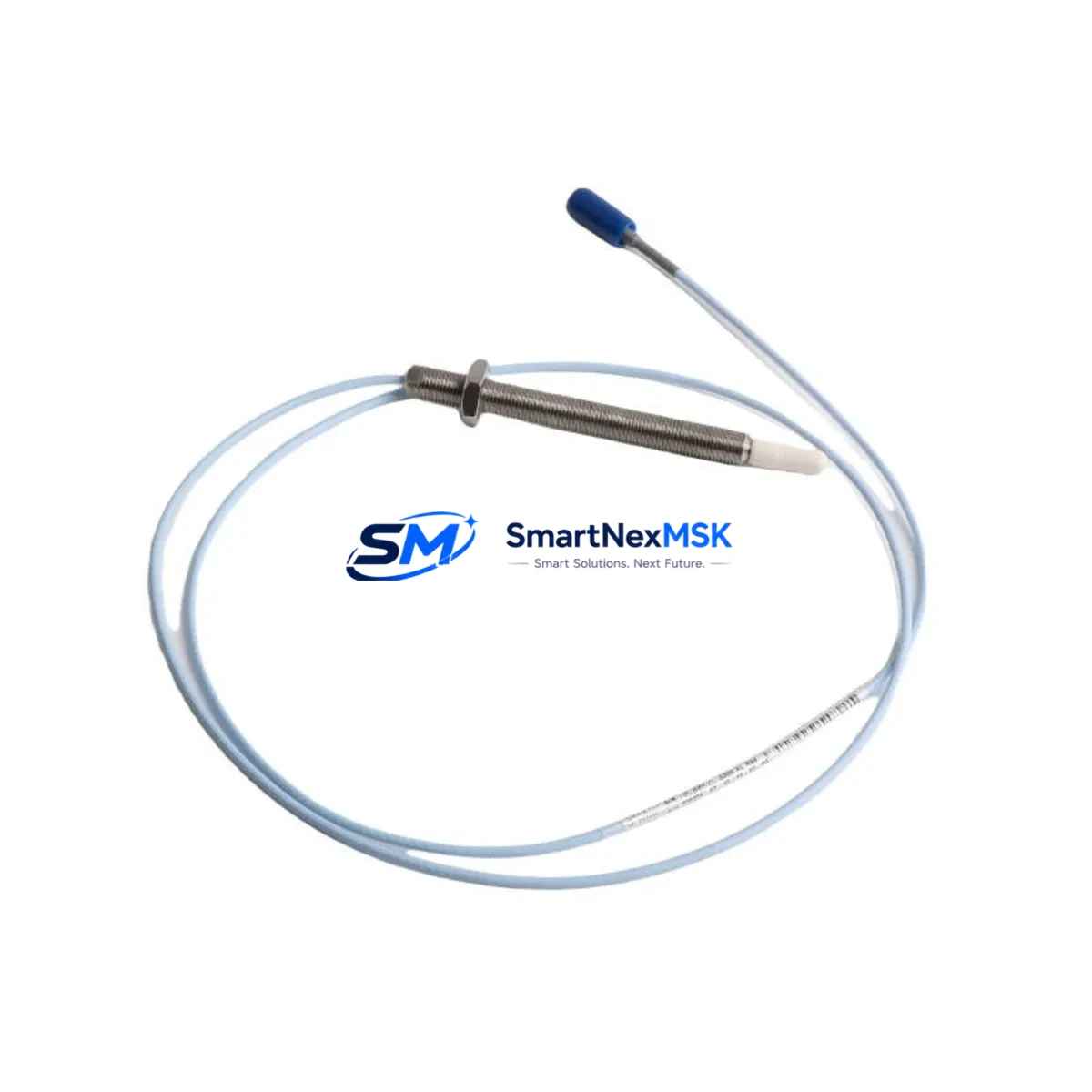

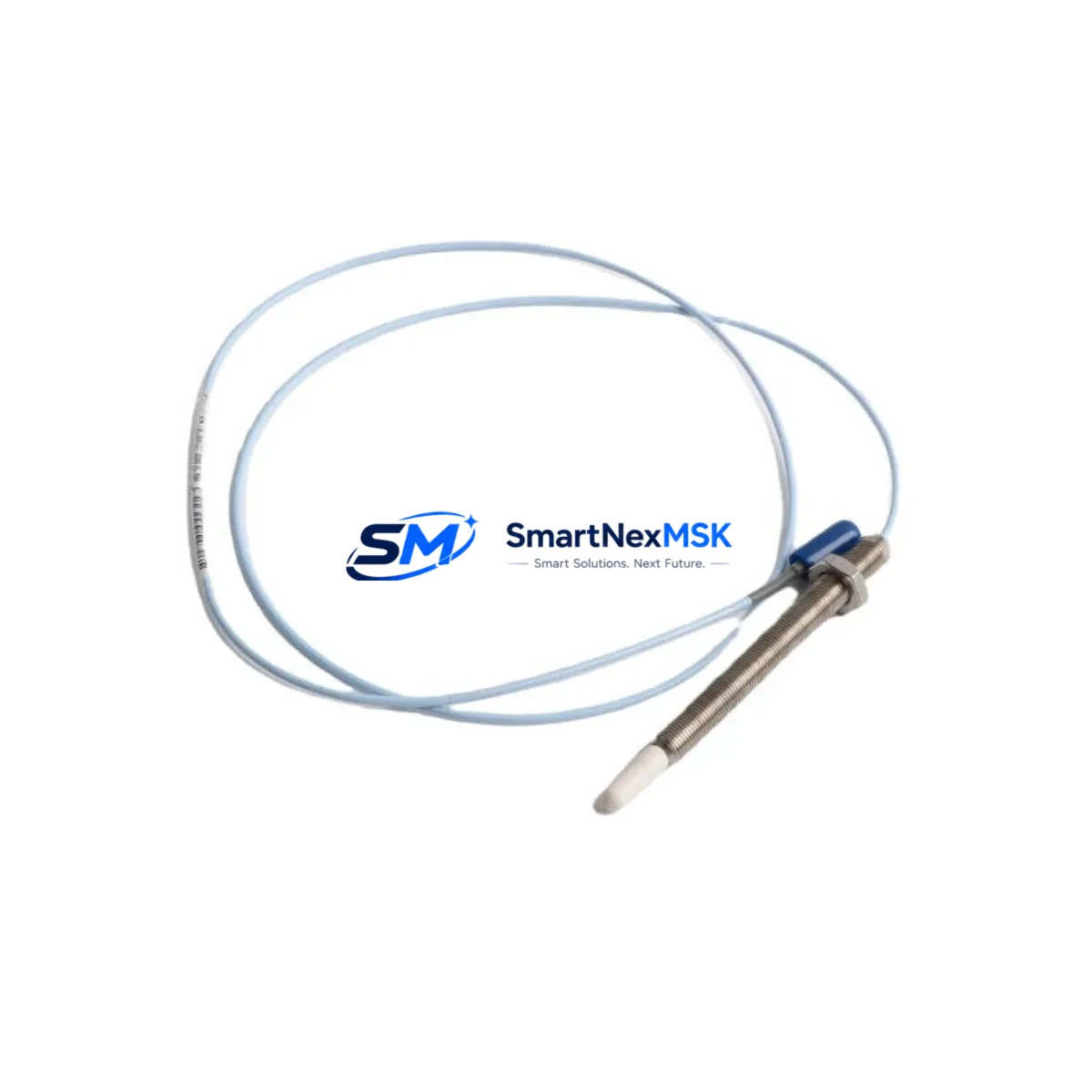

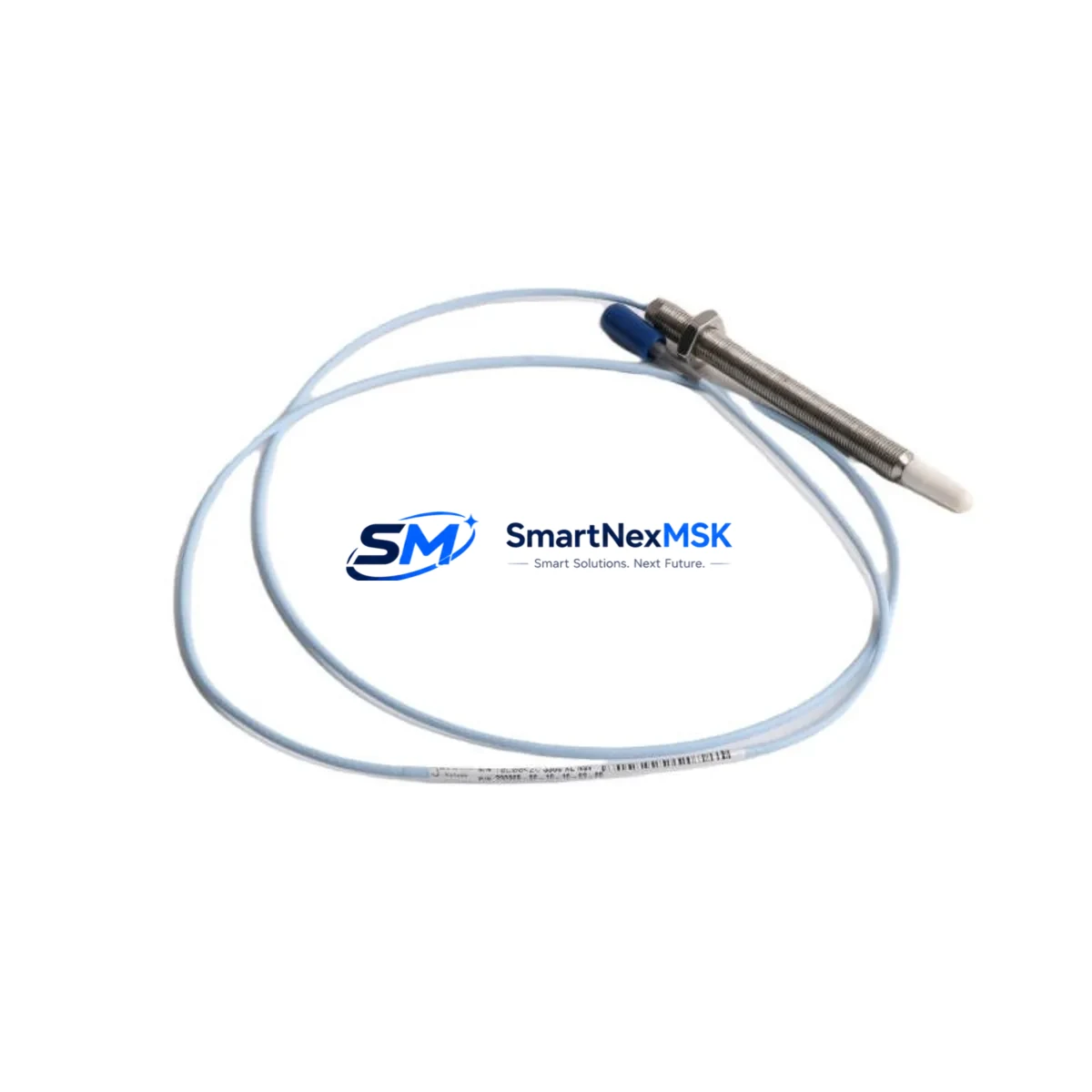

The Bently Nevada 330905-00-12-05-01-00 is a ruggedized eddy-current proximity transducer engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as part of Bently Nevada’s 3300 XL Series, this transducer delivers stable, high-accuracy output signals even under extreme electromagnetic interference, mechanical shock, high-temperature exposure, and corrosive atmospheres — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, metallurgical furnaces, and continuous process manufacturing lines.

In safety-instrumented systems and critical machinery protection loops, signal integrity is non-negotiable. The 330905-00-12-05-01-00 uses a precision-wound sensing coil and a thermally compensated driver circuit to maintain consistent gap-voltage linearity across its full operating range. This eliminates the signal drift that can trigger false shutdowns or, more dangerously, mask genuine rotor excursions on turbines, compressors, pumps, and gearboxes. When paired with a Bently Nevada 3300 XL 8mm Extension Cable and a compatible 3300 XL Proximitor Sensor, the system forms a complete, factory-matched transducer chain that meets API 670 machinery protection standards.

Safety Reliability Table

Control Cabinet Protection Strategy

A single proximity transducer does not operate in isolation — it is one node in a layered machinery protection architecture. In a typical turbomachinery control cabinet, the 330905-00-12-05-01-00 feeds its analog DC signal into a Bently Nevada 3500/42M Proximitor / Seismic Monitor rack module, which processes radial vibration, axial position, and eccentricity channels simultaneously. The monitor module communicates trip and alert states to the plant DCS via a Bently Nevada 3500/92 Communication Gateway, enabling integration with Honeywell Experion PKS, Emerson DeltaV, or Yokogawa CENTUM VP distributed control systems without signal conversion losses.

Power supply stability is equally critical. Transient voltage spikes on the –24 VDC rail can corrupt the Proximitor output and generate spurious vibration readings. Installing a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply with active buffer module upstream of the Bently Nevada rack ensures ride-through capability during momentary grid disturbances — a common occurrence near large motor starters and variable-frequency drives in heavy industrial facilities. For additional surge protection on the signal wiring between the field junction box and the control room, a MTL 5041 Zener barrier or equivalent galvanic isolator limits fault energy propagation and protects both the transducer and the monitor input card.

In safety-instrumented function (SIF) loops requiring SIL 2 integrity, the proximity transducer output is often voted in a 2oo3 (two-out-of-three) configuration using three independent 330905-00-12-05-01-00 probes mounted at 120° intervals around the shaft. The voted signal feeds a Triconex Tricon Safety Controller or a Hima HIMatrix F60 safety PLC, which executes the protective shutdown logic. Wiring segregation between the safety loop and the process control loop is maintained using Weidmüller KLIPPON terminal blocks with integrated test points, allowing in-service functional testing without process interruption.

For installations in Zone 1 or Zone 2 hazardous areas classified under IECEx or ATEX, the transducer cable is routed through Pepperl+Fuchs KFD2-STC4-Ex1 intrinsic safety barriers to maintain the energy limitation required for explosion protection. The combination of a properly selected Proximitor, matched extension cable, and certified barrier forms a complete entity-rated system that satisfies both machinery protection and area classification requirements — eliminating the need for costly separate sensor installations.

Critical Industrial Safety Applications

Petrochemical & Refinery: Monitoring radial vibration and axial thrust position on centrifugal compressors, steam turbine-driven pumps, and expander-compressor trains in ethylene crackers and crude distillation units. Early detection of rotor instability prevents catastrophic seal failures that could release flammable or toxic process gases.

Power Generation: Continuous shaft eccentricity and differential expansion monitoring on steam turbines and gas turbines in combined-cycle power plants. The transducer’s wide operating temperature range accommodates the thermal gradients present near turbine bearing pedestals, where ambient temperatures can exceed 120 °C during full-load operation.

Mining & Mineral Processing: Protecting large ball mill pinion bearings, SAG mill trunnion bearings, and slurry pump shafts in copper, gold, and iron ore concentrators. The IP67-rated probe body withstands the high-humidity, dust-laden, and chemically aggressive atmospheres typical of mineral processing facilities.

Water & Wastewater Treatment: Monitoring vertical turbine pumps and blower shafts in municipal water treatment plants and desalination facilities, where continuous 24/7 operation is mandated and unplanned outages directly impact public health infrastructure.

Metallurgy & Steel: Shaft monitoring on rolling mill main drives, continuous caster pinch roll drives, and blast furnace top gas compressors, where high electromagnetic interference from large DC drives and induction furnaces demands the superior EMI rejection of the eddy-current measurement principle.

Port & Bulk Material Handling: Protecting conveyor drive gearboxes, ship unloader slewing ring drives, and stacker-reclaimer travel drives in coal, grain, and ore terminals, where remote location and limited maintenance access make predictive condition monitoring essential for avoiding costly unscheduled stoppages.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330905-00-12-05-01-00?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from the published Bently Nevada specification. If the unit fails to meet its stated scale factor, linearity, or operating range within the warranty period under normal installation and operating conditions, we will replace or repair the unit at no charge. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 330905-00-12-05-01-00 unit undergoes a functional bench test prior to dispatch. Testing verifies DC output voltage at known gap distances, scale factor linearity across the full measurement range, cable continuity and insulation resistance, and connector integrity. A test report is available upon request for units designated for safety-instrumented system applications.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 series monitor racks?
Yes. The 330905-00-12-05-01-00 is fully compatible with Bently Nevada 3300 XL Proximitor Sensors and the complete 3500 Series rack-based monitoring system, including the 3500/40M, 3500/42M, and 3500/45 monitor modules. It is also backward-compatible with legacy 3300 Series Proximitors when used with the appropriate extension cable. Always verify the Proximitor model and gap voltage range during commissioning to ensure the matched system meets API 670 calibration requirements.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated safety-critical spare inventory of the 330905-00-12-05-01-00 and related 3300 XL Series components to support planned maintenance shutdowns, insurance spare programs, and emergency replacement requirements. Customers operating multiple turbomachinery trains are encouraged to contact our technical sales team to discuss consignment stock arrangements, blanket purchase orders, and multi-year supply agreements that ensure parts availability without capital commitment risk.
