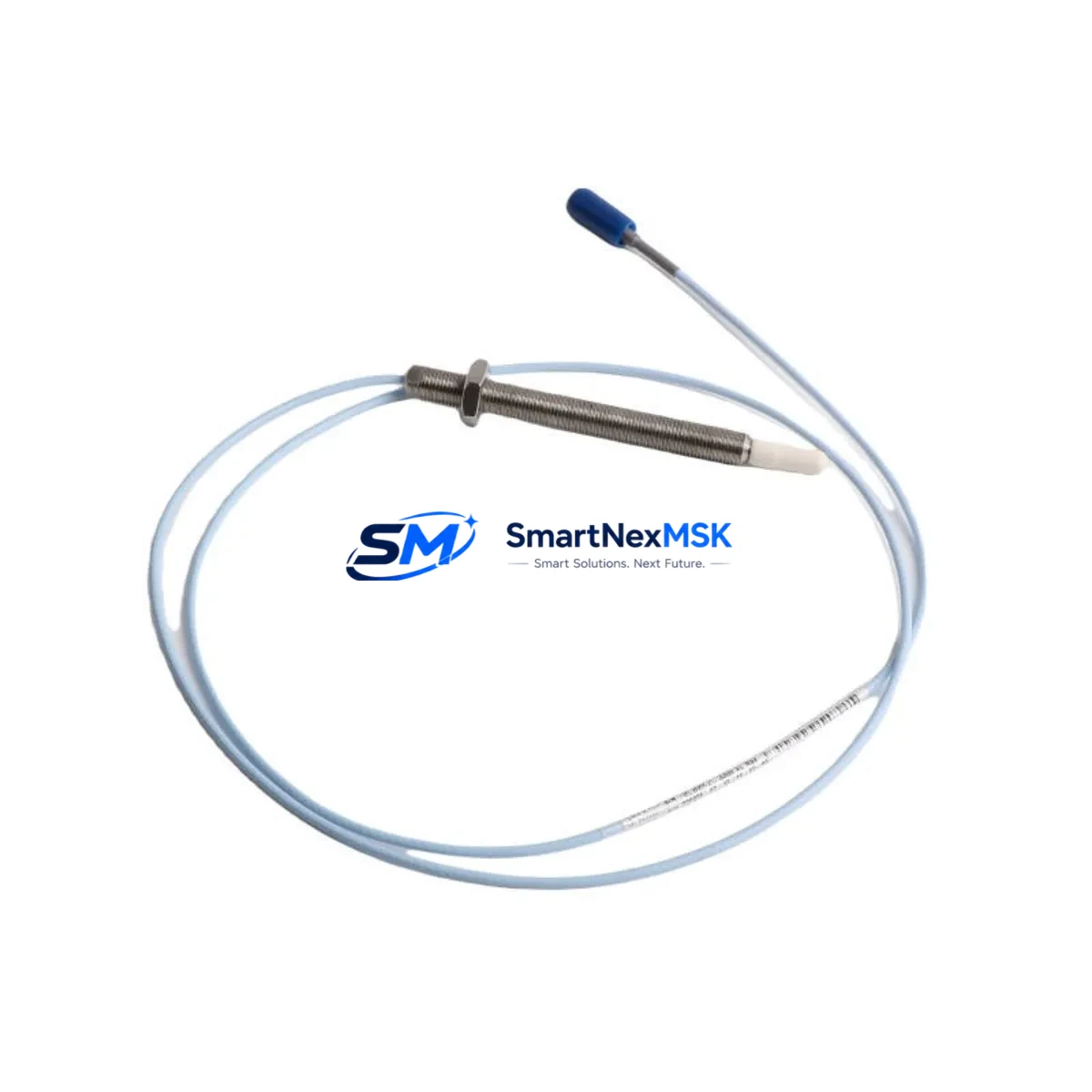

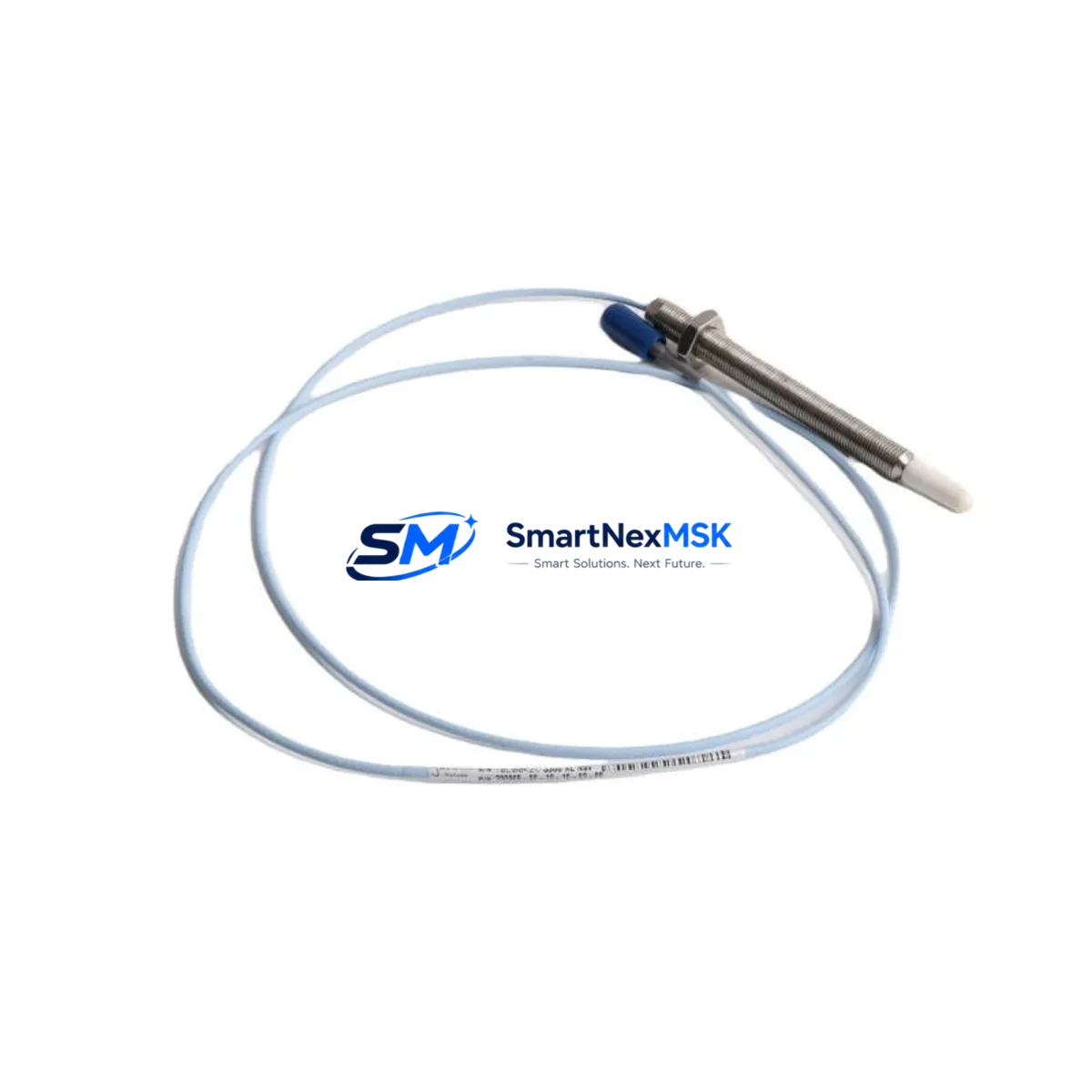

Bently Nevada 330905-00-12-10-01-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites
The Bently Nevada 330905-00-12-10-01-00 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive conditions, this probe is a critical component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and heavy manufacturing facilities.
In safety-critical control architectures, signal integrity is non-negotiable. The 330905-00-12-10-01-00 delivers stable, low-noise output that feeds directly into the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 series), converting gap distance into a precise voltage signal. This signal chain is the foundation of turbine and compressor protection loops, where even microseconds of signal drift can trigger false trips or — more dangerously — mask real mechanical faults.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | 330905-00-12-10-01-00 |
| Brand / Series | Bently Nevada / 3300 XL |
| Probe Tip Diameter | 8 mm |
| Cable Length | 1.0 m (extension cable compatible) |
| Armored Cable | Yes — stainless steel braid, oil & chemical resistant |
| Operating Temperature | −35°C to +177°C |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.25 mm (10 to 90 mil) |
| Target Material | AISI 4140 steel or equivalent ferrous alloy |
| Ingress Protection | IP67 — dust-tight, immersion-resistant |
| EMI/RFI Shielding | Armored coaxial cable with full-length shield |
| Connector Type | Integral coaxial, compatible with 3300 XL extension cables |
| Approvals / Compliance | CE, RoHS; compatible with SIL-rated protection systems |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-shipment Testing | Full functional and sensitivity verification before dispatch |
| Stock Status | In stock — available for immediate shipment |
Control Cabinet Protection Strategy
In a well-designed rotating machinery protection cabinet, the 330905-00-12-10-01-00 probe is never deployed in isolation. It operates as part of a tightly integrated measurement chain. The probe connects via a matched 3300 XL extension cable (typically the 330130-040-00-00 or 330130-080-00-00 depending on field distance) to a dedicated Bently Nevada 3300 XL Proximitor, which is rack-mounted inside the control enclosure alongside the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor I/O Module.
Within the same protection rack, the Bently Nevada 3500/15 Power Supply Module provides conditioned, isolated DC power to all monitoring cards, eliminating the risk of power-rail noise coupling into vibration measurement channels — a common cause of nuisance trips in electrically noisy environments such as variable frequency drive (VFD) rooms or arc furnace control buildings. For facilities running redundant protection architectures, the 3500/20 Rack Interface Module manages communication between the protection rack and the plant DCS or safety PLC, typically via Modbus RTU or Ethernet/IP.
In high-criticality applications — such as steam turbine generator sets, centrifugal compressors, or boiler feed pumps — the proximity probe measurement is cross-validated against a Bently Nevada 330400-series velocity transducer or a 3300 XL Accelerometer mounted on the same bearing housing. This multi-sensor approach ensures that no single sensor failure can produce an undetected dangerous condition, satisfying the redundancy requirements of IEC 61511 functional safety standards for SIL 2 interlock loops.
Surge and transient protection at the field junction box — using DIN-rail mounted surge arrestors rated for the probe’s signal voltage range — further protects the 330905-00-12-10-01-00 from lightning-induced transients and ground potential differences common in large outdoor industrial installations such as offshore platforms, open-pit mining facilities, and coastal petrochemical complexes.
Critical Industrial Safety Applications
Petrochemical & Refinery: The 330905-00-12-10-01-00 is widely deployed on centrifugal pumps, compressors, and turbine expanders in hydrocarbon processing units. In these environments, shaft radial vibration monitoring is a primary line of defense against catastrophic seal failure, which can lead to hydrocarbon release and fire. The probe’s armored, chemically resistant cable construction ensures long-term signal integrity even when exposed to H₂S, aromatic solvents, and high-pressure steam.
Power Generation: Steam and gas turbine generator sets in thermal power plants rely on eddy current proximity probes for continuous shaft centerline tracking and differential expansion monitoring. The 330905-00-12-10-01-00, integrated with the 3500 Series protection rack, provides the real-time data needed to detect rotor bow, bearing wear, and oil whirl instability before they escalate to forced outages or catastrophic rotor failure.
Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject rotating components to extreme radial loads and shock vibration. The ruggedized construction of the 330905-00-12-10-01-00 — with its stainless-steel armored cable and IP67-rated tip assembly — withstands the abrasive dust, water ingress, and mechanical shock characteristic of underground and open-cut mining environments.
Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities operate continuously, often unmanned. Proximity probe-based vibration monitoring enables condition-based maintenance scheduling, reducing unplanned downtime and the risk of pump failure during peak demand periods.
Metallurgy & Steel: Rolling mill drives, converter fans, and continuous casting machine drives in steel plants generate intense electromagnetic interference from large DC drives and induction furnaces. The shielded coaxial design of the 330905-00-12-10-01-00 maintains signal fidelity in these high-EMI environments, ensuring that protection system trip setpoints are not compromised by electrical noise.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 330905-00-12-10-01-00?
All units are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, sensitivity drift beyond specification, and functional failure under normal operating conditions. Warranty claims are processed with priority to minimize plant downtime.
Q2: How is each unit tested before shipment?
Every 330905-00-12-10-01-00 undergoes a full pre-shipment functional verification, including sensitivity calibration check (7.87 V/mm ± 10%), cable continuity and insulation resistance test, and connector integrity inspection. A test report is available upon request for quality-critical procurement processes.
Q3: Is this probe compatible with existing 3300 XL Proximitor systems and 3500 Series racks?
Yes. The 330905-00-12-10-01-00 is fully compatible with the Bently Nevada 3300 XL Proximitor sensor family and integrates directly into 3500 Series protection racks via standard extension cables. It is a direct replacement for worn or failed probes in existing installations without requiring recalibration of the Proximitor or changes to rack configuration.
Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
We maintain dedicated stock of the 330905-00-12-10-01-00 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and annual spare parts programs. Bulk procurement pricing and reserved stock arrangements are available for facilities with ongoing maintenance contracts. Contact our team to discuss supply agreements tailored to your plant’s maintenance schedule.
