Bently Nevada 330905-00-12-10-02-00 Maintenance-Ready Spare 3300 NSv

Bently Nevada 330905-00-12-10-02-00 Maintenance-Ready Spare 3300 NSv: Spare Replacement & Industrial Downtime Risk Control

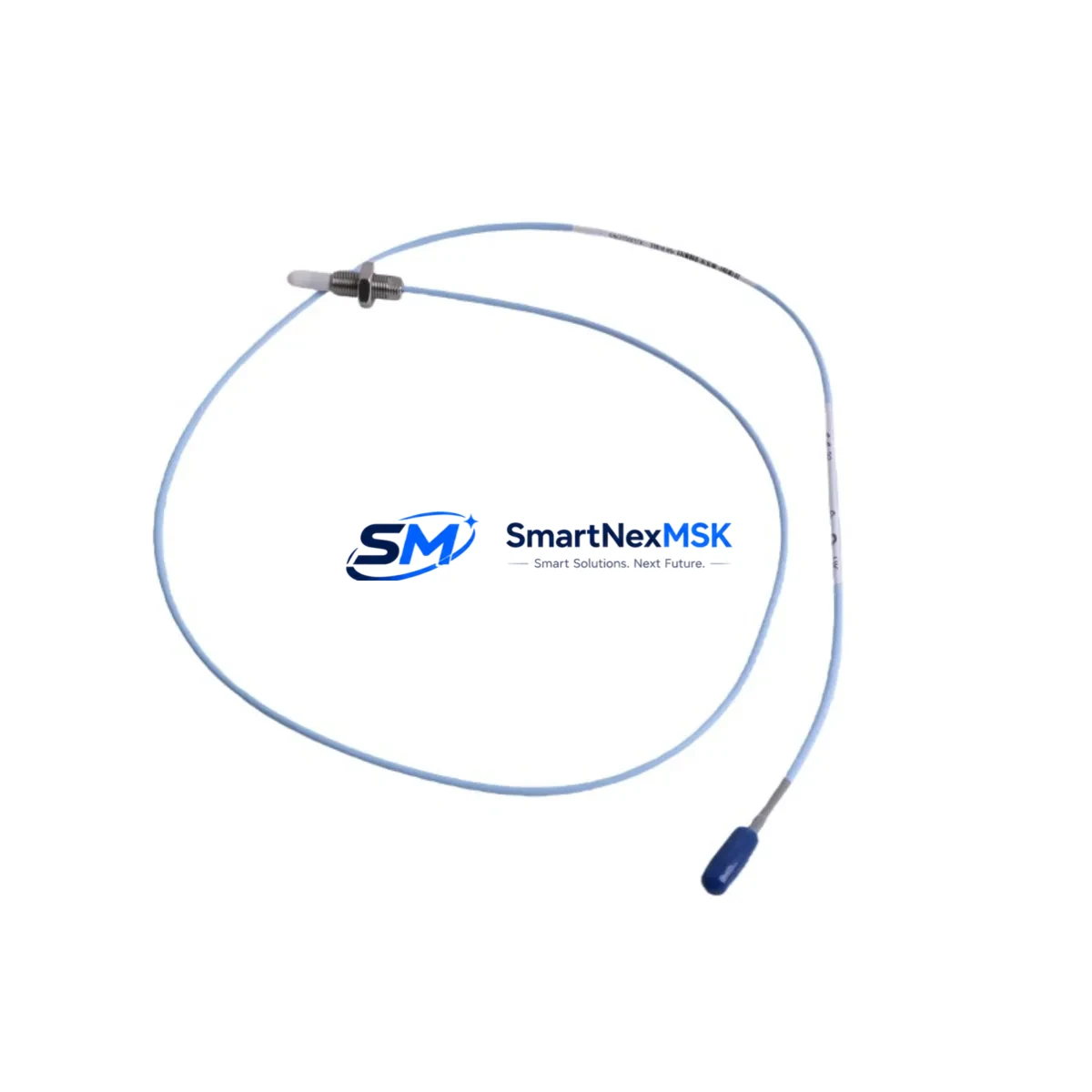

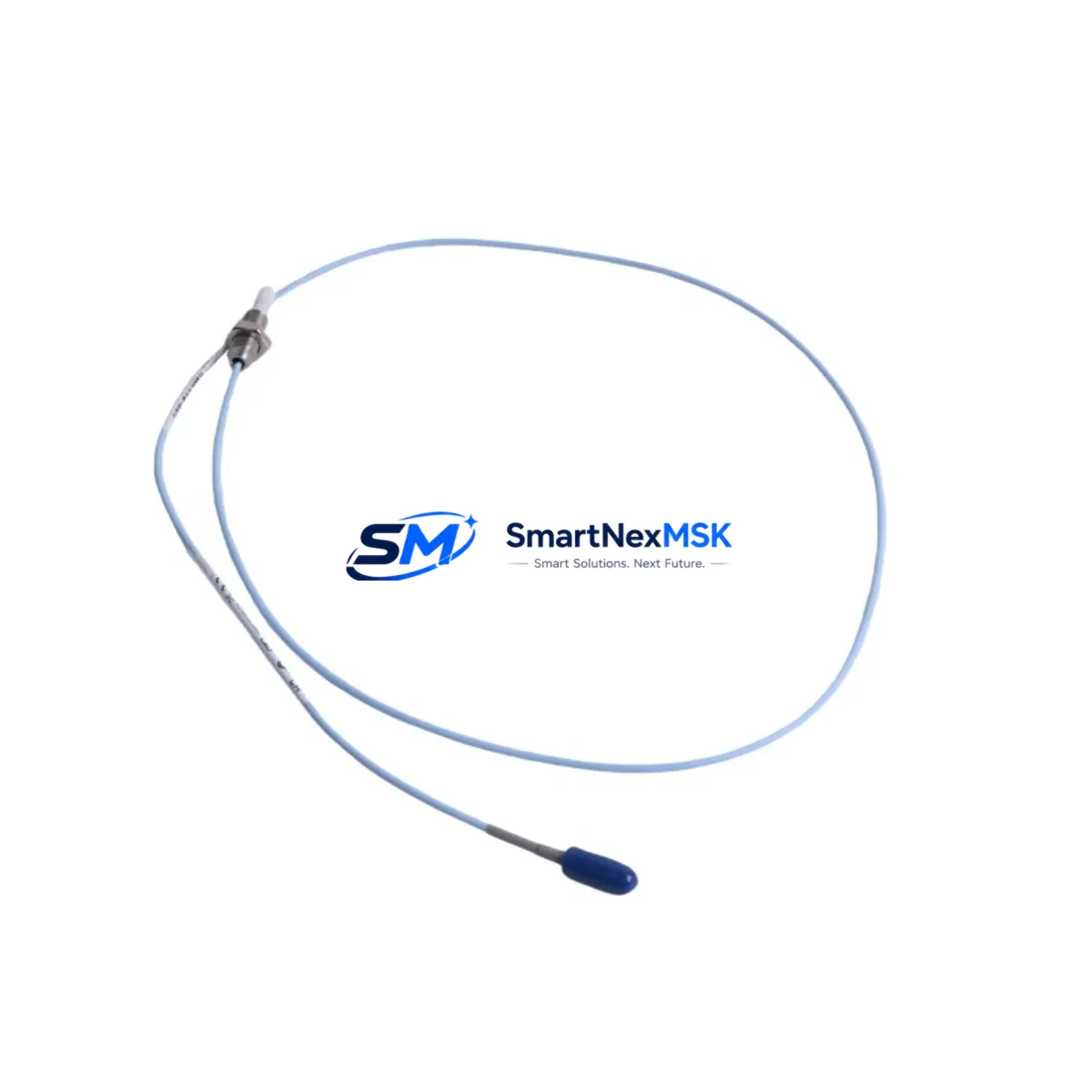

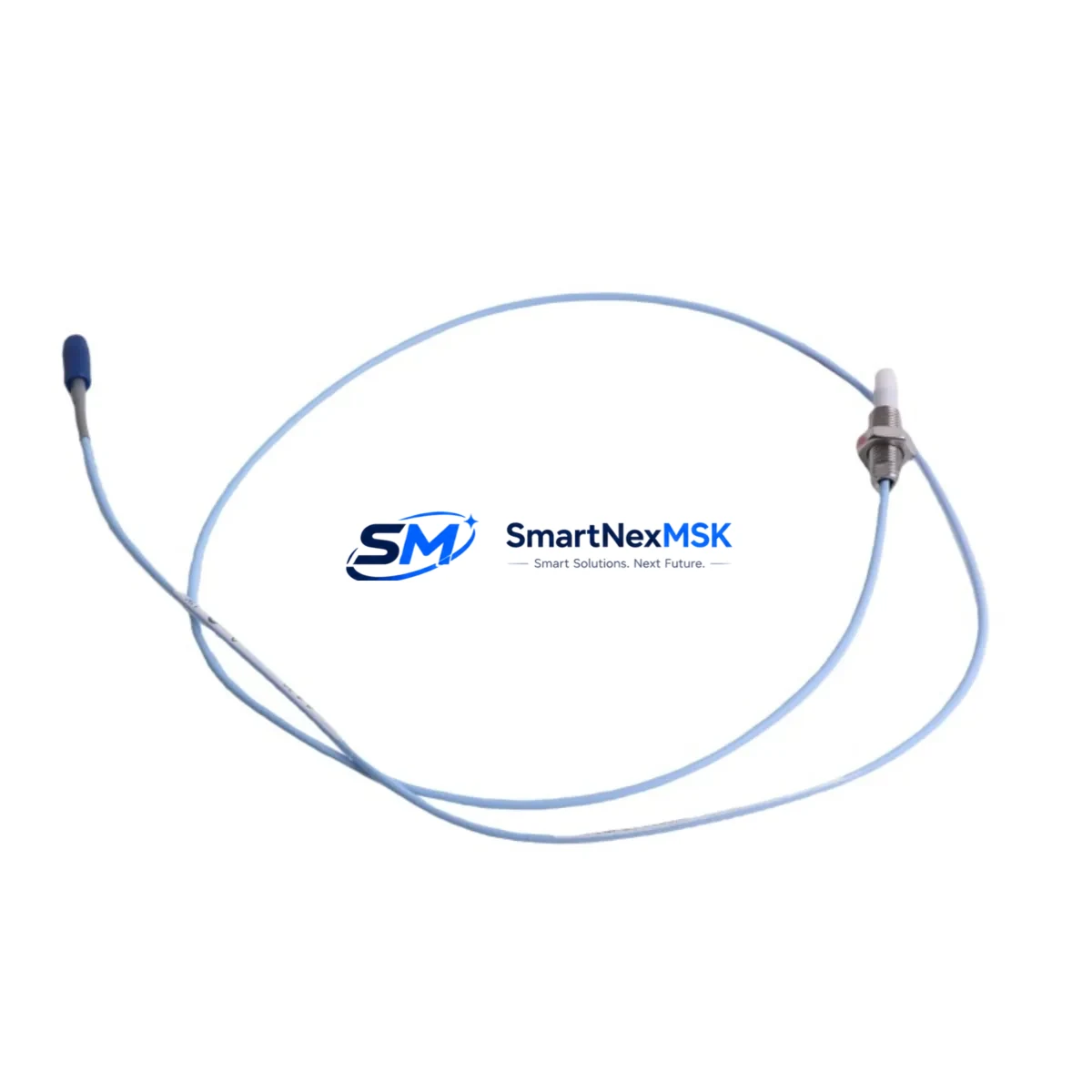

The Bently Nevada 330905-00-12-10-02-00 is an original proximity probe designed for the 3300 NSv vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical spare inventory for your control room, this probe is a direct, drop-in replacement that restores system integrity without reconfiguration or recalibration of the signal conditioning chain.

Maintenance engineers working on gas turbines, steam turbines, compressors, pumps, and gearboxes rely on the 3300 NSv system for continuous shaft displacement and radial vibration measurement. When a probe fails or degrades — whether due to cable damage, tip contamination, or gap drift — the entire protection channel goes offline. Having a verified, tested spare on the shelf is the single most effective way to reduce mean time to repair (MTTR) and avoid extended production loss.

This unit ships fully tested against Bently Nevada factory specifications, with gap voltage, sensitivity, and frequency response verified prior to dispatch. Each unit is backed by a 12-month warranty covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330905-00-12-10-02-00 proximity probe in the field, a disciplined maintenance engineer will not stop at the probe itself. The 3300 NSv transducer system is a three-component chain — probe, extension cable, and Proximitor sensor — and a fault in any one element produces identical symptoms at the monitor: a gap voltage out of range, a buffered output signal loss, or a full channel trip. Before returning the machine to service, verify the condition of the 3300 NSv Proximitor Sensor (typically the 330180 series) and the 3300 NSv Extension Cable (330130 series) that connects the probe to the Proximitor. Cable jacket abrasion, connector corrosion, and shield continuity failures are common root causes that are frequently overlooked when only the probe is replaced.

At the rack level, inspect the 3500/40M Proximitor Monitor or equivalent 3300 series monitor card seated in the machinery protection rack. Check the 3500 Rack Power Supply for output voltage stability — an under-voltage condition on the -24 VDC rail will cause false gap readings across all channels simultaneously. If the facility uses a 3500/20 Rack Interface Module for Modbus or Ethernet communication to the DCS or historian, confirm that the module firmware and channel configuration remain intact after any rack power cycle.

For facilities running a System 1 Evolution condition monitoring platform, verify that the channel tag, engineering unit scaling, and alarm setpoints are correctly mapped after the probe swap. Proximity probe replacements that change the physical gap distance — even by 0.5 mm — will shift the DC gap voltage and may trigger nuisance alarms if the OK limit window is not re-verified at the monitor card.

In control cabinets housing both the 3300/3500 rack and associated I/O terminal blocks or signal isolators, inspect for loose terminations on the buffered output wiring that feeds the DCS analog input cards. A high-resistance connection at the terminal strip can introduce noise that mimics a real vibration event. If the facility uses Pepperl+Fuchs or MTL signal isolators on the buffered output loop, confirm that the isolator input impedance is compatible with the Proximitor’s output drive capability. Finally, check the cabinet ventilation filters and cooling fans — thermal stress is a leading cause of premature Proximitor sensor failure and should be addressed as part of any probe replacement work order.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. Confirm the monitor channel is in bypass or the machine is at rest before disconnecting the probe. Do not disconnect a live probe on a running machine — the sudden gap voltage change will trigger a trip.

Step 2 — Physical removal: Unscrew the probe from the bracket. Note the existing gap distance (typically measured with a depth micrometer or feeler gauge). Record the as-found gap voltage from the Proximitor buffered output before disconnection.

Step 3 — Install the 330905-00-12-10-02-00 replacement: Thread the new probe into the bracket. Set the gap to the manufacturer-recommended distance for the target material (typically 1.0–1.5 mm for steel targets). Reconnect the extension cable and verify connector seating.

Step 4 — Gap voltage verification: Power the Proximitor and measure the buffered DC output voltage. For a 1.0 mm gap on a steel target, expect approximately -10.0 VDC ± 0.5 V. Adjust the probe gap until the output falls within the OK window defined on the monitor card.

Step 5 — Functional test and return to service: Remove the channel bypass, confirm the monitor shows OK status, and verify that the DCS historian is receiving a valid signal. Document the as-left gap voltage and date of replacement in the equipment maintenance record.

This workflow applies equally to planned turnaround replacements and emergency unplanned swaps. Keeping a pre-tested 330905-00-12-10-02-00 on the shelf — alongside a matched extension cable and a spare Proximitor — reduces emergency replacement time from hours to under 30 minutes.

Spare Parts Support FAQ

Q1: Is the 330905-00-12-10-02-00 a direct replacement for older 3300 series probes?
Yes. The 330905 series is the current-generation replacement for earlier 3300 NSv proximity probes with the same physical dimensions and sensitivity specification. No recalibration of the Proximitor sensor is required provided the gap is set correctly during installation. Always confirm the cable length and connector suffix match your existing installation before ordering.

Q2: How do you verify the probe is functional before installation?
Each unit we ship is bench-tested using a calibrated Proximitor and a steel target plate. We verify gap voltage linearity across the full measurement range, confirm sensitivity within ±5% of the 200 mV/mil nominal, and check cable continuity and shield integrity. A test report is available upon request. We recommend customers perform a final gap voltage check after installation before returning the channel to service.

Q3: What is your inventory and lead time policy for this part?
We maintain stock of the 330905-00-12-10-02-00 and common 3300 NSv accessories to support emergency and planned maintenance requirements. Standard orders ship within 1–3 business days. For facilities with critical machinery protection requirements, we recommend holding at least one spare probe and one spare extension cable per monitored machine train. Contact us to discuss consignment or reserved-stock arrangements for high-volume sites.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, performance non-conformance to published Bently Nevada specifications, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical contamination, or operation outside the rated temperature and voltage range. Warranty claims are processed with a return authorization; we ship a replacement unit upon confirmation of the defect.
