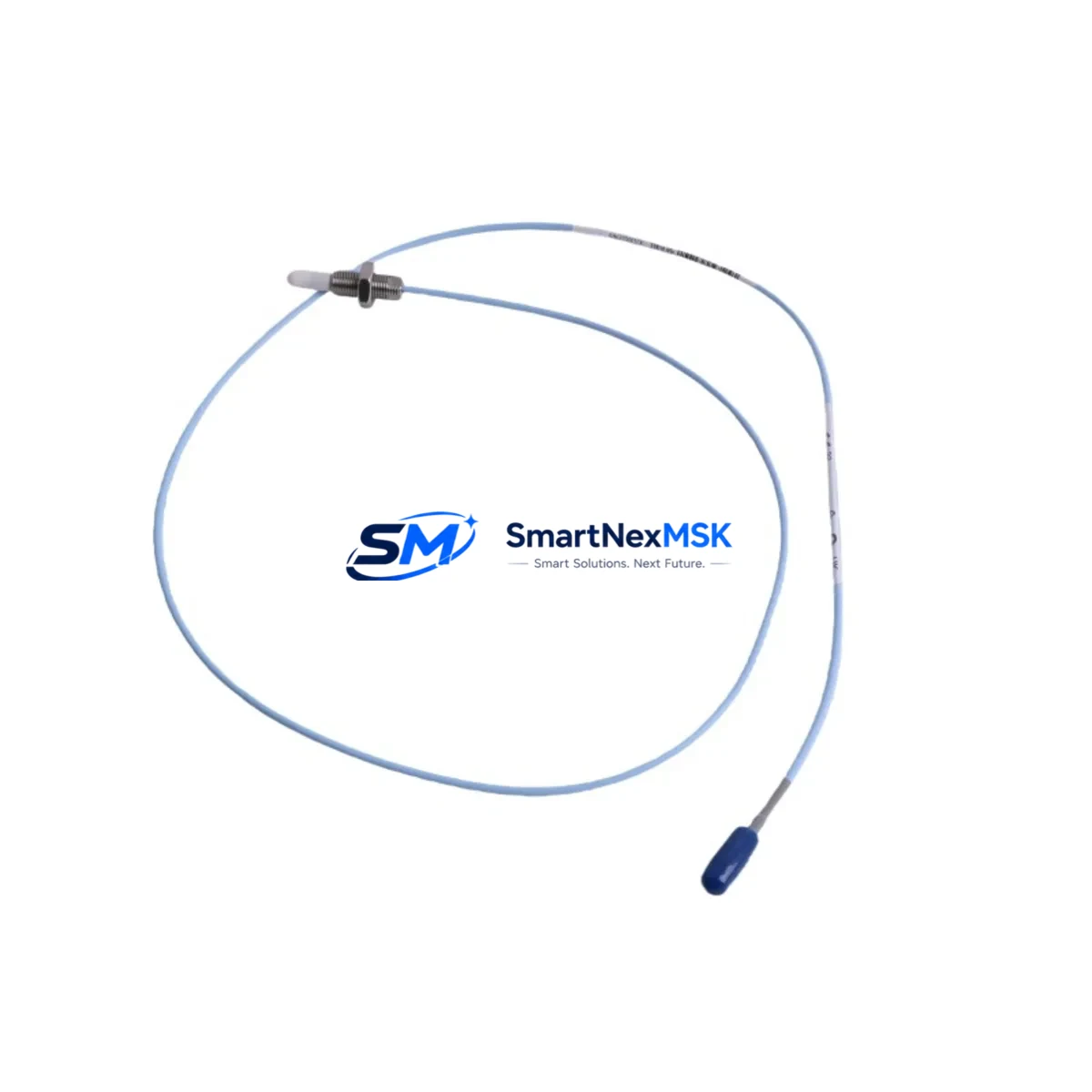

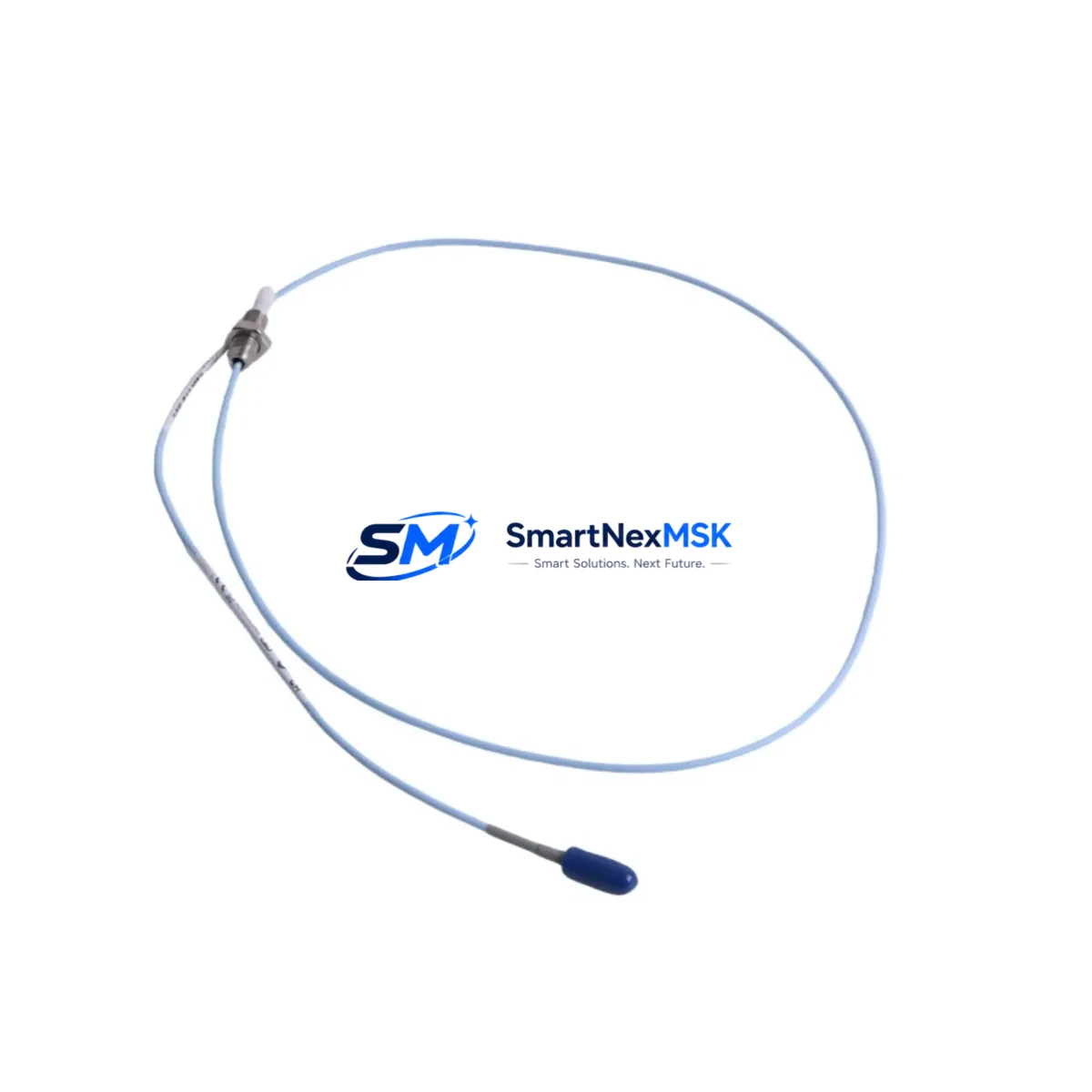

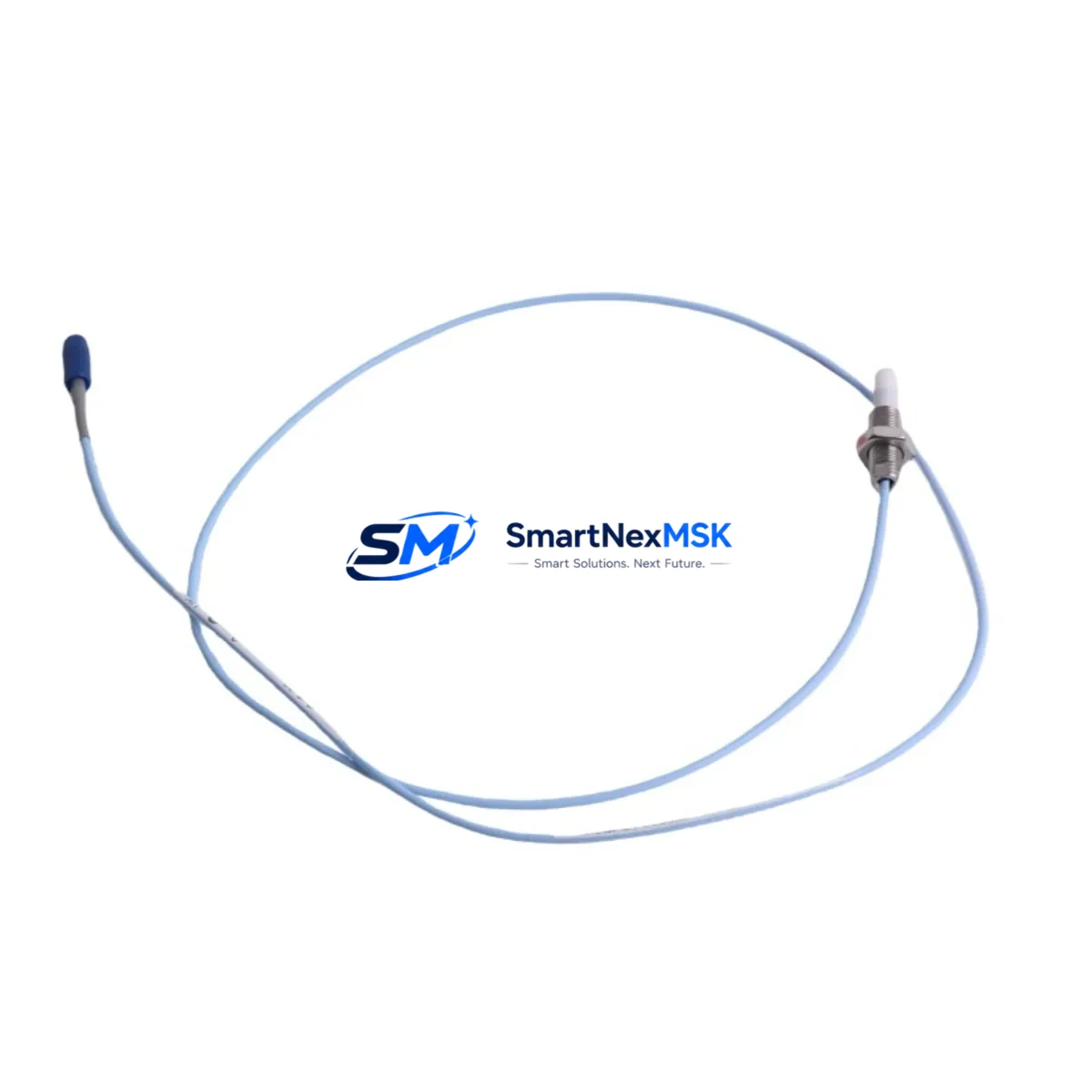

The Bently Nevada 330905-00-13-10-02-00 is an eddy-current proximity probe engineered for the 3300 NSv series vibration monitoring platform. As legacy machinery protection systems age and original spare parts become increasingly difficult to source, this retrofit-ready probe provides a verified drop-in replacement path for facilities managing rotating equipment in power generation, petrochemical, oil & gas, and heavy industrial environments. Whether you are replacing a failed sensor on a critical turbine train or executing a planned upgrade of an aging monitoring rack, the 330905-00-13-10-02-00 is designed to restore full system functionality with minimal downtime and no reprogramming of the host monitor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330905-00-13-10-02-00 into an existing 3300 NSv installation requires a structured pre-replacement assessment. Begin by confirming the Proximitor® sensor model installed in the field — the 3300 NSv Proximitor® sensor (such as the 330180-X1-05 or 330180-X1-CN) must be matched to the probe cable length and tip diameter to maintain calibrated sensitivity. If the existing Proximitor® sensor is also degraded, plan for simultaneous replacement to avoid mismatched calibration curves.

Next, inspect the extension cable assembly. In many legacy installations, the 330130-series extension cables have been routed through conduit for years and may show insulation fatigue or connector corrosion. Replacing the probe without inspecting the extension cable can result in intermittent signal faults that are difficult to diagnose after reassembly. Confirm that the total cable system length — probe cable plus extension cable — matches the Proximitor® sensor’s calibrated range.

At the monitor rack level, verify that the 3300/16-channel monitor card or the 3300/20-channel monitor card assigned to this probe channel is functioning correctly. Check the OK relay output and the gap voltage reading on the front panel or via the System 1 software interface. If the monitor card shows a NOT OK condition prior to probe replacement, document the gap voltage and vibration baseline so you can confirm restoration after the new probe is installed.

For facilities running a broader machinery protection architecture, the 330905-00-13-10-02-00 is commonly deployed alongside the 3300/55 dual-channel monitor, the 3300/46M temperature monitor, and the 3300/25 keyphasor® module. In turbine protection panels, it is also typical to find the 3300/95 power supply module and the 3300 TDI (Transient Data Interface) module in the same rack. Ensuring that the rack backplane and power distribution are healthy before probe replacement prevents misdiagnosis of a power-related fault as a probe failure.

Where the control system interfaces with a DCS or safety instrumented system (SIS), confirm that the analog signal from the 3300 NSv monitor is correctly mapped in the DCS I/O termination cabinet. Replacing the probe should not require changes to the DCS configuration, but a signal verification step — comparing the live gap voltage reading in the DCS historian against the local monitor display — is recommended as part of the commissioning checklist. If the facility uses a Bently Nevada System 1 Evolution software platform, the probe channel can be trended in real time during the gap-setting procedure to confirm correct installation before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a live machinery protection system requires careful sequencing. Where process conditions allow, schedule the replacement during a planned maintenance window and coordinate with the control room to place the affected monitor channel in bypass mode before disconnecting the probe. This prevents a spurious NOT OK trip signal from propagating to the machine protection relay or the DCS interlock logic.

Preserve the original program logic in the 3300 NSv monitor by documenting all channel configuration parameters — including full-scale range, alert and danger setpoints, time delays, and OK relay logic — before any hardware is disturbed. Most 3300 NSv monitor configurations can be exported via the System 1 software or recorded manually from the front-panel display. This documentation serves as the restoration baseline and eliminates the risk of setpoint drift during reassembly.

After installing the 330905-00-13-10-02-00, perform the gap-setting procedure with the machine stationary: adjust the probe tip-to-target gap to achieve the nominal −10 VDC output (or the value specified in the original calibration record), then lock the probe in position and verify the reading is stable. Reconnect the extension cable and confirm the OK relay energizes at the monitor card. Only after the monitor channel returns to OK status and the gap voltage is within the acceptable window should the bypass be removed and the channel returned to active protection.

For facilities with redundant probe configurations (X-Y radial vibration measurement), replace one probe at a time and verify each channel independently before proceeding to the next. This approach maintains at least single-channel protection throughout the replacement sequence and satisfies most SIS partial-stroke and proof-test requirements.

Retrofit Support FAQ

Q1: Is the 330905-00-13-10-02-00 a direct replacement for the original Bently Nevada part, or are there wiring modifications required?
A: The 330905-00-13-10-02-00 is a direct drop-in replacement. The connector type, cable length, thread specification, and signal output are identical to the original factory part. No wiring modifications, adapter cables, or reconfiguration of the 3300 NSv Proximitor® sensor or monitor card are required. The only commissioning step is gap voltage verification after mechanical installation.

Q2: How do I verify compatibility with my existing 3300 NSv Proximitor® sensor before ordering?
A: Confirm the Proximitor® sensor model number on the field-mounted housing. The 330905-00-13-10-02-00 is calibrated for use with standard 3300 NSv Proximitor® sensors with a 5 mm or 8 mm tip range. If your Proximitor® sensor model is outside this range, contact our technical team with the full sensor part number for a compatibility assessment before ordering.

Q3: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty covers manufacturing defects, signal output deviation beyond published specifications, and connector or cable integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the rated environmental specifications. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the fault. Replacement units are dispatched after fault verification.

Q4: Can this probe be used in a safety instrumented system (SIS) application?
A: The 330905-00-13-10-02-00 is a replacement proximity probe for machinery protection monitoring. For SIS applications with formal SIL certification requirements, consult the original Bently Nevada functional safety documentation and confirm with your SIS engineer whether the replacement probe meets the proof-test interval and diagnostic coverage requirements of your safety function. Our team can provide shipping test reports and dimensional inspection records to support your MOC (Management of Change) documentation.
