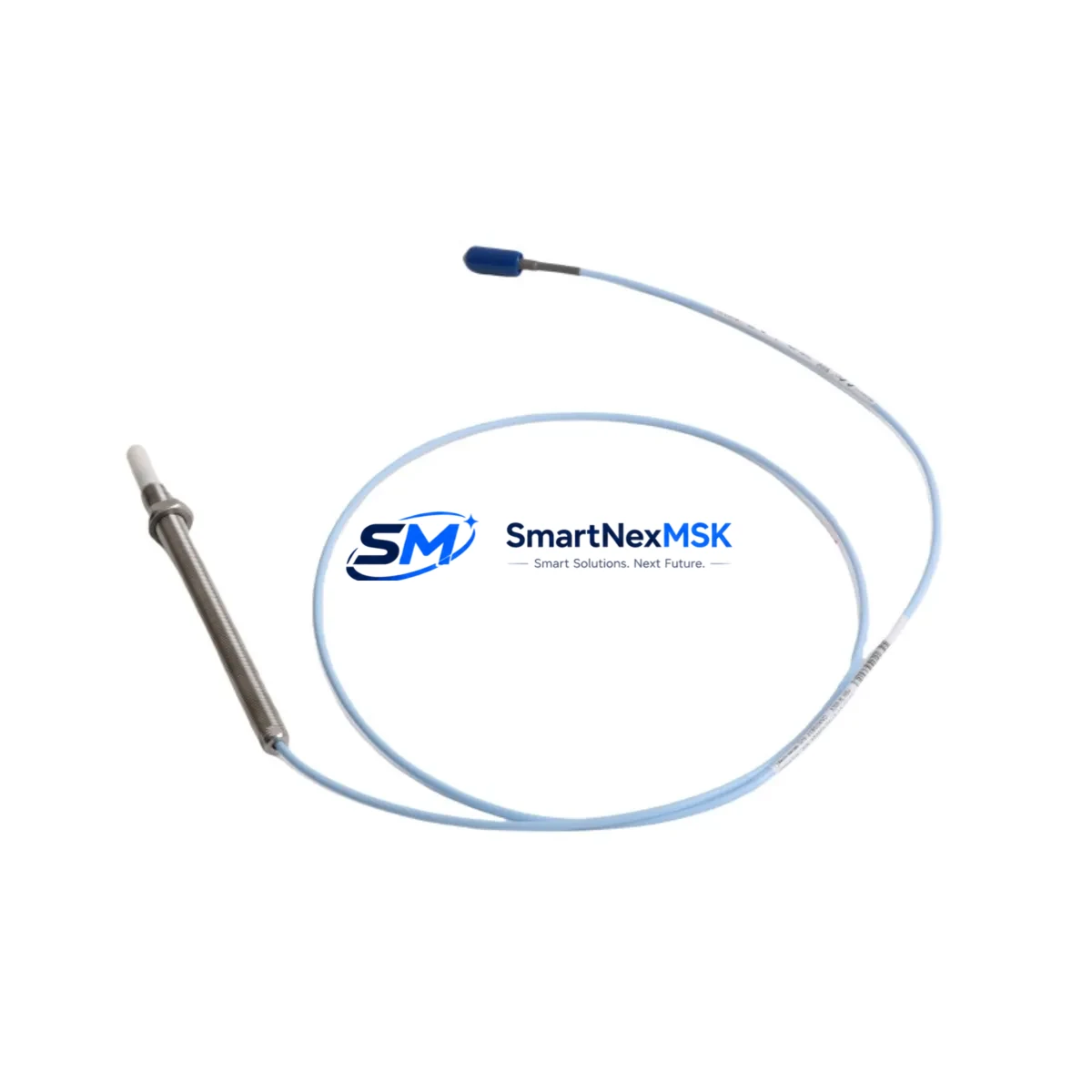

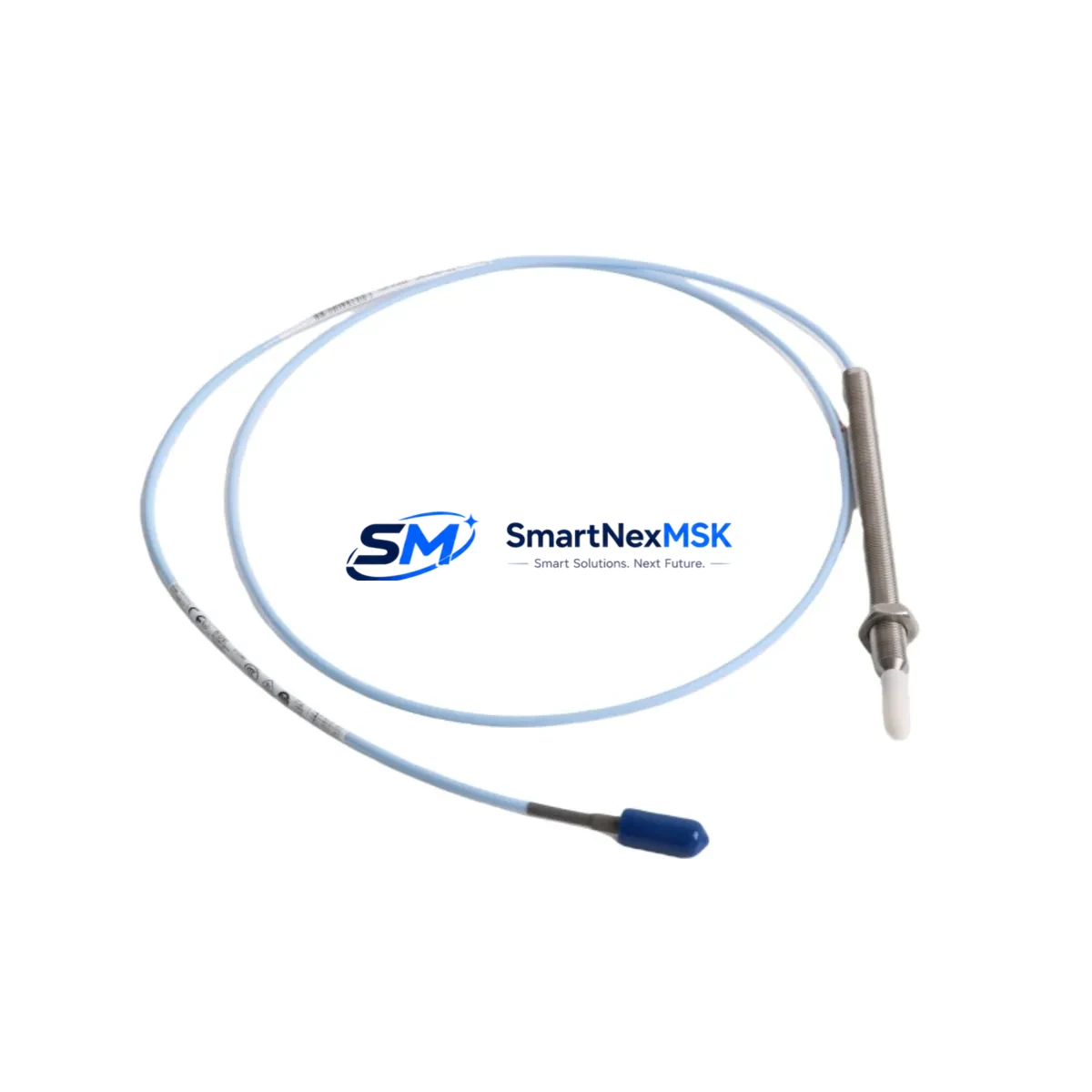

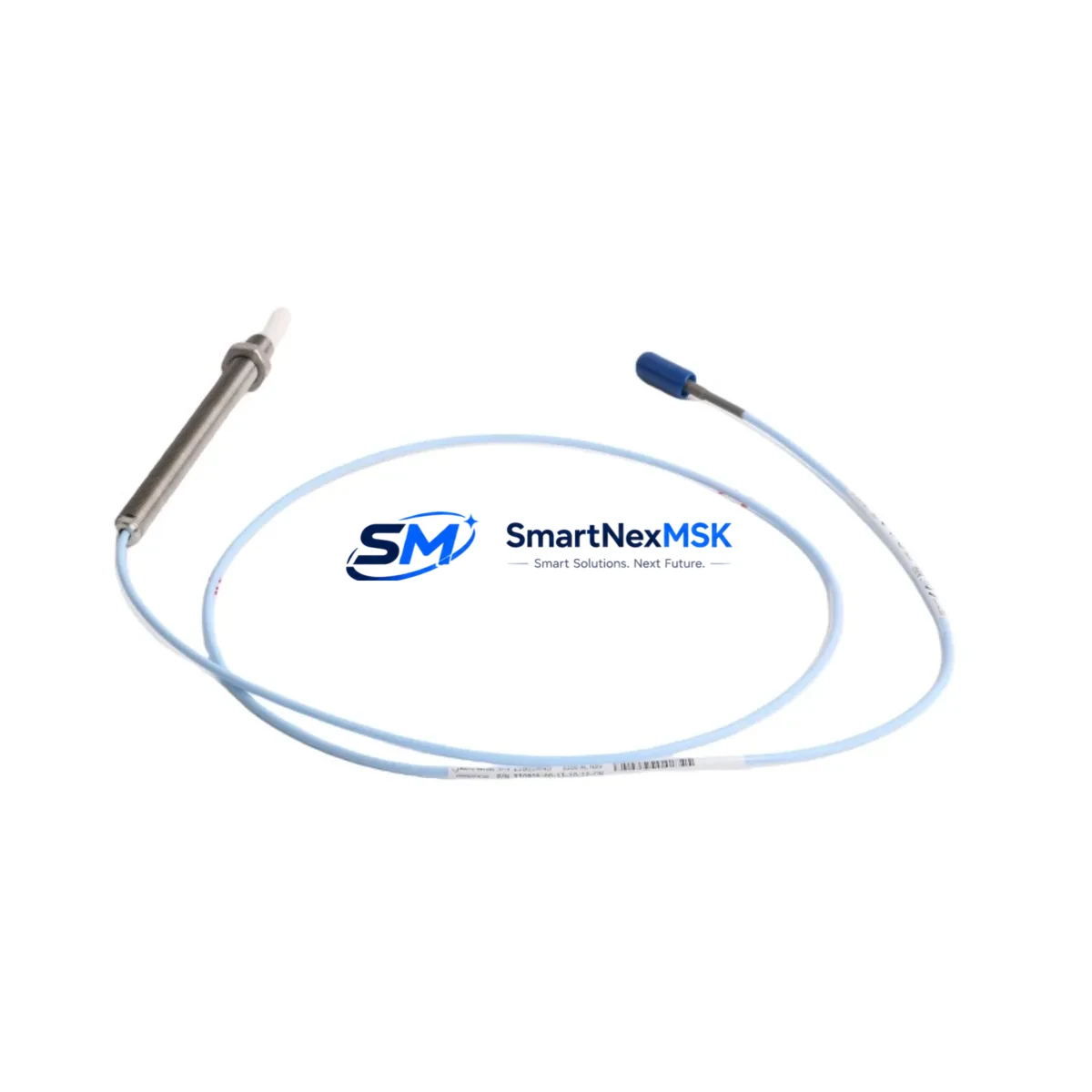

Bently Nevada 330905-00-14-10-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330905-00-14-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 330905-00-14-10-02-00 is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the Bently Nevada 3300 NSv Series, this probe is designed to deliver uninterrupted signal integrity in high-load rotating machinery, where control interruption, signal drift, or sensor failure can trigger costly unplanned shutdowns or, worse, catastrophic equipment damage.

In heavy industrial facilities — petrochemical plants, power generation stations, mining operations, steel mills, and continuous-process manufacturing lines — the reliability of proximity measurement directly determines the safety of the entire control loop. The 330905-00-14-10-02-00 addresses this challenge with a hardened stainless-steel housing, a 14 mm probe tip diameter, and a 10-foot (3 m) integral cable, providing stable eddy-current sensing across the full operating temperature range without recalibration drift. Its ruggedized construction resists mechanical shock, vibration-induced fatigue, and chemical exposure common in harsh field installations.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection system, the 330905-00-14-10-02-00 probe does not operate in isolation — it is the front-line sensing element in a layered protection architecture. The probe connects to a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 driver), which conditions the raw eddy-current signal into a clean DC voltage proportional to gap distance. This conditioned signal feeds directly into a Bently Nevada 3500/42M Proximitor I/O Module housed in the 3500 rack, where vibration and position alarms are processed against configurable trip setpoints.

Within the same control cabinet, the 3500 rack typically integrates alongside a Bently Nevada 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to the plant DCS or SCADA system, ensuring that vibration data reaches the operator console in real time. Power to the entire rack is supplied through a Bently Nevada 3500/15 Power Supply Module, which provides redundant 24 VDC rails with surge suppression — critical for preventing power-induced module resets during grid transients or generator switching events.

For installations in hazardous classified areas (Zone 1 / Zone 2 or Class I Div 2), the probe cable is routed through a Bently Nevada 330130 Armored Extension Cable to maintain signal integrity and mechanical protection against abrasion and chemical attack. In high-interference environments near large motors or variable frequency drives, the shielded cable construction of the 330905-00-14-10-02-00 — combined with proper grounding at the Proximitor barrier — suppresses common-mode noise that would otherwise cause false vibration readings or nuisance trips.

Where the protection system interfaces with a safety instrumented system (SIS), the vibration trip output from the 3500 rack connects to a Rockwell Automation 1756-OB16I Safety Output Module or equivalent IEC 61511-compliant output card, enabling the vibration signal to participate in a SIL-rated interlock that can initiate emergency shutdown (ESD) of the rotating machine. This architecture is common in compressor trains, turbine-generator sets, and boiler feed pump systems where API 670 compliance is mandatory.

Critical Industrial Safety Applications

Petrochemical & Refinery: In centrifugal compressor trains and reactor charge pumps, the 330905-00-14-10-02-00 monitors shaft radial vibration and provides the primary trip signal to the anti-surge control system. Continuous operation in hydrogen-rich, high-temperature environments demands the probe’s sealed stainless housing and thermally stable sensitivity — any signal drift at operating temperature could mask an impending bearing failure or rotor rub event.

Power Generation: Steam turbine and gas turbine installations rely on arrays of proximity probes to monitor rotor eccentricity, differential expansion, and thrust position. The 330905-00-14-10-02-00, deployed in the journal bearing proximity probe bracket, feeds the 3500 rack with the real-time shaft position data required to prevent rotor-stator contact during startup, load transients, and emergency rundown.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, water ingress, and structural vibration. The ruggedized construction of this probe withstands the mechanical shock and contamination levels typical of mill drive end-bell installations, where conventional sensors fail prematurely and unplanned replacements cost hours of production downtime.

Water & Wastewater Treatment: High-service pumping stations and blower trains in municipal water treatment plants require continuous vibration monitoring to comply with asset management programs and avoid catastrophic pump failures that could interrupt water supply. The 330905-00-14-10-02-00 provides the long-term measurement stability needed for trending-based predictive maintenance without frequent field recalibration.

Metallurgy & Steel: Rolling mill main drives and continuous caster pinch roll assemblies subject proximity probes to intense electromagnetic interference from large DC drives and induction furnaces. The shielded integral cable and high EMI rejection of the 3300 NSv Series probe maintain clean signal output even in these electrically hostile environments, preventing false trips that would interrupt the casting sequence.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330905-00-14-10-02-00?
The 12-month warranty covers all manufacturing defects, functional failures under normal operating conditions, and sensitivity deviations outside the published specification. If the probe fails to perform within its rated linear range or exhibits cable insulation breakdown within the warranty period, a replacement unit will be dispatched. Warranty claims require the original purchase documentation and a brief failure description.

Q2: How is the probe tested before shipment?
Every 330905-00-14-10-02-00 unit undergoes pre-shipment functional verification including gap-versus-output linearity check against a calibrated AISI 4140 steel target, cable continuity and insulation resistance test, and visual inspection of the probe tip and connector. Units that do not meet Bently Nevada sensitivity and linearity specifications are rejected before packaging.

Q3: Is this probe compatible with existing 3300 and 3500 system installations?
Yes. The 330905-00-14-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor driver family and the 3500/42M Proximitor I/O module. It is a direct functional replacement for earlier 330905 series probes with the same tip diameter and cable length configuration, requiring no reconfiguration of the 3500 rack setpoints or driver gap voltage settings.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. This SKU is maintained as a stocked item with buffer inventory to support planned maintenance outages, insurance spare programs, and emergency breakdown replacements. Orders can be fulfilled for single units or in bulk quantities for site spare kits. Lead time for in-stock units is typically 1–3 business days for international express shipment.
