Bently Nevada 330905-00-14-10-02-CN Safety Proximity Probe

Bently Nevada 330905-00-14-10-02-CN Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

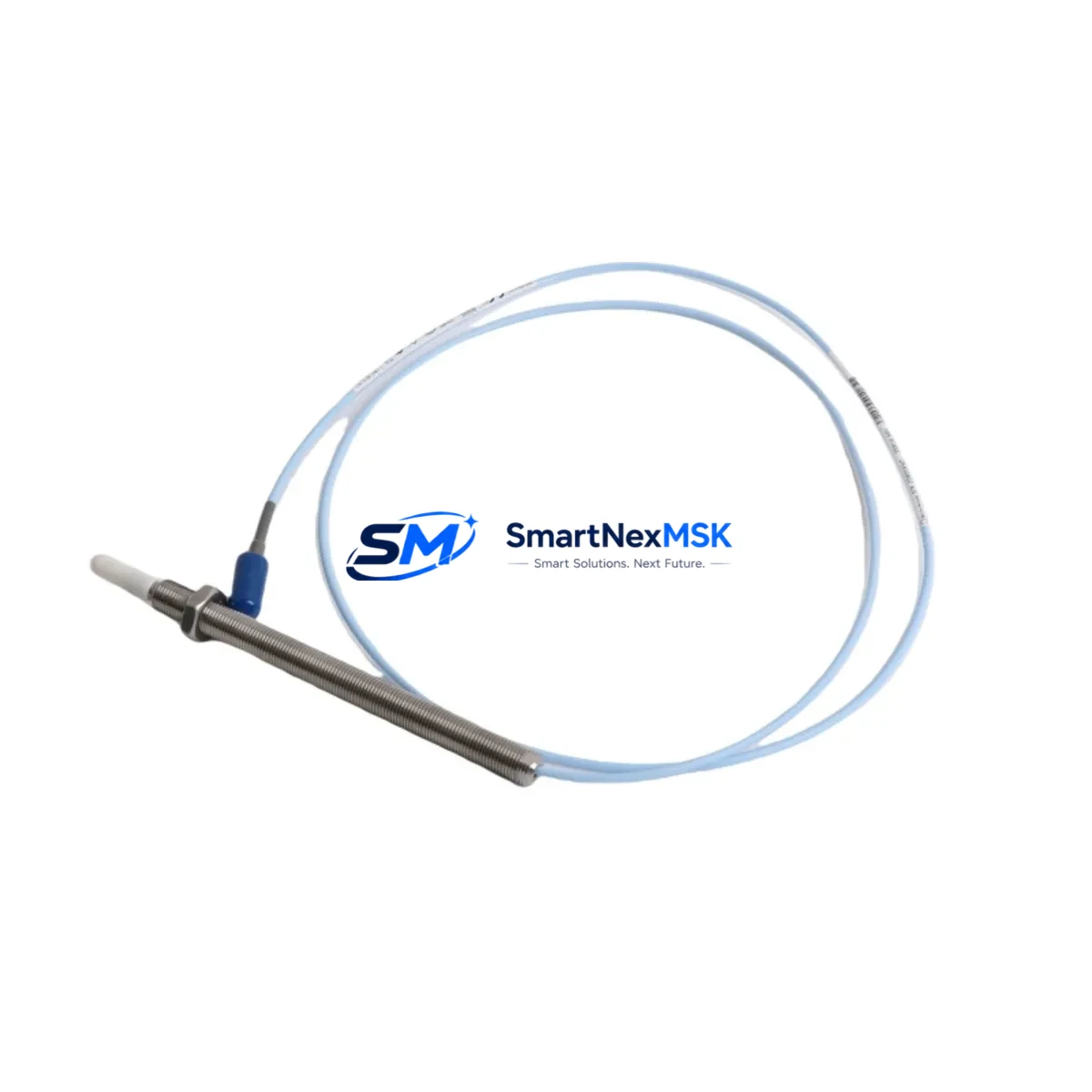

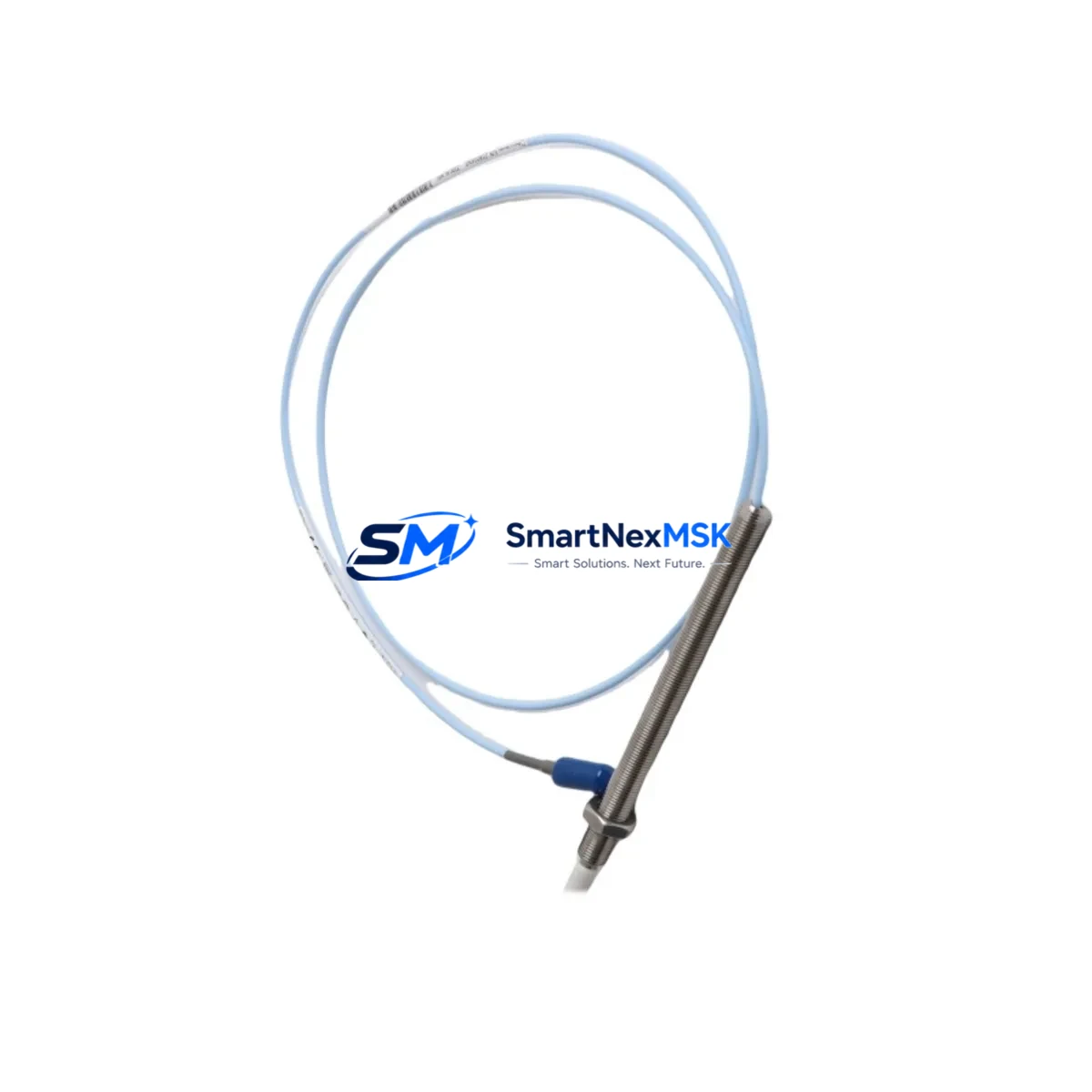

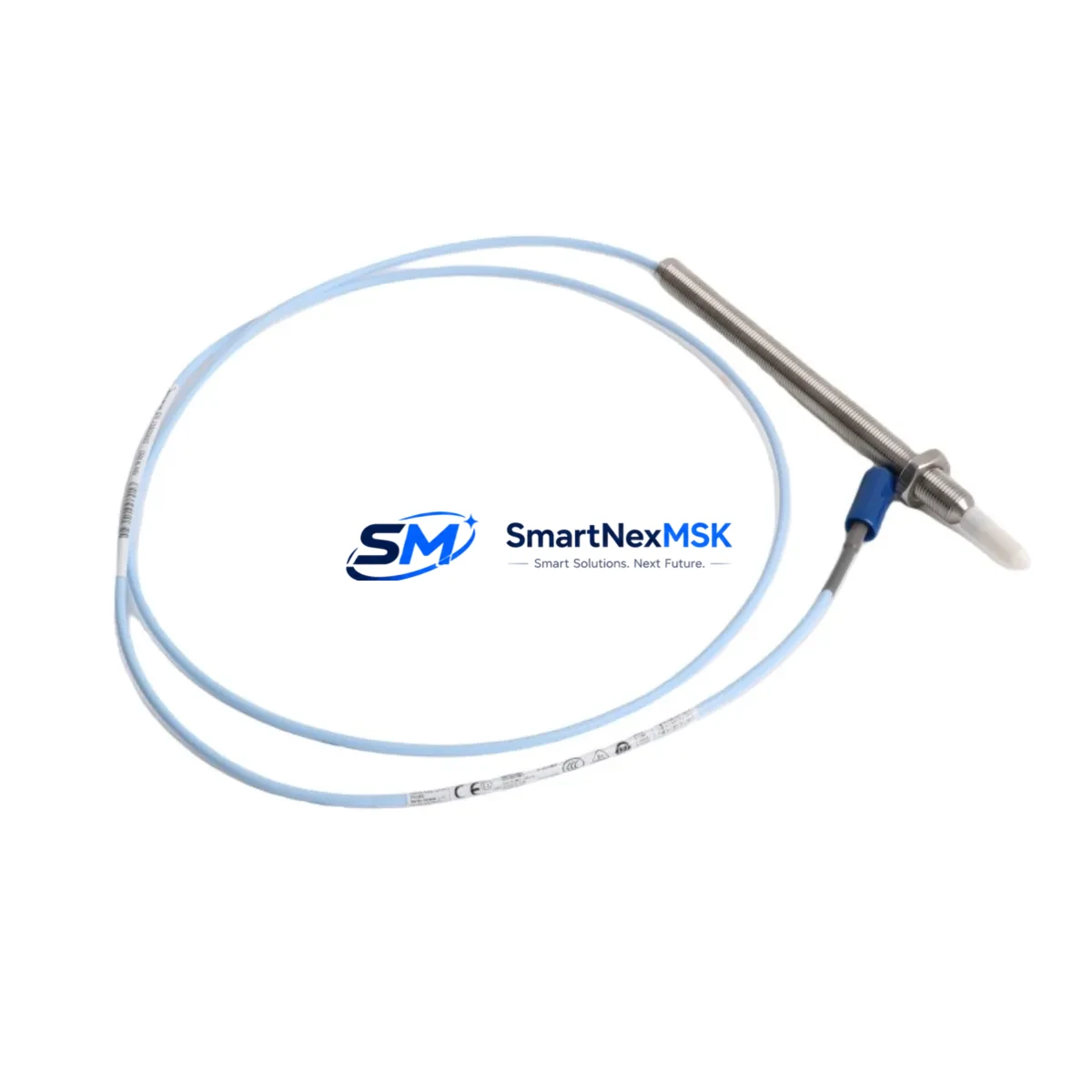

The Bently Nevada 330905-00-14-10-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 NSv Series, engineered to deliver continuous, safety-grade shaft vibration and position monitoring in the most demanding industrial environments. Designed for integration into critical machinery protection systems, this probe is a cornerstone component in rotating equipment safety loops across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and continuous-process manufacturing lines.

In high-stakes industrial control cabinets where signal integrity is non-negotiable, the 330905-00-14-10-02-CN provides stable, low-noise output that feeds directly into Bently Nevada 3300/16 Proximitor® Sensor signal conditioning modules and System 1 machinery health monitoring platforms. Its ruggedized construction resists electromagnetic interference (EMI), radio-frequency interference (RFI), and the mechanical vibration inherent to heavy rotating machinery — ensuring that shaft displacement readings remain accurate even under extreme load cycling and thermal stress.

Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional verification, including output linearity checks, gap voltage calibration, and insulation resistance testing, ensuring the probe performs to OEM specification from the moment it is installed. A 12-month warranty covers all units against manufacturing defects, giving maintenance engineers and procurement teams the confidence to specify this part for both planned replacements and emergency shutdowns.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection cabinet, the 330905-00-14-10-02-CN probe does not operate in isolation. It forms the sensing front-end of a layered protection architecture. The probe’s coaxial signal is conditioned by the Bently Nevada 3300/16 Proximitor® Sensor, which converts the raw eddy-current gap voltage into a calibrated 4–20 mA or voltage output suitable for the Bently Nevada 3500/42M Proximitor®/Seismic Monitor — the primary relay-trip module in most API 670-compliant turbomachinery protection panels.

To protect the signal chain from power-line transients and surge events, the control cabinet should incorporate Phoenix Contact TRABTECH surge protection devices on both the DC supply rails and the signal wiring entering the Proximitor module. Upstream, a Bently Nevada 3500/15 Power Supply or equivalent redundant 24 VDC rail with active current limiting ensures that voltage sags during motor starts do not cause false trips or Proximitor resets — a common source of nuisance shutdowns in heavy industrial facilities.

For installations in classified hazardous areas (Zone 1 gas groups), the probe circuit must be routed through Pepperl+Fuchs or MTL Zener safety barriers or galvanic isolators to maintain intrinsic safety (IS) compliance. The Bently Nevada 3300 XL Extension Cable — matched in impedance to the 330905-00-14-10-02-CN — should be used to maintain system scale factor accuracy over the full cable run, preventing the signal drift that can occur when mismatched third-party cables are substituted.

At the communication layer, the 3500 rack’s Bently Nevada 3500/22M Transient Data Interface (TDI) module enables high-speed waveform capture and Modbus/TCP or OPC-DA data export to the plant DCS or historian — typically a Honeywell Experion PKS or Emerson DeltaV system — allowing operations teams to trend shaft centerline position and detect early-stage bearing wear before it escalates to a forced outage. Complementing this, the Bently Nevada 3500/92 Communication Gateway provides seamless integration into Ethernet-based plant networks without compromising the deterministic response time of the protection relay logic.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330905-00-14-10-02-CN is widely specified for radial shaft vibration monitoring on centrifugal compressors, boiler feed pumps, and crude charge pumps in API 670-governed machinery protection systems. In these environments, an undetected rotor rub or bearing failure can trigger catastrophic seal failures and hydrocarbon releases. The probe’s high-temperature rating (up to 177 °C at the tip) makes it suitable for hot-section compressor trains without derating.

Power Generation: Steam turbine and gas turbine protection systems rely on proximity probes for both radial vibration and axial position (thrust) monitoring. The 330905-00-14-10-02-CN, paired with the Bently Nevada 3500/45 Position Monitor, provides the dual-channel redundancy required by IEC 61511 SIL 2 safety instrumented systems in combined-cycle power plants.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and wide temperature swings. The IP67-rated probe body and ruggedized cable jacket of the 330905-00-14-10-02-CN resist abrasive particulate contamination, maintaining reliable gap measurement even in the harshest mineral processing environments.

Water & Wastewater Treatment: High-capacity vertical turbine pumps and blower trains in municipal water infrastructure require continuous vibration monitoring to prevent unplanned outages that could disrupt public water supply. The probe’s compatibility with the Bently Nevada 3500/46M Hydro Monitor makes it a natural fit for pump protection panels in water treatment facilities.

Metallurgy & Steel: Rolling mill drive trains, converter vessel tilting drives, and continuous caster pinch rolls operate under extreme mechanical shock and electromagnetic noise from large variable-frequency drives (VFDs). The shielded coaxial construction of the 330905-00-14-10-02-CN provides the EMI immunity necessary to maintain signal integrity in these electrically hostile environments.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the 330905-00-14-10-02-CN?
All units carry a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, calibration failures, and premature component failure under normal operating conditions. Warranty claims are processed within 5 business days, with replacement units dispatched from stock to minimize your downtime.

Q2: What pre-shipment testing is performed on each probe?
Every 330905-00-14-10-02-CN undergoes a multi-point inspection before dispatch: output linearity verification across the full measurement range, gap voltage calibration against a reference target, coaxial connector integrity check, and cable insulation resistance measurement. A test report is available upon request for critical installations requiring full traceability documentation.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330905-00-14-10-02-CN is a direct OEM-equivalent replacement for all 3300 NSv Series probe positions. It is fully compatible with the 3300/16 Proximitor® Sensor, the 3500/42M, 3500/45, and 3500/46M monitors, and the standard 3300 XL extension cable system. No recalibration of the Proximitor module is required when replacing a like-for-like probe in the same gap position.

Q4: Can SMARTNEXMSK support long-term or blanket-order supply for maintenance programs?
Yes. SMARTNEXMSK maintains buffer stock of the 330905-00-14-10-02-CN and related 3300 NSv Series components to support planned maintenance schedules, annual turnarounds, and emergency spare requirements. Contact our team to discuss consignment stock arrangements, lead-time commitments, and volume pricing for multi-site maintenance programs.
