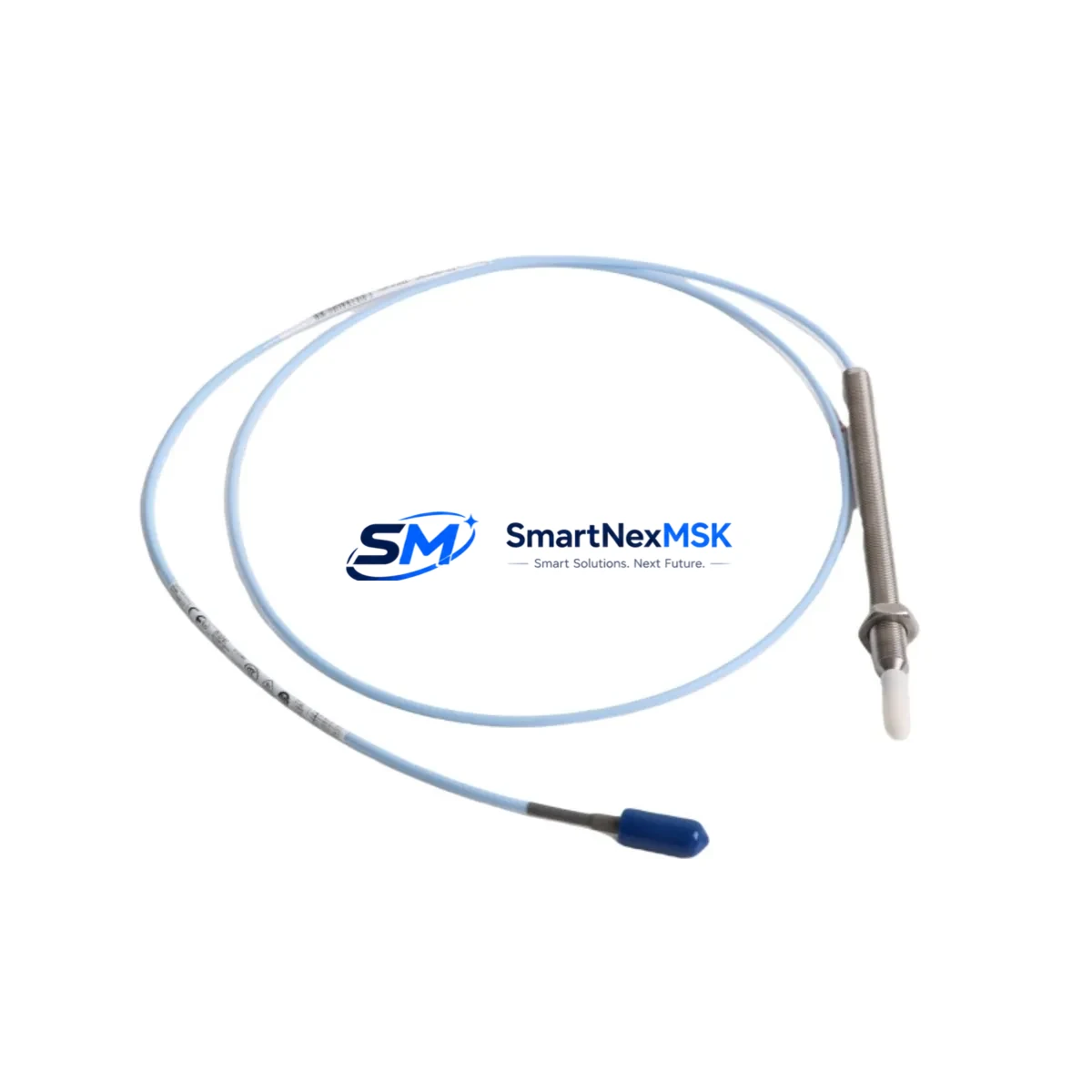

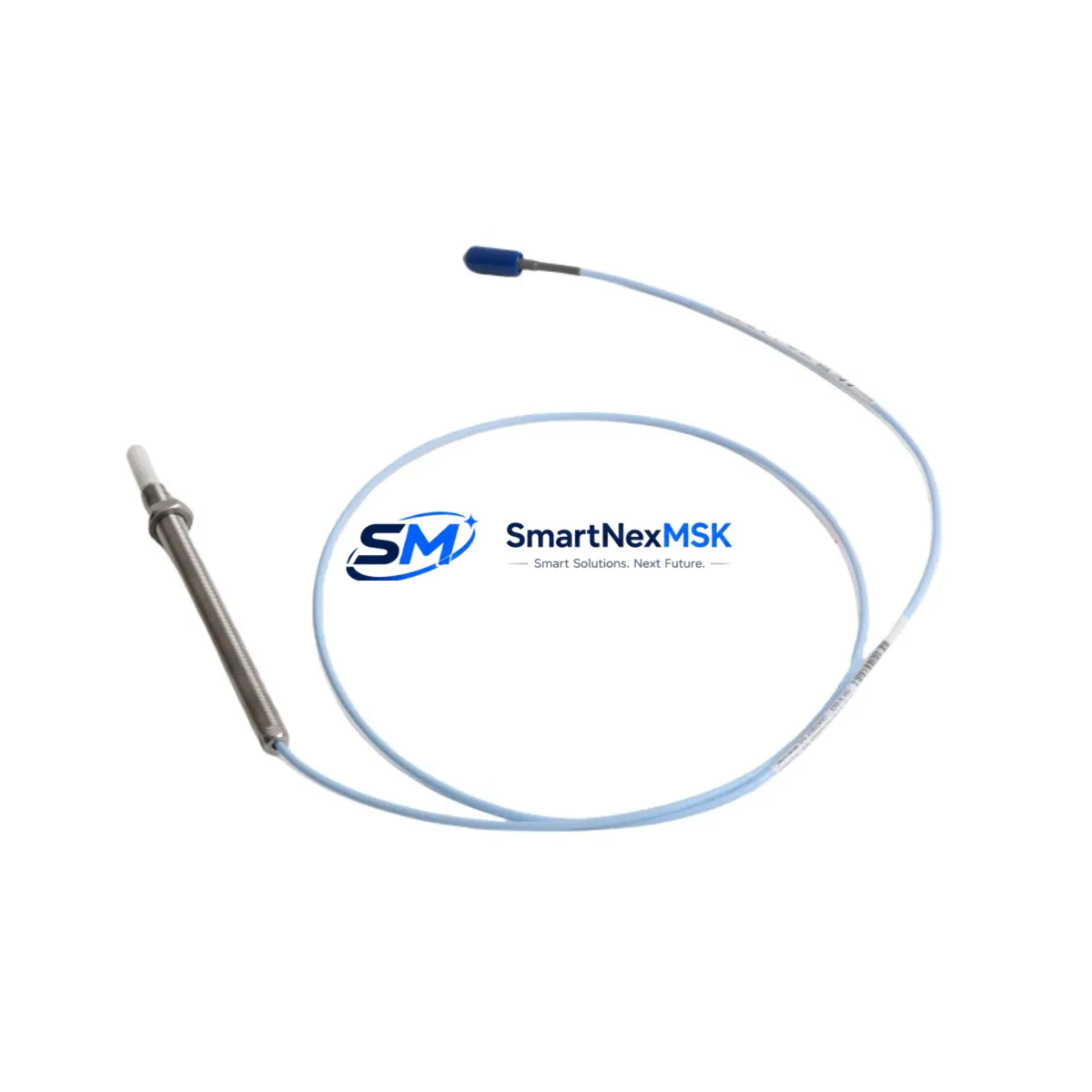

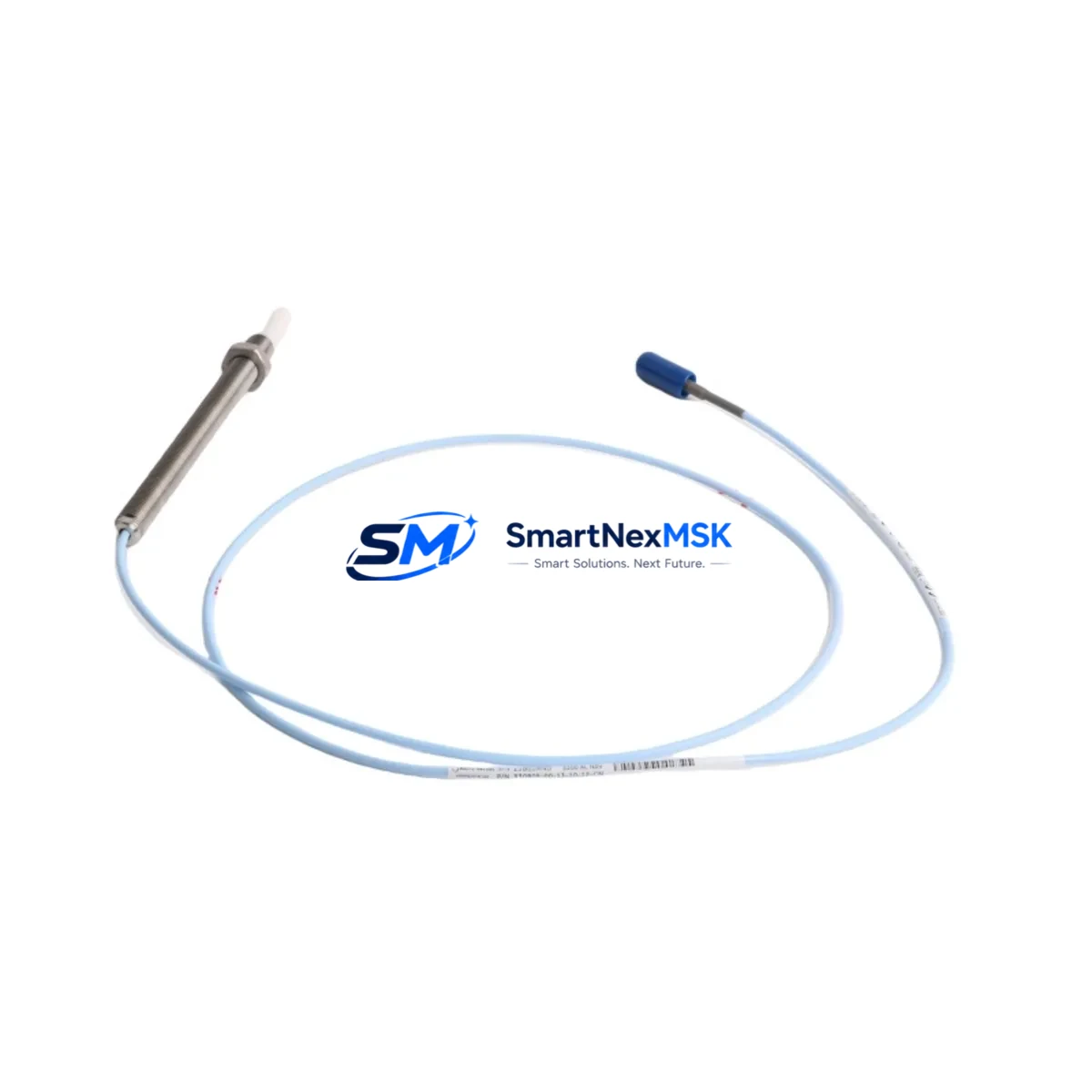

Bently Nevada 330905-00-16-10-02-00 Safety Proximity Probe

Bently Nevada 330905-00-16-10-02-00 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330905-00-16-10-02-00 is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical shaft monitoring in the most demanding industrial environments. As part of the Bently Nevada 3300 NSv Series, this transducer delivers high-resolution, non-contact displacement measurement with exceptional immunity to electromagnetic interference, mechanical vibration, and extreme temperature cycling — making it a cornerstone component in turbine protection systems, compressor train monitoring, and critical rotating machinery safety loops.

In high-load, high-interference production facilities — including petrochemical plants, power generation stations, mining operations, and continuous steel mills — control interruption caused by signal drift, power fluctuation, or sensor misoperation can trigger catastrophic shutdowns or safety incidents. The 330905-00-16-10-02-00 is specifically designed to eliminate these failure modes. Its hardened stainless steel housing and reinforced cable assembly resist chemical exposure, moisture ingress, and mechanical shock, while the precision-wound coil maintains stable output across the full operating range without recalibration drift.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered rotating machinery protection system, the Bently Nevada 330905-00-16-10-02-00 probe operates as the primary sensing element within a tightly integrated signal chain. It is paired with the Bently Nevada 3300 XL 8mm Proximitor® Sensor — a signal conditioning driver that converts the raw impedance change from the probe into a calibrated DC voltage output, typically ranging from −24 VDC to 0 VDC. This driver is mounted inside the control cabinet or junction box, where it is protected from field-level electrical noise.

The conditioned signal is then routed to a Bently Nevada 3500 Series Monitoring Rack, such as the 3500/40M Proximitor®/Seismic Monitor or the 3500/42M Proximitor®/Seismic Monitor, which processes the displacement data in real time and triggers relay outputs for alarm and danger setpoints. To protect the entire signal chain from power-line transients and voltage surges — a common risk in heavy industrial environments with large motor starts and arc flash events — a dedicated Bently Nevada 3500/15 Power Supply Module with redundant input capability is recommended within the same rack assembly.

For installations in hazardous classified areas (Zone 1 or Zone 2 per IEC 60079, or Class I Division 1/2 per NEC), the probe system must be used in conjunction with a certified Zener Barrier or Galvanic Isolator — such as the MTL 787S+ or equivalent — installed between the field device and the safe-area monitoring equipment. This ensures intrinsic safety compliance and prevents ignition risk from electrical faults propagating into the hazardous zone.

Within the same control cabinet, the Bently Nevada 3500/20 Rack Interface Module (RIM) provides the communication gateway between the protection rack and the plant DCS or safety instrumented system (SIS), supporting Modbus RTU, Ethernet/IP, or Profibus DP depending on configuration. For plants running Emerson Ovation DCS or DeltaV SIS platforms, this integration ensures that shaft displacement data is available at the operator workstation and historian in real time, enabling predictive maintenance decisions before a dangerous vibration threshold is reached.

Cable routing from the probe to the Proximitor® driver should use dedicated shielded conduit, segregated from high-voltage power cables, to prevent induced noise from variable frequency drives (VFDs), large contactors, or welding equipment — all common interference sources in steel mills, cement plants, and port crane facilities. Proper grounding of the cable shield at a single point (typically at the driver end) is essential to avoid ground loop currents that can cause signal offset errors and false alarms.

Critical Industrial Safety Applications

The Bently Nevada 330905-00-16-10-02-00 proximity probe is deployed across a wide range of safety-critical rotating machinery applications in heavy industry:

Petrochemical & Refinery Plants: Installed on centrifugal compressors, steam turbines, and boiler feed pumps in API 670-compliant machinery protection systems. Continuous shaft radial vibration and position monitoring prevents bearing failure, rotor rub, and unplanned process shutdowns in high-pressure hydrocarbon service.

Power Generation: Used on gas turbine generator sets, steam turbine LP/HP rotors, and boiler circulating pumps. The probe’s high-temperature rating (up to +177°C) makes it suitable for hot-section installations where conventional sensors would fail. Integration with the 3500 Series rack enables automatic turbine trip on overspeed or high vibration events.

Mining & Mineral Processing: Applied to large ball mill drives, SAG mill pinion bearings, and slurry pump shafts in environments with extreme dust loading, water spray, and mechanical shock. The IP67 rating and stainless steel housing ensure long service life without frequent replacement.

Water & Wastewater Treatment: Monitors shaft position on large vertical turbine pumps and blower units in municipal and industrial water treatment facilities. Early detection of shaft deflection or bearing wear prevents catastrophic pump failure and service interruption.

Metallurgy & Steel Production: Deployed on rolling mill main drives, continuous caster pinch rolls, and converter vessel tilt drives. The probe withstands the intense electromagnetic interference generated by large DC drives and induction furnaces common in steel plant environments.

Port & Heavy Lifting Equipment: Used in crane hoist gearbox monitoring and ship-loader drive systems where continuous operation under variable load is required. The probe’s robust construction tolerates the vibration and shock loads inherent in port material handling operations.

Safety and Quality FAQ

Q1: What warranty does the 330905-00-16-10-02-00 carry, and what does it cover?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, calibration drift beyond specification, and premature component failure under normal operating conditions. Defective units are replaced or repaired at no charge, including return freight. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
Every Bently Nevada 330905-00-16-10-02-00 probe undergoes pre-shipment functional verification including output sensitivity check (7.87 V/mm ±0.25%), cable continuity and insulation resistance test, and visual inspection for housing integrity and connector condition. Units sourced as surplus new are additionally tested for coil impedance and gap response linearity before being released to stock. Test records are available upon request.

Q3: Is this probe compatible with my existing 3300 or 3500 Series system?
Yes. The 330905-00-16-10-02-00 is fully compatible with the Bently Nevada 3300 XL 8mm Proximitor® Sensor driver and all 3500 Series monitor modules that accept 8mm probe inputs, including the 3500/40M, 3500/42M, 3500/45, and 3500/46M. It is a direct drop-in replacement for any existing 330905-series probe in the same mounting configuration. No reconfiguration of the monitor rack is required.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains standing inventory of the 330905-00-16-10-02-00 and related 3300 NSv Series components to support both planned maintenance programs and emergency breakdown situations. Same-day or next-day dispatch is available for in-stock units. For customers with critical spare parts programs, we offer reserved stock agreements and consignment arrangements to ensure availability when it matters most. Contact our team at sales@smartnexmsk.com or +86 18259474341 to discuss your supply requirements.
