Bently Nevada 330905-00-17-10-02-05 3300 NSv Spare Probe

Bently Nevada 330905-00-17-10-02-05 3300 NSv Spare Probe: Maintenance-Ready Replacement for Continuous Vibration Monitoring

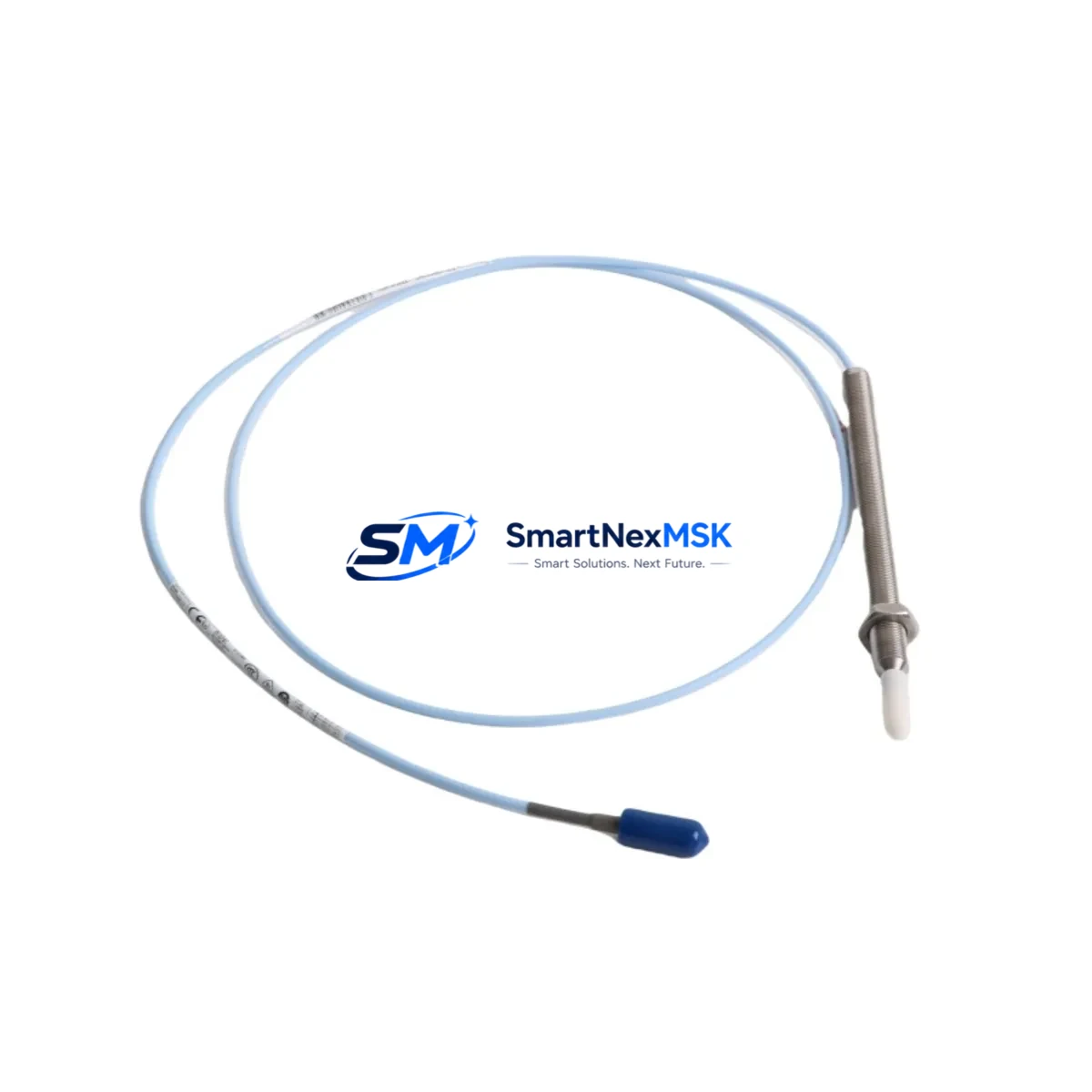

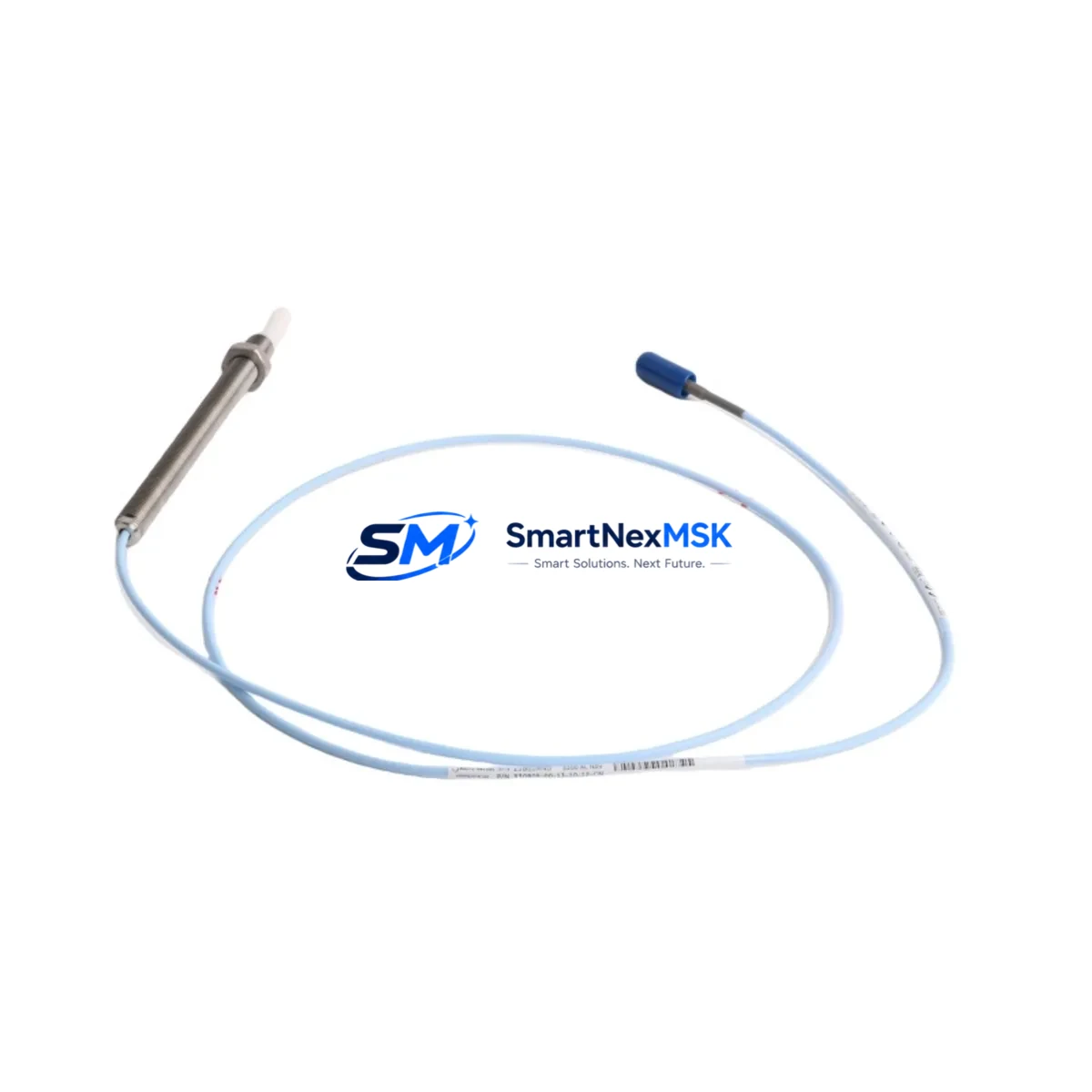

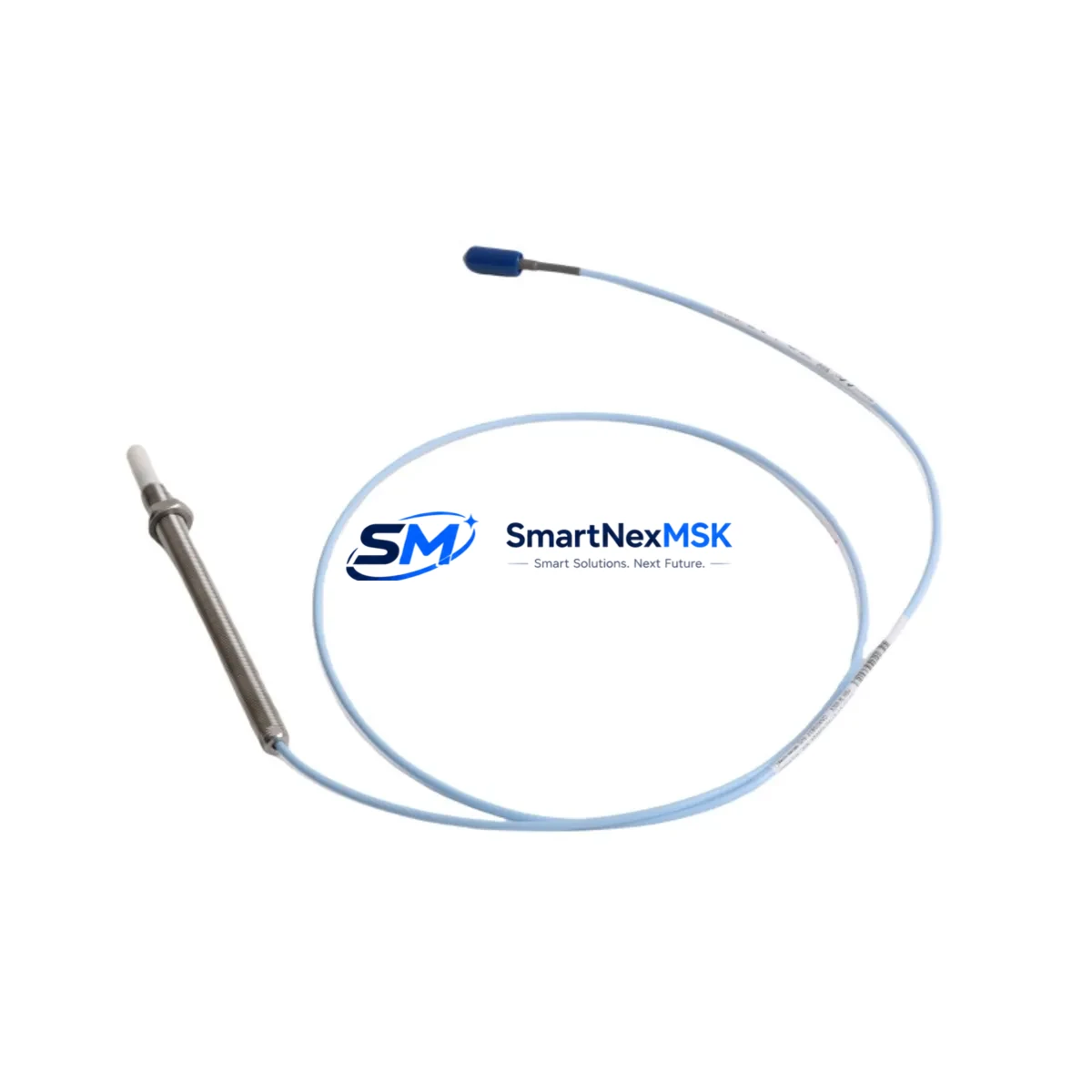

The Bently Nevada 330905-00-17-10-02-05 is an 8mm eddy current proximity probe designed for the 3300 NSv Non-contacting Vibration measurement system. This original-specification spare is engineered for direct field replacement in rotating machinery protection systems, including steam turbines, gas compressors, centrifugal pumps, and large induction motors where shaft vibration and axial position monitoring are critical to safe, continuous operation.

For maintenance engineers managing predictive maintenance programs or responding to unplanned shutdowns, having a verified, tested replacement probe on the shelf is the single most effective way to minimize mean time to repair (MTTR). The 330905-00-17-10-02-05 ships fully tested against Bently Nevada 3300 NSv system specifications, with calibration documentation included, so your team can proceed directly to installation without bench verification delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330905-00-17-10-02-05 proximity probe is flagged for replacement — whether due to a gap voltage drift alarm, physical cable damage, or a scheduled calibration interval — experienced maintenance engineers treat the event as an opportunity to inspect the entire vibration measurement loop. The 3300 NSv system is a chain of matched components, and a fault in any link can produce misleading readings or a spurious trip that takes a critical machine offline.

Begin by verifying the 3300 NSv extension cable (typically the 330130 series) for jacket integrity, connector corrosion, and continuity. Extension cables routed through conduit near heat sources or subject to repeated flexing are a common secondary failure point. Next, inspect the 3300 NSv driver/oscillator-demodulator (such as the 330180 or 330185 series) mounted in the monitor rack — check the output voltage at the OK relay and confirm the gap voltage is within the –10 VDC to –18 VDC linear range before declaring the new probe serviceable.

At the monitor rack level, confirm that the 3500/22M Transient Data Interface or the 3300/20 Monitor channel card is not showing a latched fault that predates the probe failure. A channel card with a degraded input impedance can destroy a new probe within hours of installation. If the plant runs a 3500 Series rack, verify that the I/O module termination board is clean and that the barrier or isolator — often a Bently Nevada 3500/92 Communication Gateway or a third-party Zener barrier — is within its rated service life.

For facilities operating in hazardous areas (Zone 1 or Zone 2), confirm that the intrinsic safety barrier or galvanic isolator associated with this probe channel is certified for the installation class and that its entity parameters remain compatible with the 330905-00-17-10-02-05 probe’s capacitance and inductance values. Mismatched barriers are a frequent cause of nuisance OK-relay dropouts after probe replacement.

While the machine is offline for probe replacement, it is best practice to also inspect the Keyphasor probe (commonly the 330980 or 330850 series) and its associated driver, since Keyphasor signal quality directly affects phase-referenced vibration analysis. Check the thrust position probe channel as well — on axial-thrust-sensitive machines such as centrifugal compressors, a simultaneous thrust probe replacement during the same outage window eliminates a second planned shutdown. Finally, verify the condition of the terminal strip and field wiring inside the junction box, and confirm that the power supply module feeding the monitor rack (typically a 3500/15 Power Supply) is delivering stable ±24 VDC within tolerance.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Record the existing gap voltage on the channel being replaced. Compare against the original commissioning baseline. A gap voltage outside –10 to –18 VDC with the shaft at the design operating position confirms probe or cable failure rather than a process anomaly.

Step 2 — Isolation and lockout: Follow site LOTO procedures. De-energize the monitor channel. Do not remove the probe under pressure if installed in a pressurized lube oil or seal gas environment — confirm with operations that the machine is fully depressurized and cooled.

Step 3 — Physical removal: Unscrew the probe from the probe holder using the correct spanner. Inspect the probe holder threads and the target area on the shaft for fretting, corrosion, or mechanical damage. A damaged target surface will degrade the performance of the new probe regardless of its condition.

Step 4 — Installation of 330905-00-17-10-02-05: Thread the new probe into the holder finger-tight, then back off to achieve the correct air gap (typically 1.0 mm / 40 mil for 8mm probes on steel targets — confirm against the original commissioning sheet). Secure the locknut. Route the integral cable to the junction box, avoiding sharp bends and heat sources.

Step 5 — System verification: Re-energize the channel. Confirm gap voltage is within the linear range. Verify the OK relay is energized. Perform a static calibration check if required by site procedures. Document the new gap voltage in the maintenance management system (CMMS) as the new baseline.

Step 6 — Return to service: Clear any latched alarms at the monitor. Confirm with the control room that the channel is healthy before releasing the machine for startup. Retain the removed probe for failure analysis if the root cause of the fault has not been established.

Spare Parts Support FAQ

Q1: Is the 330905-00-17-10-02-05 compatible with both the 3300 NSv and the 3500 Series monitor racks?
The 330905-00-17-10-02-05 is natively designed for the 3300 NSv system. It can be used with 3500 Series racks when paired with the appropriate 3500 Series I/O module and termination board configured for 3300 NSv-compatible probes. Always verify the monitor channel configuration and entity parameters before installation in a 3500 rack.

Q2: What is included with the shipment, and how is the probe tested before dispatch?
Each 330905-00-17-10-02-05 unit is inspected for physical integrity, connector condition, and cable continuity. Gap voltage output is verified against the 3300 NSv linear range specification. A test report is included with the shipment. The unit is packed in anti-static, shock-resistant packaging suitable for international freight.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Avoid storage near strong magnetic fields or sources of mechanical vibration. Inspect the connector and cable jacket annually. The recommended maximum shelf life before in-service verification is 5 years from the manufacture date.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, premature electrical failure under normal operating conditions, and out-of-specification gap voltage output at the time of installation. Warranty claims are initiated by contacting our technical support team with the order number, installation date, and a description of the fault. Physical damage caused by incorrect installation, over-torquing, or target surface contact is not covered. Replacement units are dispatched within 3 business days of claim approval.
