Bently Nevada 330905-00-18-05-02-05 Safety Proximity Transducer

Bently Nevada 330905-00-18-05-02-05 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

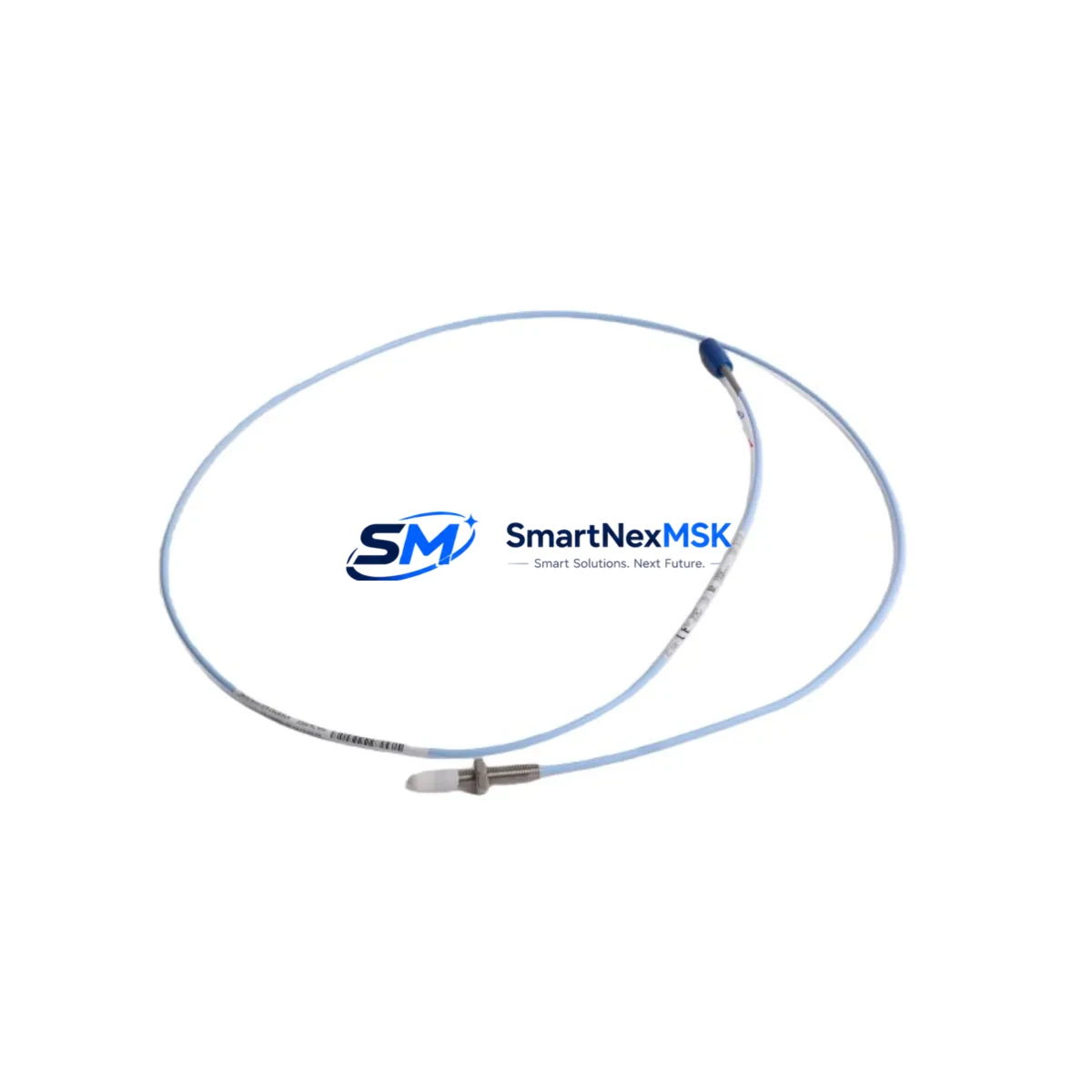

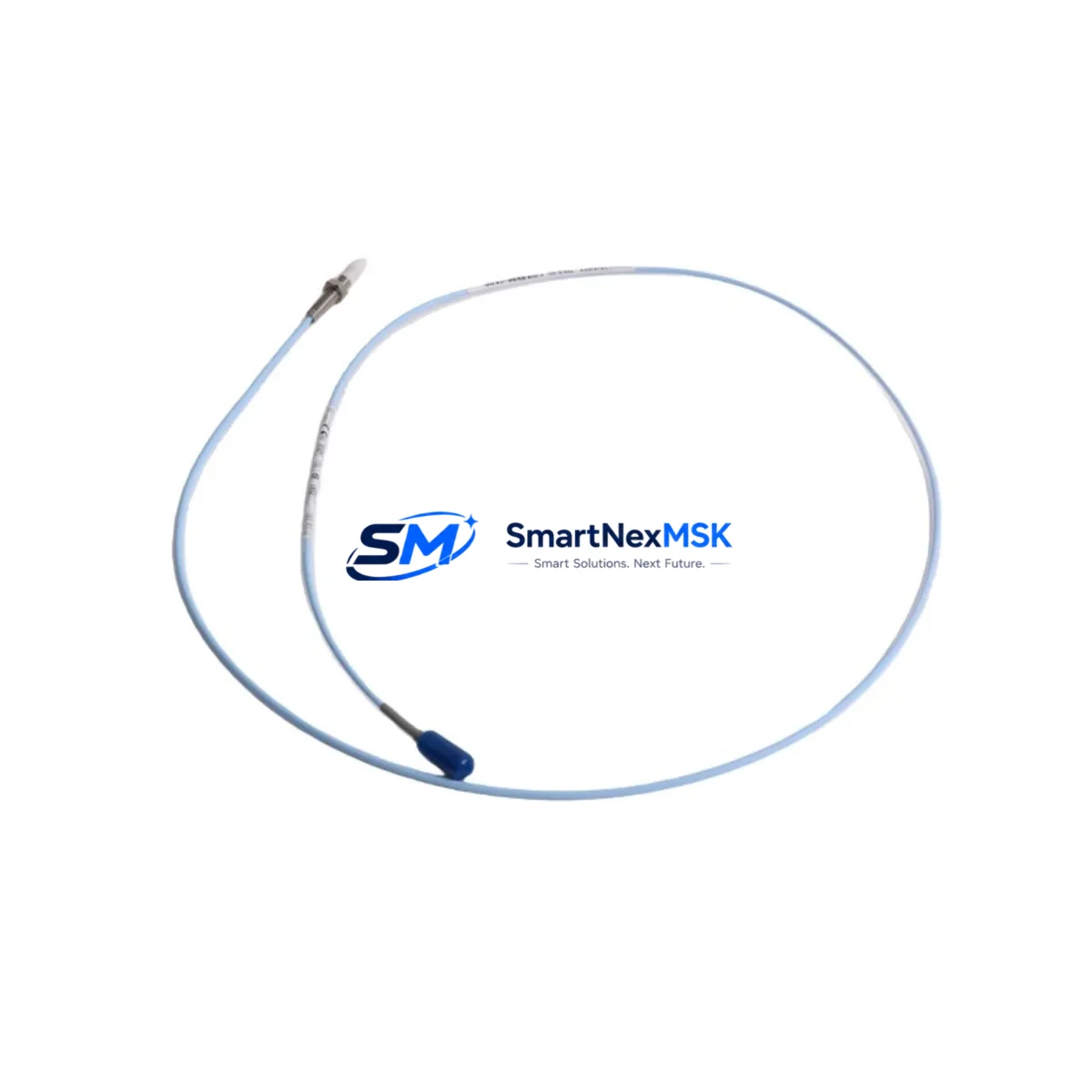

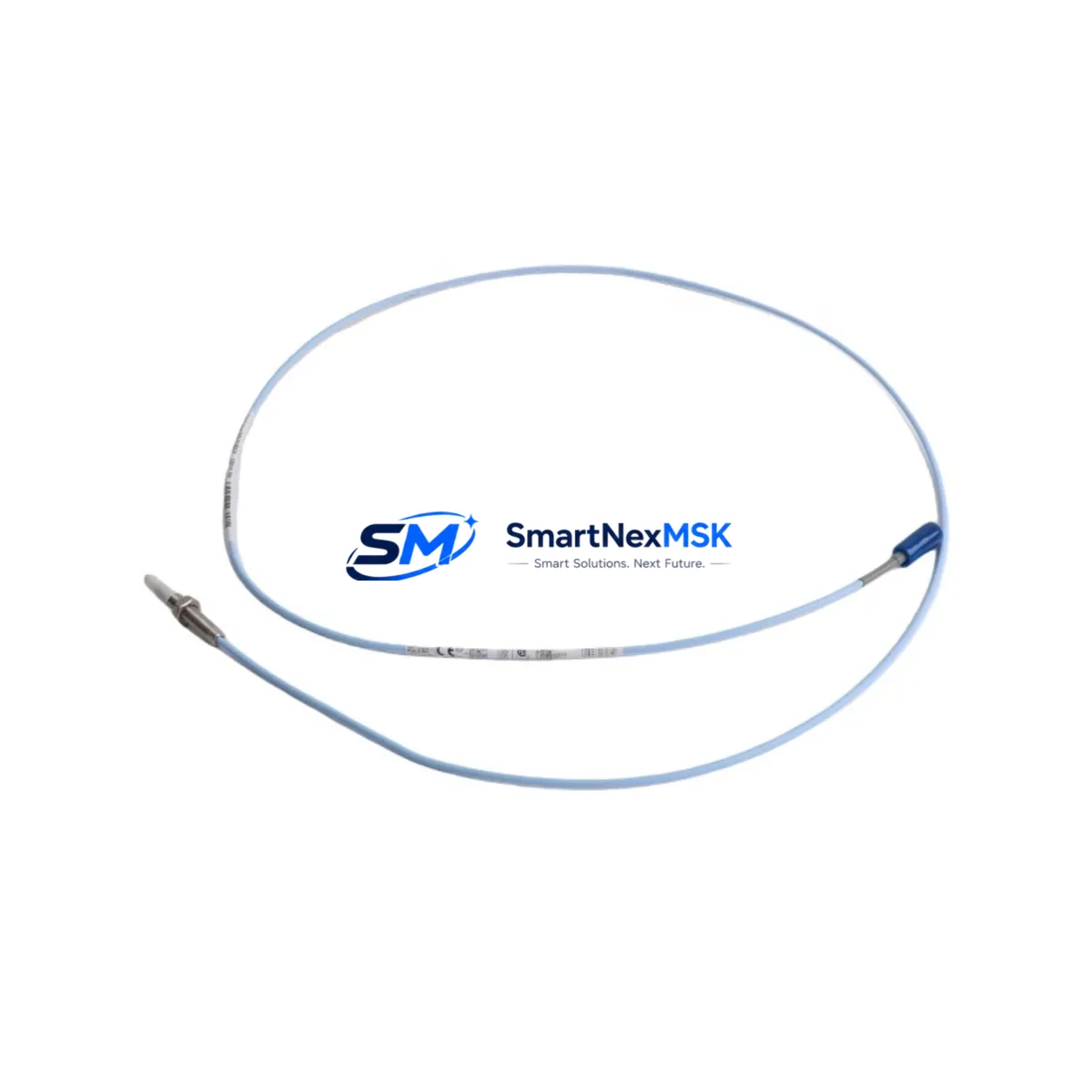

The Bently Nevada 330905-00-18-05-02-05 is a ruggedized 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably inside high-voltage control cabinets, rotating machinery enclosures, and critical interlock loops, this transducer delivers stable, drift-free output signals even under severe electromagnetic interference, mechanical shock, and wide thermal cycling. Its robust construction directly reduces the risk of control interruption, signal drift, module misoperation, and unplanned field shutdowns — making it a cornerstone component for any plant-wide machinery protection strategy.

At SMARTNEXMSK, every unit of the 330905-00-18-05-02-05 undergoes pre-shipment functional testing and is supplied with a 12-month warranty, ensuring your maintenance team receives a verified, field-ready spare that can be installed with confidence during planned or emergency turnarounds.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection architecture, the 330905-00-18-05-02-05 proximity transducer does not operate in isolation. It functions as the primary sensing element within a tightly integrated signal chain that begins at the shaft surface and terminates at the safety logic layer. The transducer pairs directly with the Bently Nevada 330180-91-00 3300 XL 8mm Driver, which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500/42M Proximitor Monitor housed in the 3500 Rack. The rack’s backplane distributes power and communication across all installed monitor cards, including the 3500/20 Rack Interface Module and 3500/22M Transient Data Interface, which together enable real-time vibration trending and event capture.

To protect the entire signal path from power-line surges and ground loops — common failure modes in heavy industrial sites — the control cabinet should incorporate Phoenix Contact TRABTECH surge protection devices on the 24 VDC supply rails feeding the Bently Nevada rack. Upstream power quality is further stabilized by a Bently Nevada 3500/15 Power Supply Module with redundant input capability, ensuring that a single power event does not interrupt the protection system. For plants running Modbus or FOUNDATION Fieldbus communication architectures, the 3500/92 Communication Gateway Module bridges the machinery protection data to the DCS or SCADA layer without introducing latency that could delay a safety trip. Where the proximity transducer cable must traverse long conduit runs through high-EMI zones — such as near variable frequency drives or large motor starters — the use of Bently Nevada 330130 extension cables with double-shielded construction maintains signal integrity and prevents the voltage offset errors that can mask real shaft displacement events. Finally, for installations requiring SIL-rated interlock outputs, the 3500 rack’s relay outputs can be wired directly into a Pilz PNOZ safety relay or equivalent safety PLC input module to form a certified machinery protection interlock loop.

Critical Industrial Safety Applications

The Bently Nevada 330905-00-18-05-02-05 is deployed across the full spectrum of continuous-process and heavy industries where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery plants, this transducer monitors the radial vibration of centrifugal compressors, pumps, and expanders operating 24/7 in hydrocarbon-rich atmospheres. Early detection of rotor imbalance, bearing wear, or seal degradation through accurate proximity measurement allows operators to schedule maintenance before a catastrophic failure triggers a process shutdown or fire-and-gas event.

In power generation facilities — including coal, gas turbine, and hydroelectric plants — the 330905-00-18-05-02-05 provides the shaft position and vibration data required by the turbine protection system to execute an orderly trip before mechanical damage propagates to the generator or gearbox. Its wide frequency response (DC to 10,000 Hz) captures both slow-speed eccentricity and high-frequency blade-pass events within a single sensor.

In mining and mineral processing operations, where conveyors, crushers, ball mills, and slurry pumps operate in high-dust, high-vibration environments, the ruggedized construction of this transducer resists the ingress of abrasive particulates and the mechanical shock loads that would degrade a standard proximity probe within weeks. Reliable shaft monitoring in these applications directly reduces the risk of unplanned conveyor stoppages that can halt an entire production circuit.

In water and wastewater treatment plants, the transducer supports continuous monitoring of large vertical turbine pumps and blower trains, where bearing failure in a critical duty pump can compromise effluent compliance and trigger regulatory penalties. In metallurgical and steel-making facilities, it monitors rolling mill drive trains and continuous caster pinch rolls operating under extreme thermal and mechanical stress. In port and bulk-handling terminals, it protects the large electric motors and gearboxes driving ship loaders, stackers, and reclaimers that must maintain high availability to meet vessel berthing schedules.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330905-00-18-05-02-05?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Every unit shipped by SMARTNEXMSK has been pre-tested for output linearity, sensitivity calibration, and cable integrity before dispatch. If a unit fails within the warranty period under specified operating conditions, SMARTNEXMSK will provide a replacement or full refund — no lengthy RMA process.

Q2: How is the unit tested before shipment to ensure field safety?
Each 330905-00-18-05-02-05 undergoes a pre-shipment inspection that includes visual examination of the probe tip, cable jacket, and connector; electrical continuity and insulation resistance checks; and functional output verification against a reference target at the nominal -24 VDC supply. Units that do not meet Bently Nevada’s published sensitivity and linearity specifications are quarantined and not shipped.

Q3: Is this transducer compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330905-00-18-05-02-05 is fully compatible with the Bently Nevada 3300 XL driver family (including the 330180 series) and integrates directly with the 3500/42 and 3500/42M Proximitor Monitor cards. It can replace worn or failed probes in existing installations without requiring recalibration of the driver or monitor, provided the cable length and target material specifications are matched.

Q4: Can SMARTNEXMSK support long-term supply for multi-unit plant projects?
Yes. SMARTNEXMSK maintains standing inventory of the 330905-00-18-05-02-05 and related 3300 XL Series components to support both emergency single-unit replacements and planned multi-unit procurement for plant overhauls. Bulk pricing and scheduled delivery programs are available for EPC contractors and plant maintenance teams managing large rotating equipment fleets. Contact our team to discuss your project’s supply requirements.
