Bently Nevada 330905-00-19-10-02-CN Safety Proximity Probe

Bently Nevada 330905-00-19-10-02-CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

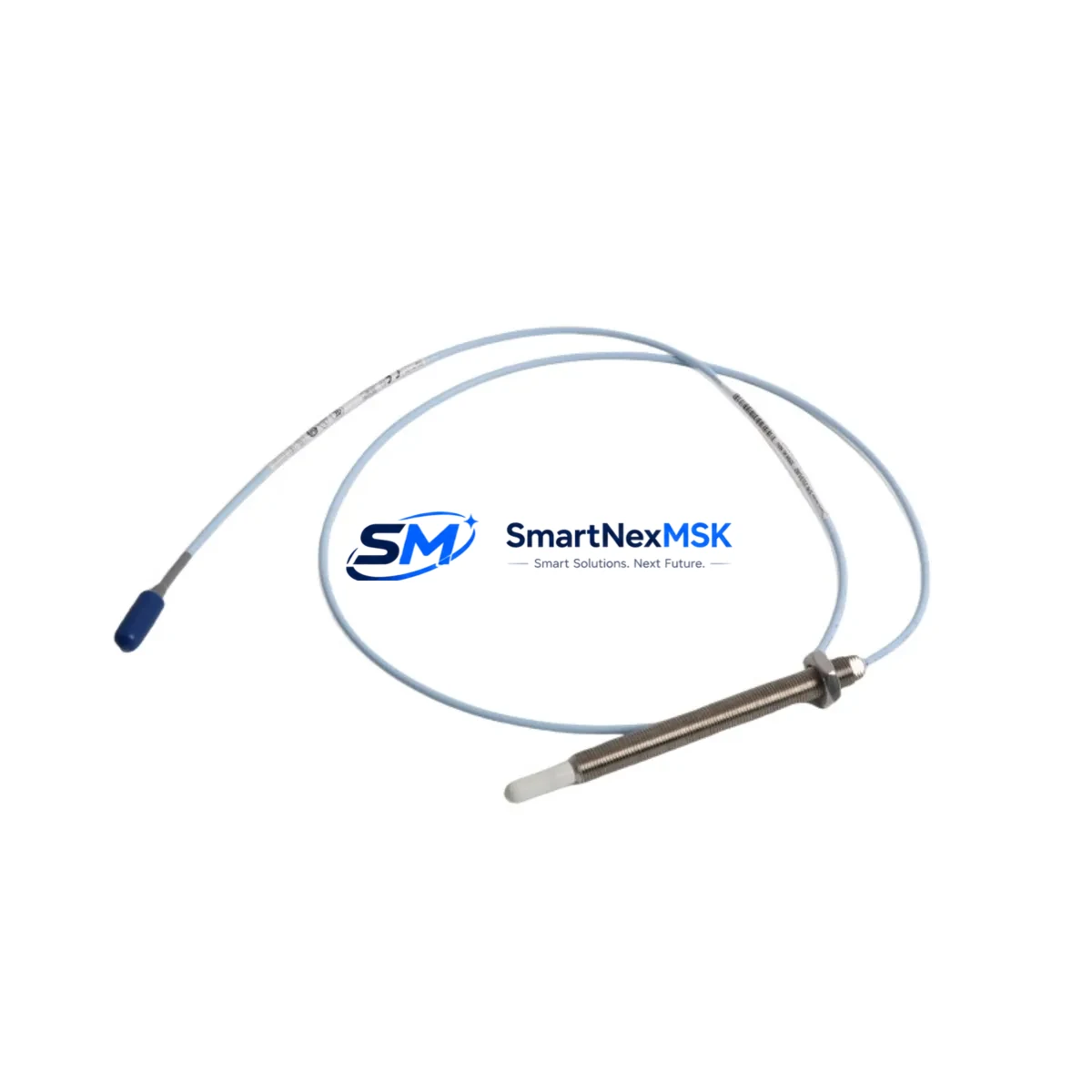

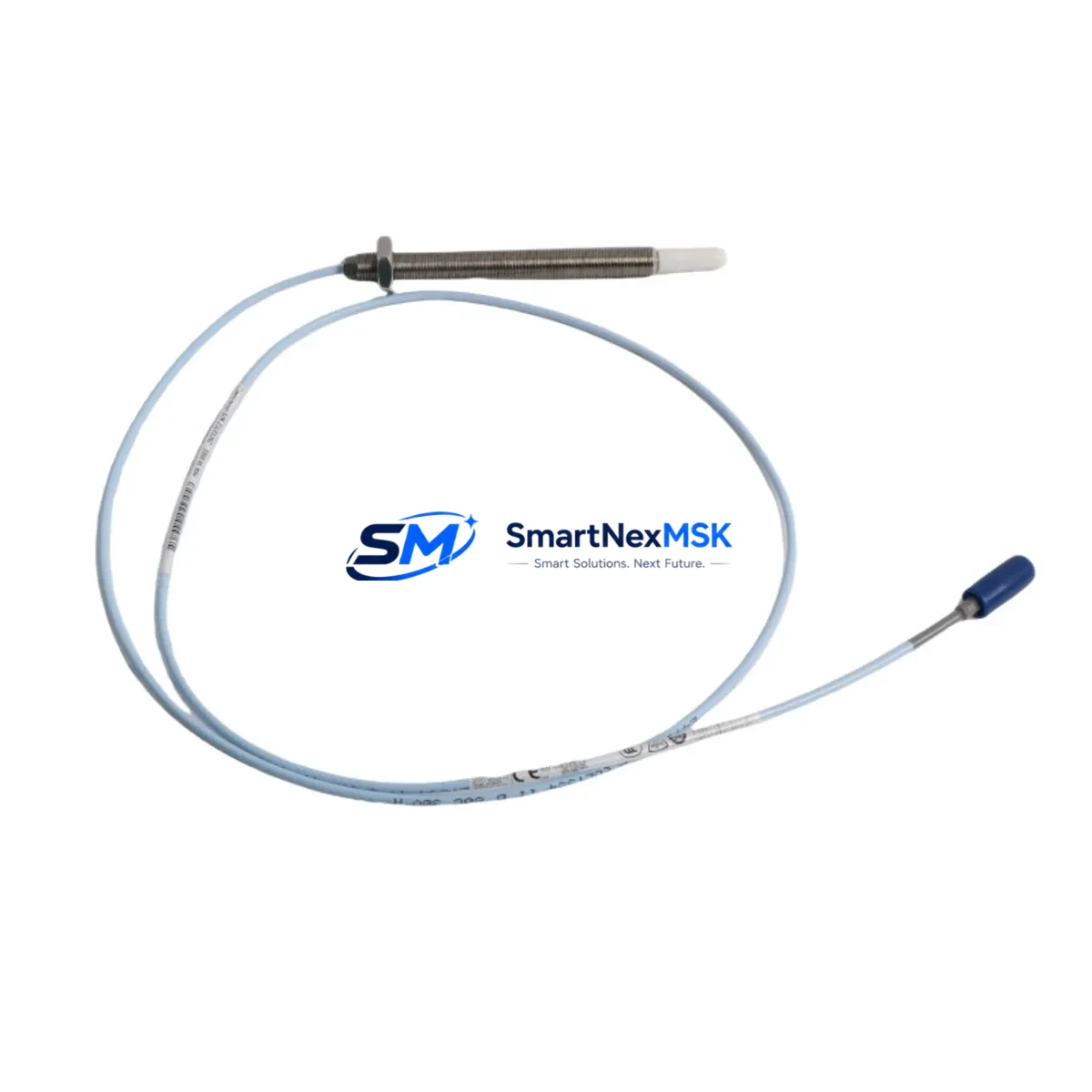

The Bently Nevada 330905-00-19-10-02-CN is an 8mm eddy current proximity probe engineered for the 3300 NSv Proximitor System, designed to deliver continuous, high-integrity shaft vibration and position monitoring in the most demanding industrial environments. Whether deployed in petrochemical compressor trains, power generation turbines, mining hoists, metallurgical rolling mills, or water treatment pump stations, this probe provides the critical signal fidelity that safety-critical control loops depend on.

In high-load, high-interference production facilities, signal drift and measurement instability are among the leading causes of unplanned shutdowns and machinery damage. The 330905-00-19-10-02-CN addresses these risks through its ruggedized construction — featuring a stainless steel housing, PTFE-jacketed 5-metre extension cable, and EMI-shielded signal path — ensuring stable output even in the presence of strong electromagnetic fields generated by variable frequency drives, high-current bus bars, and adjacent motor control centers. When paired with the Bently Nevada 3300 XL 8mm Proximitor Sensor and a matched 3300 NSv Extension Cable, the system maintains calibrated sensitivity across the full operating temperature range, eliminating the signal offset errors that can trigger false trips or mask genuine fault conditions.

Control cabinet integrity is paramount in continuous process industries. The 330905-00-19-10-02-CN integrates directly into Bently Nevada 3500 Series Machinery Protection System racks, where it feeds real-time vibration data to the 3500/42M Proximitor/Seismic Monitor module. This architecture allows the safety interlock logic — typically implemented via a Bently Nevada 3500/32 4-Channel Relay Module — to respond within milliseconds to abnormal shaft displacement, preventing catastrophic bearing failure or seal damage. In installations where power quality is a concern, pairing the probe system with a Phoenix Contact QUINT-PS/1AC/24DC/10 Power Supply and a Bently Nevada 3500/15 Power Supply Module ensures that voltage transients and surge events do not corrupt the 24 VDC measurement loop. For facilities running Emerson Ovation DCS or Honeywell Experion PKS platforms, the 3300 NSv output integrates cleanly via 4–20 mA or Modbus RTU, maintaining communication integrity even during network disturbances.

In hazardous area installations — including ATEX Zone 1 and IECEx-classified locations common in offshore platforms and chemical processing units — the probe’s passive, non-incendive design supports intrinsically safe circuit configurations when used with approved MTL 728 Zener Barrier or Pepperl+Fuchs KFD2-STC4-Ex1 Isolator assemblies. This ensures that the measurement circuit cannot become an ignition source, satisfying the functional safety requirements of IEC 61511 safety instrumented systems. For rotating machinery protection in critical interlock loops, the 330905-00-19-10-02-CN is a proven front-end sensor that supports SIL 2 loop architectures when the full instrument loop is validated.

Long-term field reliability is supported by SMARTNEXMSK’s rigorous pre-shipment testing protocol. Every unit undergoes dimensional verification of the probe tip geometry, impedance measurement against the 3300 NSv calibration standard, cable continuity and insulation resistance testing, and functional output verification using a Bently Nevada 3300 RAM Calibration Fixture. Units are shipped in anti-static packaging with full test records, ensuring that replacement installations in live machinery protection systems can be completed with confidence and without additional on-site calibration delays.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330905-00-19-10-02-CN begins at the probe tip and extends through every layer of the control cabinet. The probe connects to the Bently Nevada 3300 NSv Proximitor Sensor mounted inside the junction box or marshalling cabinet, which conditions the raw eddy current signal into a clean DC voltage before transmission to the Bently Nevada 3500/42M Proximitor/Seismic Monitor in the main protection rack. The 3500 rack’s 3500/20 Rack Interface Module manages communication with the plant DCS, while the 3500/32 Relay Output Module drives the hardwired safety interlock outputs that trip the machine on confirmed high-vibration events.

Power integrity for the entire measurement chain is maintained by a dedicated Bently Nevada 3500/15 Power Supply Module with redundant input capability, supplemented at the panel level by a Phoenix Contact QUINT 24VDC UPS module to ride through momentary supply interruptions without resetting the protection system. Surge protection on the field cable entry points — using Weidmüller VSSC4 surge arresters — prevents lightning-induced transients from reaching the Proximitor input circuits. For facilities with high ground noise, Bently Nevada 3300 RAM signal conditioners provide additional isolation between the field loop and the rack backplane, eliminating ground loop interference that could cause false readings in the vibration channel. This layered protection strategy ensures that the 330905-00-19-10-02-CN delivers accurate, uninterrupted shaft position data to the safety system under all foreseeable electrical stress conditions.

Critical Industrial Safety Applications

The 330905-00-19-10-02-CN is deployed across a wide spectrum of critical rotating machinery applications where continuous, accurate shaft monitoring is a non-negotiable safety requirement. In petrochemical and refinery environments, it monitors the radial vibration of centrifugal compressors and process pumps handling flammable or toxic media, where an undetected bearing failure could result in a process release with catastrophic consequences. In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — it provides the shaft eccentricity and vibration data that the turbine protection system uses to initiate controlled shutdowns before mechanical damage occurs.

In mining and mineral processing operations, the probe monitors the main shaft bearings of hoists, crushers, and conveyor drive gearboxes operating under high cyclic loads and heavy dust contamination. Its IP67-rated housing and ruggedized cable withstand the mechanical abuse and chemical exposure common in these environments. In metallurgical and steel mill applications, it operates reliably in the presence of intense electromagnetic interference from arc furnaces and induction heating systems, maintaining signal integrity where lesser sensors would exhibit significant noise-induced drift. Water and wastewater treatment facilities rely on it for continuous monitoring of large vertical pump shafts, where early detection of bearing wear prevents flooding events and costly emergency repairs. In port and bulk material handling installations, it monitors the drive shafts of ship unloaders and stacker-reclaimers operating in corrosive marine atmospheres, where the stainless steel construction and sealed cable entry provide the long service life required to minimize maintenance interventions in difficult-access locations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330905-00-19-10-02-CN?
The 12-month warranty covers all manufacturing defects, functional failures, and calibration deviations that arise under normal operating conditions consistent with the Bently Nevada 3300 NSv system specifications. It includes free replacement or repair of the probe and extension cable assembly. Damage resulting from installation errors, overvoltage events beyond the specified supply range, or mechanical impact is assessed case by case. SMARTNEXMSK provides warranty support with direct technical communication and fast replacement dispatch to minimize machinery downtime.

Q2: What pre-shipment tests are performed on each unit?
Every 330905-00-19-10-02-CN unit undergoes a full functional test sequence before dispatch: probe tip impedance measurement against the 3300 NSv calibration standard, extension cable continuity and insulation resistance verification at 500 VDC, DC output voltage check at a known gap distance using a calibrated target fixture, and visual inspection of the housing, connector, and cable jacket for physical integrity. Test records are available on request and accompany critical orders for quality documentation purposes.

Q3: Is this probe compatible with existing Bently Nevada 3500 Series protection racks?
Yes. The 330905-00-19-10-02-CN is fully compatible with the Bently Nevada 3500 Series Machinery Protection System when used with the appropriate 3300 NSv Proximitor Sensor. It is also backward-compatible with legacy 3300 Series installations. Compatibility with specific rack configurations — including the 3500/42M, 3500/40M, and 3500/45 monitor modules — should be confirmed against the installed Proximitor model and gap voltage calibration range. SMARTNEXMSK’s technical team can assist with compatibility verification prior to order placement.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
SMARTNEXMSK maintains dedicated inventory of the 330905-00-19-10-02-CN and related 3300 NSv system components to support planned maintenance programs, emergency replacements, and multi-unit capital projects. For customers with critical spare parts requirements, we offer reserved stock arrangements and priority dispatch agreements. Our sourcing network ensures continued availability even for products that have reached end-of-standard-production status with the OEM, providing a reliable long-term supply channel for facilities that cannot accept procurement risk on safety-critical instrumentation.
