Bently Nevada 330905-00-21-05-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

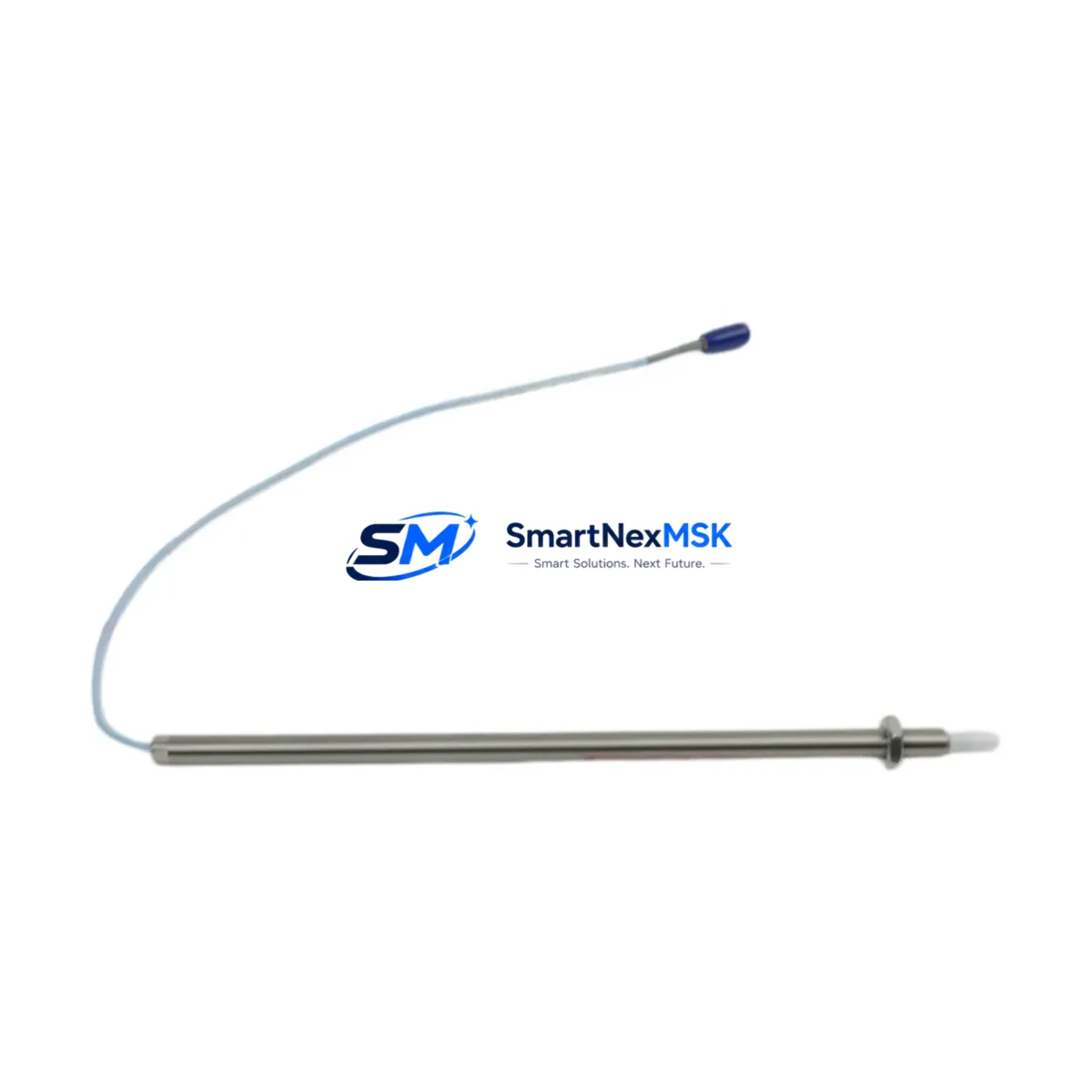

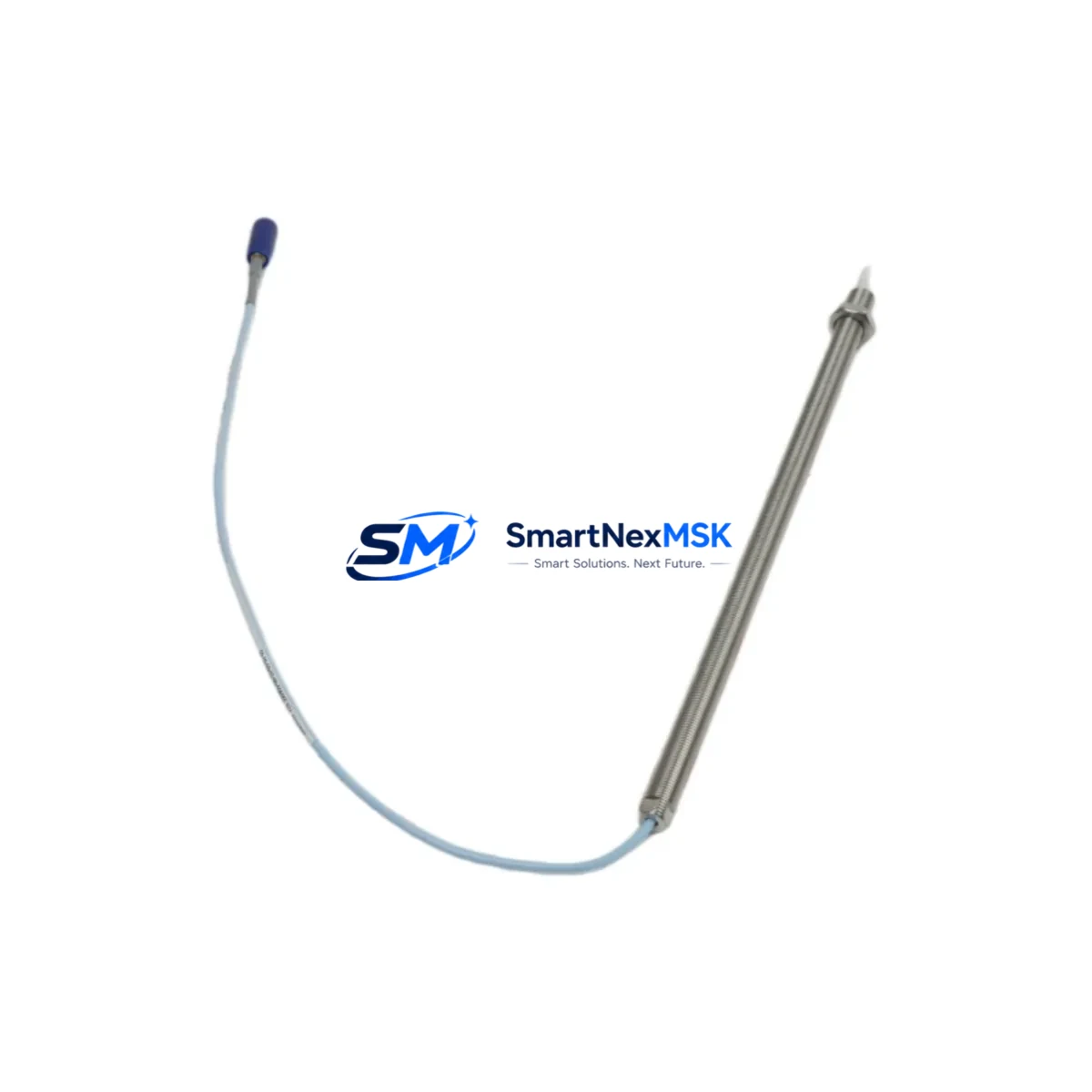

The Bently Nevada 330905-00-21-05-02-CN is an 8mm eddy current proximity probe engineered for seamless integration into Bently Nevada 3300 XL and 3300 XL NSv vibration monitoring systems. Designed to meet the demanding requirements of industrial turbomachinery protection, this probe serves as a direct retrofit replacement for legacy 330905-series sensors that have reached end-of-life or are no longer available through OEM channels. Whether you are upgrading an aging control cabinet, restoring a critical monitoring loop, or migrating from a discontinued sensor configuration, the 330905-00-21-05-02-CN delivers the electrical and mechanical compatibility required for a smooth, low-risk transition.
This probe is fully compatible with the Bently Nevada 3300 XL 8mm Proximity Transducer System, which includes the companion 330130-series extension cable and the 330180-series proximitor/oscillator driver. The complete transducer chain — probe, extension cable, and proximitor — must be matched as a calibrated system to ensure accurate gap voltage output and vibration amplitude readings. When retrofitting, engineers should verify that the existing 330180 proximitor driver is configured for the correct probe series and that the cable length matches the calibrated system specification, typically 5m or 9m total.
Before installation, technicians should confirm power supply capacity within the control cabinet. The 3300 XL proximitor requires a regulated -24 VDC supply, and the existing 3300 rack power supply — such as the 3300/15 or 3300/20 power supply module — must have sufficient headroom to support the replacement probe without voltage droop. Terminal wiring should be verified against the original loop drawing: the probe output connects to the proximitor input terminals, and the proximitor output feeds the 3300 XL monitor card input. Any deviation in terminal assignment or shield grounding can introduce noise or false trip conditions.
Backplane interface compatibility is a critical checkpoint during retrofit planning. The 3300 XL monitor cards — including the 3300/25 Dual Vibration Monitor and the 3300/46 Thrust Position Monitor — accept the standard proximitor output signal range of 0 to -24 VDC. If the existing monitor card has been configured for a different probe series or gap range, the module address and channel configuration stored in the 3300 Rack Interface Module (RIM) may need to be updated using System 1 software or the Rack Configuration Utility. Program logic tied to vibration alarm setpoints and danger thresholds should be reviewed and re-validated after probe replacement to ensure trip levels remain appropriate for the machine’s operating envelope.
HMI screen updates are often overlooked during probe retrofits. If the plant’s DCS or SCADA system — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA — displays real-time vibration data sourced from the 3300 XL system, the engineering team should confirm that tag mappings, display ranges, and alarm annunciation logic remain consistent after the probe swap. Communication links between the 3300 XL Rack Interface Module and the plant historian or safety system should be tested under live conditions before returning the machine to service.
For sites operating older 3300 Series (non-XL) racks, a migration path to the 3300 XL platform may be required to achieve full compatibility with the 330905-00-21-05-02-CN probe. This typically involves replacing the legacy 3300/05 or 3300/10 monitor cards with current-generation 3300 XL equivalents and updating the rack’s power supply and RIM accordingly. SMARTNEXMSK maintains stock of both current and legacy Bently Nevada components to support phased migration strategies that minimize production disruption.
All units supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects and are subject to pre-shipment functional testing, including gap voltage verification and insulation resistance checks. Inventory is available for immediate dispatch, supporting urgent maintenance windows and unplanned outages.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 330905-00-21-05-02-CN |
| Probe Type | 8mm Eddy Current Proximity Probe |
| Compatible System | Bently Nevada 3300 XL, 3300 XL NSv |
| Companion Extension Cable | 330130-series (5m or 9m calibrated length) |
| Companion Proximitor Driver | 330180-series Proximitor/Oscillator |
| Power Supply Requirement | -24 VDC regulated (via 3300/15 or 3300/20 rack PSU) |
| Output Signal Range | 0 to -24 VDC (standard proximitor output) |
| Mounting / Installation | Direct thread-in replacement; verify gap per calibration chart |
| Communication Compatibility | 3300 XL RIM → System 1, DCS/SCADA via Modbus or OPC |
| Retrofit Recommendation | Replace as complete calibrated system (probe + cable + proximitor) |
| Commissioning Checkpoint | Gap voltage, alarm setpoints, HMI tag mapping, comms link test |
| Warranty | 12 Months — covers manufacturing defects; pre-shipment tested |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330905-00-21-05-02-CN into an existing turbomachinery protection loop requires a structured approach that accounts for every component in the measurement chain. The probe itself is only one element; the 330130 extension cable must be matched in length to maintain the calibrated system’s sensitivity factor, and the 330180 proximitor must be confirmed as compatible with the 8mm probe series before installation begins.
Within the control cabinet, the 3300 XL rack typically houses a combination of monitor cards, a Rack Interface Module, and a dedicated power supply. The 3300/25 Dual Vibration Monitor and 3300/46 Thrust Position Monitor are the most common cards encountered during probe retrofits on rotating equipment such as steam turbines, gas compressors, and centrifugal pumps. If the rack also includes a 3300/55 Keyphasor Module for phase reference, its timing signal should be verified as unaffected by the probe replacement.
I/O wiring between the proximitor output and the monitor card input should be traced and documented before disconnection. Shield grounding practices — particularly single-point grounding at the rack end — must be maintained to prevent common-mode noise from corrupting the vibration signal. Where the existing installation uses a 3300/93 or 3300/94 I/O module for terminal block connectivity, the wiring diagram should be cross-referenced against the new probe’s installation drawing to confirm pin assignments.
Sites that also operate Bently Nevada 3500 Series machinery protection systems on adjacent trains should note that the 330905-series probes are not directly interchangeable with 3500/42 or 3500/45 monitor inputs without recalibration. If a cross-platform migration is planned, the engineering team should engage in a full system compatibility review before proceeding. Programming cables such as the 3300/95 or the System 1 USB interface are required for any configuration changes to the RIM or monitor cards during commissioning.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing proximity probes on live rotating equipment. Where process conditions permit, probe replacement should be scheduled during a planned maintenance window with the machine at rest and the 3300 XL rack placed in bypass mode to prevent spurious trips during the swap. The bypass function, accessible via the rack’s front-panel keyswitch or through System 1 software, suppresses alarm and danger outputs while preserving data acquisition for post-installation verification.
Before removing the legacy probe, the technician should record the existing gap voltage reading from the proximitor output — typically between -10 VDC and -18 VDC for a correctly gapped 8mm probe — and photograph the terminal wiring for reference. After installing the 330905-00-21-05-02-CN and its matched extension cable, the gap should be set to the value specified in the calibration certificate, and the output voltage re-measured to confirm it falls within the expected range before the bypass is released.
Original program logic stored in the 3300 XL monitor cards is non-volatile and is not affected by probe replacement, provided the monitor card itself is not powered down during the swap. Alarm setpoints, danger thresholds, and time-delay settings remain intact. However, if the replacement probe has a different sensitivity factor or gap range than the original, the setpoints must be recalculated and updated accordingly. Communication links to the plant DCS or historian should be monitored for continuity throughout the procedure to confirm that data flow is restored immediately upon bypass release.
Retrofit Support FAQ
Q1: Is the 330905-00-21-05-02-CN a direct drop-in replacement for other 330905-series probes?
The 330905-00-21-05-02-CN shares the same 8mm probe body and thread specification as other 330905-series variants, but the suffix codes indicate specific cable length, connector type, and temperature rating. Before substituting one suffix variant for another, confirm that the calibrated system — probe, extension cable, and proximitor — is matched as a set. Mixing unmatched components will result in an incorrect sensitivity factor and inaccurate vibration readings.
Q2: What commissioning steps are required after installation?
After mechanical installation and wiring, verify the proximitor output gap voltage against the calibration chart, confirm alarm and danger setpoints in the 3300 XL monitor card, test the communication link from the RIM to the plant DCS or System 1 server, and release the rack bypass. A functional test of the vibration channel — using a calibrated signal source or by observing machine startup data — is recommended before returning the equipment to normal operation.
Q3: Can this probe be used with a Bently Nevada 3500 Series rack?
The 330905-00-21-05-02-CN is calibrated and specified for use with the 3300 XL and 3300 XL NSv systems. While the physical probe body may fit a 3500 Series installation mechanically, the calibration data and sensitivity factor are optimized for the 3300 XL proximitor. Using this probe with a 3500/42 or 3500/45 monitor without recalibration is not recommended and may result in measurement errors or false trips.
Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All units supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects from the date of shipment. Pre-shipment testing includes gap voltage output verification across the specified measurement range, insulation resistance check on the probe cable, and visual inspection of the connector and probe tip. A test report is available upon request. Warranty claims are processed through our sales team at [email protected].
