Bently Nevada 330905-00-21-10-02-05 3300 NSv Spare

Bently Nevada 330905-00-21-10-02-05 3300 NSv Maintenance-Ready Spare Proximity Probe

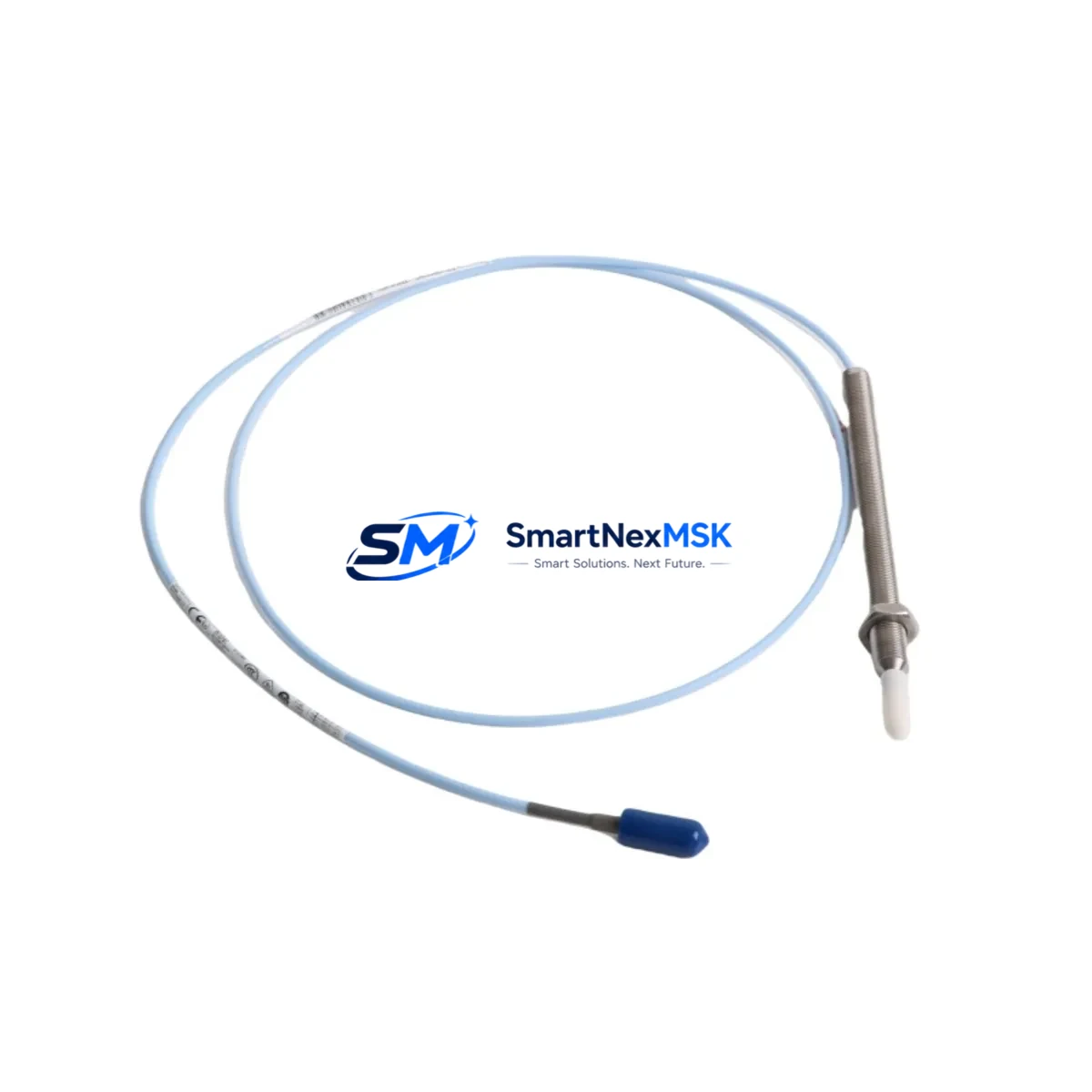

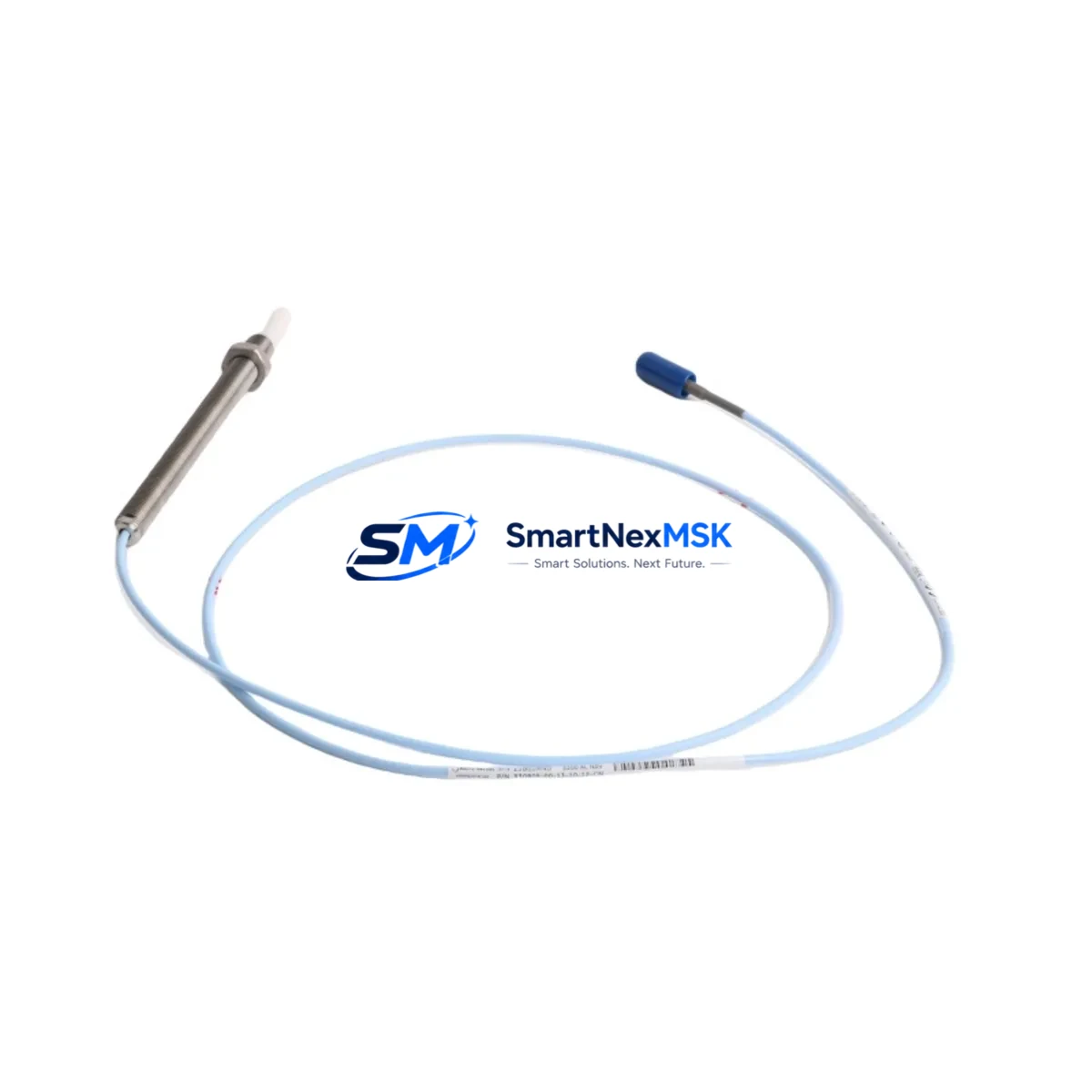

The Bently Nevada 330905-00-21-10-02-05 is an original eddy-current proximity probe engineered for the 3300 NSv vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical front-line sensor whose failure can trigger unplanned shutdowns, false trips, or — worse — undetected rotor instability. Stocking a verified original spare is not optional; it is a fundamental element of any credible predictive maintenance program.

This listing supplies the 330905-00-21-10-02-05 as a maintenance-ready, tested spare. Each unit is inspected prior to dispatch, ships with a 12-month warranty, and is sourced to meet OEM electrical and mechanical specifications. Whether you are replenishing a depleted spare-parts cabinet, responding to an emergency shutdown, or executing a planned turnaround, this probe can be on-site and installed with minimal lead time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When a 330905-00-21-10-02-05 probe is flagged during routine vibration trending or fails during a fault-isolation sequence, the surrounding system components deserve equal scrutiny. Experienced maintenance engineers treat a probe swap as an opportunity to audit the entire measurement chain.

Begin with the 3300 NSv driver module paired to this probe. The driver converts the probe’s raw impedance signal into a calibrated voltage output; a worn or moisture-ingressed driver can produce erratic readings even with a new probe installed. Verify the driver’s output voltage at the calibrated gap distance before closing the cabinet. Next, inspect the extension cable — typically an 330130 or 330180 series armored cable — for jacket abrasion, connector corrosion, and shield continuity. A compromised cable is the single most common cause of probe-system failures in high-vibration environments.

At the monitor rack level, confirm that the 3300/16 or 3300/20 monitor card receiving the signal is within its calibration interval and that its OK relay output is functioning correctly. A sticky OK relay can mask a genuine probe fault for weeks. While the cabinet is open, check the rack power supply module — typically a 3300/15 or equivalent — for output ripple and voltage stability; proximity probe systems are sensitive to supply noise, which manifests as elevated vibration floor readings.

For installations where the 330905-00-21-10-02-05 monitors a shaft with a Keyphasor® pickup (such as a 330980 or 330850 series probe), verify that the Keyphasor gap and output are within specification. Phase-referenced vibration analysis depends entirely on a clean Keyphasor signal, and a degraded reference probe will corrupt all synchronous vibration data from the machine train.

In control cabinets where the vibration monitor interfaces with a DCS or safety PLC via 4–20 mA or relay outputs, test the analog output cards and terminal blocks for correct scaling and secure terminations. Loose terminal connections on DIN rail terminal strips are a frequent source of intermittent alarms that are misdiagnosed as probe faults. If the installation includes signal isolators or barriers — common in Zone 1 or Zone 2 hazardous-area installations — verify that the isolator’s input and output ranges match the driver’s output specification.

Finally, for older machinery protection systems being extended beyond their original design life, consider stocking companion spares: a replacement 3300 NSv driver, a spare extension cable assembly, and at minimum one additional 330905-series probe. A three-component spare kit covers the full measurement chain and enables same-shift restoration after any single-point failure.

Site Replacement Workflow

Step 1 — Pre-work verification. Confirm the replacement probe’s part number matches the installed unit exactly, including cable length suffix (21 inches) and connector code (02-05). Substituting a different cable length changes the system’s electrical characteristics and requires recalibration of the driver module.

Step 2 — Safe isolation. Follow site LOTO procedures. For online replacement on non-critical machines where the monitor permits, note the current gap voltage before disconnection to establish a baseline for the new probe.

Step 3 — Mechanical installation. Thread the probe into the bracket to the correct gap distance — typically 50 mil (1.27 mm) for standard steel targets, verified with a calibrated gap tool. Torque the locknut to the manufacturer’s specification to prevent vibration-induced loosening.

Step 4 — Electrical reconnection. Connect the extension cable to the probe and driver. Verify shield grounding at one end only to prevent ground loops. Measure driver output voltage at the set gap; it should fall within the linear range of the 3300 NSv system (typically −10 VDC ±0.5 V at 50 mil gap on 4140 steel).

Step 5 — System verification. Confirm the monitor’s OK status, check that vibration and gap readings are within expected ranges at machine idle, and document the as-left gap voltage in the maintenance record. This baseline is essential for trending probe wear over subsequent inspection intervals.

Step 6 — Legacy compatibility note. The 330905-00-21-10-02-05 is a direct replacement for earlier 3300/16 and 3300/20 probe assemblies in most bracket configurations. If replacing a probe from a discontinued series, verify bracket thread compatibility and driver calibration range before commissioning.

Spare Parts Support FAQ

Q: What is the warranty coverage for the 330905-00-21-10-02-05?
A: Every unit supplied carries a 12-month warranty covering manufacturing defects and electrical performance. Each probe is tested for output linearity, insulation resistance, and connector integrity before shipment. Warranty claims are supported with replacement dispatch within standard lead times.

Q: How do I confirm compatibility with my existing 3300 NSv installation before ordering?
A: The key parameters to match are cable length (21 inches / 533 mm), tip diameter (10 mm), thread size (M10 × 1.0), and connector configuration (02-05 radial). If your installation uses a different cable length or connector, contact us with your existing probe’s full part number and we will confirm the correct replacement or identify a compatible substitute.

Q: Can this probe replace units from the older 3300/16 or 3300/20 series?
A: In most standard bracket installations, yes. The 3300 NSv probe series is designed to be mechanically and electrically compatible with the majority of legacy 3300-series mounting hardware. However, driver recalibration may be required if the original probe had a different sensitivity specification. We recommend verifying driver output at the calibrated gap after installation.

Q: What is your recommended spare-parts stocking strategy for this probe?
A: For critical rotating machinery (turbines, compressors, main process pumps), we recommend a minimum of two probes per measurement plane in the on-site spare-parts cabinet, supplemented by a spare driver module and extension cable. For non-critical machines, one probe per machine train is a reasonable minimum. Long-lead-time sites or facilities with limited local supplier access should consider a 6-month forward stock to eliminate emergency procurement delays.
