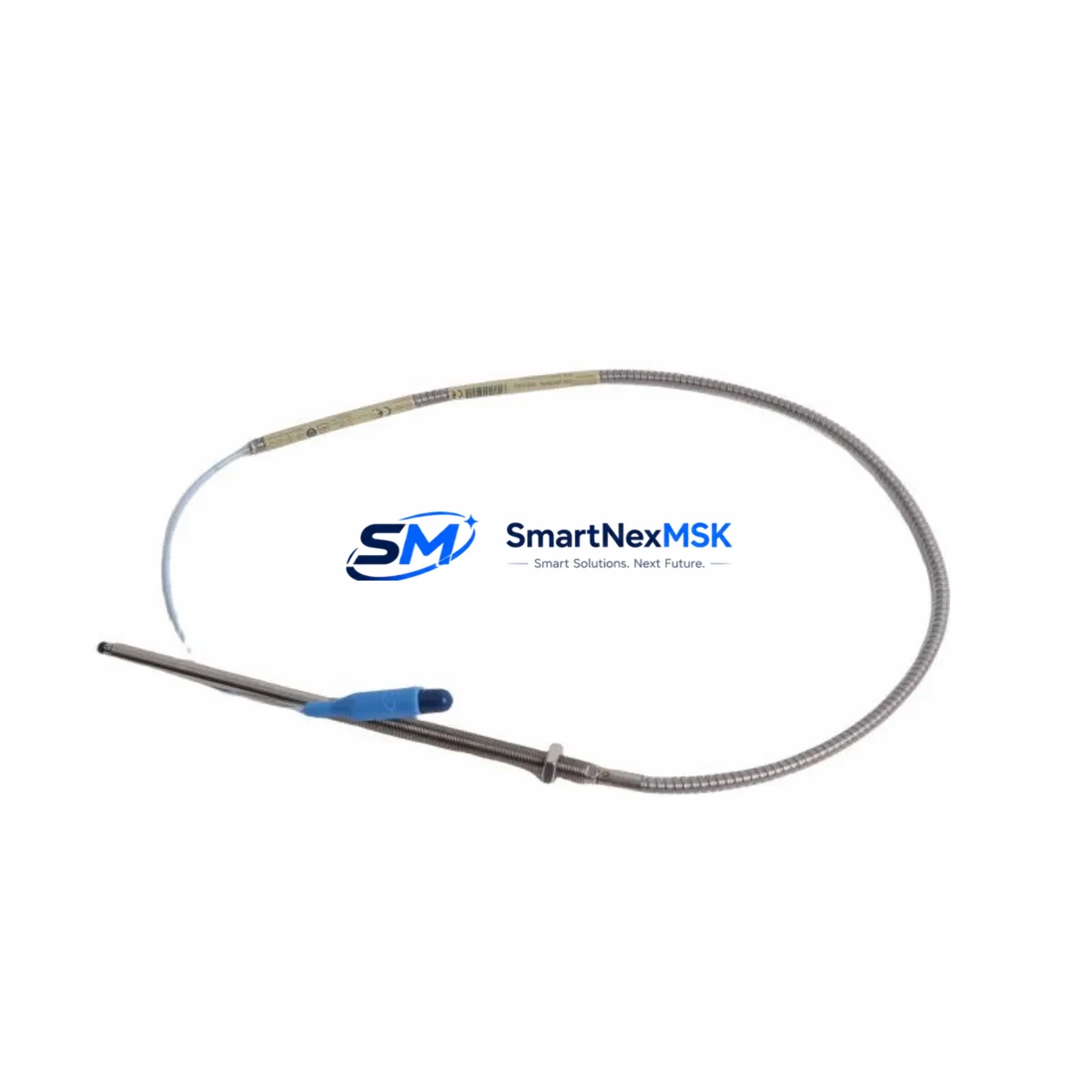

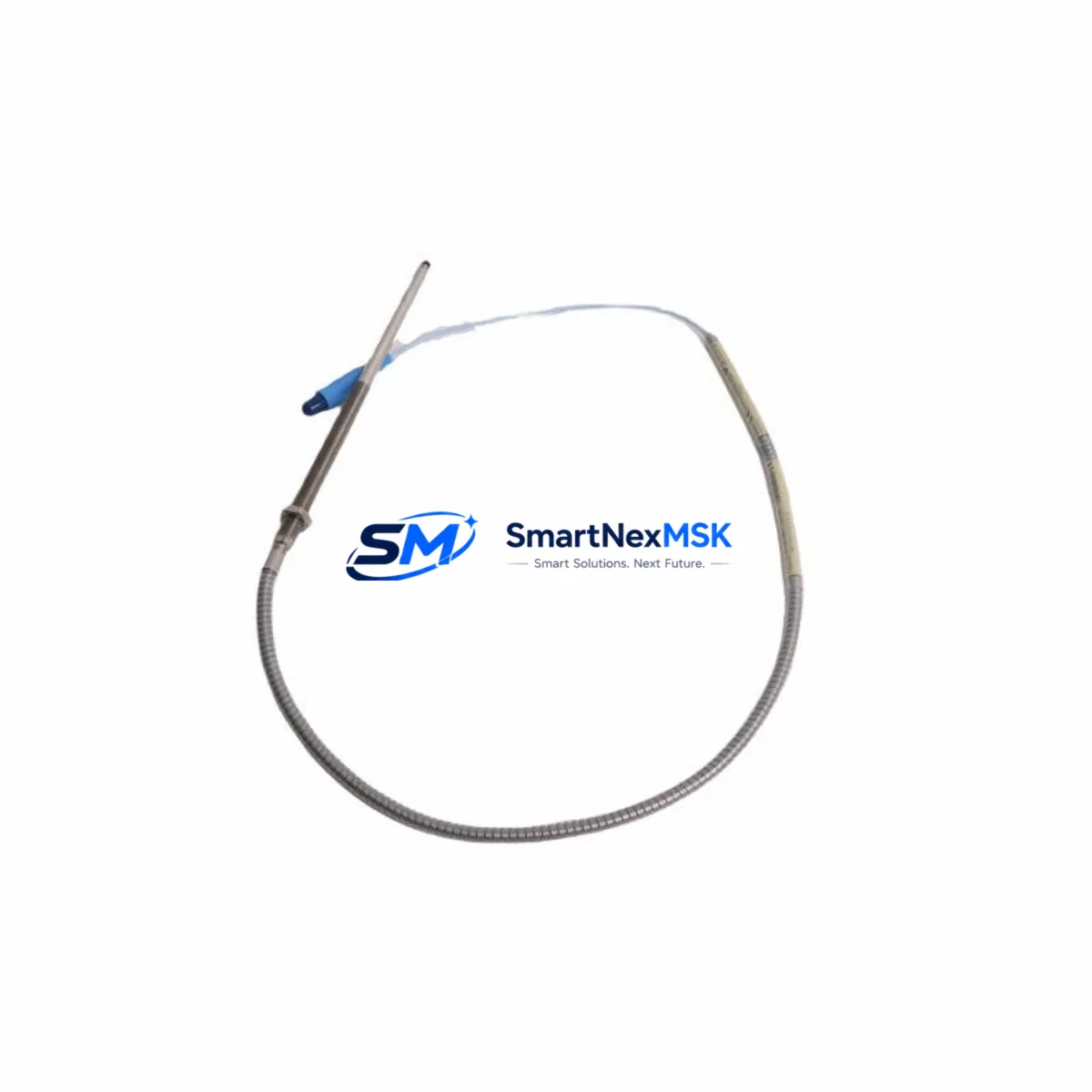

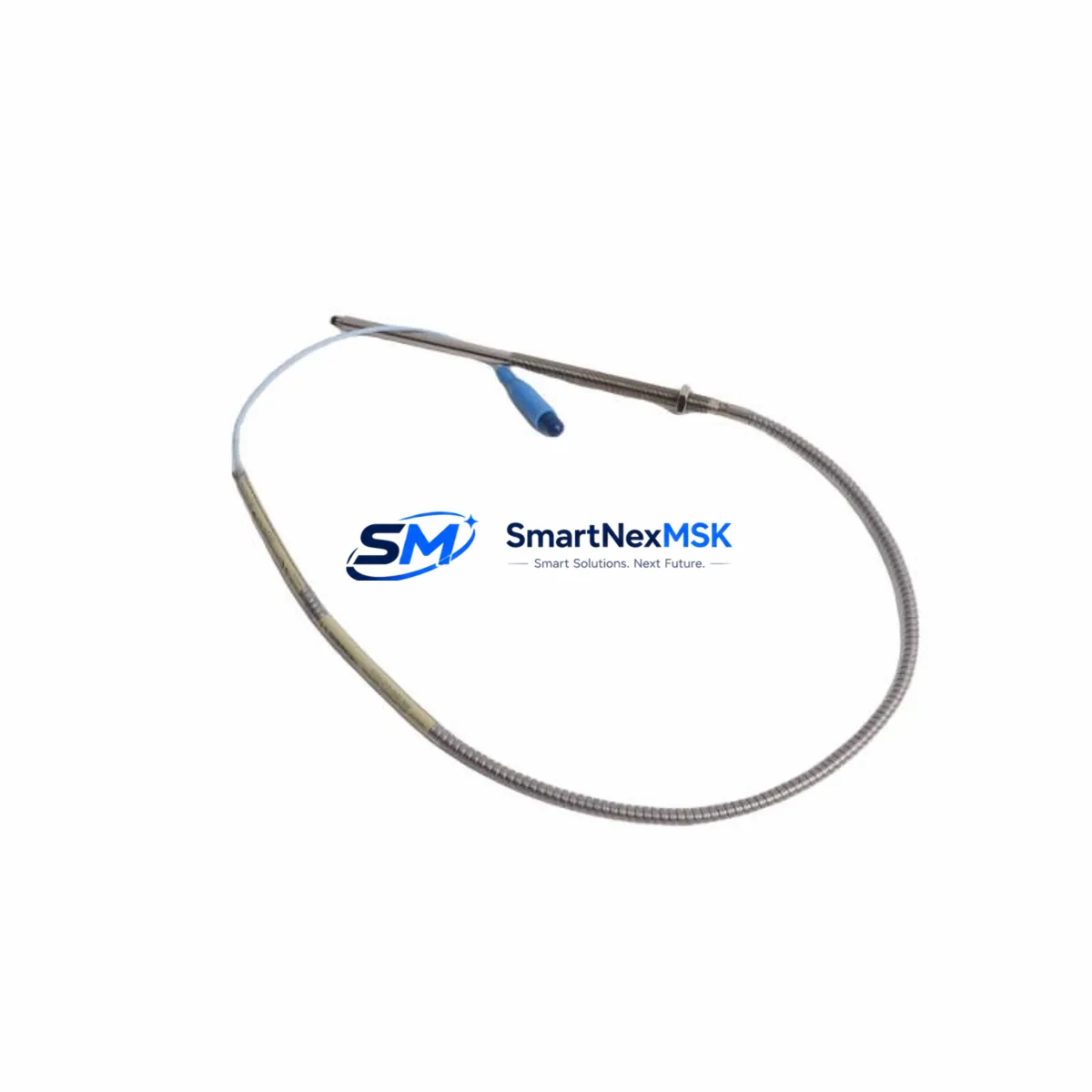

Bently Nevada 330905-00-24-50-02-00 3300 XL NSv Retrofit-Ready Proximity Transducer: Compatible Upgrade for Legacy Vibration Monitoring Systems
The Bently Nevada 330905-00-24-50-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL Non-contacting Vibration (NSv) monitoring platform. As aging 3300 Series installations approach end-of-service milestones, this transducer serves as the primary retrofit solution for facilities seeking to extend the operational life of their existing condition-monitoring infrastructure without a full system overhaul. Whether you are replacing a failed sensor on a critical rotating machine, upgrading a legacy 3300 Series rack to current NSv specifications, or consolidating spare-parts inventory ahead of a planned shutdown, the 330905-00-24-50-02-00 delivers the dimensional, electrical, and signal-chain compatibility required for a smooth, low-risk transition.
Designed around Bently Nevada’s proven eddy-current sensing principle, this transducer operates at a nominal gap range of 0–2.54 mm (0–100 mil) with a scale factor of 7.87 V/mm (200 mV/mil), matching the signal conditioning expectations of the 3300 XL proximitor/seismic module. The 24-inch (610 mm) integral cable and 5-meter (approximately 16.4 ft) extension cable configuration—encoded in the part number suffix —24-50—ensures compatibility with standard cabinet-to-machine routing distances common in turbine, compressor, and pump monitoring installations. The 02-00 suffix designates the standard connector and housing variant, confirming direct interchangeability with previously installed 330905 family sensors.
Upgrade Compatibility Table
| Parameter | 330905-00-24-50-02-00 (This Unit) | Legacy 330905 Variants | Notes / Retrofit Guidance |
|---|---|---|---|
| Platform Compatibility | 3300 XL NSv | 3300 Series (earlier revisions) | Verify proximitor module revision; 3300 XL NSv proximitor required for full NSv signal chain |
| Integral Cable Length | 24 in (610 mm) | Varies by suffix | Match suffix -24- to existing cable routing; re-routing may be needed for non-standard installations |
| Extension Cable Length | 5 m (50 dm) | Varies by suffix | Confirm total system cable length ≤ 9 m for standard scale factor; use 3300 XL extension cable 330130-xx-xx |
| Scale Factor | 7.87 V/mm (200 mV/mil) | Same for standard 330905 family | No recalibration of monitor trip setpoints required for like-for-like replacement |
| Supply Voltage | −24 VDC (via proximitor) | Same | Confirm 3300 XL power supply module (e.g., 3300/20 or 3300/15) output capacity before installation |
| Connector / Housing | Standard (suffix -02-00) | Varies | Confirm mating connector on extension cable; no adapter required for standard -02-00 installations |
| Installation Interface | M8 × 1 threaded tip | Same for 330905 family | Existing mounting boss and locknut compatible; no machining required |
| Communication / Signal | Analog voltage output (−24 V bias) | Same | Compatible with 3300 XL monitor I/O terminals; no protocol conversion needed |
| Warranty | 12 Months from date of shipment | Covers manufacturing defects; includes pre-shipment functional test documentation | |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330905-00-24-50-02-00 into an operating plant begins well before the sensor arrives on site. The first step is a thorough audit of the existing 3300 Series rack. Most legacy installations combine a 3300/20 or 3300/15 power supply module with one or more 3300 XL 8-mm proximitor/seismic modules (part numbers in the 3300/55 or 3300/65 family) and a 3300 XL monitor module such as the 3300/25 or 3300/46. Confirming that these rack-resident modules are already at NSv-compatible firmware revisions is essential before introducing the new transducer, because an older proximitor may not correctly condition the NSv signal chain even if the transducer itself is fully compliant.
Terminal wiring is the next critical checkpoint. The 330905-00-24-50-02-00 connects to the proximitor via the 330130-series extension cable. Inspect the field-side connector for corrosion, bent pins, or cracked overmold—common failure modes in high-vibration or high-humidity environments. If the extension cable is being replaced at the same time, the 330130-080-00-05 (5-meter, standard connector) is the correct companion part. At the proximitor terminal block, verify that the OK/Not-OK relay output wiring to the 3300 XL monitor has not been disturbed, as intermittent contact here can generate nuisance trips during commissioning.
For facilities running a Bently Nevada System 1 condition-monitoring software platform, the transducer channel configuration—gap voltage, scale factor, and alarm setpoints—is stored in the System 1 database. After physical replacement, a technician must perform a gap voltage verification at the proximitor output terminal (target: approximately −10 VDC at nominal gap) and confirm that the System 1 channel status returns to OK before releasing the machine to service. If the plant also uses a 3500 Series rack in adjacent monitoring loops, note that the 3500/42M or 3500/40M proximity monitor modules use the same 330905 transducer family, simplifying cross-platform spare-parts consolidation.
I/O expansion projects often accompany transducer replacements. If the retrofit scope includes adding new measurement points—axial position, differential expansion, or eccentricity—the 3300 XL rack may require additional I/O slots populated with 3300/55 proximitor modules and corresponding 330905-series transducers. Backplane slot addressing must be confirmed against the existing rack configuration drawing to avoid address conflicts. For plants migrating from a standalone 3300 rack to a networked architecture, the 3300 XL communication gateway (such as the 3300/93 Modbus module) enables integration with DCS platforms including Honeywell Experion, Emerson DeltaV, or ABB 800xA without replacing the entire monitoring rack.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational constraint in any proximity transducer replacement. The recommended approach is a hot-standby swap sequence: with the machine at reduced load or during a scheduled maintenance window, bypass the affected monitor channel at the 3300 XL monitor module before disconnecting the old transducer. This prevents a spurious Not-OK signal from propagating to the plant DCS and triggering an unplanned shutdown interlock. Document the existing gap voltage reading before removal—this value serves as the baseline for post-installation verification and confirms that the new transducer is seated at the correct mechanical gap.
Preserving the original program logic in the System 1 or DCS historian is equally important. Because the 330905-00-24-50-02-00 is a like-for-like replacement with identical scale factor and connector interface, no changes to the monitor’s trip multiply, alert setpoints, or Keyphasor reference channel configuration are required. The channel can be re-enabled immediately after gap verification, and the machine can return to full-load operation without a control-system re-download or HMI screen reconfiguration. For plants using a GE Mark VIe or Rockwell Automation ControlLogix-based safety layer that reads the 3300 XL relay outputs, confirm that the relay output state is restored to the RUN/OK condition before releasing the interlock bypass.
Every unit shipped by SMARTNEXMSK undergoes a pre-shipment functional test that verifies gap-voltage linearity across the full 0–100 mil range and confirms OK relay operation. Test documentation is included with each shipment, reducing on-site commissioning time and providing a traceable quality record for plant maintenance files. The 12-month warranty covers manufacturing defects discovered during installation or early operation, providing additional assurance for facilities with long lead times on replacement parts.
Retrofit Support FAQ
Q1: Is the 330905-00-24-50-02-00 a direct drop-in replacement for earlier 330905 variants with different cable-length suffixes?
A: The transducer tip, thread, and scale factor are identical across the 330905 family. The suffix digits encode integral cable length and extension cable length. If your existing installation uses a different suffix (e.g., -08-50 for an 8-inch integral cable), the transducer body will physically fit the same mounting boss, but you must verify that the total system cable length (integral + extension) remains within the 9-meter maximum for standard scale factor. Mixing cable lengths outside this range requires a scale-factor correction at the proximitor or monitor module.
Q2: What wiring checks are required before powering up the replacement transducer?
A: Confirm −24 VDC supply at the proximitor power input terminals, verify shield continuity on the extension cable, and check that the transducer tip is free of metallic debris that could affect the eddy-current field. After mechanical installation, measure the gap voltage at the proximitor output before enabling the monitor channel. The target is approximately −10 VDC ± 0.5 V at the nominal design gap specified in the original machine train drawing.
Q3: Can this transducer be used with a 3500 Series monitor rack instead of a 3300 XL rack?
A: Yes. The 330905 transducer family is compatible with both the 3300 XL and 3500 Series proximity monitor modules (e.g., 3500/42M, 3500/40M). The proximitor module in the 3500 rack conditions the transducer signal identically. Confirm the correct proximitor part number for your 3500 rack slot before ordering, as the 3500 Series uses dedicated proximitor assemblies that differ from the 3300 XL stand-alone proximitor modules.
Q4: What does the 12-month warranty cover, and what documentation is provided at shipment?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is shipped with a pre-shipment functional test report confirming gap-voltage linearity and OK relay operation. If a defect is identified within the warranty period, SMARTNEXMSK will arrange replacement or repair at no additional cost. Warranty claims require the original shipment documentation and a description of the failure mode observed during installation or operation.
