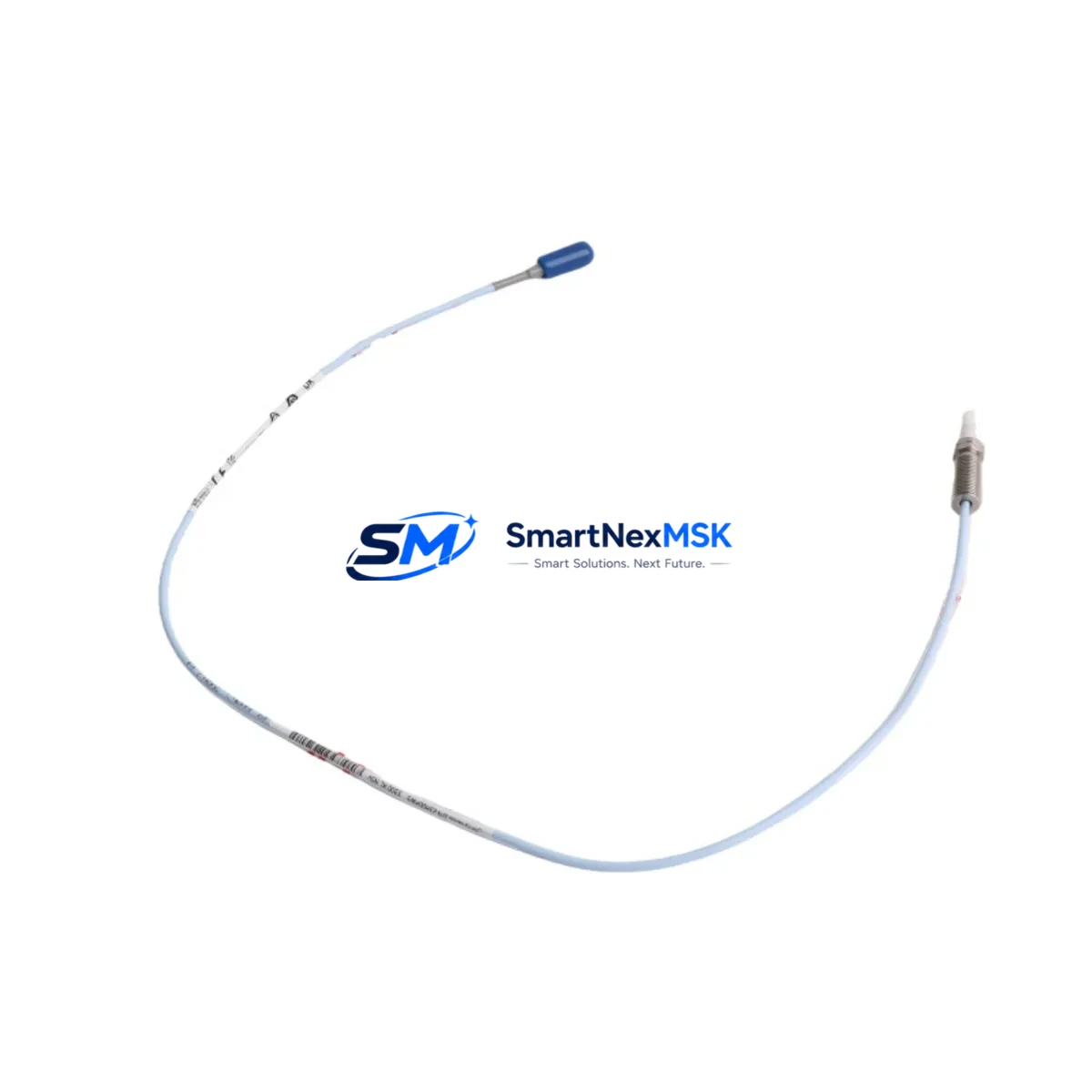

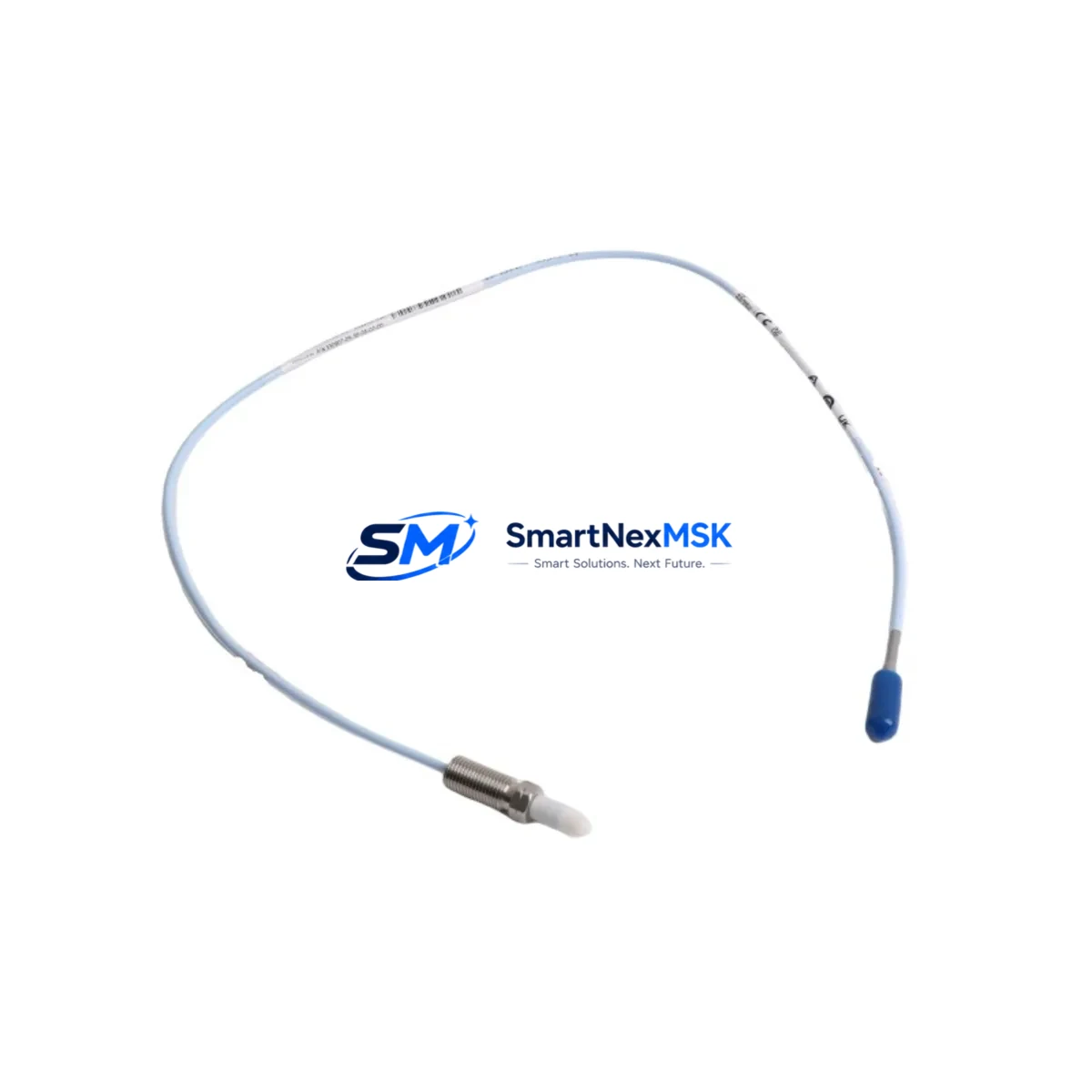

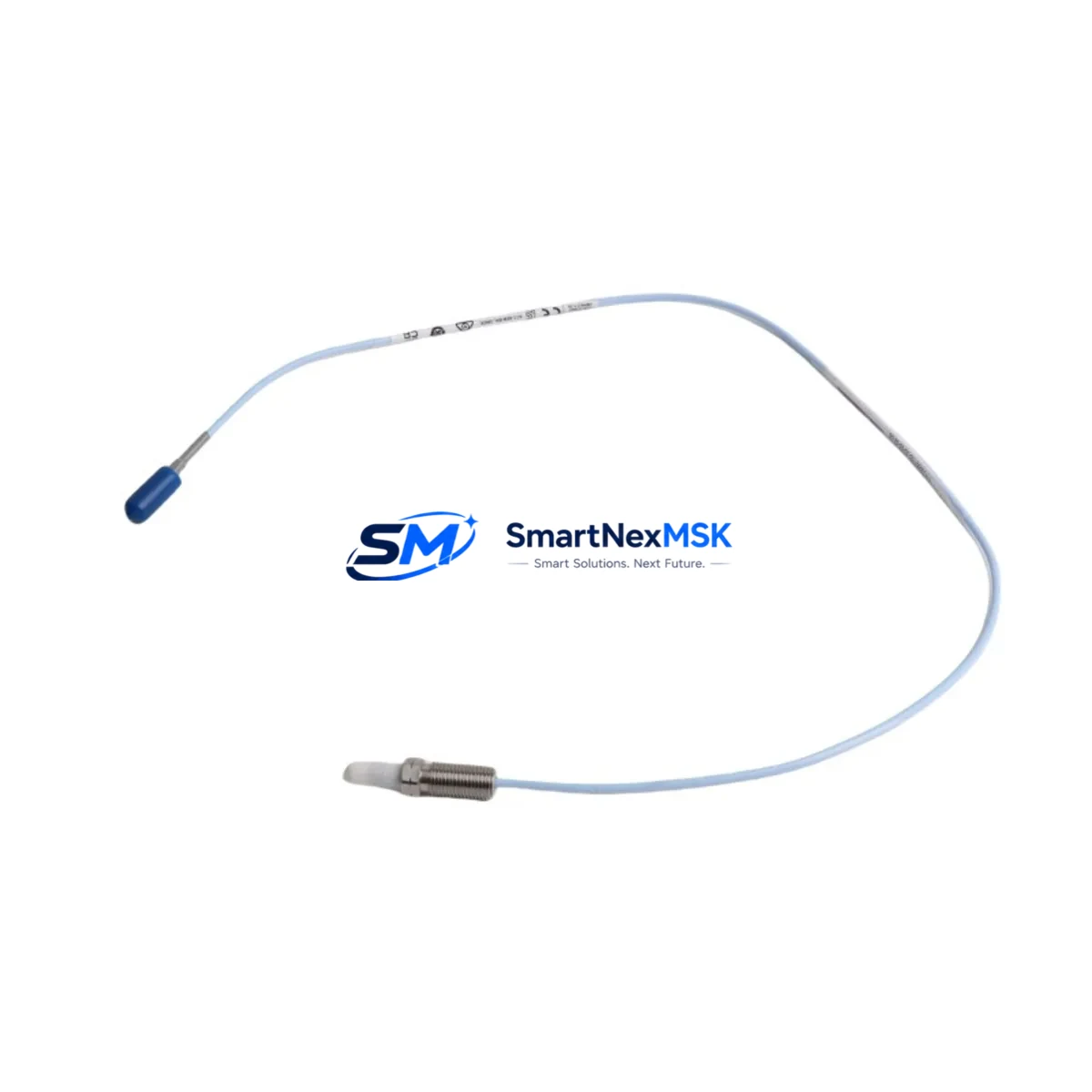

Bently Nevada 330907-05-30-05-02-05 Safety Proximity Probe

Bently Nevada 330907-05-30-05-02-05 Safety Proximity Probe: Precision Vibration Monitoring for Harsh Industrial Sites

The Bently Nevada 330907-05-30-05-02-05 is a ruggedized, reverse-mount eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL monitoring system, this probe delivers exceptional signal integrity, mechanical robustness, and long-term reliability — making it an indispensable asset in high-stakes rotating machinery protection and critical interlock circuits.

In heavy industrial facilities — from petrochemical complexes and power generation plants to mining operations and metallurgical processing lines — unplanned machinery downtime carries severe safety and financial consequences. The 330907-05-30-05-02-05 is purpose-built to eliminate the root causes of control interruption: signal drift caused by thermal cycling, sensor misalignment under vibration, and probe degradation in chemically aggressive or high-humidity atmospheres. Its precision-wound sensing coil and hardened stainless-steel housing maintain stable output across the full operating temperature range of –40°C to +177°C, ensuring that the 3300 XL proximitor/seismic transducer receives a clean, drift-free signal at all times.

Signal reliability is further reinforced by the probe’s shielded, armored cable assembly, which suppresses electromagnetic interference from variable-frequency drives, high-current bus bars, and adjacent power cabling commonly found in control cabinets. When paired with the Bently Nevada 3300 XL 8-mm extension cable and a properly grounded 3300 XL proximitor, the system forms a complete, low-noise measurement chain that feeds accurate shaft displacement data to the 3500/42M proximitor I/O module — a critical link in turbine and compressor protection logic.

For facilities operating under functional safety requirements, the 330907-05-30-05-02-05 is compatible with SIL-rated safety instrumented systems. It integrates seamlessly into interlock loops managed by the Bently Nevada 3500 rack, where its output is processed alongside signals from 3500/15 power supply modules and 3500/22M transient data interface modules to trigger protective shutdown actions before catastrophic bearing failure or rotor rub can occur. This architecture is widely deployed in API 670-compliant machinery protection systems across the oil and gas, power, and chemical sectors.

Surge protection is a persistent concern in industrial control cabinets subject to switching transients and lightning-induced overvoltages. The probe’s robust coaxial connector and cable termination are designed to withstand surge events that would degrade lesser sensors, reducing the risk of nuisance trips or, more critically, undetected sensor failures that could mask a developing machinery fault. Complementary surge protection devices, such as those used on the 3500 rack I/O terminal blocks, further harden the measurement loop against transient damage.

Replacement and spare-parts management are simplified by the probe’s standardized 5-mm tip diameter and reverse-mount configuration, which is fully interchangeable with other probes in the Bently Nevada 330900 series. Maintenance teams can execute hot-swap replacements during scheduled outages without recalibrating the proximitor, minimizing mean time to repair and keeping critical assets online. Every unit shipped by SMARTNEXMSK undergoes full functional testing — including gap voltage verification, sensitivity check, and cable continuity — before dispatch, backed by a 12-month warranty covering manufacturing defects and performance deviations.

Long-term supply continuity is assured through maintained inventory of the 330907-05-30-05-02-05 and its companion components, including 330130-080-00-00 extension cables and 330180-X1-05 proximitors, supporting both planned maintenance programs and emergency procurement requirements for facilities that cannot afford extended lead times on critical spare parts.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330907-05-30-05-02-05 begins at the sensor level and extends through every layer of the control cabinet. The probe’s output feeds directly into a Bently Nevada 3300 XL proximitor, which conditions the raw eddy-current signal into a calibrated DC voltage proportional to shaft gap. This conditioned signal is then routed to a 3500/42M proximitor I/O module housed within the Bently Nevada 3500 rack — the industry-standard platform for API 670 machinery protection.

Within the 3500 rack, the 3500/15 power supply module provides regulated, redundant DC power to all monitoring cards, eliminating the risk of measurement errors caused by power rail fluctuations. The 3500/22M transient data interface module captures high-resolution waveform data during alarm and trip events, enabling post-incident analysis that supports root-cause investigation and regulatory reporting. For facilities requiring network-based condition monitoring, the 3500/92 communication gateway module transmits real-time machinery health data to plant DCS or historian systems via Modbus or OPC-DA, without introducing latency into the protective relay logic.

Surge and transient protection at the I/O terminal level — using dedicated surge arrestors on the 3500 rack terminal board — prevents lightning-induced or switching-transient damage from propagating into the measurement chain. The complete system, from the 330907-05-30-05-02-05 probe through to the rack output relays, is designed to maintain protective function integrity even under the electromagnetic stress conditions typical of large motor control centers and high-voltage switchgear rooms.

Critical Industrial Safety Applications

The 330907-05-30-05-02-05 is deployed across a broad spectrum of safety-critical industrial applications where continuous, accurate shaft monitoring is non-negotiable.

In petrochemical and refinery environments, the probe monitors radial shaft displacement on centrifugal compressors and process pumps handling flammable or toxic media. An undetected bearing failure in these machines can trigger catastrophic releases; the probe’s SIL-compatible output ensures that the safety instrumented system receives a reliable trip signal before mechanical damage escalates to a process safety event.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the probe is installed on turbine shafts and generator bearings, where it provides the primary vibration and eccentricity data used by the turbine control system to initiate protective shutdown during abnormal operating conditions.

In mining and mineral processing operations, the probe monitors large grinding mills, conveyor drive gearboxes, and slurry pump shafts in environments characterized by heavy dust, moisture ingress, and mechanical shock. Its IP67 rating and armored cable construction ensure measurement continuity even when the surrounding environment is hostile to conventional instrumentation.

In water and wastewater treatment plants, the probe is used on high-speed centrifugal blowers and vertical turbine pumps, where early detection of shaft imbalance or bearing wear prevents unplanned outages that would disrupt municipal water supply or environmental compliance obligations.

In metallurgical and steel-making facilities, the probe withstands the extreme thermal gradients and electromagnetic interference generated by electric arc furnaces and rolling mill drives, maintaining reliable shaft position data for the mill’s automation and safety systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330907-05-30-05-02-05?
The warranty covers all manufacturing defects, material failures, and performance deviations from Bently Nevada specifications for a period of 12 months from the date of shipment. If the probe fails to meet its published sensitivity or linearity specifications under normal operating conditions, SMARTNEXMSK will provide a replacement unit or full refund. The warranty does not cover damage resulting from improper installation, mechanical impact, or operation outside the specified temperature and gap range.

Q2: What pre-shipment testing is performed on each unit?
Every 330907-05-30-05-02-05 unit undergoes a three-point functional test before dispatch: (1) gap voltage verification across the full linear range, (2) sensitivity measurement to confirm 7.87 V/mm output, and (3) full cable continuity and insulation resistance check. Test records are available upon request for quality documentation purposes.

Q3: Is this probe compatible with existing 3300 XL and 3500 system installations?
Yes. The 330907-05-30-05-02-05 is fully compatible with all Bently Nevada 3300 XL proximitors and 3500 series monitoring racks. Its reverse-mount configuration and standard coaxial connector allow direct replacement of worn or failed probes without system reconfiguration or proximitor recalibration, provided the installation gap is set correctly per the system documentation.

Q4: Can long-term supply of this part be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains standing inventory of the 330907-05-30-05-02-05 and its companion components to support both planned maintenance schedules and emergency procurement. For facilities with annual or multi-year maintenance contracts, we offer priority allocation agreements to ensure parts availability without dependence on OEM lead times. Contact our technical sales team to discuss supply continuity arrangements for your site.
