Bently Nevada 330907-05-30-50-02-00 Spare 3300 XL

Bently Nevada 330907-05-30-50-02-00 Maintenance-Ready Spare for 3300 XL Automation

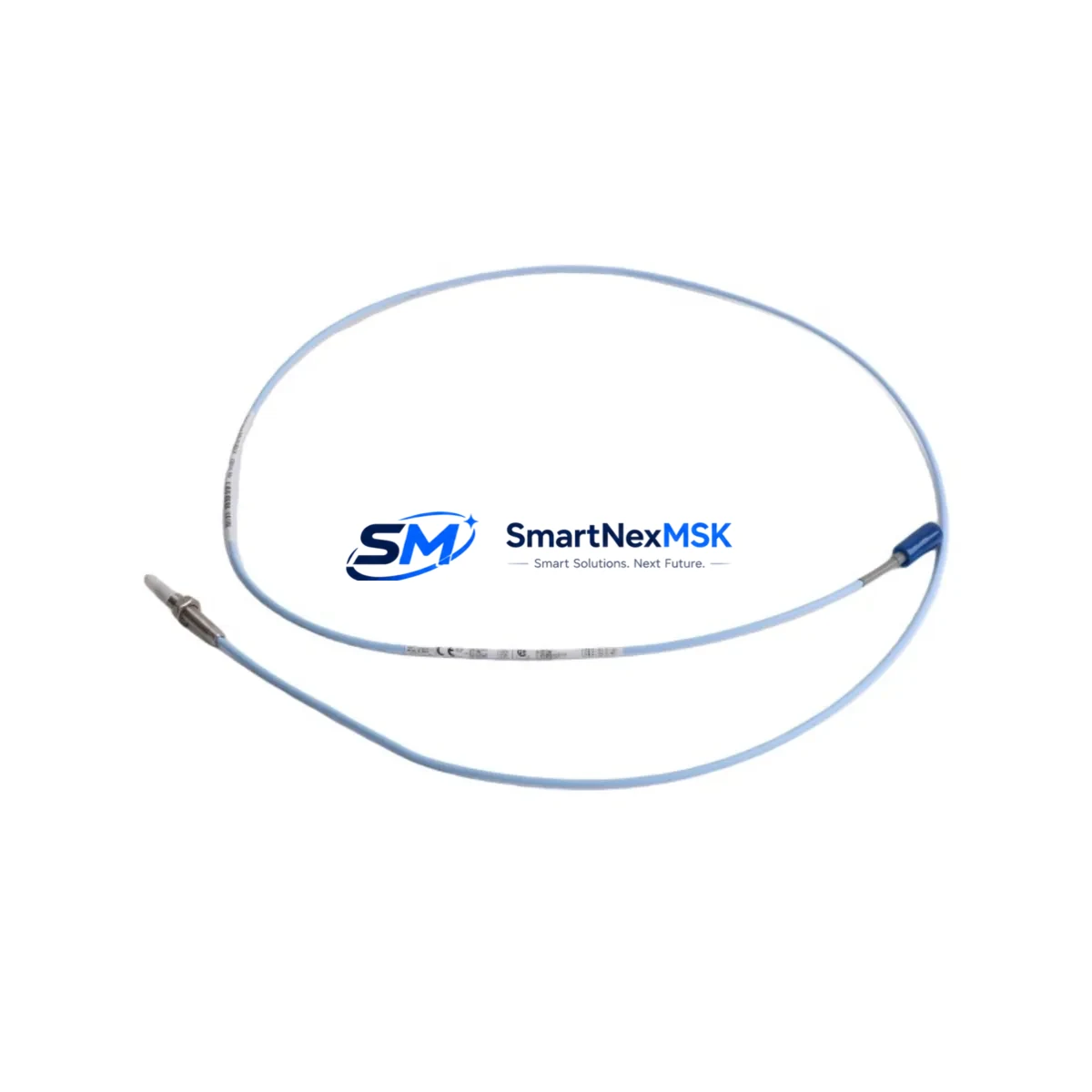

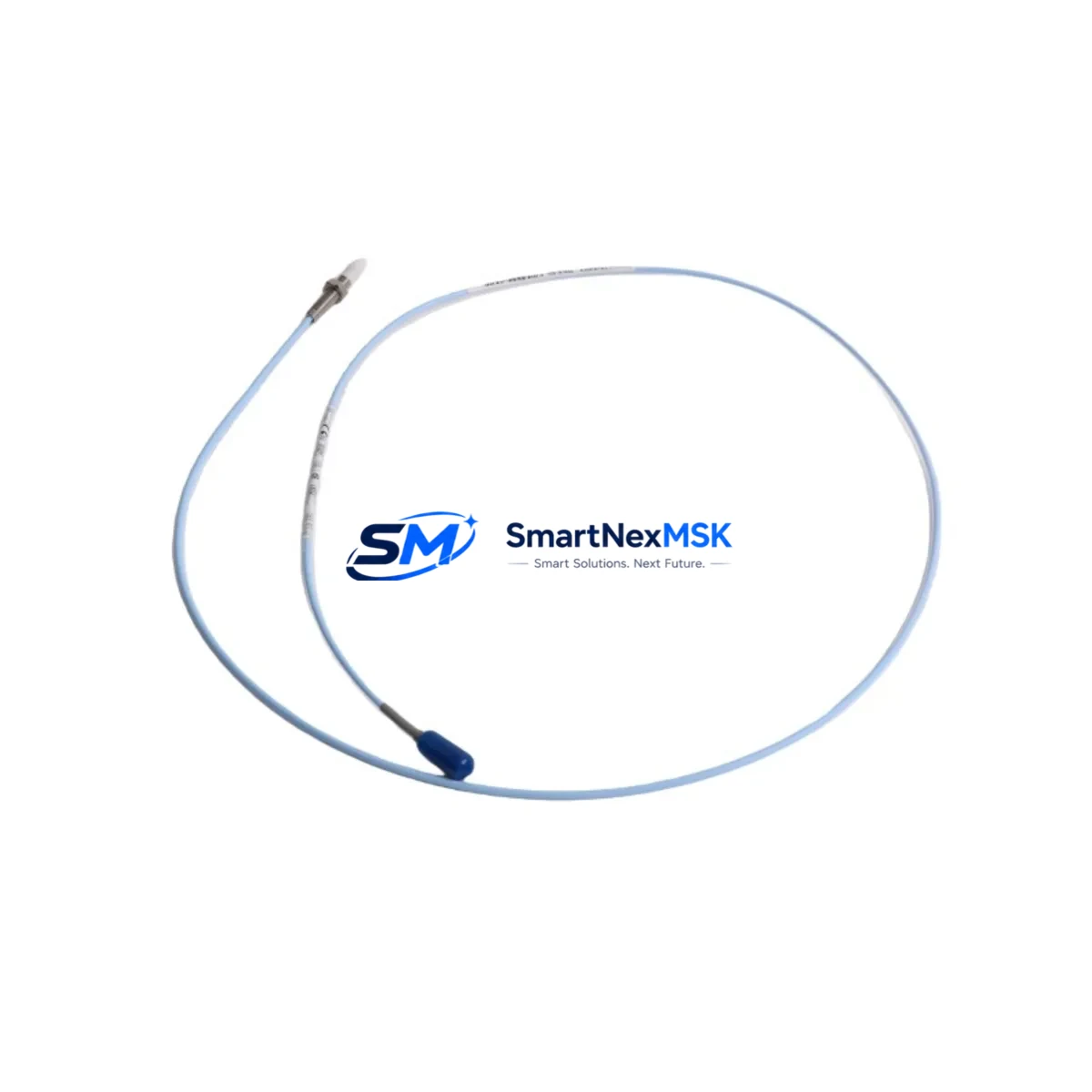

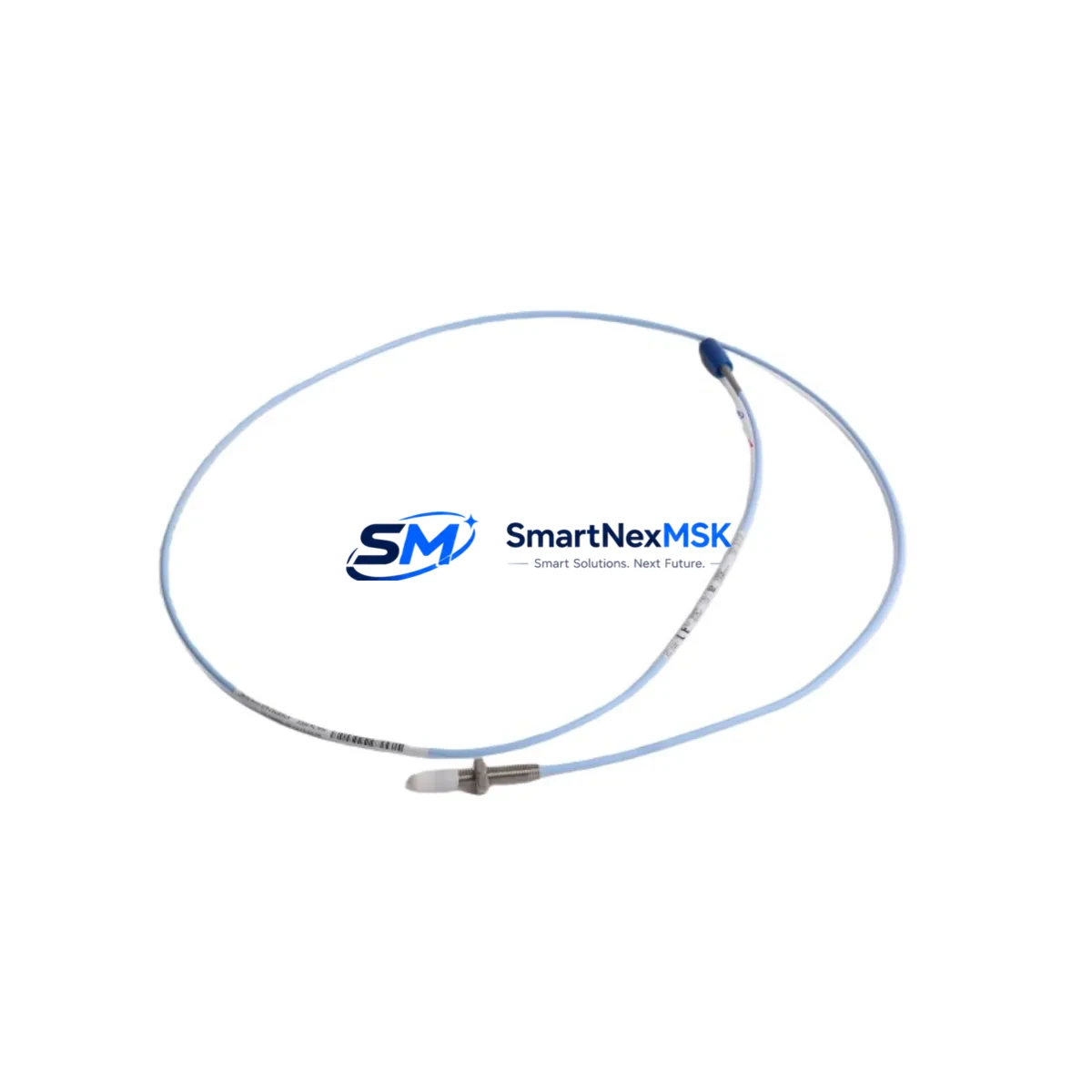

The Bently Nevada 330907-05-30-50-02-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed for radial vibration, axial position, and differential expansion measurement on rotating equipment, this transducer is a critical component in turbine, compressor, pump, and motor protection circuits across oil & gas, power generation, petrochemical, and heavy industrial facilities. Maintaining a verified spare of the 330907-05-30-50-02-00 in your site inventory is a fundamental requirement for any maintenance team operating 3300 XL-based protection systems — unplanned transducer failure without a ready replacement can trigger extended unplanned downtime, loss of machinery protection, and costly production interruptions.

At SMARTNEXMSK, every 330907-05-30-50-02-00 unit is sourced from verified supply channels, inspected prior to dispatch, and shipped with full documentation. Each unit carries a 12-month warranty covering manufacturing defects and functional performance. We support maintenance engineers and procurement teams with long-term supply continuity for legacy and active 3300 XL installations worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330907-05-30-50-02-00 proximity transducer is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers treat the event as a trigger for a broader inspection of the associated measurement chain and protection loop. The transducer does not operate in isolation — its signal integrity depends on the condition of every upstream and downstream component in the 3300 XL system.

Begin by inspecting the 3300 XL Proximitor Sensor (typically a 330180 or 330130 series driver) that conditions the transducer output. A degraded or mismatched Proximitor will produce erroneous gap voltage readings even with a new probe installed. Verify the driver’s power supply rail — the 3300 XL Power Supply module must deliver a stable -24 VDC; fluctuations here are a common root cause of transient vibration alarms that are incorrectly attributed to the transducer itself.

Check the extension cable (typically 330130-045-00-00 or equivalent 3300 XL series cable) for continuity, insulation resistance, and connector integrity. Damaged cable shielding introduces noise into the measurement signal and can cause false high-vibration trips. At the same time, inspect the terminal block and field wiring within the junction box — corroded terminals or loose connections are a frequent source of intermittent faults in high-vibration environments.

At the monitor rack level, confirm that the 3300/16 or 3300/20 vibration monitor card is correctly configured for the 8mm probe system and that the OK relay output is functioning. If the system includes a 3300/55 or 3300/46 position monitor for axial thrust measurement, verify its calibration against the new transducer’s gap voltage curve. For facilities running integrated machinery protection, also inspect the 3500 Series rack interface if the 3300 XL feeds into a 3500 system — signal handoff between these platforms requires verified cable routing and correct termination.

Where the 330907-05-30-50-02-00 is used in a compressor or turbine train, maintenance planners should also schedule inspection of the Keyphasor transducer (such as the 330980 series) mounted on the same shaft. The Keyphasor provides the phase reference for all vibration vectors; a worn or misaligned Keyphasor will corrupt spectrum data across the entire protection system. Finally, review the barrier or signal isolator in the intrinsically safe circuit if the installation is in a hazardous area — Zener barriers and galvanic isolators have defined service lives and should be replaced on a scheduled basis alongside primary transducers.

Maintaining a site spare kit that includes the 330907-05-30-50-02-00 transducer, its matched extension cable, a spare Proximitor driver, and a set of terminal block connectors reduces mean time to repair (MTTR) for 3300 XL measurement loops from hours to under 30 minutes.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the -24 VDC supply to the Proximitor driver before disconnecting the transducer cable. Do not disconnect the probe under live power — this can damage the driver output stage.

Step 2 — Gap Measurement and Documentation: Record the existing probe gap voltage (typically -10 VDC ± 0.5 V at the nominal 1.0 mm gap for 8mm probes) before removal. This baseline confirms whether the original transducer had drifted out of calibration or failed outright.

Step 3 — Probe Removal: Loosen the locknut and unthread the 330907-05-30-50-02-00 from the probe holder. Inspect the probe tip and target area for surface damage, scoring, or contamination. Clean the target surface if required before installing the replacement.

Step 4 — New Probe Installation: Thread the replacement 330907-05-30-50-02-00 into the holder. Set the initial gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for 8mm probes). Verify gap voltage at the Proximitor output — target -10.0 VDC ± 0.2 V. Tighten the locknut to the specified torque and re-verify gap voltage after torquing.

Step 5 — System Verification: Restore power and confirm the monitor OK relay is energized. Check that the vibration reading is within the expected baseline range for the machine at rest. Clear any latched alarms and document the replacement in the maintenance management system (CMMS) with the new probe serial number and gap voltage.

This workflow is compatible with direct replacement of earlier 330907 series variants. The 330907-05-30-50-02-00 is backward-compatible with standard 3300 XL Proximitor drivers and monitor cards, eliminating the need for system reconfiguration in most installations.

Spare Parts Support FAQ

Q1: Is the 330907-05-30-50-02-00 a direct replacement for earlier 330907 series variants?
Yes. The 330907-05-30-50-02-00 is fully compatible with the 3300 XL Proximitor sensor ecosystem and serves as a direct field replacement for earlier 330907 configurations using the same 8mm probe diameter and -24 VDC supply. No driver reconfiguration is required in standard installations. Always verify the extension cable part number matches the Proximitor driver specification before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 330907-05-30-50-02-00 dispatched by SMARTNEXMSK undergoes functional output verification — the probe is energized with a calibrated -24 VDC supply and gap voltage linearity is confirmed across the specified measurement range before packaging. Units that do not meet Bently Nevada output specifications are quarantined and not shipped. Test records are available on request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional output failure, and physical integrity of the probe tip, cable, and connector under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical contamination, or operation outside the specified supply voltage range. Warranty claims are processed with return of the defective unit and a brief fault description.

Q4: Can SMARTNEXMSK support long-term supply for 3300 XL spare parts?
Yes. SMARTNEXMSK maintains ongoing sourcing relationships for 3300 XL series components including proximity transducers, extension cables, Proximitor drivers, monitor cards, and power supply modules. For facilities managing aging 3300 XL installations or planning a multi-year maintenance contract, we can discuss scheduled supply agreements and consignment stock arrangements. Contact our team to discuss your site’s specific spare parts requirements.
