Bently Nevada 330908-00-15-70-02-05 Safety-Enhanced Proximity Probe

Bently Nevada 330908-00-15-70-02-05 Safety-Enhanced Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Control Environments

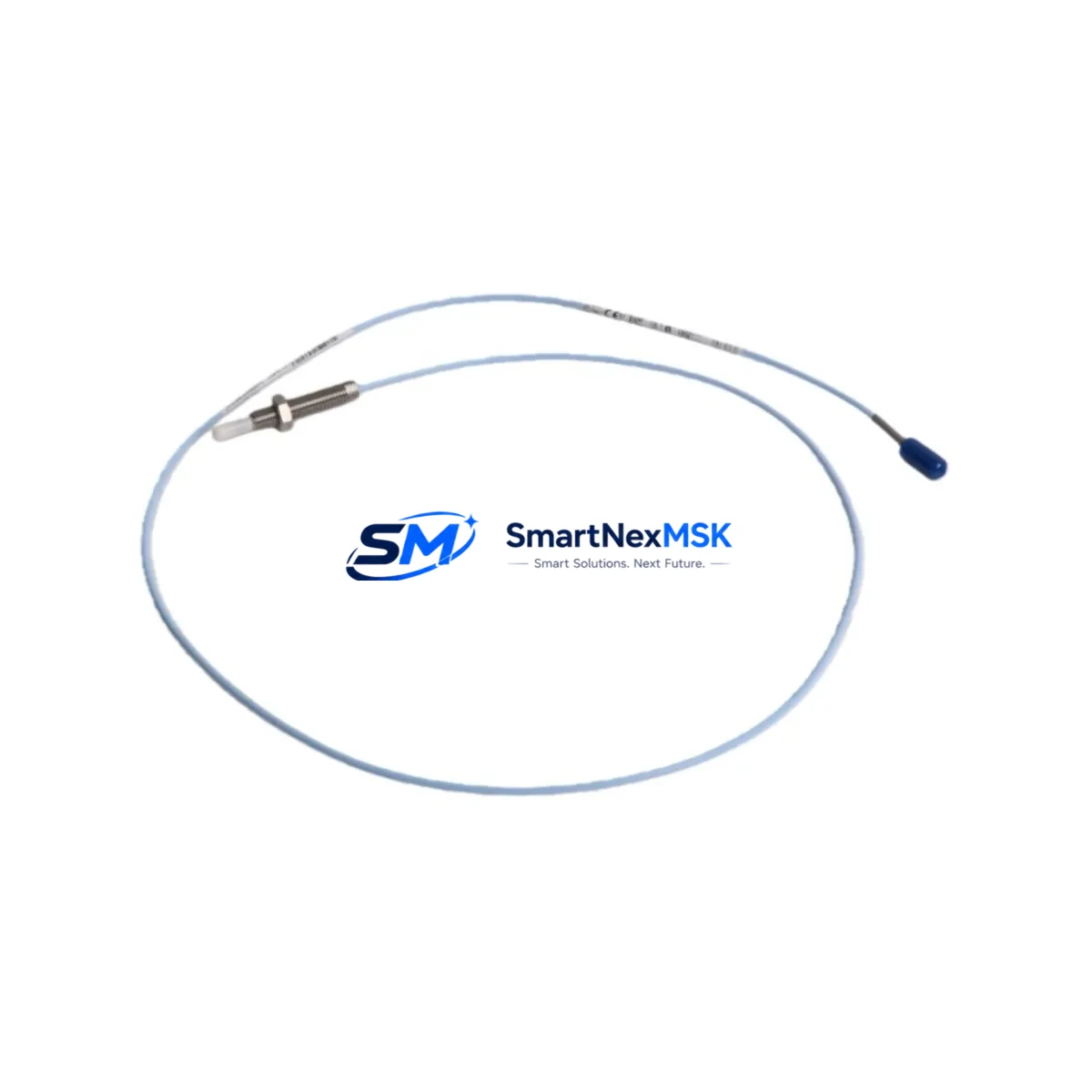

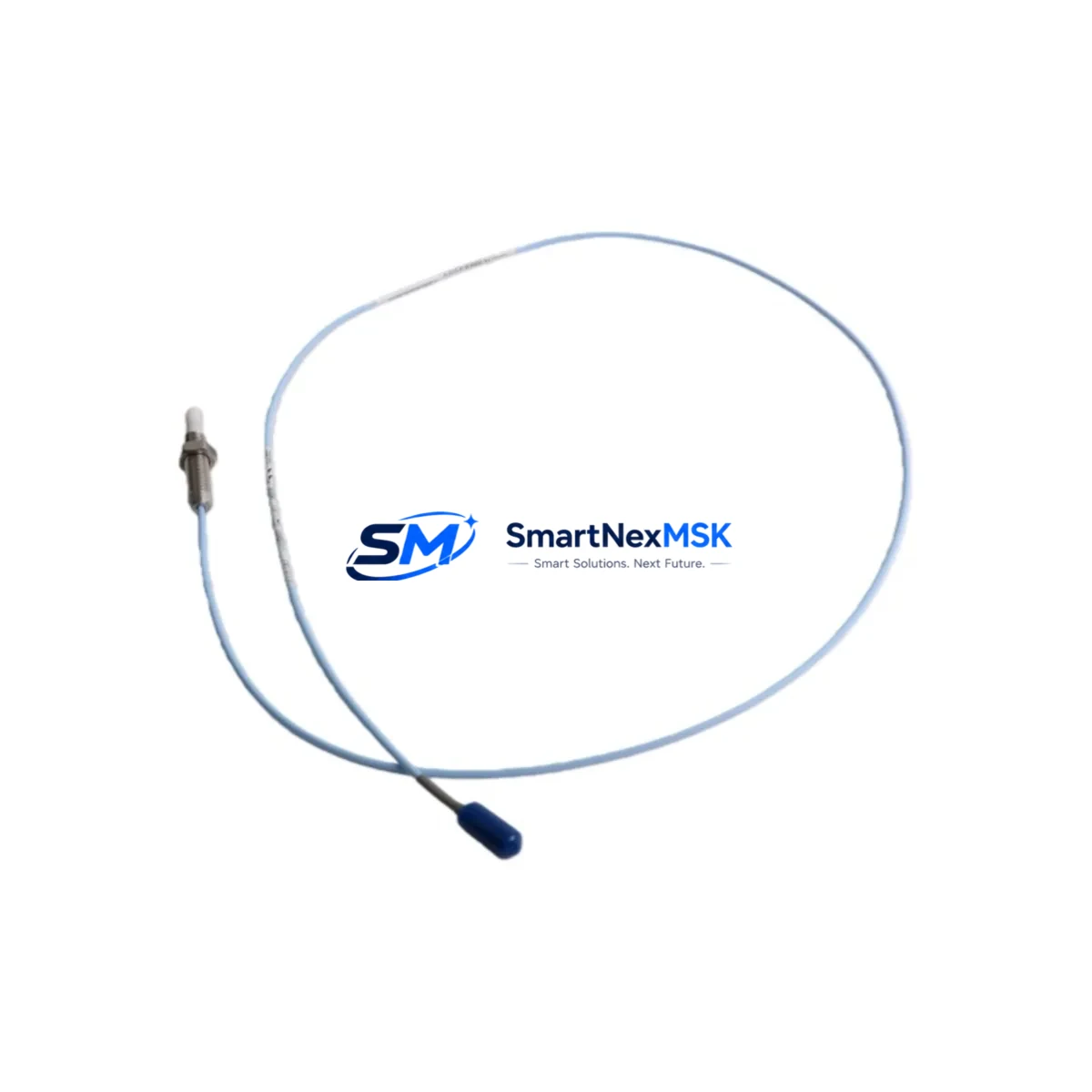

The Bently Nevada 330908-00-15-70-02-05 is an NSv Series 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to API 670 standards, this probe delivers the measurement accuracy and environmental resilience required to protect rotating machinery in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port terminals, and continuous manufacturing lines.

In high-load, high-interference industrial settings, control interruptions caused by sensor failure can cascade into costly unplanned shutdowns, equipment damage, or — in the worst case — personnel safety incidents. The 330908-00-15-70-02-05 addresses these risks directly: its ruggedized construction resists signal drift under electromagnetic interference, its sealed housing withstands aggressive chemical exposure and mechanical vibration, and its stable output ensures that the Bently Nevada 3500 Series monitoring rack receives clean, reliable data at all times. Whether installed in a turbine protection loop, a compressor interlock circuit, or a critical pump monitoring cabinet, this probe maintains measurement integrity where it matters most.

Safety Reliability Table

Control Cabinet Protection Strategy

A proximity probe is only as reliable as the complete signal chain surrounding it. In a well-engineered machinery protection cabinet, the 330908-00-15-70-02-05 probe works in concert with the Bently Nevada 330180-X1-05 extension cable to maintain signal integrity over long cable runs between the machine casing and the monitoring rack. The conditioned output feeds directly into a Bently Nevada 3500/42M Proximitor I/O Module, which processes radial vibration and eccentricity data in real time.

For plants operating under IEC 61511 functional safety requirements, the 3500 rack can be configured with a Bently Nevada 3500/22M Transient Data Interface to capture high-resolution waveform data during trip events — providing the forensic evidence needed for root-cause analysis after a safety interlock activation. Power supply stability is equally critical: the Bently Nevada 3500/15 Power Supply Module provides redundant 24 VDC rails to the rack, ensuring that a single power fault does not compromise the entire protection system.

In cabinets where multiple measurement types are required, the 330908-00-15-70-02-05 probe is frequently deployed alongside Bently Nevada 330103 Series thrust position probes and 330500 Series velocity transducers, forming a comprehensive vibration, position, and velocity monitoring suite on a single rotating machine. Communication to the plant DCS or safety PLC is handled through the Bently Nevada 3500/92 Communication Gateway, which supports Modbus TCP, PROFIBUS DP, and OPC-UA — ensuring that trip signals and alarm states are visible to the plant-wide control architecture without latency.

For installations in classified hazardous areas (Zone 1 / Zone 2 or Division 1 / Division 2), the probe system is paired with Bently Nevada 3300 XL Zener barrier assemblies or galvanic isolators to maintain intrinsic safety compliance, preventing ignition risk in environments where flammable gases or vapors may be present. This complete protection architecture — probe, extension cable, driver, I/O module, power supply, communication gateway, and safety barriers — is what transforms a single sensor into a dependable safety interlock node.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In fluid catalytic cracking units, compressor trains, and centrifugal pump skids, the 330908-00-15-70-02-05 provides continuous shaft vibration monitoring that feeds directly into emergency shutdown (ESD) logic. A vibration exceedance beyond the API 670 danger setpoint triggers an automatic trip before bearing failure can escalate to a seal breach or fire event.

Power Generation: Steam turbines and gas turbines in combined-cycle power plants operate at shaft speeds exceeding 3,000 RPM under continuous load. The NSv probe’s wide frequency response (DC to 10,000 Hz) and low noise floor ensure that sub-synchronous instabilities, oil whirl, and blade-pass frequencies are detected early — enabling predictive maintenance scheduling rather than reactive emergency repairs.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme mechanical shock and high ambient dust concentrations. The IP67-rated housing of the 330908-00-15-70-02-05 resists ingress of abrasive particulates, while the chemically resistant cable jacket withstands exposure to process slurries and cleaning agents.

Water & Wastewater Treatment: High-service pumping stations and blower trains in municipal water treatment facilities require uninterrupted operation. Proximity probe monitoring on these assets provides early warning of impeller imbalance and bearing wear, allowing maintenance teams to schedule interventions during planned outages rather than responding to catastrophic failures that could interrupt water supply.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate in environments with intense electromagnetic interference from high-current bus bars and induction heating equipment. The shielded coaxial construction of the NSv probe system maintains signal integrity in these high-EMI conditions, preventing false trips that could disrupt production continuity.

Port & Heavy Logistics: Crane hoisting drives, conveyor gearboxes, and ship-loader slewing mechanisms in port terminals benefit from proximity-based position monitoring to detect shaft runout and coupling misalignment before they cause structural damage to drive trains operating under variable, high-impact loads.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330908-00-15-70-02-05?
The 12-month warranty covers all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions. If the probe fails to meet its published sensitivity, linearity, or frequency response specifications within the warranty period, we will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: What outgoing inspection and testing is performed before shipment?
Every 330908-00-15-70-02-05 unit undergoes a full functional test prior to dispatch. This includes sensitivity verification at the nominal 7.87 V/mm output, cable continuity and insulation resistance checks, dimensional inspection of the probe tip and thread, and visual inspection of the cable jacket and connector. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series installations?
Yes. The 330908-00-15-70-02-05 is a direct form-fit-function replacement for standard 3300 XL 8mm probe systems. It is compatible with the 330180 Series extension cables and the full range of 3500 Series I/O modules, including the 3500/42M, 3500/40M, and 3500/44M. No recalibration of the monitoring rack is required when replacing a like-for-like probe in an existing installation.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain standing inventory of the 330908-00-15-70-02-05 and its associated extension cables and drivers to support both planned maintenance programs and emergency breakdown requirements. For customers with critical asset protection needs, we recommend establishing a consignment stock or blanket purchase order arrangement to ensure zero lead-time availability. Our team can provide supply continuity commitments aligned with your plant’s maintenance cycle.
