Bently Nevada 330908-00-19-10-02-05 Spare for 3300 NSv Automation

Bently Nevada 330908-00-19-10-02-05 Spare for 3300 NSv Automation: Spare Replacement & Downtime Risk Control

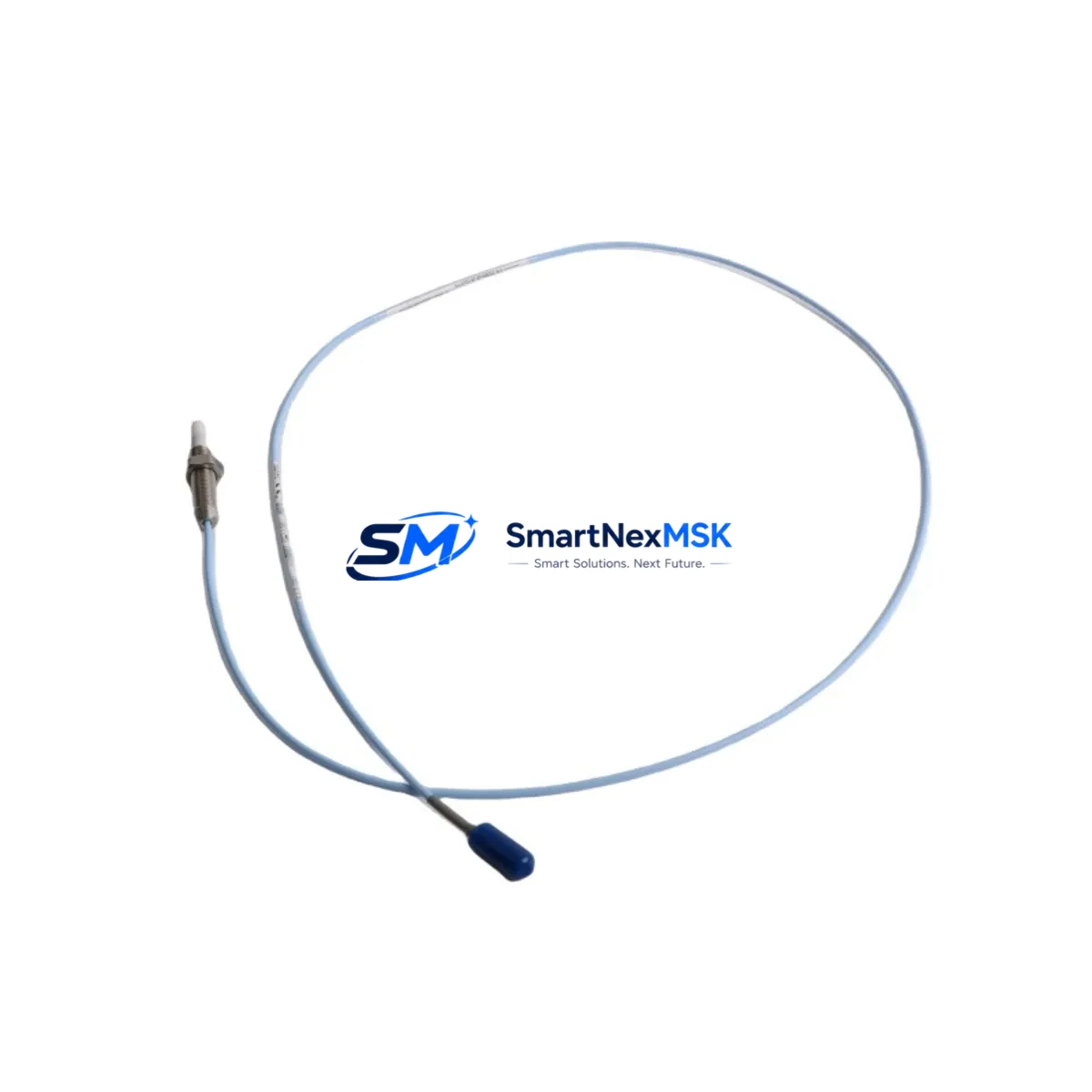

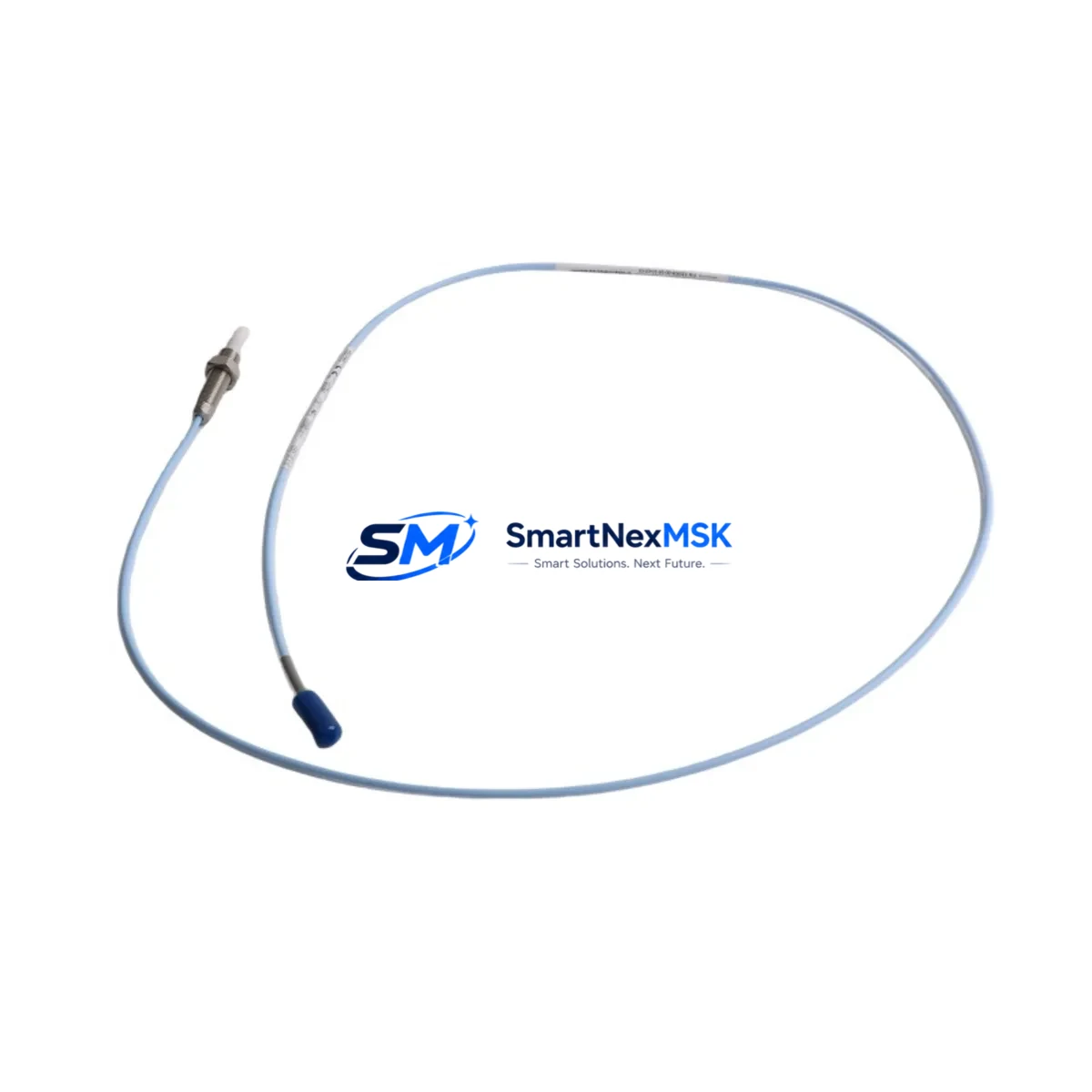

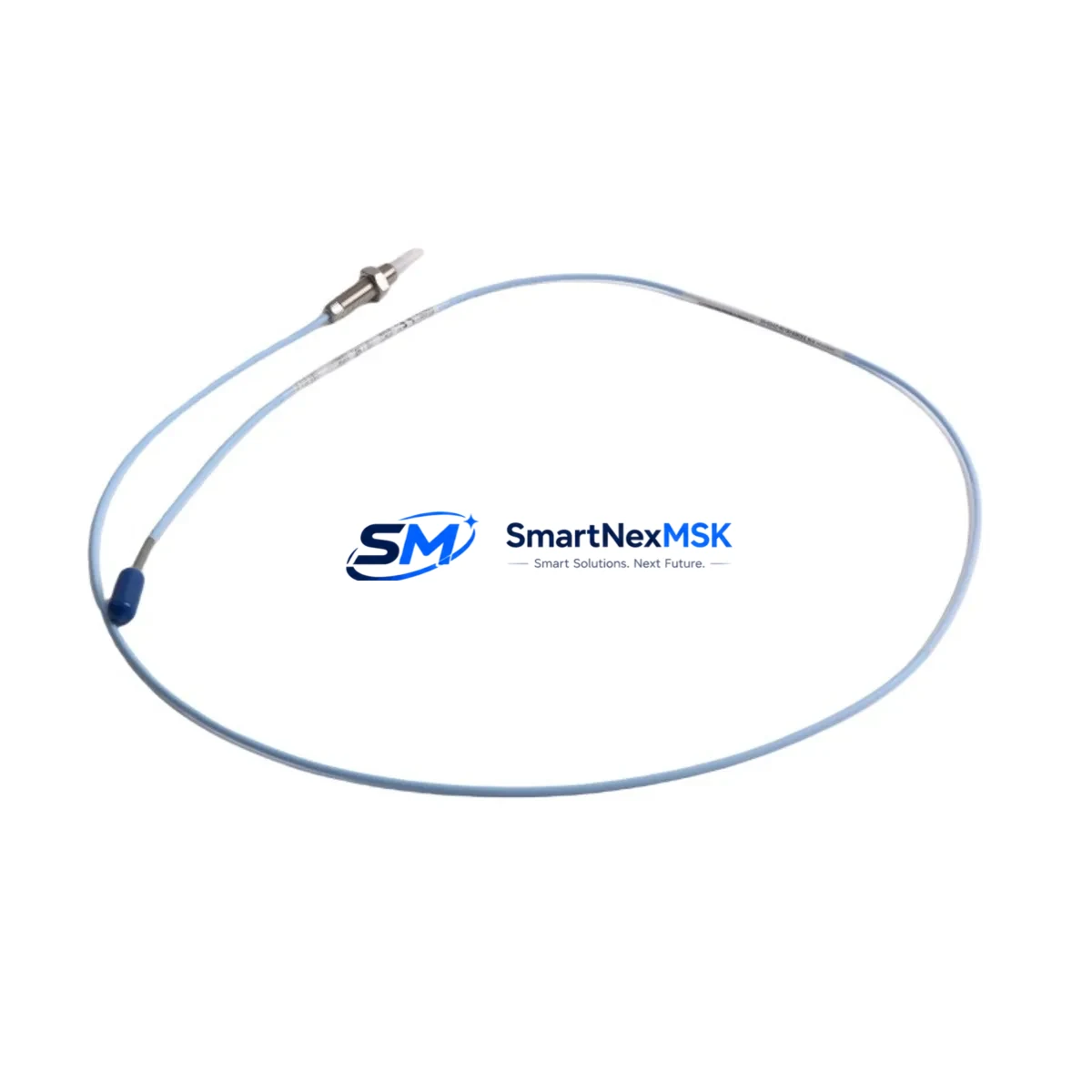

The Bently Nevada 330908-00-19-10-02-05 is an 8mm eddy current proximity probe engineered for the 3300 NSv Proximitor® system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical field-replaceable unit. Keeping a verified spare on the shelf is not optional; it is a core element of any credible predictive maintenance or emergency response plan.

When this probe fails or drifts out of calibration, the entire vibration channel goes dark. In API 670-compliant installations, a missing or faulted channel can trigger a machine trip or force a manual bypass — both of which carry significant operational and safety risk. Sourcing a tested, original-specification replacement immediately is the fastest path to channel restoration and safe restart.

This unit ships tested and verified against Bently Nevada factory specifications, with full 12-month warranty coverage and documentation suitable for maintenance records and audit trails.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330908-00-19-10-02-05 probe is rarely an isolated task. A thorough maintenance engineer will treat this as an opportunity to audit the entire vibration monitoring loop and the surrounding control cabinet. The 3300 NSv Proximitor® module — typically the 3300/16-02-01-00 or equivalent — should be inspected for LED fault indicators, output voltage drift, and connector corrosion before the new probe is commissioned. A faulty Proximitor will reject or misread even a brand-new probe.

The extension cable (commonly the 330130 series) running between the probe and the Proximitor is a frequent source of intermittent faults due to connector wear, shield grounding issues, or mechanical damage in high-vibration environments. Inspect the full cable run and replace if continuity or insulation resistance is marginal.

At the cabinet level, verify the 24 VDC power supply feeding the Proximitor rack — voltage sag or ripple will directly affect probe gap voltage and introduce false vibration readings. If the installation uses a 3300/05 Power Supply module, check its output under load. Simultaneously, inspect the terminal blocks (such as Phoenix Contact or Weidmüller DIN-rail types) on the signal wiring for loose terminations, which are a common root cause of noisy vibration signals.

For systems integrated with a System 1 or System 1 Evolution condition monitoring platform, confirm that the channel configuration — gap voltage setpoints, full-scale range, and alarm thresholds — is correctly restored after probe replacement. A misconfigured channel can mask real machinery faults or generate nuisance trips.

If the machine also uses 330980 or 330905 series probes on adjacent bearing positions, this is an ideal time to perform a comparative gap voltage check across all channels to identify any probes approaching end-of-life. Probes that have been in service for more than five years in high-temperature or chemically aggressive environments should be flagged for scheduled replacement regardless of current readings.

For installations with keyphasor probes (such as the 330980-50-00), verify that the keyphasor signal is clean and correctly phased — a degraded keyphasor will corrupt all phase-referenced vibration data across the entire monitoring system. Additionally, check any signal isolators or barriers (such as MTL or P+F Zener barriers) in the loop if the installation is in a hazardous area classification.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the existing probe, record the current gap voltage (typically –10.0 to –18.0 VDC for an 8mm probe at nominal gap). This baseline confirms whether the old probe has drifted and provides a reference for commissioning the new unit.

Step 2 — Safe isolation: Coordinate with operations to place the vibration channel in bypass or inhibit mode within the safety system or DCS before disconnecting the probe. This prevents a spurious trip during the swap. Document the bypass in the permit-to-work system.

Step 3 — Physical replacement: Remove the probe from the bearing housing using the correct spanner. Inspect the probe tip for contamination or mechanical damage. Install the 330908-00-19-10-02-05 to the manufacturer-specified gap (typically 50 mil / 1.27 mm for 8mm probes on steel targets). Use a non-metallic feeler gauge to set gap accurately.

Step 4 — Electrical commissioning: Reconnect the extension cable and Proximitor. Power up and verify gap voltage is within the linear range (–10.0 to –18.0 VDC). Confirm the System 1 or DCS display shows a valid, stable reading with no fault flags.

Step 5 — Return to service: Remove the channel bypass, confirm alarm setpoints are active, and document the replacement in the equipment maintenance record. Retain the replaced probe for failure analysis if the fault was not due to normal wear.

This workflow minimizes downtime to under two hours for a prepared maintenance team and ensures the replacement is fully traceable for compliance and insurance purposes.

Spare Parts Support FAQ

Q1: Is the 330908-00-19-10-02-05 compatible with both the 3300 NSv and the 3300 XL 8mm Proximitor?
Yes. The 330908-00-19-10-02-05 is designed for the 3300 NSv system and is also compatible with the 3300 XL 8mm Proximitor module. Always verify the Proximitor model number on the nameplate before installation to confirm the correct sensitivity and gap voltage range.

Q2: How do you verify the probe is functional before installation?
Each unit we ship has been bench-tested using a calibrated Proximitor and steel target to confirm gap voltage linearity across the full measurement range. A test certificate is available on request. On-site, you can verify functionality by connecting the probe to the Proximitor and checking gap voltage with a calibrated multimeter before installing in the bearing housing.

Q3: What is your spare parts stocking recommendation for a plant running multiple 3300 NSv systems?
For plants with 10 or more 3300 NSv channels, we recommend maintaining a minimum of two 330908-series probes per critical machine train, plus one spare Proximitor module and one spare extension cable set. This covers the most common single-point failures without excessive inventory cost. For older installations where probes have been in service more than seven years, increase the buffer to three units per train.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and out-of-specification sensitivity at time of receipt. It does not cover physical damage from improper installation or chemical contamination. To initiate a warranty claim, contact us with the order number and a description of the fault. We will arrange return shipping and provide a replacement or full refund within 10 business days of receiving the returned unit.
