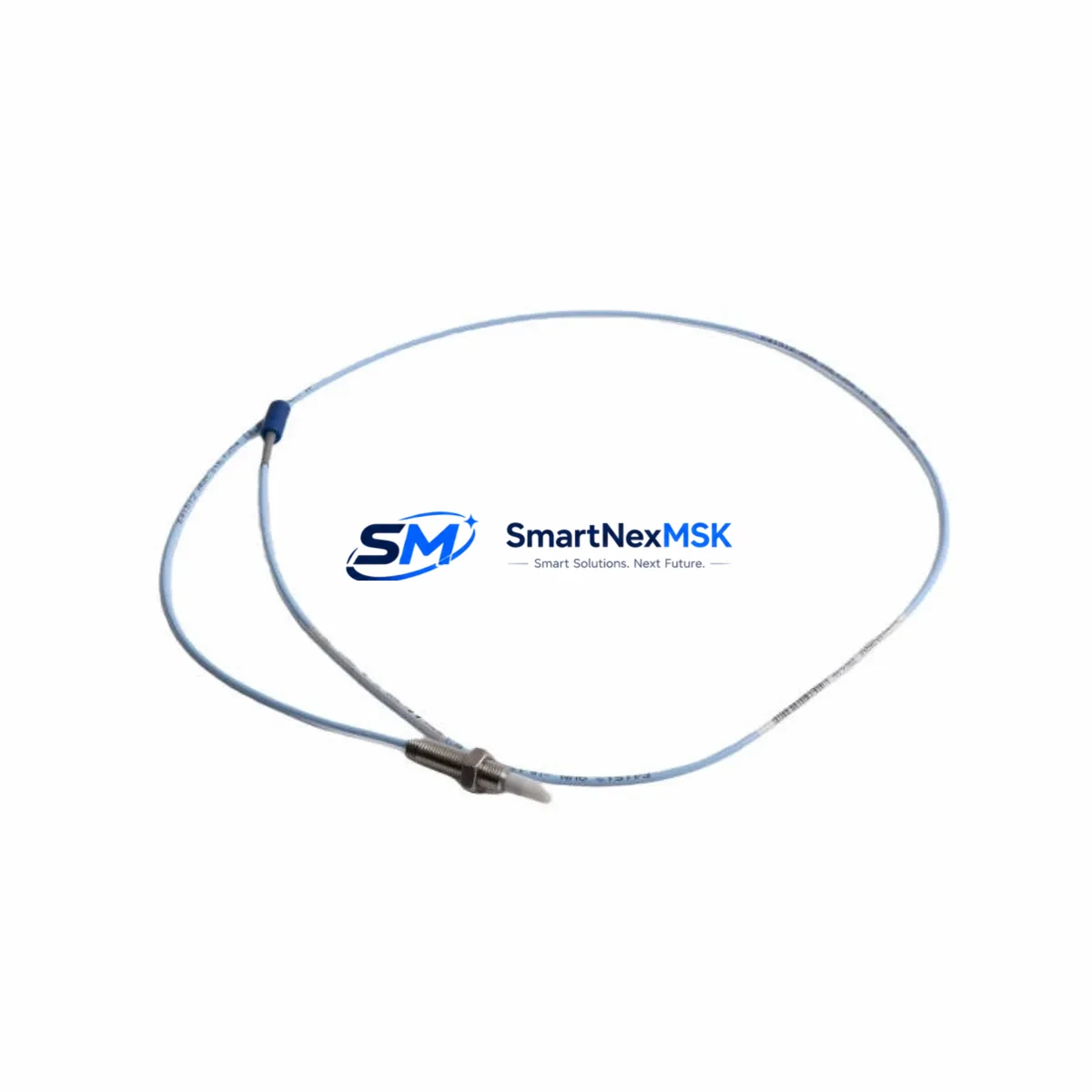

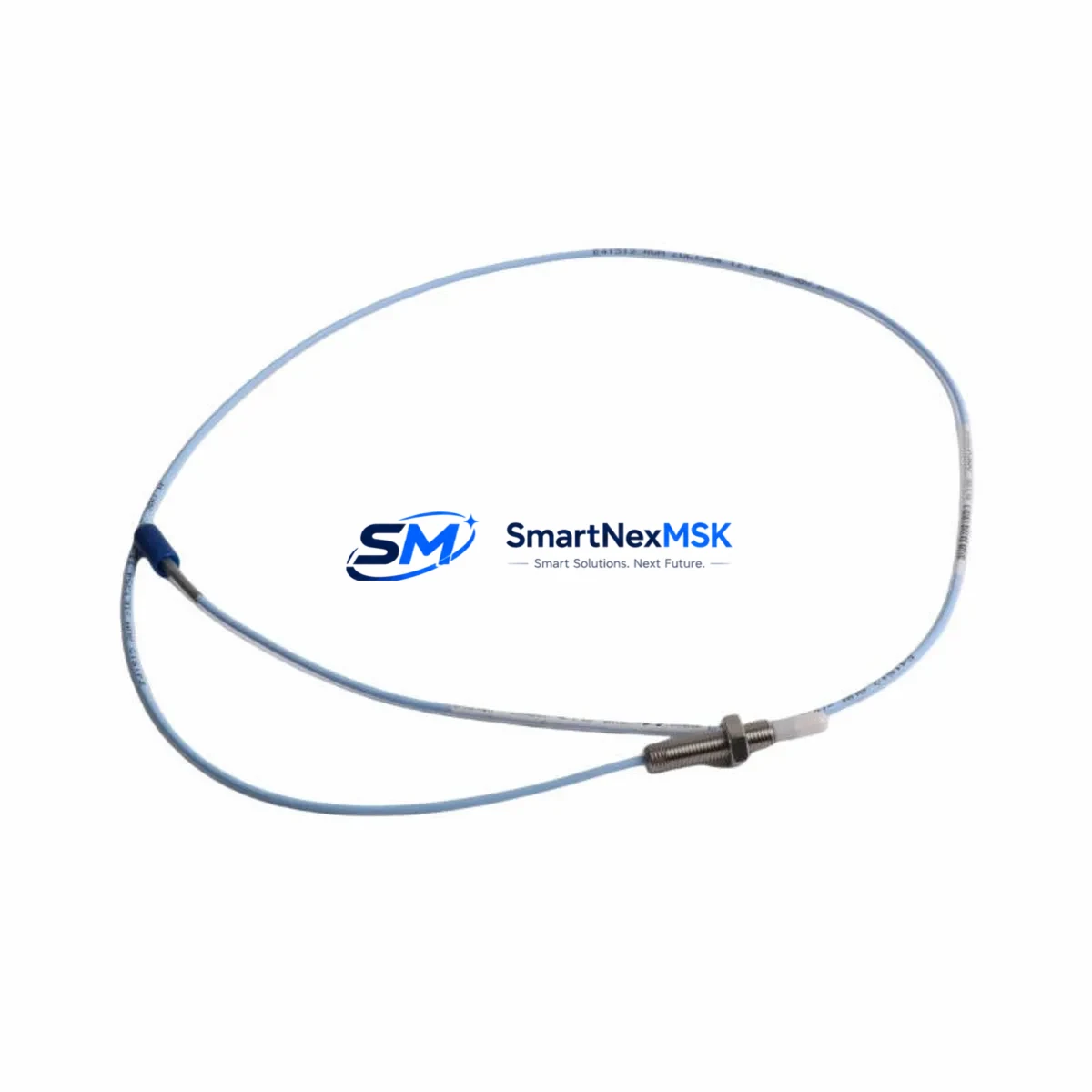

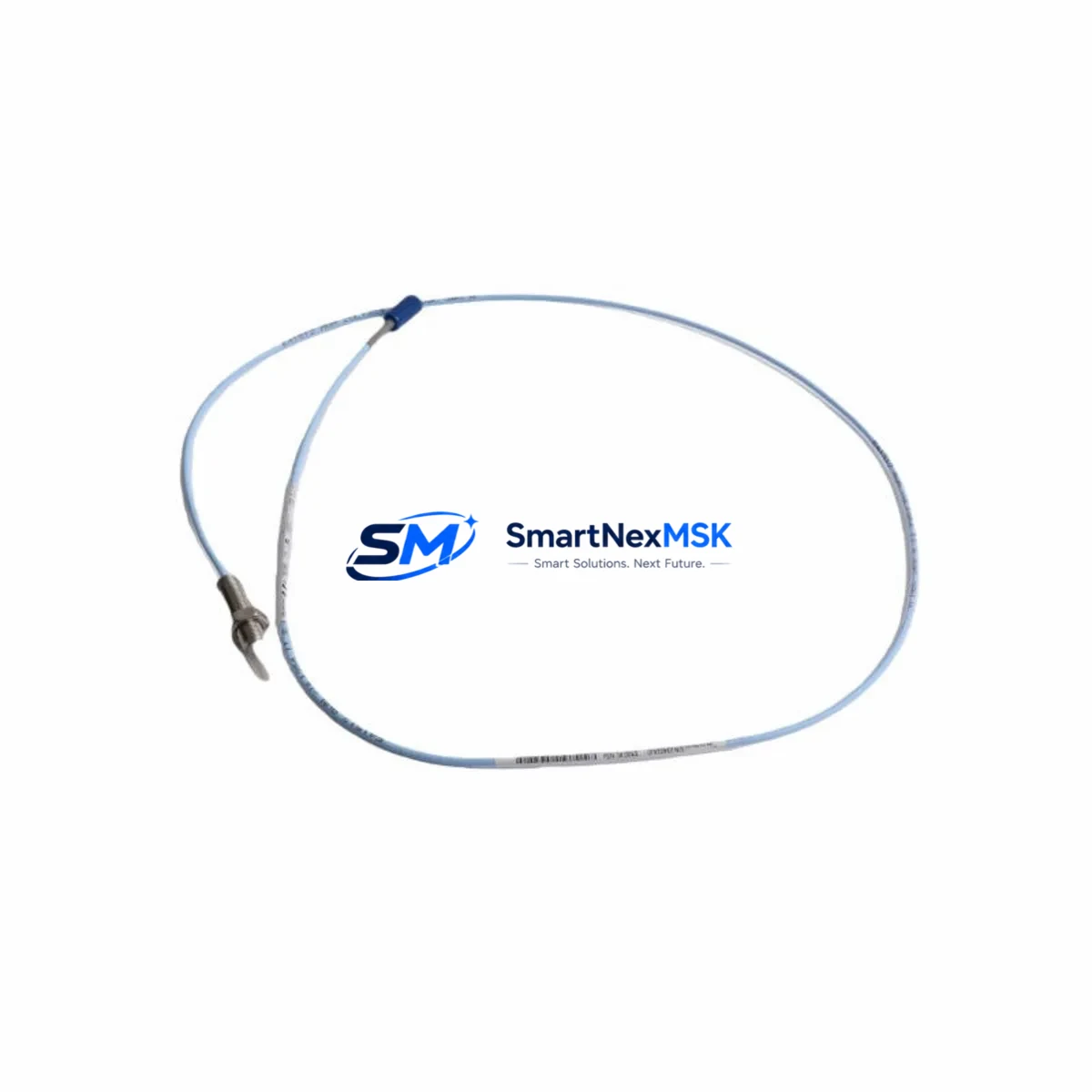

The Bently Nevada 330908-00-30-10-01-CN is an original eddy-current proximity transducer engineered for the 3300 XL Non-contacting Vibration (NSv) monitoring system. Designed for continuous shaft vibration and position measurement in rotating machinery, this transducer is a critical spare for turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, petrochemical, and heavy industrial environments. Maintaining a verified stock of this SKU directly reduces unplanned downtime risk and supports rapid fault isolation during machinery trips.

For maintenance engineers managing vibration monitoring panels, the 330908-00-30-10-01-CN integrates with the 3300 XL monitor rack and is calibrated to work with the standard Bently Nevada extension cable and proximitor/oscillator driver. When replacing this transducer on-site, a complete inspection of the associated signal chain is strongly recommended to ensure measurement integrity is fully restored.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330908-00-30-10-01-CN proximity transducer is flagged for replacement during a planned outage or emergency shutdown, the maintenance scope should extend beyond the probe itself. A thorough inspection of the complete vibration monitoring loop is essential to confirm that the fault is isolated to the transducer and that no secondary damage has occurred upstream or downstream.

Begin by verifying the Bently Nevada 330130 extension cable connecting the probe to the proximitor driver — cable damage, connector corrosion, or impedance mismatch are common causes of false readings that are often misattributed to the transducer. Next, inspect the 3300 XL 8mm Proximitor/Oscillator Driver (typically 330180-X1-05 or equivalent) for output voltage drift or power supply irregularities. The proximitor’s DC power input should be confirmed against the 3300 XL Power Supply module specifications before the new transducer is energized.

For I/O integrity, check the 3300 XL Monitor module terminal block connections and verify that the OK relay output is functioning correctly — a latched NOT OK state after transducer replacement is a common commissioning issue. If the system feeds into a DCS or safety instrumented system (SIS), confirm that the 4–20 mA output signal from the monitor is within calibrated range before releasing the machine to operation.

In control cabinets housing multiple 3300 XL channels, it is good practice to simultaneously inspect adjacent 3300 XL Dual Voting Logic modules and any installed 3300 XL Keyphasor modules (such as the 330980 series), as these share the same rack backplane and power bus. Backplane connector wear or contamination can introduce intermittent faults that appear after a transducer swap.

For facilities running legacy Bently Nevada 7200 series or 3500 series racks alongside 3300 XL systems, ensure that spare transducer specifications are not cross-applied — the 330908 series is calibrated specifically for 3300 XL NSv proximitors and is not interchangeable with 3500/42M or 7200 series monitor inputs without recalibration. Maintaining a clearly labeled spare parts inventory that maps each transducer SKU to its specific monitor rack and channel prevents costly misapplication during emergency replacements.

For HMI-connected systems, after transducer replacement confirm that the System 1 Evolution or legacy System 1 condition monitoring software reflects the updated channel status and that no latent alarm conditions remain suppressed. Signal isolators or barriers installed between the 3300 XL output and the DCS analog input card should also be verified for correct loop resistance and isolation integrity.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the faulty transducer. Document the existing gap voltage reading before removal (typically –10 VDC ± 0.5 V at correct gap).

Step 2 — Probe Removal: Unthread the 330908-00-30-10-01-CN from its mounting bracket. Disconnect the coaxial connector from the extension cable. Inspect the cable connector for moisture ingress or pin damage.

Step 3 — New Transducer Installation: Thread the replacement probe into the bracket. Set the air gap per the Bently Nevada calibration chart for the target shaft material (typically 1.0 mm / 40 mil for standard 4140 steel). Reconnect the extension cable and verify connector seating.

Step 4 — Energize & Verify: Re-energize the monitor channel. Confirm the proximitor output voltage is within the linear range (–10 VDC ± 1 V at set gap). Check the monitor OK relay status and clear any latched alarms.

Step 5 — System Validation: Confirm vibration readings are within baseline levels for the machine at rest and at operating speed. Update the maintenance log with the replacement date, new SKU, and gap setting. Notify the DCS/SIS operator to confirm signal integrity at the control room.

This workflow minimizes machine downtime to under 2 hours for a trained maintenance team and ensures full system compatibility is maintained without requiring monitor reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330908-00-30-10-01-CN compatible with all 3300 XL NSv monitor configurations?
Yes. The 330908-00-30-10-01-CN is designed for the Bently Nevada 3300 XL NSv monitoring system and is compatible with standard 8mm proximitor drivers in that series. Always confirm the extension cable length and proximitor model match the original system configuration before installation. If your rack uses a non-standard target material, consult the Bently Nevada calibration chart for the appropriate gap setting.

Q2: What is included in the 12-month warranty and how does it apply to spare parts?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims require the original invoice and a fault description. The warranty does not cover damage resulting from incorrect installation, gap misalignment, or application outside the specified operating parameters.

Q3: How should I manage 330908-00-30-10-01-CN inventory for a multi-machine facility?
For facilities operating 3–10 machines monitored by 3300 XL NSv systems, a recommended minimum stock level is 2–3 units per site. Transducers should be stored in original packaging in a dry, temperature-controlled environment. Rotate stock on a first-in, first-out basis and inspect stored units annually for connector condition. Pairing transducer spares with a matched extension cable and proximitor driver in a dedicated spare kit reduces mean time to repair (MTTR) significantly.

Q4: Can this transducer replace older or discontinued Bently Nevada proximity probe models?
The 330908-00-30-10-01-CN is the current production SKU for this probe specification and supersedes earlier 330900 series variants in 3300 XL NSv applications. For legacy 7200 or 3500 series systems, a different transducer family is required. SMARTNEXMSK can assist with cross-reference verification to confirm compatibility before shipment. Contact our technical team with your monitor model and channel configuration for a confirmed replacement recommendation.
