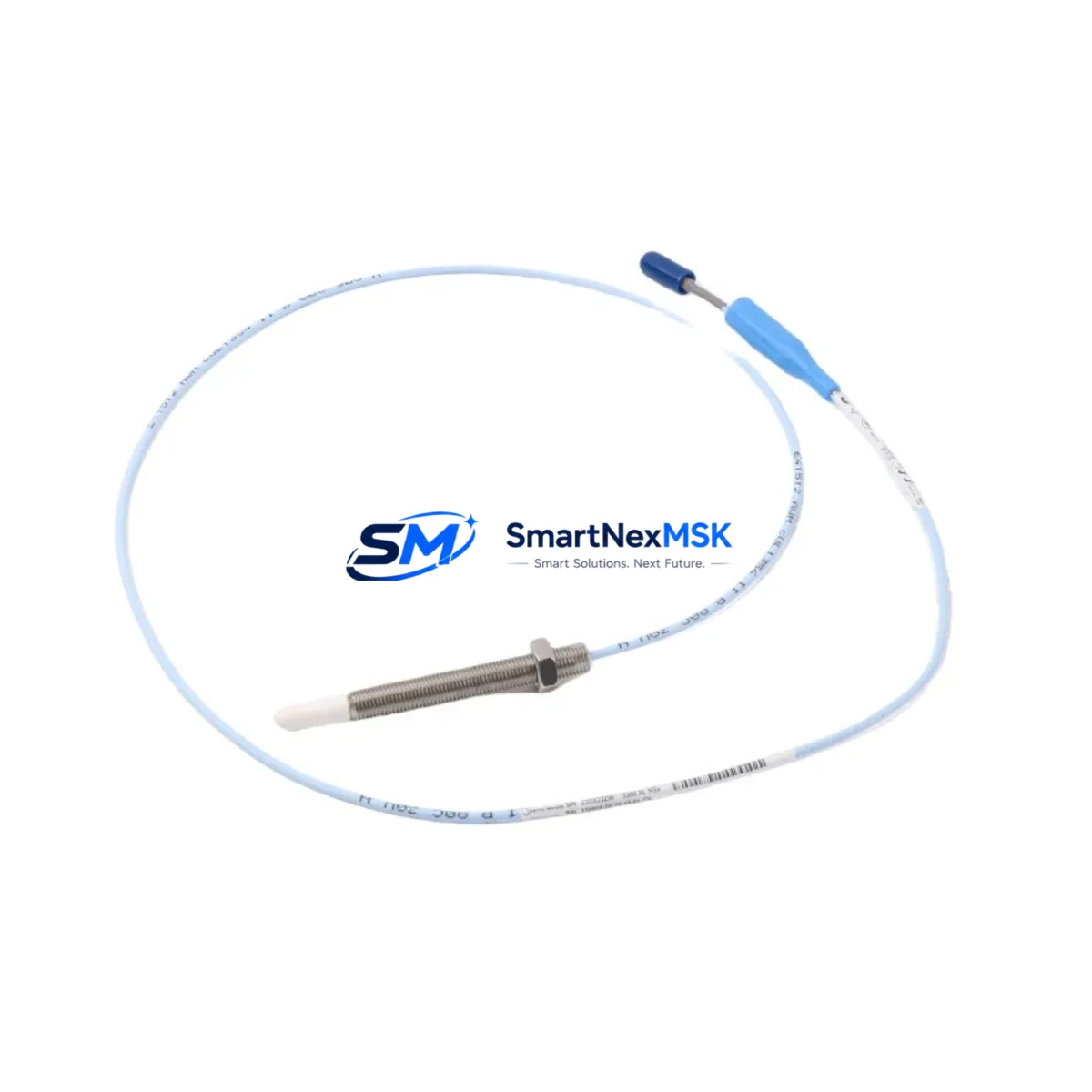

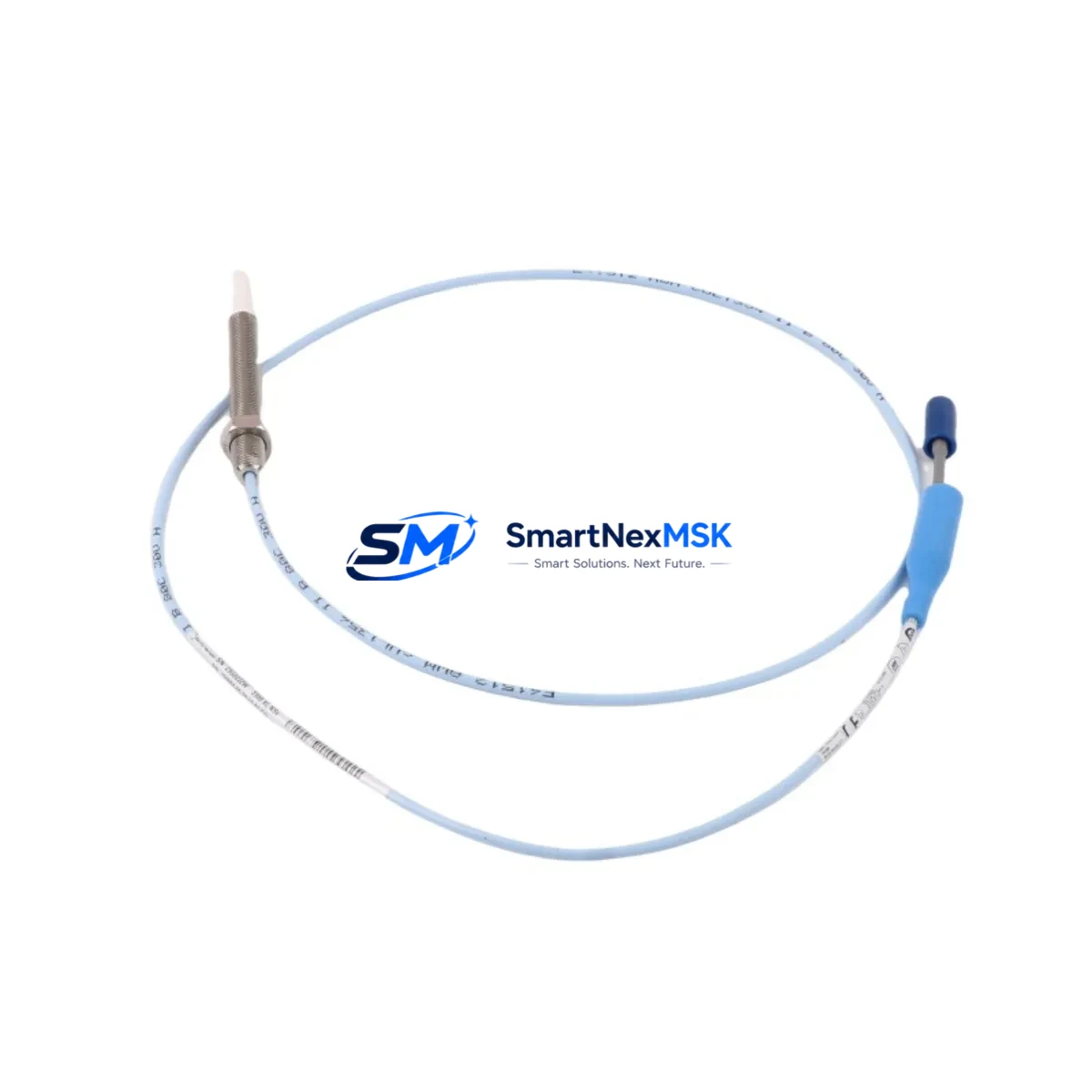

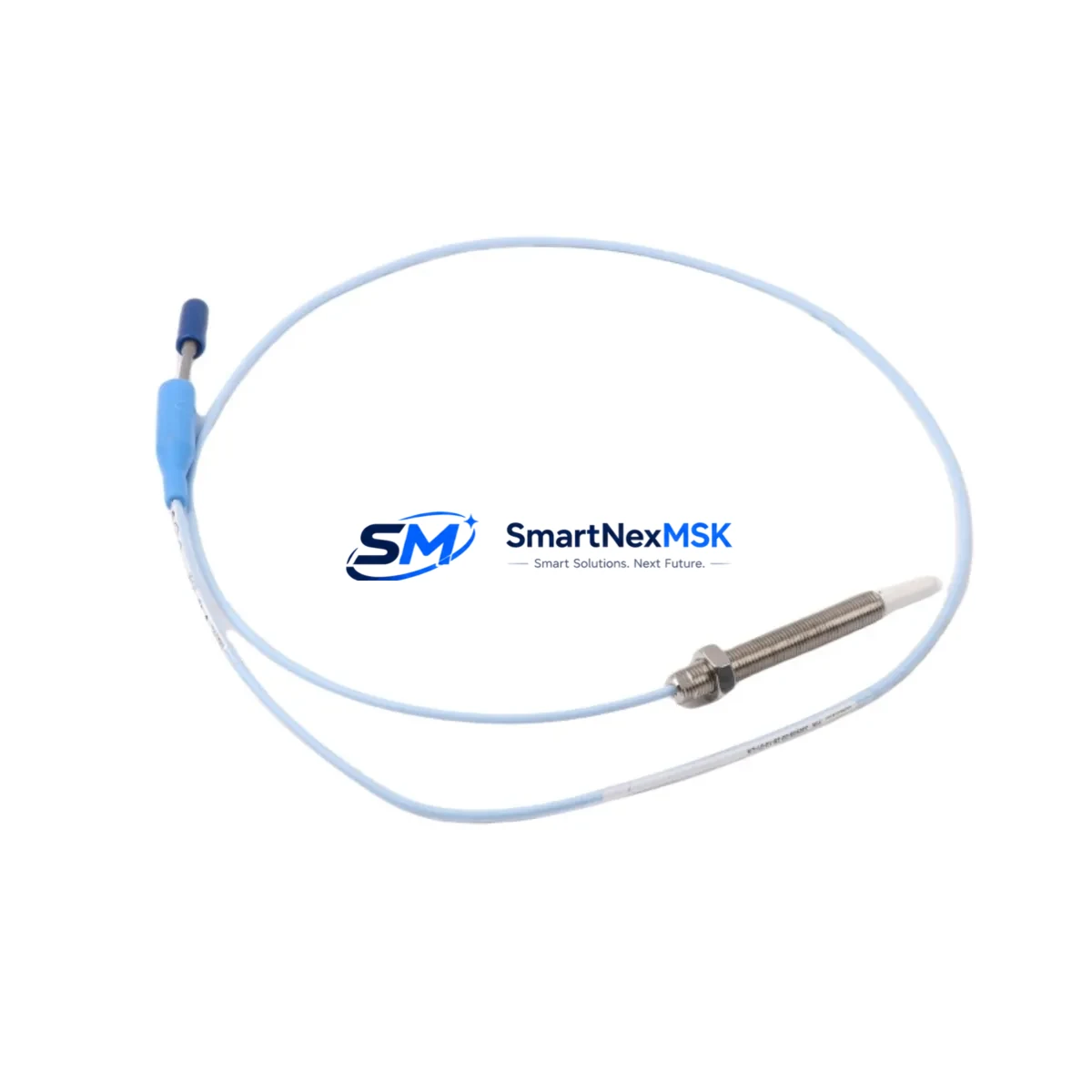

Bently Nevada 330908-00-90-05-02-05 Safety Proximity Probe

Bently Nevada 330908-00-90-05-02-05 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330908-00-90-05-02-05 is a ruggedized eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the 3300 NSv Series, this probe delivers exceptional signal stability, electromagnetic interference rejection, and mechanical durability — making it a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, water treatment, metallurgical, and port logistics facilities.

In high-load, high-interference production environments, control interruption caused by sensor drift or probe failure can trigger unplanned shutdowns, cascade equipment damage, or — in safety-instrumented systems — a failure to respond to a genuine hazard. The 330908-00-90-05-02-05 is specifically designed to eliminate these risks through its ruggedized construction, stable output linearity, and compatibility with the full Bently Nevada 3300 monitoring ecosystem.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330908-00-90-05-02-05 probe does not operate in isolation — it is the field-sensing front end of a layered machinery protection architecture. In a properly configured control cabinet, the probe signal feeds into a Bently Nevada 3300 XL 8mm Extension Cable (such as the 330130-045-00-00) before reaching a Bently Nevada 3500/42M Proximitor I/O Module, which conditions and digitizes the displacement signal for the 3500 Rack monitoring system.

To protect against power-related signal corruption, the rack is typically supplied through a Bently Nevada 3500/15 Power Supply Module, often backed by a redundant 24 VDC UPS rail. In safety-instrumented loop designs, the proximity probe output is also routed through a Pepperl+Fuchs KFD2-STC4-Ex1 Zener Barrier or equivalent galvanic isolator to prevent ground loops and surge propagation from the field into the control room.

For installations in classified hazardous areas — common in petrochemical and offshore platforms — the probe is paired with an MTL 787S+ Zener Barrier or a Bently Nevada 3300 RAM (Rack Adapter Module) to maintain intrinsic safety compliance. Communication of machinery health data upstream to the DCS or SCADA layer is handled via Modbus RTU or 4–20 mA analog output cards within the 3500 rack, ensuring that vibration trip signals reach the Emerson DeltaV Safety Logic Solver or equivalent SIS controller without latency or signal degradation.

Surge protection at the cabinet entry point — using devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST surge arrester — further shields the probe signal chain from transient overvoltages caused by nearby motor starts, arc flash events, or lightning-induced surges on cable runs exceeding 50 meters.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330908-00-90-05-02-05 is widely deployed on centrifugal compressors, reactor feed pumps, and turbine expanders in refinery units. In these environments, shaft displacement monitoring is a mandatory SIL-rated function — a probe failure that goes undetected can allow a rotor to contact seals or bearings, resulting in catastrophic equipment loss or process release. The ruggedized NSv construction ensures signal integrity even when the probe is exposed to hydrocarbon vapors, high-pressure wash-down, and ambient temperatures exceeding 150°C near hot process lines.

Power Generation: Steam turbine and gas turbine protection systems in power plants rely on proximity probes to detect shaft eccentricity, oil whirl, and rub events before they escalate to trip conditions. The 330908-00-90-05-02-05, integrated with a Bently Nevada 3500/40M Proximitor Monitor, provides the sub-millisecond response time required to initiate an emergency trip before mechanical damage propagates.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and chemical exposure. The IP67-rated probe body and armored cable of the 330908-00-90-05-02-05 maintain measurement accuracy in these conditions, supporting continuous production without sensor-related false trips or missed alarms.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment plants require reliable shaft monitoring to prevent bearing failures that could interrupt municipal water supply. The probe’s stable output over wide temperature ranges makes it suitable for both indoor pump stations and outdoor installations subject to seasonal temperature extremes.

Metallurgy & Steel: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate in environments with intense electromagnetic interference from high-current bus bars and induction heating systems. The shielded, armored cable construction of the 330908-00-90-05-02-05 provides the EMI rejection necessary to maintain clean proximity signals in these electrically noisy environments.

Port & Heavy Logistics: Large crane hoisting motors, ship-loader drives, and conveyor gearboxes in port facilities benefit from proximity-based condition monitoring to schedule predictive maintenance during planned vessel turnarounds, avoiding costly unplanned downtime during cargo operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330908-00-90-05-02-05?
All units ship with a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement or full refund, subject to return inspection.

Q2: How is each probe tested before shipment?
Every 330908-00-90-05-02-05 unit undergoes pre-shipment functional verification including output sensitivity check, cable continuity and insulation resistance test, and connector integrity inspection. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. A test report is available upon request.

Q3: Is the 330908-00-90-05-02-05 compatible with existing 3300 and 3500 Series monitoring racks?
Yes. The probe is fully compatible with the Bently Nevada 3300 XL Proximitor System and integrates directly with 3500 Series I/O modules including the 3500/42M and 3500/40M monitors. It is a direct replacement for standard 3300 NSv probes of the same cable length and tip diameter configuration, requiring no rack reconfiguration.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
Yes. SMARTNEXMSK maintains standing inventory of the 330908-00-90-05-02-05 and related 3300/3500 Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Lead times for in-stock units are typically 1–3 business days. For volume procurement or consignment arrangements, contact our sales team directly.
