Bently Nevada 330908-00-90-05-02-CN Maintenance-Ready Spare for 3300 NSv Automation

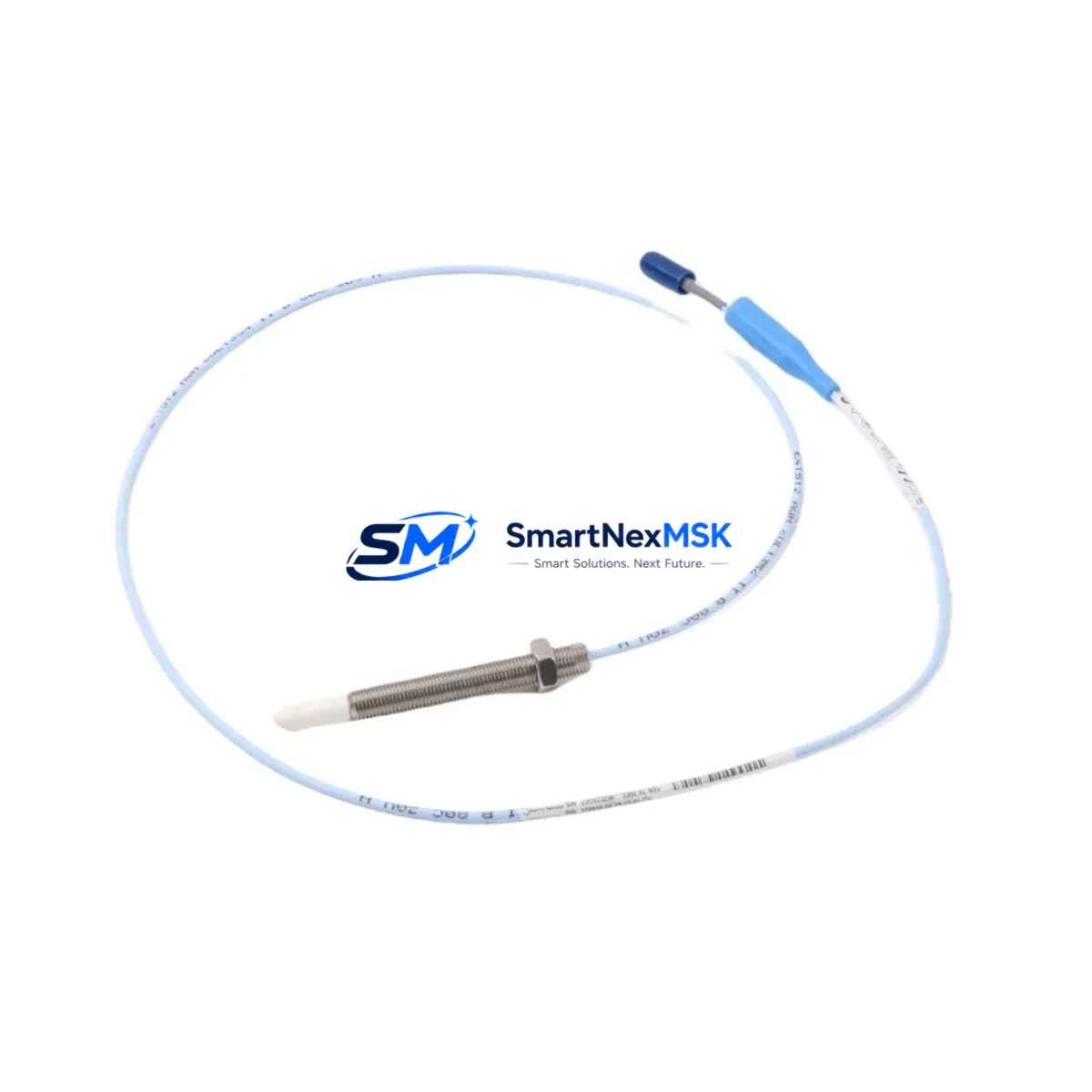

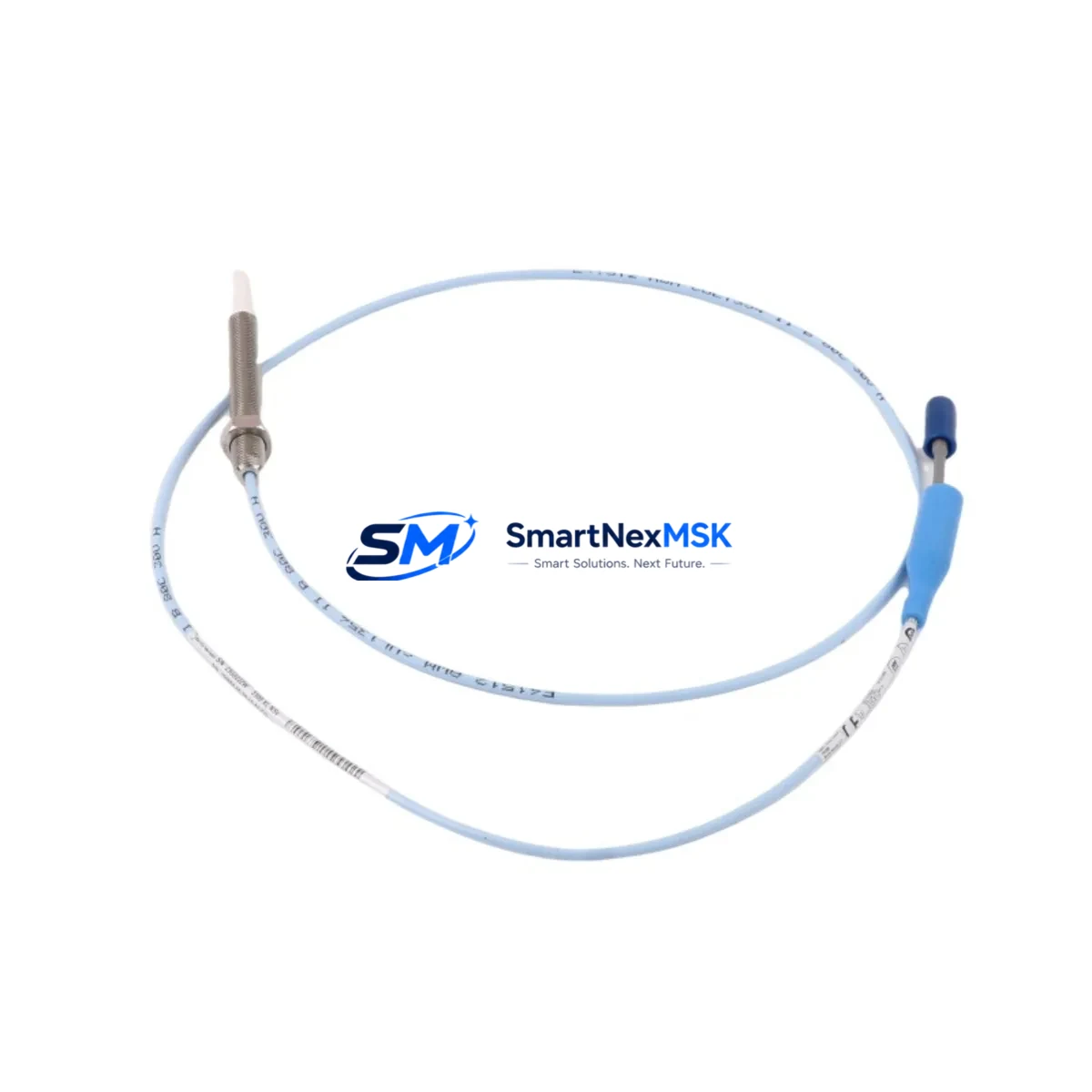

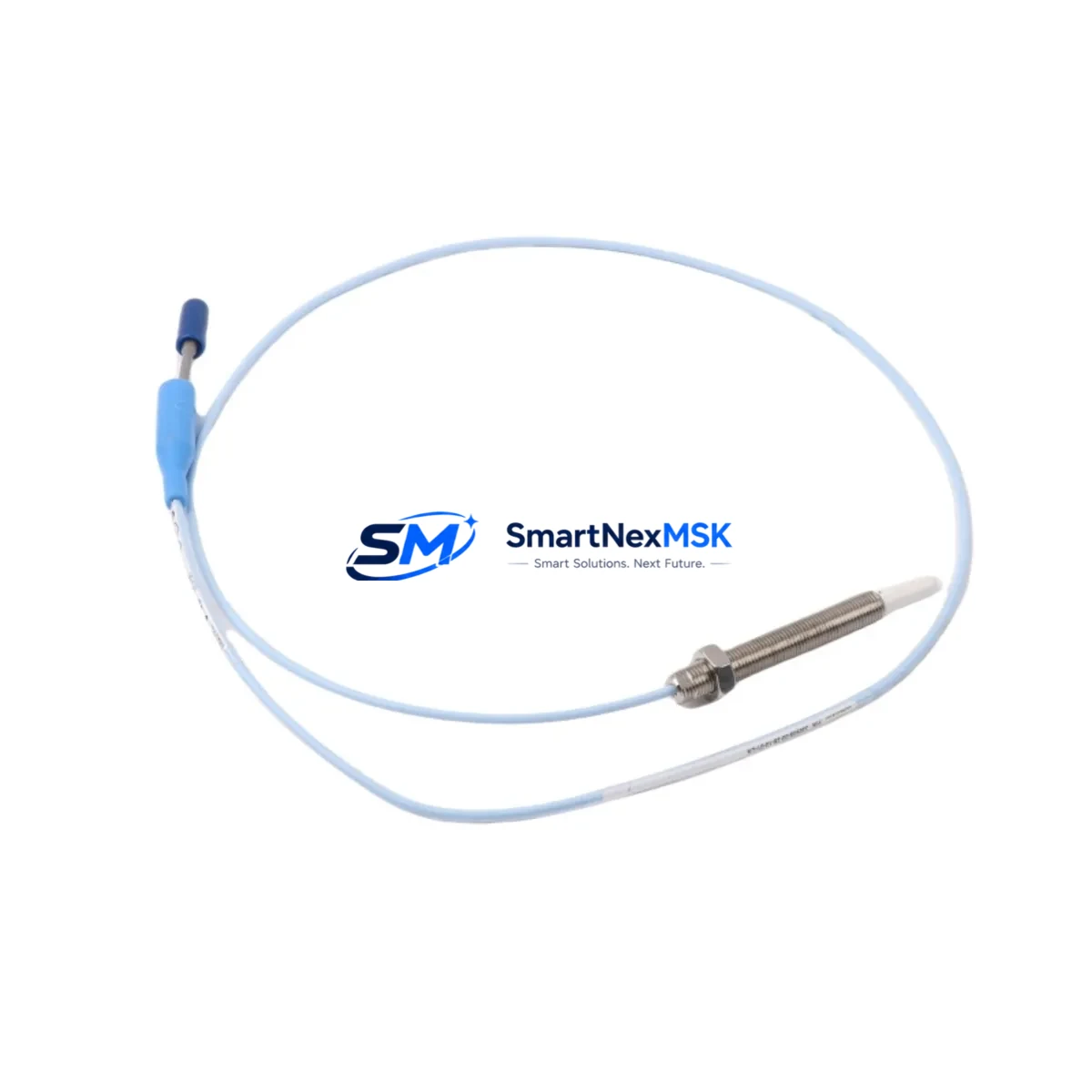

The Bently Nevada 330908-00-90-05-02-CN is an original eddy-current proximity probe engineered for the 3300 NSv vibration monitoring system. Designed for continuous-duty industrial environments, this probe delivers precise shaft displacement and vibration measurements critical to rotating machinery protection in power generation, petrochemical, oil & gas, and heavy manufacturing facilities. When a proximity probe fails or degrades, the consequences extend far beyond a single sensor — undetected shaft vibration can trigger emergency shutdowns, damage journal bearings, and result in costly unplanned downtime. Stocking a verified replacement of the 330908-00-90-05-02-CN is a fundamental element of any proactive maintenance strategy for 3300 NSv-equipped machinery trains.
This unit ships tested and verified, backed by a 12-month warranty, and is available for immediate dispatch to minimize mean time to repair (MTTR) on critical assets.
Spare Maintenance Table
| SKU / Part Number | 330908-00-90-05-02-CN |
| Brand | Bently Nevada |
| Series | 3300 NSv (Non-Standard Voltage) |
| Product Type | Eddy-Current Proximity Probe |
| Probe Length | 90 mm (active tip to connector) |
| Cable Length | 5 m (extension cable included per system config) |
| Thread Size | M8 x 1.0 (standard 3300 NSv mounting) |
| Gap Voltage Range | –2 VDC to –18 VDC (typical linear range) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Target Material Compatibility | AISI 4140 / 4340 steel shafts (standard) |
| Operating Temperature | –35°C to +177°C |
| IP Rating | IP67 (connector end sealed) |
| System Compatibility | 3300 NSv Monitor, 3300/16 Monitor, 3500 Series (with adapter) |
| Origin | USA |
| Warranty | 12 Months from date of shipment |
| Shipping | Pre-tested, ESD-packaged, express available |
Maintenance Planning for Continuous Operation
Replacing the 330908-00-90-05-02-CN in the field is rarely an isolated task. Maintenance engineers and reliability teams working on 3300 NSv-equipped machinery trains should treat a probe replacement as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components. A systematic inspection at the time of replacement significantly reduces the risk of repeat failures and secondary faults.
Begin with the 3300/05-02-CN extension cable that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — particularly in high-temperature or high-vibration zones near compressor casings or turbine pedestals. A probe in perfect condition paired with a degraded extension cable will produce erratic gap voltage readings that mimic probe failure. Always inspect and, where cable age exceeds three years, replace the extension cable as a matched set.
The 3300/55-03-01-00-00-02-05 Proximitor Sensor (or equivalent NSv proximitor) is the signal conditioning module that powers the probe and converts gap distance to a calibrated voltage output. If the replacement probe does not restore expected gap voltage within the linear range, the proximitor should be bench-tested or swapped with a known-good unit. Proximitor output drift is a common root cause of false vibration alarms in aging 3300 NSv systems.
At the monitor level, verify the 3300/16 or 3300/20 vibration monitor card is correctly configured for the NSv scale factor (7.87 V/mm). Incorrect scale factor settings in the monitor will cause the system to misinterpret valid probe signals as over-range or under-range faults. This is especially relevant when a monitor card has been replaced or firmware updated without recalibrating the channel parameters.
Inspect the DC power supply module feeding the 3300 NSv rack — typically a –24 VDC regulated supply. Voltage sag or ripple on the supply rail directly affects proximitor bias voltage and probe linearity. Use a calibrated multimeter to confirm supply voltage is within ±0.5 VDC of nominal before declaring a probe faulty. A failing power supply module can cause multiple channels to report simultaneous faults, which is often misdiagnosed as a wiring or grounding issue.
Check the terminal blocks and field wiring in the junction box between the probe and the monitor rack. Loose terminations, corroded ferrules, or incorrect shielding practices introduce noise into the low-level millivolt signals from the probe. Ensure the coaxial cable shield is grounded at one end only (typically at the monitor rack) to prevent ground loops that manifest as 50/60 Hz interference on the vibration channel.
For facilities running 3500 Series machinery protection systems alongside legacy 3300 NSv equipment, confirm that any 3500/42M or 3500/40M monitor modules are configured with the correct transducer type and scale factor if the 330908-00-90-05-02-CN is being used as a cross-compatible replacement. The 3500 platform supports NSv probes but requires explicit channel configuration in the 3500 Rack Configuration Software.
Finally, review the Keyphasor module (such as the 3300/25 or 3500/17) if the machinery train uses phase reference for synchronous vibration analysis. A degraded Keyphasor probe or loose once-per-revolution target can corrupt vector (1X, 2X) vibration data even when the radial probes are functioning correctly. Include the Keyphasor probe and its extension cable in the inspection checklist whenever performing planned maintenance on the vibration monitoring system.
Site Replacement Workflow
Replacing the 330908-00-90-05-02-CN on-site follows a structured sequence to ensure system integrity and minimize downtime. Before removing the existing probe, record the current gap voltage from the monitor display or DCS historian — this baseline confirms the probe’s installed gap and provides a reference for the replacement unit.
Isolate the channel at the monitor rack by placing the affected channel in bypass mode (if the system supports it) to prevent a spurious trip during probe removal. Disconnect the extension cable at the junction box, then carefully unthread the probe from the mounting bracket using the correct spanner to avoid damaging the probe tip or the bracket threads. Note the number of turns required to achieve the original gap — this serves as a starting point for the replacement installation.
Install the 330908-00-90-05-02-CN replacement probe finger-tight, then adjust the gap to achieve a gap voltage of approximately –10 VDC (midpoint of the linear range) as read at the proximitor output. Fine-tune the gap in 0.25 mm increments, verifying gap voltage at each step. Reconnect the extension cable, restore the channel from bypass, and confirm the monitor displays a valid vibration reading within expected baseline limits for the machine at rest or at operating speed.
Document the replacement in the maintenance management system (CMMS) with the new probe serial number, installed gap voltage, and date of replacement. This record supports future predictive maintenance trending and warranty validation.
Spare Parts Support FAQ
Q: Is the 330908-00-90-05-02-CN compatible with both 3300 NSv and 3500 Series monitors?
A: Yes. The 330908-00-90-05-02-CN is natively designed for the 3300 NSv system. It is also compatible with 3500 Series monitors (e.g., 3500/42M) when the monitor channel is configured for the NSv transducer type and 7.87 V/mm scale factor in the 3500 Rack Configuration Software. Always verify channel configuration before commissioning.
Q: How is each unit tested before shipment?
A: Every 330908-00-90-05-02-CN is bench-tested for gap voltage linearity, scale factor accuracy, and connector integrity prior to packaging. Units are shipped in ESD-protective packaging with a test record. The 12-month warranty covers defects in materials and workmanship from the date of shipment.
Q: What is the recommended spare parts inventory strategy for 3300 NSv proximity probes?
A: For critical rotating machinery (compressors, turbines, pumps), industry best practice recommends maintaining a minimum of one spare probe per monitored shaft position, plus one spare proximitor per rack. For facilities with multiple identical machine trains, a pooled spare of 2–3 probes per probe model is typically sufficient to cover planned outages and emergency replacements without excessive carrying cost.
Q: Can I use a longer or shorter cable version as a substitute if the exact configuration is unavailable?
A: The 330908 series uses a modular probe-plus-extension-cable architecture. The probe body (330908-00-90) is paired with a specific extension cable length (05 = 5 m) and connector type (02-CN). Substituting a different cable length requires recalibrating the system gap voltage range and confirming the total system resistance is within the proximitor’s specified load range. Contact our technical team before substituting cable configurations on safety-critical machinery protection loops.
