Bently Nevada 330908-00-90-10-02-00 Retrofit-Ready Proximity Probe for 3300 NSv Control Systems

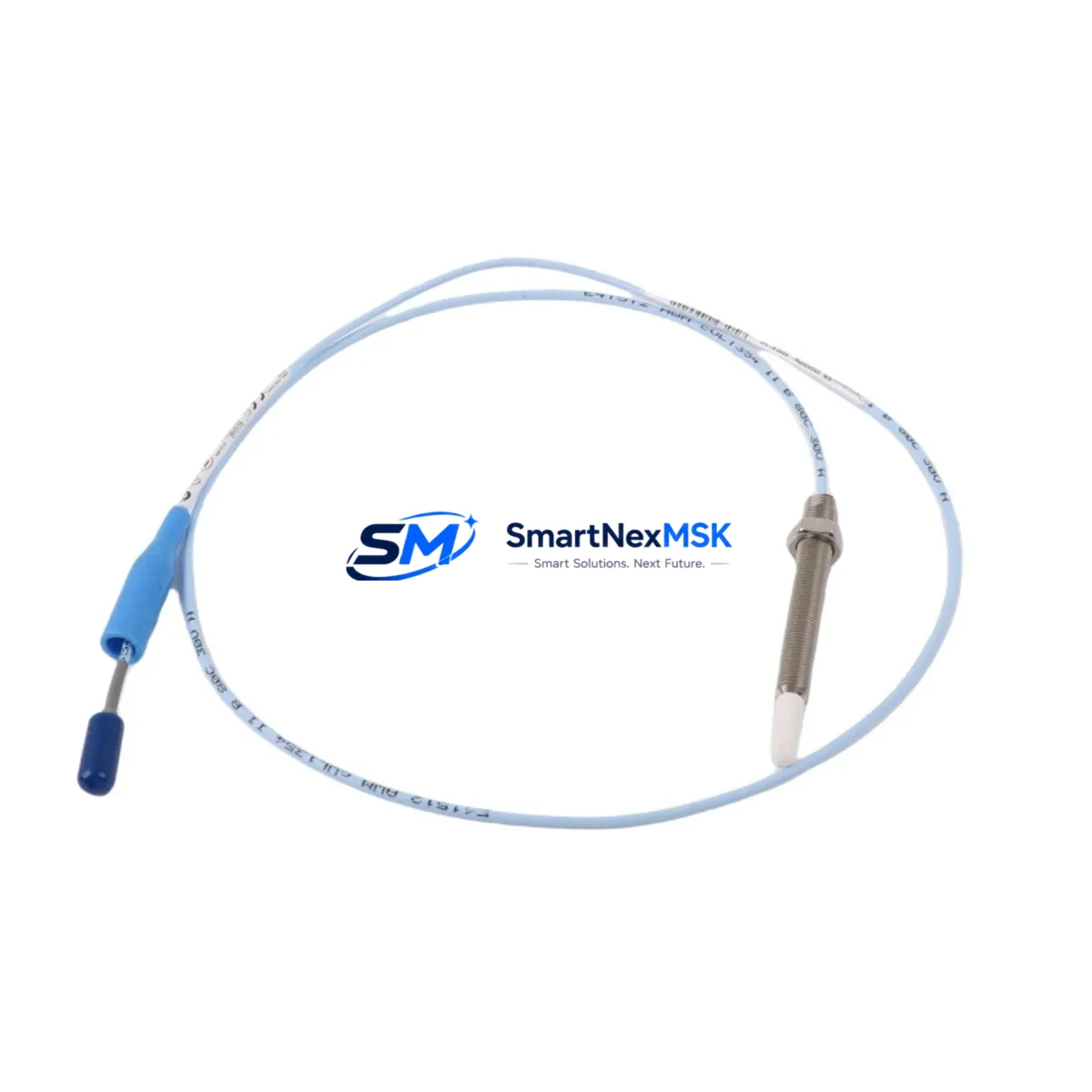

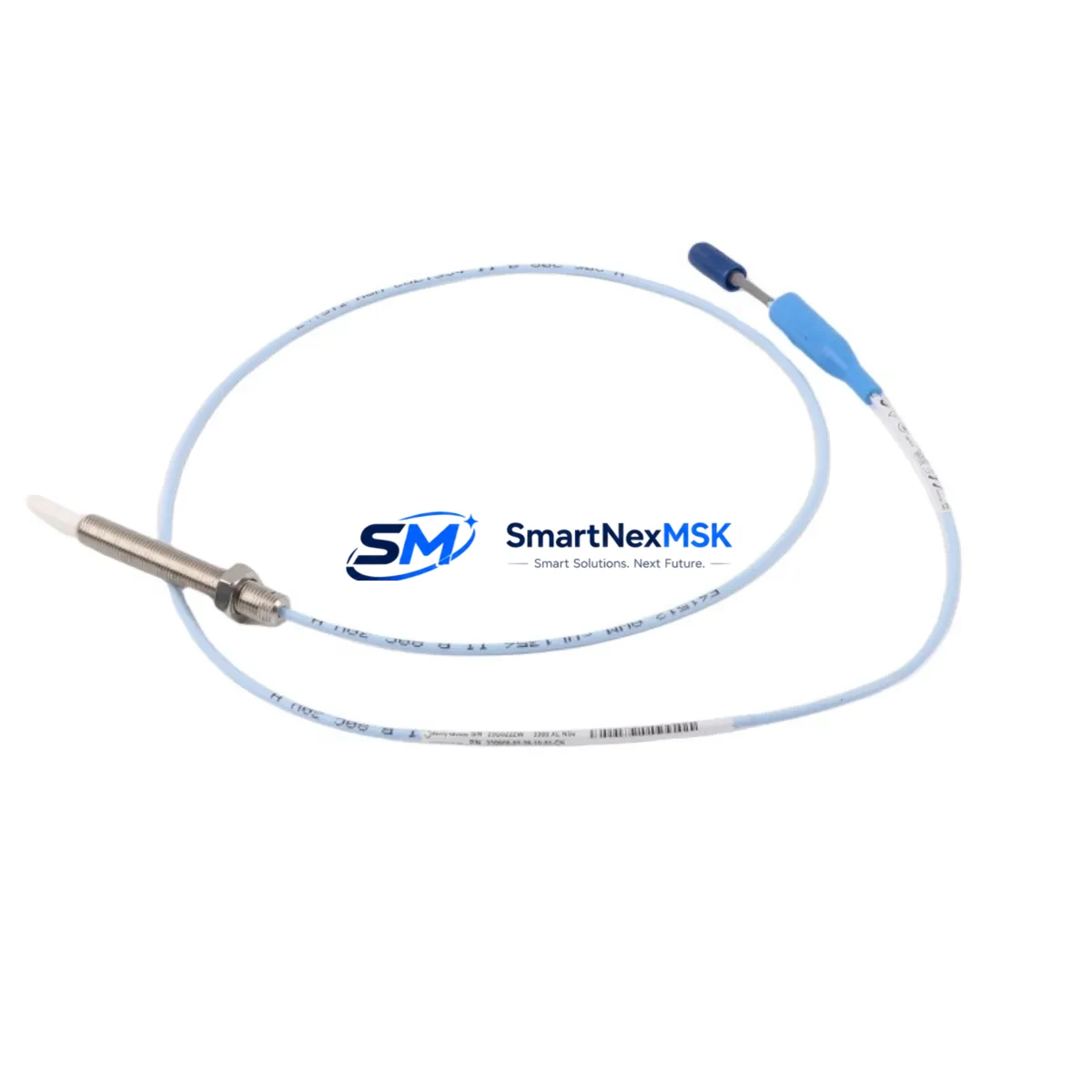

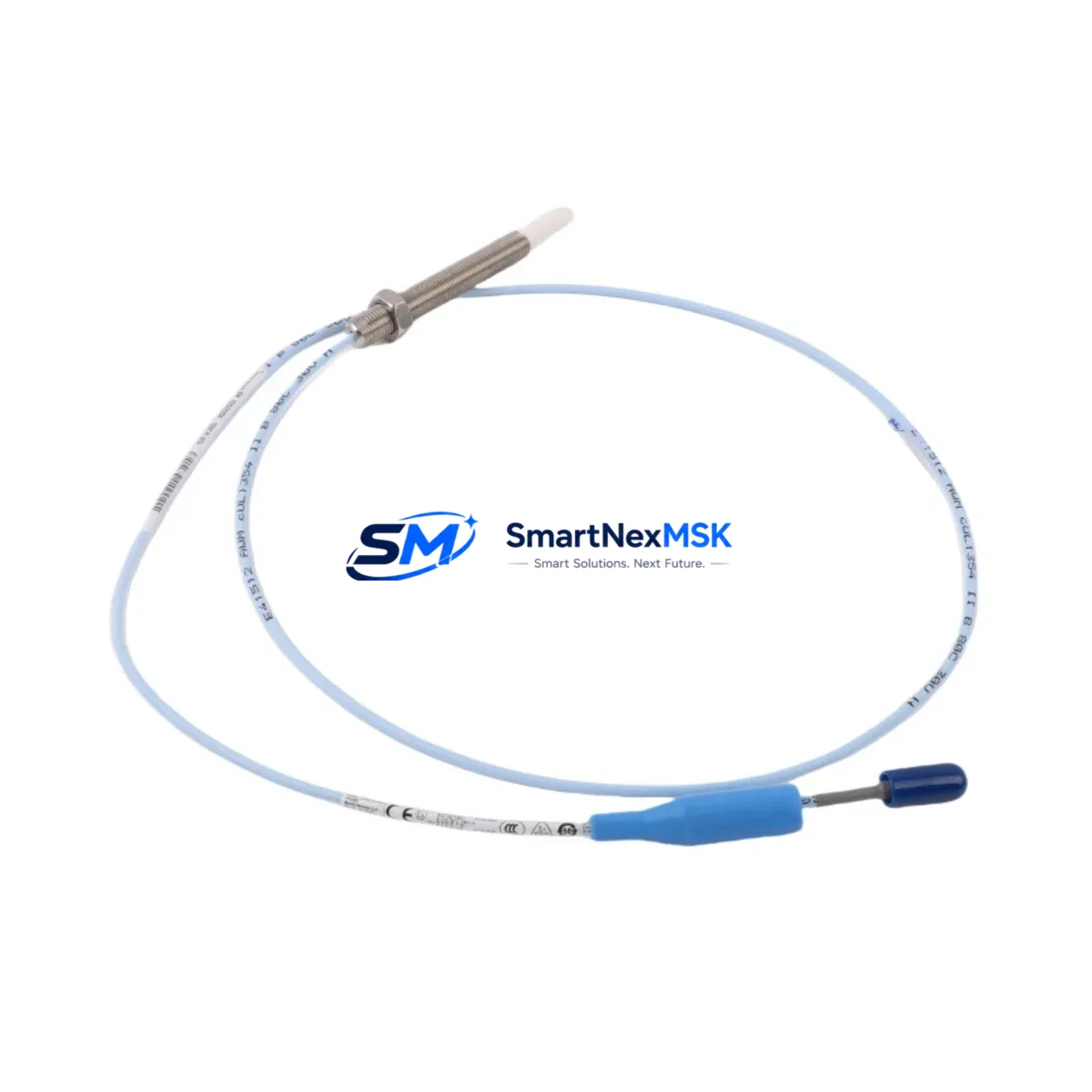

The Bently Nevada 330908-00-90-10-02-00 is a high-precision eddy-current proximity probe engineered for seamless integration into Bently Nevada 3300 NSv vibration monitoring systems. Designed to serve as a direct retrofit replacement for aging or discontinued proximity probe assemblies, this unit supports legacy machinery protection architectures while meeting the performance demands of modern continuous monitoring environments. Whether you are upgrading a turbine protection panel, replacing a failed probe in a compressor train, or migrating from an older 3300 XL platform to the 3300 NSv series, this probe delivers the dimensional accuracy, gap voltage linearity, and signal integrity required for reliable machinery health monitoring.
The 330908-00-90-10-02-00 features a 5 mm tip diameter, 200 mV/mil sensitivity, and is calibrated for use with the standard Bently Nevada extension cable and proximitor sensor pairing — typically the 330130 series extension cable and the 3300 XL 8mm proximitor. When retrofitting, engineers must verify that the existing proximitor sensor, such as the 3300/16-05-01-00 or 3300/20-05-01-00, remains compatible with the probe’s output range. Mismatched sensitivity curves between probe and proximitor are a common source of false alerts and must be resolved before commissioning.
Upgrade Compatibility Table
| Parameter | 330908-00-90-10-02-00 | Retrofit Notes |
|---|---|---|
| Tip Diameter | 5 mm | Verify bore clearance in existing probe holder |
| Sensitivity | 200 mV/mil (7.87 V/mm) | Must match proximitor calibration range |
| Cable Length | 0.9 m (probe section) | Pair with 330130 extension cable for total run length |
| Connector Type | 3-pin MIL-spec | Confirm mating connector on junction box or proximitor |
| Compatible Proximitor | 3300 XL 8mm series | 3300/16 and 3300/20 proximitors supported |
| Communication | Analog voltage output | 4–20 mA conversion via 3500/42M or 3500/45 monitor card |
| Installation | Threaded probe holder, radial or axial mount | Confirm thread pitch M8×1.0 on existing bracket |
| Warranty | 12 Months | Covered from date of shipment; includes DOA replacement |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330908-00-90-10-02-00 into an operating plant requires a structured pre-installation review. Begin by auditing the existing 3300 NSv rack configuration. A typical rack includes the 3300/01 rack power supply, one or more 3300/16 or 3300/20 proximitor modules, and the 3300/46 communication gateway for Modbus or FOUNDATION Fieldbus output to the DCS. Confirm that the rack’s power supply capacity accommodates the additional probe load — each proximitor draws approximately 25 mA from the –24 VDC bus, and an undersized 3300/01 power supply will cause intermittent resets across the entire monitoring rack.
Next, inspect the field wiring. The 330130 extension cable must be routed without sharp bends within 150 mm of the probe tip, as mechanical stress on the coaxial core introduces gap voltage drift. If the existing cable conduit is shared with high-voltage motor leads or VFD output cables, install a dedicated shielded conduit to prevent EMI-induced noise on the proximity signal. The shield drain wire must be grounded at the proximitor end only — grounding at both ends creates a ground loop that elevates the noise floor and can trigger nuisance trips on the 3500/42M vibration monitor card.
For plants migrating from the older Bently Nevada 7200 series probes to the 3300 NSv platform, note that the 7200 series used a different sensitivity standard (100 mV/mil). All 3500 series monitor cards must be reconfigured via System 1 software or the 3500 Rack Configuration Utility to reflect the new 200 mV/mil sensitivity before the probe is energized. Failure to update this parameter will result in readings that are exactly half the actual vibration amplitude — a dangerous condition in turbine protection applications.
When replacing probes on a running machine during a brief maintenance window, use the 3300 NSv bypass key switch to place the affected channel in bypass mode. This prevents a spurious trip while the probe is disconnected. Document the gap voltage of the old probe before removal (typically –10.0 VDC at the design air gap) and set the new probe to the same gap voltage using a non-ferrous feeler gauge and a calibrated DC voltmeter. After installation, verify the static gap voltage, then release the bypass and confirm that the 3500/42M or 3500/45 monitor card shows a healthy OK status before returning the machine to service.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe retrofit requires pre-staging all replacement components before the maintenance window opens. Ensure the 330908-00-90-10-02-00 probe, the paired 330130 extension cable, and any required 3300/16 or 3300/20 proximitor modules are on-site and bench-tested before the machine is taken offline. Use the Bently Nevada Tester Kit or a portable –24 VDC bench supply to verify probe output linearity across the full gap range (0 to 2.5 mm) before installation.
Preserve the original PLC or DCS program logic by exporting a backup of the 3500 rack configuration from System 1 before any hardware changes. If the plant uses a Rockwell Automation ControlLogix or CompactLogix controller to process the 4–20 mA output from the 3500/42M card, verify that the analog input scaling in the Studio 5000 program matches the new probe’s sensitivity. Similarly, if an HMI screen built on FactoryTalk View or Wonderware InTouch displays vibration trend data, confirm that the engineering unit conversion factors are updated to reflect the 200 mV/mil calibration. Overlooking this step results in HMI displays that show incorrect vibration amplitudes even when the hardware is functioning correctly.
For plants with redundant monitoring architectures, perform the probe swap on one channel at a time, allowing the redundant channel to maintain protection coverage throughout the procedure. This approach keeps the machine in a protected state and eliminates the need for a full shutdown in most cases, reducing total downtime to under two hours per probe replacement.
Retrofit Support FAQ
Q1: Is the 330908-00-90-10-02-00 a direct drop-in replacement for the 330905 or 330903 series probes?
A: The 330908 series shares the same M8×1.0 thread pitch and 3-pin connector as the 330905 and 330903 probes, making it mechanically compatible in most installations. However, sensitivity and cable length specifications differ between sub-models. Always verify the full part number suffix (e.g., -00-90-10-02-00) against the proximitor’s calibration data sheet before substituting.
Q2: What pre-shipment testing is performed on this probe?
A: Each 330908-00-90-10-02-00 unit undergoes gap voltage linearity testing across the full measurement range, connector continuity verification, and coaxial cable insulation resistance testing before shipment. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q3: Can this probe be used with third-party vibration monitors that accept standard eddy-current probe inputs?
A: Yes, provided the third-party monitor is configured for 200 mV/mil sensitivity and a –24 VDC proximitor supply voltage. Compatibility has been verified with several major DCS-integrated vibration monitoring platforms. Contact our technical team with your monitor model number for a specific compatibility confirmation.
Q4: What is the lead time and do you hold stock?
A: We maintain in-stock inventory of the 330908-00-90-10-02-00 for immediate dispatch. Standard orders ship within 1–3 business days. Expedited shipping is available for emergency breakdown situations. All units are supplied with a 12-month warranty and can be accompanied by a certificate of conformance upon request.
